| Komerční kód: | SN 4510/1 WS |
| Kód 12NC: | 857433222120 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

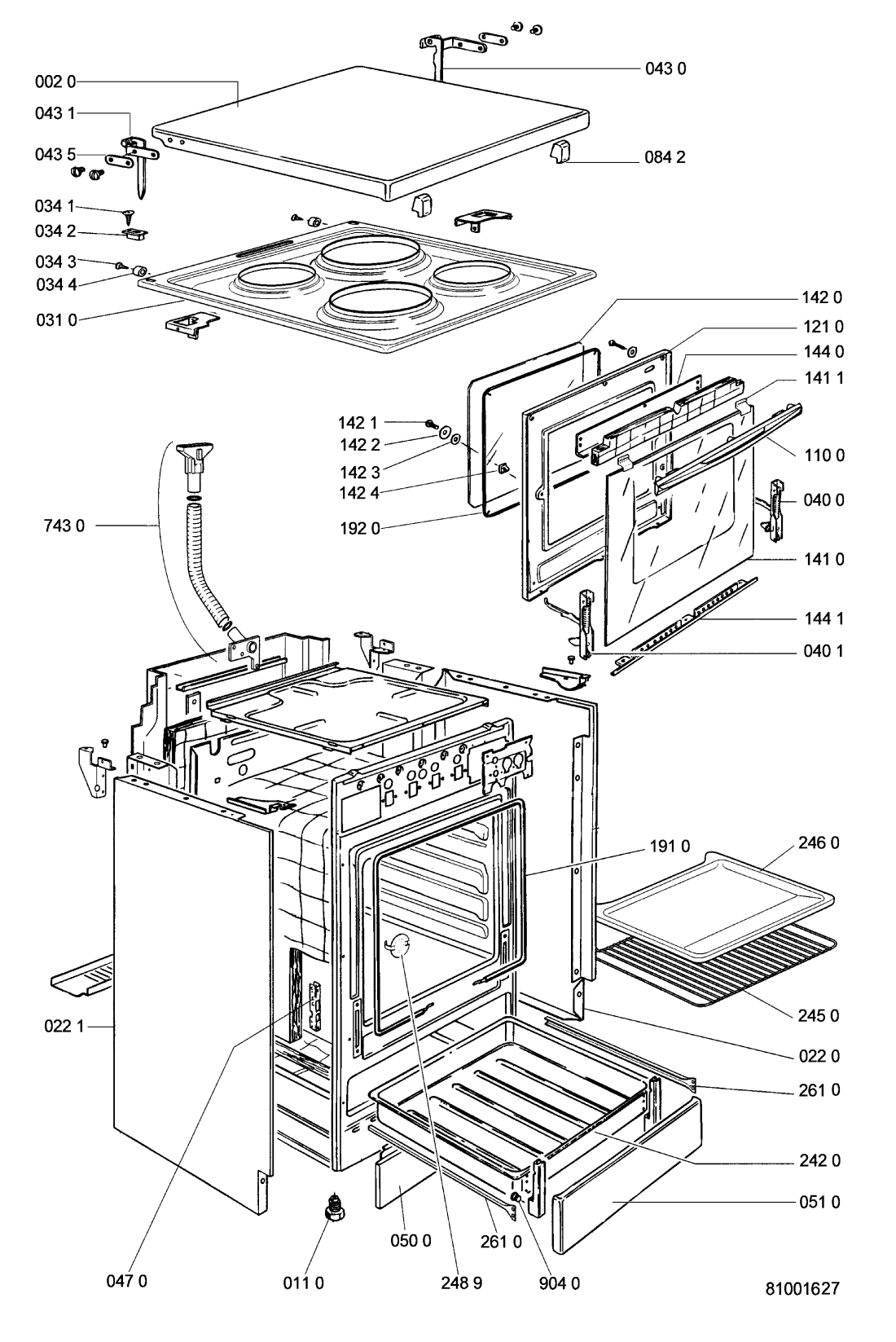

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR103058 |
C00597191
481944059818 |
Lid. | Na dotaz | Zadat poptávku | |
| 011 0 WHR103058 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 022 0 WHR103058 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR103058 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 031 0 WHR103058 |
C00755928
481244039008 |
Hob | Na dotaz | Zadat poptávku | |
| 034 1 WHR103058 |
C00336753
481950219456 |
SCREW | Na dotaz | Zadat poptávku | |
| 034 2 WHR103058 |
C00622691
481946238717 |
GUIDE | Na dotaz | Zadat poptávku | |
| 034 3 WHR103058 |
C00336754
481950218473 |
Screw | Na dotaz | Zadat poptávku | |
| 034 4 WHR103058 |
C00336218
481946689136 |
SPACER | Na dotaz | Zadat poptávku | |
| 040 0 WHR103058 |
C00499102
481941719354 |
HINGE | Na dotaz | Zadat poptávku | |
| 040 1 WHR103058 |
C00499101
481941719353 |
HINGE | Na dotaz | Zadat poptávku | |
| 043 0 WHR103058 |
C00747278
481941719347 |
Hinge | Na dotaz | Zadat poptávku | |
| 043 1 WHR103058 |
C00490578
481941719348 |
Hinge | Na dotaz | Zadat poptávku | |
| 043 5 WHR103058 |
C00597257
481946818283 |
Plate hinge. | Na dotaz | Zadat poptávku | |
| 047 0 WHR103058 |
C00339880
481941719352 |
HINGE | Na dotaz | Zadat poptávku | |
| 050 0 WHR103058 |
C00490674
481944059816 |
Plinth | Na dotaz | Zadat poptávku | |
| 051 0 WHR103058 |
C00499250
481945349622 |
Front panel | Na dotaz | Zadat poptávku | |
| 084 2 WHR103058 |
C00597248
481946248405 |
Buffer. | Na dotaz | Zadat poptávku | |
| 110 0 WHR103058 |
C00499892
481949858481 |
Handle door | Na dotaz | Zadat poptávku | |
| 121 0 WHR103058 |
C00597194
481944059867 |
Door inner. | Na dotaz | Zadat poptávku | |
| 141 0 WHR103058 |
C00596720
481945058137 |
Door glass cristal oven. | Na dotaz | Zadat poptávku | |
| 141 1 WHR103058 |
C00129128
481946698881 |
RR SHOCK ABSORBER ML45-I | Na dotaz | Zadat poptávku | |
| 142 0 WHR103058 |
C00338930
481945069701 |
INNER GLASS | Na dotaz | Zadat poptávku | |
| 142 1 WHR103058 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR103058 |
C00337256
481953258272 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR103058 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR103058 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 144 0 WHR103058 |
C00755929
481946089556 |
Trim | Na dotaz | Zadat poptávku | |
| 144 1 WHR103058 |
C00337465
481946078082 |
TRIM,DOOR | Na dotaz | Zadat poptávku | |
| 191 0 WHR103058 |
C00340467
481946669984 |
Gasket door | Na dotaz | Zadat poptávku | |
| 192 0 WHR103058 |
C00556211
481946669985 |
SEAL,GLASS INNER DOOR.. | Na dotaz | Zadat poptávku | |
| 242 0 WHR103058 |
C00499128
481941879661 |
DRAWER | Na dotaz | Zadat poptávku | |
| 245 0 WHR103058 |
C00499261
481945819325 |
ROST | Na dotaz | Zadat poptávku | |
| 246 0 WHR103058 |
C00490616
481941838342 |
Baking tray | Na dotaz | Zadat poptávku | |
| 248 9 WHR103058 |
C00499373
481946248436 |
CAP | Na dotaz | Zadat poptávku | |
| 261 0 WHR103058 |
C00336960
481946238718 |
RAIL | Na dotaz | Zadat poptávku | |
| 320 0 WHR103058 |
C00596737
481945358618 |
Control panel. | Na dotaz | Zadat poptávku | |
| 331 0 WHR103058 |
C00596686
481941258574 |
Knob switch. | Na dotaz | Zadat poptávku | |
| 334 0 WHR103058 |
C00755924
481941258586 |
Knob switch | Na dotaz | Zadat poptávku | |
| 334 1 WHR103058 |
C00596687
481941258585 |
Knob Thermostat. | Na dotaz | Zadat poptávku | |
| 351 0 WHR103058 |
C00341470
481913448464 |
Pilot lamp L= 600 mm | Na dotaz | Zadat poptávku | |
| 351 1 WHR103058 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
| 354 0 WHR103058 |
C00341776
481938118201 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR103058 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
| 452 0 WHR103058 |
C00755925
481925928756 |
Heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR103058 |
C00319652
481925928757 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 456 1 WHR103058 |
C00335920
481940478722 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 456 2 WHR103058 |
C00597253
481946689389 |
CLAMPING PIECE. | Na dotaz | Zadat poptávku | |
| 461 0 WHR103058 |
C00598824
481925998559 |
Cooking plate d.145 1000 W. | Na dotaz | Zadat poptávku | |
| 461 1 WHR103058 |
C00499869
481925998646 |
Cooking plate d=180 1 d=180 1500 W | Na dotaz | Zadat poptávku | |
| 461 6 WHR103058 |
C00555753
481925998563 |
Cooking plate d=180 2.. | Na dotaz | Zadat poptávku | |
| 483 0 WHR103058 |
C00498931
481932058338 |
Connect.cable elec.plate | Na dotaz | Zadat poptávku | |
| 491 0 WHR103058 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR103058 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR103058 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 554 0 WHR103058 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 86.30 |
||
| 554 1 WHR103058 |
C00343269
481949248166 |
Clip Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR103058 |
C00597117
481927129102 |
Thermostat cut-off. | Na dotaz | Zadat poptávku | |
| 620 0 WHR103058 |
C00755927
481927328379 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 622 0 WHR103058 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
| 651 0 WHR103058 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR103058 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 743 0 WHR103058 |
C00556328
481953048845 |
Conveyor.. | Na dotaz | Zadat poptávku | |
| 904 0 WHR103058 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
