BAUKNECHT SN 4510 WS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SN 4510 WS |
| Kód 12NC: | 857433222020 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

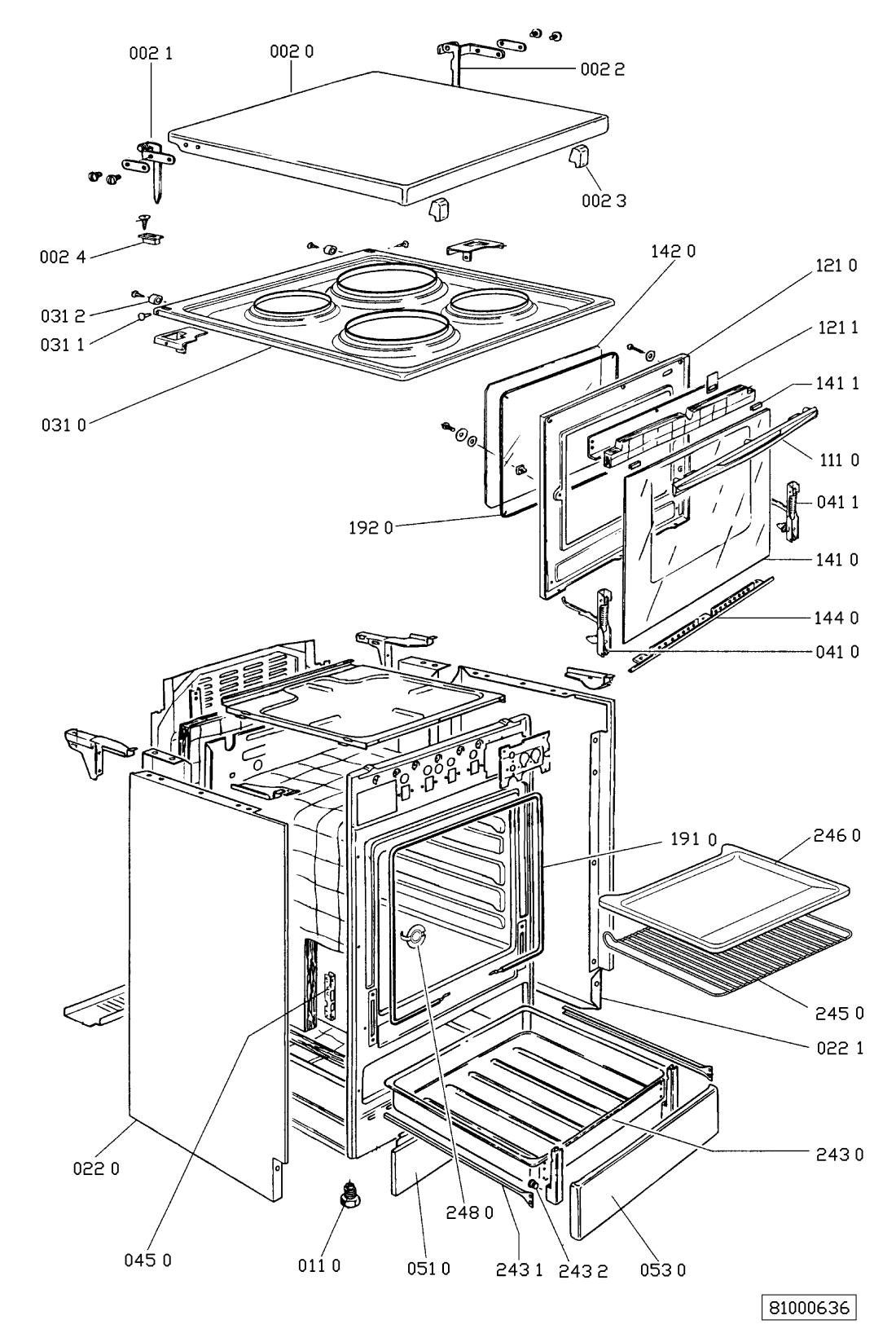

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR102931 |
C00597191
481944059818 |
Lid. | Na dotaz | Zadat poptávku | |
| 002 1 WHR102931 |
C00490578
481941719348 |
Hinge | Na dotaz | Zadat poptávku | |
| 002 2 WHR102931 |
C00747278
481941719347 |
Hinge | Na dotaz | Zadat poptávku | |
| 002 3 WHR102931 |
C00597248
481946248405 |
Buffer. | Na dotaz | Zadat poptávku | |
| 002 4 WHR102931 |
C00622691
481946238717 |
GUIDE | Na dotaz | Zadat poptávku | |
| 011 0 WHR102931 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 022 0 WHR102931 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 022 1 WHR102931 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 031 0 WHR102931 |
C00499159
481944059814 |
HOB | Na dotaz | Zadat poptávku | |
| 031 1 WHR102931 |
C00499628
481953598492 |
PIN | Na dotaz | Zadat poptávku | |
| 031 2 WHR102931 |
C00336218
481946689136 |
SPACER | Na dotaz | Zadat poptávku | |
| 041 0 WHR102931 |
C00499101
481941719353 |
HINGE | Na dotaz | Zadat poptávku | |
| 041 1 WHR102931 |
C00499102
481941719354 |
HINGE | Na dotaz | Zadat poptávku | |
| 045 0 WHR102931 |
C00339880
481941719352 |
HINGE | Na dotaz | Zadat poptávku | |
| 051 0 WHR102931 |
C00490674
481944059816 |
Plinth | Na dotaz | Zadat poptávku | |
| 053 0 WHR102931 |
C00499250
481945349622 |
Front panel | Na dotaz | Zadat poptávku | |
| 111 0 WHR102931 |
C00499892
481949858481 |
Handle door | Na dotaz | Zadat poptávku | |
| 121 0 WHR102931 |
C00596696
481944059817 |
Door,inner. | Na dotaz | Zadat poptávku | |
| 121 1 WHR102931 |
C00596775
481946669986 |
Gasket border. | Na dotaz | Zadat poptávku | |
| 141 0 WHR102931 |
C00596720
481945058137 |
Door glass cristal oven. | Na dotaz | Zadat poptávku | |
| 141 1 WHR102931 |
C00596774
481946669982 |
Gasket. | Na dotaz | Zadat poptávku | |
| 142 0 WHR102931 |
C00338930
481945069701 |
INNER GLASS | Na dotaz | Zadat poptávku | |
| 144 0 WHR102931 |
C00337465
481946078082 |
TRIM,DOOR | Na dotaz | Zadat poptávku | |
| 191 0 WHR102931 |
C00340467
481946669984 |
Gasket door | Na dotaz | Zadat poptávku | |
| 192 0 WHR102931 |
C00556211
481946669985 |
SEAL,GLASS INNER DOOR.. | Na dotaz | Zadat poptávku | |
| 243 0 WHR102931 |
C00754845
481941838348 |
Drawer | Na dotaz | Zadat poptávku | |
| 243 1 WHR102931 |
C00336960
481946238718 |
RAIL | Na dotaz | Zadat poptávku | |
| 243 2 WHR102931 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 245 0 WHR102931 |
C00499261
481945819325 |
ROST | Na dotaz | Zadat poptávku | |
| 246 0 WHR102931 |
C00490616
481941838342 |
Baking tray | Na dotaz | Zadat poptávku | |
| 248 0 WHR102931 |
C00499373
481946248436 |
CAP | Na dotaz | Zadat poptávku | |
| 320 0 WHR102931 |
C00596737
481945358618 |
Control panel. | Na dotaz | Zadat poptávku | |
| 334 0 WHR102931 |
C00596686
481941258574 |
Knob switch. | Na dotaz | Zadat poptávku | |
| 334 1 WHR102931 |
C00755924
481941258586 |
Knob switch | Na dotaz | Zadat poptávku | |
| 334 2 WHR102931 |
C00596687
481941258585 |
Knob Thermostat. | Na dotaz | Zadat poptávku | |
| 354 0 WHR102931 |
C00341470
481913448464 |
Pilot lamp L= 600 mm | Na dotaz | Zadat poptávku | |
| 354 1 WHR102931 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
| 354 2 WHR102931 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
| 354 3 WHR102931 |
C00556193
481946279853 |
Lens ,red.. | Na dotaz | Zadat poptávku | |
| 452 0 WHR102931 |
C00755925
481925928756 |
Heating element | Na dotaz | Zadat poptávku | |
| 454 0 WHR102931 |
C00319652
481925928757 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 461 0 WHR102931 |
C00755926
481925998535 |
Cooking plate d 145 1000W | Na dotaz | Zadat poptávku | |
| 461 1 WHR102931 |
C00755913
481925938194 |
Cooking plate d 180 1500 W | Na dotaz | Zadat poptávku | |
| 464 0 WHR102931 |
C00481764
481925998349 |
COOKING PLATE | Na dotaz | Zadat poptávku | |
| 491 0 WHR102931 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR102931 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 554 0 WHR102931 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 86.30 |
||
| 554 1 WHR102931 |
C00582291
481940118719 |
Clamp thermostat bulb. | Na dotaz | Zadat poptávku | |
| 562 0 WHR102931 |
C00335671
481928248262 |
Switch,thermal cut-off-thermostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR102931 |
C00755927
481927328379 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 622 0 WHR102931 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
| 651 0 WHR102931 |
C00341822
481913488106 |
Lamp E14-240V 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR102931 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 901 0 WHR102931 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
