BAUKNECHT SPC 6395/1 SCHWARZ OVEN BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPC 6395/1 SCHWARZ OVEN BK |
| Kód 12NC: | 856737916120 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A00 1 WHR47352 |
C00404655
481246079171 |
Trim door links | Na dotaz | Zadat poptávku | |
| A00 2 WHR47352 |
C00404656
481246079172 |
Trim door rechts | Na dotaz | Zadat poptávku | |
| A00 3 WHR47352 |
C00404654
481246079169 |
End profil Kondenswasser | Na dotaz | Zadat poptávku | |
| A02 1 WHR47352 |
C00403965
481245249582 |
Panel control | Na dotaz | Zadat poptávku | |
| A02 3 WHR47352 |
C00402226
481241029377 |
Knob | Na dotaz | Zadat poptávku | |
| A02 4 WHR47352 |
C00402284
481241078204 |
Button 3-er Block | Na dotaz | Zadat poptávku | |
| A02 5 WHR47352 |
C00402283
481241078203 |
Guide Tastenpilz | Na dotaz | Zadat poptávku | |
| A02 6 WHR47352 |
C00400525
481221479671 |
Unit control | Na dotaz | Zadat poptávku | |
| A02 7 WHR47352 |
C00399986
481221458293 |
Module VFD | Na dotaz | Zadat poptávku | |
| A02 8 WHR47352 |
C00401290
481232058185 |
Cable Flachband VFD-Modul | Na dotaz | Zadat poptávku | |
| A02 9 WHR47352 |
C00493112
481232058153 |
Cable flat cpl. 20-way | Na dotaz | Zadat poptávku | |
| A03 0 WHR47352 |
C00390402
480121101862 |
Holder ,CONTROL PANEL | Na dotaz | Zadat poptávku | |
| B00 2 WHR47352 |
C00403740
481245059558 |
Oven glass vormontiert | Na dotaz | Zadat poptávku | |
| B00 3 WHR47352 |
C00405370
481249858221 |
Door handle kpl. | Na dotaz | Zadat poptávku | |
| B02 0 WHR47352 |
C00402743
481241719387 |
Hinge Hotair | Na dotaz | Zadat poptávku | |
| B02 1 WHR47352 |
C00403737
481245059553 |
Glass | Na dotaz | Zadat poptávku | |
| B02 2 WHR47352 |
C00405105
481246688882 |
Gasket | Na dotaz | Zadat poptávku | |
| B02 3 WHR47352 |
C00403738
481245059554 |
Inner glass | Na dotaz | Zadat poptávku | |
| B02 4 WHR47352 |
C00486152
481246668764 |
Seal,glass | Na dotaz | Zadat poptávku | |
| B02 5 WHR47352 |
C00491974
481246818283 |
Spacer upper/lower | Na dotaz | Zadat poptávku | |
| B02 6 WHR47352 |
C00401983
481240449635 |
Spacer | Na dotaz | Zadat poptávku | |
| B02 7 WHR47352 |
C00403273
481244039642 |
Door inner | Na dotaz | Zadat poptávku | |
| C00 1 WHR47352 |
C00390403
480121101863 |
Housing ,SIDE | Na dotaz | Zadat poptávku | |
| C00 2 WHR47352 |
C00402744
481241719388 |
Hingehalf links | Na dotaz | Zadat poptávku | |
| C00 3 WHR47352 |
C00402745
481241719389 |
Hingehalf rechts | Na dotaz | Zadat poptávku | |
| C00 5 WHR47352 |
C00390404
480121101864 |
Housing ,BOTTOM | Na dotaz | Zadat poptávku | |
| C00 6 WHR47352 |
C00390405
480121101865 |
Cover ,UPPER | Na dotaz | Zadat poptávku | |
| C01 4 WHR47352 |
C00389912
480121101194 |
Cable mains | Na dotaz | Zadat poptávku | |
| C01 5 WHR47352 |
C00621354
481232118156 |
Screwed joint cable | Na dotaz | Zadat poptávku | |
| C01 6 WHR47352 |
C00499854
481250518392 |
Nut M20 | Na dotaz | Zadat poptávku | |
| C03 0 WHR47352 |
C00389926
480121101211 |
Seal | Na dotaz | Zadat poptávku | |
| C03 1 WHR47352 |
C00390406
480121101866 |
Cover | Na dotaz | Zadat poptávku | |
| C03 2 WHR47352 |
C00486172
481246688714 |
Seal | Na dotaz | Zadat poptávku | |
| C03 3 WHR47352 |
C00493621
481250018101 |
Connection silicon | Na dotaz | Zadat poptávku | |
| C03 4 WHR47352 |
C00488685
481236158384 |
Motor direct current cpl. 12 V | Na dotaz | Zadat poptávku | |
| C03 5 WHR47352 |
C00484750
481236118409 |
Ventilator cooling | Na dotaz | Zadat poptávku | |
| C03 6 WHR47352 |
C00490223
481251528101 |
Fan wheel D100 | Na dotaz | Zadat poptávku | |
| C03 7 WHR47352 |
C00488884
481241458199 |
Lever | Na dotaz | Zadat poptávku | |
| C03 8 WHR47352 |
C00383531
481221058037 |
Sensor temper. NTC 10 kO | Na dotaz | Zadat poptávku | |
| C03 8 WHR47352 |
C00491493
481240418422 |
Holder steam sensor | Na dotaz | Zadat poptávku | |
| D00 1 WHR47352 |
C00488434
481213418027 |
Lamp,oven cpl. | Na dotaz | Zadat poptávku | |
| D00 1 WHR47352 |
C00390393
480121101852 |
Lamp 25W 220V | Na dotaz | Zadat poptávku | |
| D00 2 WHR47352 |
C00486151
481246668762 |
Gasket oven lamp | Na dotaz | Zadat poptávku | |
| D00 3 WHR47352 |
C00489342
481245038012 |
Lamp screen | Na dotaz | Zadat poptávku | |
| D00 4 WHR47352 |
C00593644
481246079069 |
Frame oven lamp | Na dotaz | Zadat poptávku | |
| D00 5 WHR47352 |
C00493814
481253088026 |
Terminal male w.locking cap | Na dotaz | Zadat poptávku | |
| D00 6 WHR47352 |
C00486169
481246688711 |
Gasket | Na dotaz | Zadat poptávku | |
| D00 7 WHR47352 |
C00491792
481244269319 |
Panel rear | Na dotaz | Zadat poptávku | |
| D00 8 WHR47352 |
C00400804
481225938193 |
Heating element PTC | Na dotaz | Zadat poptávku | |
| D00 9 WHR47352 |
C00389913
480121101195 |
Cabinet | Na dotaz | Zadat poptávku | |
| D01 0 WHR47352 |
C00405104
481246688881 |
Gasket door | Na dotaz | Zadat poptávku | |
| D01 1 WHR47352 |
C00404932
481246378015 |
Buffer | Na dotaz | Zadat poptávku | |
| D01 2 WHR47352 |
C00490001
481245819153 |
Grille left | Na dotaz | Zadat poptávku | |
| D01 3 WHR47352 |
C00490000
481245819152 |
Grille right | Na dotaz | Zadat poptávku | |
| D01 4 WHR47352 |
C00492075
481252648164 |
Spacer | Na dotaz | Zadat poptávku | |
| D01 5 WHR47352 |
C00492063
481250518406 |
Knurled Nut M5 | Na dotaz | Zadat poptávku | |
| D03 0 WHR47352 |
C00389914
480121101196 |
Power unit | Na dotaz | Zadat poptávku | |
| D03 1 WHR47352 |
C00389915
480121101197 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| D03 1 WHR47352 |
C00390407
480121101867 |
Gasket ,SENSOR TEMP. | Na dotaz | Zadat poptávku | |
| D03 2 WHR47352 |
C00389916
480121101198 |
Switch,thermal | Na dotaz | Zadat poptávku | |
| D03 3 WHR47352 |
C00488655
481236118408 |
Motor fan forced air | Na dotaz | Zadat poptávku | |
| D03 4 WHR47352 |
C00488540
481225998434 |
Heating element forced air 1900 W | Na dotaz | Zadat poptávku | |
| D03 5 WHR47352 |
C00405106
481246688883 |
Gasket | Na dotaz | Zadat poptávku | |
| D03 6 WHR47352 |
C00490222
481251528099 |
Fan wheel forced air motor | Na dotaz | Zadat poptávku | |
| D03 8 WHR47352 |
C00390408
480121101868 |
Shield | Na dotaz | Zadat poptávku | |
| D03 9 WHR47352 |
C00390409
480121101869 |
Shield | Na dotaz | Zadat poptávku | |
| D04 0 WHR47352 |
C00390410
480121101871 |
Rear panel | Na dotaz | Zadat poptávku | |
| D04 1 WHR47352 |
C00491994
481249258046 |
Spring,compres. | Na dotaz | Zadat poptávku | |
| D04 2 WHR47352 |
C00486170
481246688712 |
Shaft seal | Na dotaz | Zadat poptávku | |
| E00 1 WHR47352 |
C00401365
481236018557 |
Pump, draining | Na dotaz | Zadat poptávku | |
| E00 1 WHR47352 |
C00390413
480121101872 |
Pump ,DRAINING | Na dotaz | Zadat poptávku | |
| E00 2 WHR47352 |
C00491700
481244008029 |
Pump body | Na dotaz | Zadat poptávku | |
| E00 3 WHR47352 |
C00491944
481246368021 |
Resonator | Na dotaz | Zadat poptávku | |
| E00 4 WHR47352 |
C00548189
481236038998 |
Generator Dampf kpl. vorm. 1400W | Na dotaz | Zadat poptávku | |
| E00 5 WHR47352 |
C00493687
481253018046 |
Hose steam | Na dotaz | Zadat poptávku | |
| E00 6 WHR47352 |
C00484141
481253238024 |
Plate pressure | Na dotaz | Zadat poptávku | |
| E00 7 WHR47352 |
C00500769
481236028019 |
pump filling | Na dotaz | Zadat poptávku | |
| E00 8 WHR47352 |
C00491948
481246378012 |
Resonator | Na dotaz | Zadat poptávku | |
| E01 0 WHR47352 |
C00484653
481227138461 |
Contact reed cpl. | Na dotaz | Zadat poptávku | |
| E01 1 WHR47352 |
C00405559
481252518041 |
Spray arm kpl. mit Filter | Na dotaz | Zadat poptávku | |
| E01 1 WHR47352 |
C00390417
480121101873 |
Filter | Na dotaz | Zadat poptávku | |
| E01 1 WHR47352 |
C00390418
480121101874 |
Filter ,FOR SERVICE | Na dotaz | Zadat poptávku | |
| E01 1 WHR47352 |
C00390420
480121101875 |
Filtr | 2 351 Kč
€ 92.70 |
||
| E01 2 WHR47352 |
C00488722
481240448883 |
angle iron | Na dotaz | Zadat poptávku | |
| E01 3 WHR47352 |
C00486171
481246688713 |
Gasket | Na dotaz | Zadat poptávku | |
| E01 4 WHR47352 |
C00621387
481240448884 |
Support water supply system | Na dotaz | Zadat poptávku | |
| E01 5 WHR47352 |
C00492011
481249298034 |
Clamping spring | Na dotaz | Zadat poptávku | |
| E01 6 WHR47352 |
C00401007
481228219942 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| E01 7 WHR47352 |
C00405585
481252928042 |
Spout NTC | Na dotaz | Zadat poptávku | |
| E01 8 WHR47352 |
C00389917
480121101199 |
Floater | Na dotaz | Zadat poptávku | |
| E01 9 WHR47352 |
C00389918
480121101201 |
Spout | Na dotaz | Zadat poptávku | |
| E02 0 WHR47352 |
C00405988
481254828048 |
Hose Silikon umflochten | Na dotaz | Zadat poptávku | |
| E02 1 WHR47352 |
C00493830
481254828039 |
Hose silicon | Na dotaz | Zadat poptávku | |
| E02 2 WHR47352 |
C00493831
481254828041 |
Hose silicon | Na dotaz | Zadat poptávku | |
| E02 3 WHR47352 |
C00405989
481254828049 |
Hose Silikon | Na dotaz | Zadat poptávku | |

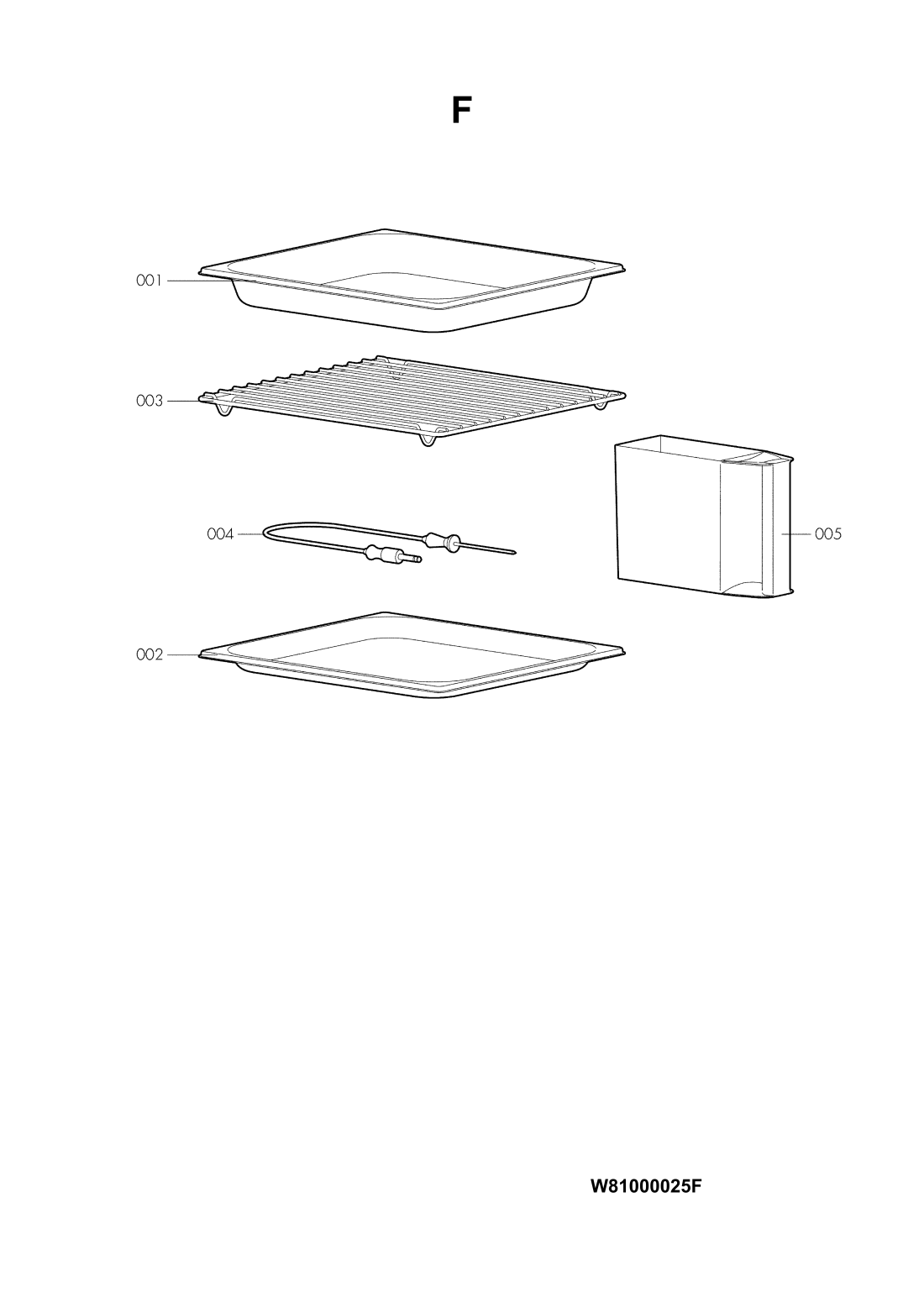

| F00 1 WHR47352 |
C00489064
481241838102 |
Tray inox | Na dotaz | Zadat poptávku | |
| F00 2 WHR47352 |
C00484980
481241838098 |
Baking sheet ungelocht, inox | Na dotaz | Zadat poptávku | |
| F00 3 WHR47352 |
C00487684
481245858348 |
Grid | Na dotaz | Zadat poptávku | |
| F00 4 WHR47352 |
C00389919
480121101202 |
Sensor Gargut | Na dotaz | Zadat poptávku | |
| F00 5 WHR47352 |
C00482912
481241889018 |
Tank | Na dotaz | Zadat poptávku | |
