| Komerční kód: | SPICR 318W |
| Kód 12NC/I.C. kód: | 859991660780 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

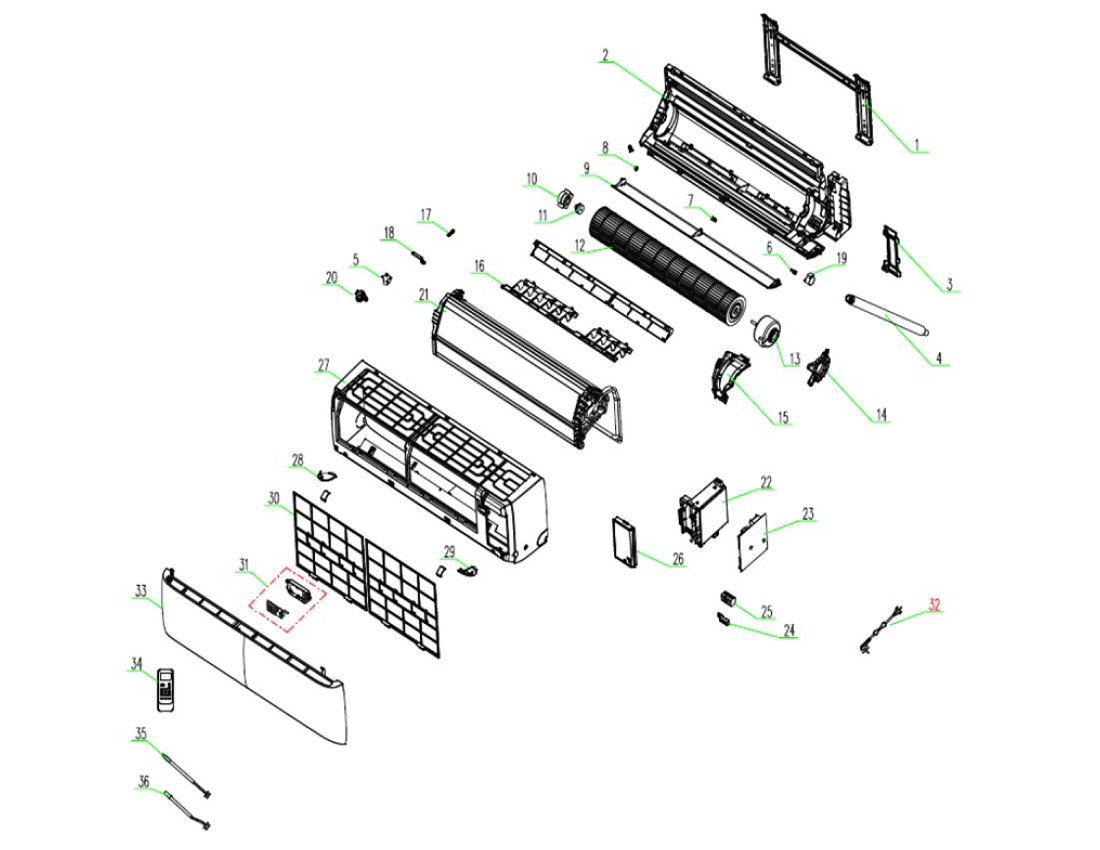

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 SPICR318WI |
C00728205
488000728205 |
installation plate assembly | Na dotaz | Zadat poptávku | |
| 002 SPICR318WI |
C00856224
488000856224 |
base holder part | Na dotaz | Zadat poptávku | |
| 003 SPICR318WI |
C00728209
488000728209 |
baffle | Na dotaz | Zadat poptávku | |
| 004 SPICR318WI |
C00728203
488000728203 |
Water pipe parts | Na dotaz | Zadat poptávku | |
| 005 SPICR318WI |
C00855998
488000855998 |
stepper motor | Na dotaz | Zadat poptávku | |
| 006 SPICR318WI |
C00728207
488000728207 |
axes | Na dotaz | Zadat poptávku | |
| 007 SPICR318WI |
C00728204
488000728204 |
axes | Na dotaz | Zadat poptávku | |
| 008 SPICR318WI |
C00666079
488000666079 |
axis sheath | Na dotaz | Zadat poptávku | |
| 009 SPICR318WI |
C00728208
488000728208 |
level vane | Na dotaz | Zadat poptávku | |
| 010 SPICR318WI |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| 011 SPICR318WI |
C00386059
480150100234 |
Ložisko | Na dotaz | Zadat poptávku | |
| 012 SPICR318WI |
C00728210
488000728210 |
cross-flow fan blade | Na dotaz | Zadat poptávku | |
| 013 SPICR318WI |
C00728211
488000728211 |
AC motor | Na dotaz | Zadat poptávku | |
| 014 SPICR318WI |
C00728212
488000728212 |
motor cover | Na dotaz | Zadat poptávku | |
| 015 SPICR318WI |
C00728213
488000728213 |
motor guard | Na dotaz | Zadat poptávku | |
| 016 SPICR318WI |
C00856225
488000856225 |
vertical louver | Na dotaz | Zadat poptávku | |
| 017 SPICR318WI |
C00855997
488000855997 |
connecting rod | Na dotaz | Zadat poptávku | |
| 018 SPICR318WI |
C00855673
488000855673 |
connecting rod | Na dotaz | Zadat poptávku | |
| 019 SPICR318WI |
C00728206
488000728206 |
Step motor | Na dotaz | Zadat poptávku | |
| 020 SPICR318WI |
C00855999
488000855999 |
motor guard | Na dotaz | Zadat poptávku | |
| 021 SPICR318WI |
C00729833
488000729833 |
Refrigeration system | Na dotaz | Zadat poptávku | |
| 022 SPICR318WI |
C00856226
488000856226 |
electric box | Na dotaz | Zadat poptávku | |
| 023 SPICR318WI |
C00856227
488000856227 |
indoor electrical control board ASSY | Na dotaz | Zadat poptávku | |
| 024 SPICR318WI |
C00728221
488000728221 |
Over clamp | Na dotaz | Zadat poptávku | |
| 025 SPICR318WI |
C00385835
482000018034 |
Connection cl. | Na dotaz | Zadat poptávku | |
| 026 SPICR318WI |
C00856228
488000856228 |
electric box cover | Na dotaz | Zadat poptávku | |
| 027 SPICR318WI |
C00728223
488000728223 |
shell | Na dotaz | Zadat poptávku | |
| 028 SPICR318WI |
C00728224
488000728224 |
decorative panel | Na dotaz | Zadat poptávku | |
| 029 SPICR318WI |
C00728225
488000728225 |
decorative panel | Na dotaz | Zadat poptávku | |
| 030 SPICR318WI |
C00728226
488000728226 |
Filter net | Na dotaz | Zadat poptávku | |
| 031 SPICR318WI |
C00728227
488000728227 |
Display Component | Na dotaz | Zadat poptávku | |
| 033 SPICR318WI |
C00856229
488000856229 |
panel | Na dotaz | Zadat poptávku | |
| 034 SPICR318WI |
C00855995
488000855995 |
wireless remote control switch | Na dotaz | Zadat poptávku | |
| 035 SPICR318WI |
C00728230
488000728230 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 036 SPICR318WI |
C00728231
488000728231 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 001 SPICR318WO |
C00520212
482000098596 |
Panel parts | Na dotaz | Zadat poptávku | |
| 002 SPICR318WO |
C00506433
482000095066 |
Fan | Na dotaz | Zadat poptávku | |
| 003 SPICR318WO |
C00856230
488000856230 |
FAN motor | Na dotaz | Zadat poptávku | |
| 004 SPICR318WO |
C00856231
488000856231 |
motor supporter assy | Na dotaz | Zadat poptávku | |
| 005 SPICR318WO |
C00506436
482000095069 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 006 SPICR318WO |
C00506437
482000095070 |
Plate upper | Na dotaz | Zadat poptávku | |
| 007 SPICR318WO |
C00506438
482000095071 |
Guard back | Na dotaz | Zadat poptávku | |
| 008 SPICR318WO |
C00856232
488000856232 |
Condenser assembly | Na dotaz | Zadat poptávku | |
| 009 SPICR318WO |
C00627234
488000627234 |
base holder part | Na dotaz | Zadat poptávku | |
| 010 SPICR318WO |
C00506441
482000095074 |
Partition | Na dotaz | Zadat poptávku | |
| 012 SPICR318WO |
C00856233
488000856233 |
4-way valve assembly | Na dotaz | Zadat poptávku | |
| 013 SPICR318WO |
C00386291
482000021198 |
Coil | Na dotaz | Zadat poptávku | |
| 014 SPICR318WO |
C00409747
482000006124 |
Valve 4 Way | Na dotaz | Zadat poptávku | |
| 015 SPICR318WO |
C00856264
488000856264 |
Inverter compressor | Na dotaz | Zadat poptávku | |
| 016 SPICR318WO |
C00856139
488000856139 |
Connecting wire for compressor | Na dotaz | Zadat poptávku | |
| 017 SPICR318WO |
C00856279
488000856279 |
Capillary assembly | Na dotaz | Zadat poptávku | |
| 018 SPICR318WO |
C00506446
482000095079 |
Valve 2 way | Na dotaz | Zadat poptávku | |
| 019 SPICR318WO |
C00513378
482000096855 |
Valve 3-WAY | Na dotaz | Zadat poptávku | |
| 020 SPICR318WO |
C00506447
482000095080 |
Kryt kabelů | 1 309 Kč
€ 52.10 |
||
| 021 SPICR318WO |
C00728237
488000728237 |
wiring distribution cover assy | Na dotaz | Zadat poptávku | |
| 022 SPICR318WO |
C00506468
482000095081 |
Plate connector | Na dotaz | Zadat poptávku | |
| 023 SPICR318WO |
C00506469
482000095082 |
Terminal board | Na dotaz | Zadat poptávku | |
| 024 SPICR318WO |
C00856280
488000856280 |
Controller Component | Na dotaz | Zadat poptávku | |
| 025 SPICR318WO |
C00856281
488000856281 |
electric box | Na dotaz | Zadat poptávku | |
| 026 SPICR318WO |
C00856282
488000856282 |
electric box cover | Na dotaz | Zadat poptávku | |
| 027 SPICR318WO |
C00666094
488000666094 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 028 SPICR318WO |
C00636835
488000636835 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 029 SPICR318WO |
C00506474
482000095087 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 030 SPICR318WO |
C00856283
488000856283 |
sensor mounting plate | Na dotaz | Zadat poptávku | |
| 999 SPICR318WO |
C00634045
488000634045 |
Kryt ventilu | 422 Kč
€ 16.80 |
||
