| Komerční kód: | SPIW309A3WF20 |
| Kód 12NC: | 859991583420 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

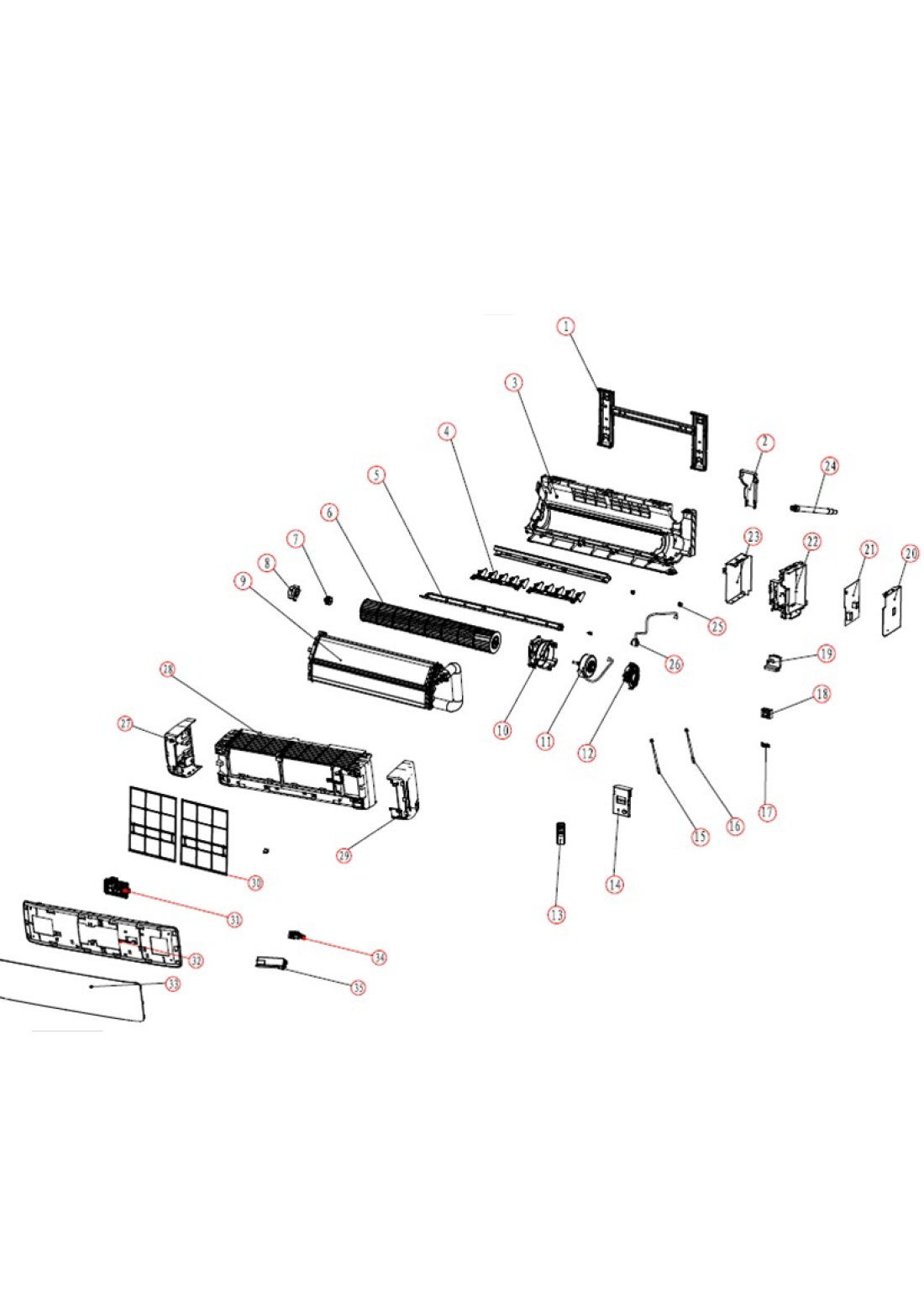

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 SPIW309 |
C00536088
482000010365 |
installation plate assy | Na dotaz | Zadat poptávku | |
| 002 SPIW309 |
C00533351
488000533351 |
baffle | Na dotaz | Zadat poptávku | |
| 003 SPIW309 |
C00385800
482000021162 |
Rear panel | Na dotaz | Zadat poptávku | |
| 004 SPIW309 |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| 005 SPIW309 |
C00386332
482000021163 |
Air guide | Na dotaz | Zadat poptávku | |
| 006 SPIW309 |
C00385810
482000010356 |
Ventilátor klim.vnitřní jednotka | 2 031 Kč
€ 80.10 |
||
| 007 SPIW309 |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| 008 SPIW309 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| 009 SPIW309 |
C00506425
482000095057 |
Coolingsystem | Na dotaz | Zadat poptávku | |
| 010 SPIW309 |
C00636785
488000636785 |
motor guard | Na dotaz | Zadat poptávku | |
| 011 SPIW309 |
C00520222
482000098606 |
Motor fan | Na dotaz | Zadat poptávku | |
| 012 SPIW309 |
C00630579
488000630579 |
motor cover | Na dotaz | Zadat poptávku | |
| 013 SPIW309 |
C00506428
482000095060 |
Dálkové ovládání | 4 663 Kč
€ 183.90 |
||
| 014 SPIW309 |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| 015 SPIW309 |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 016 SPIW309 |
C00385824
482000010333 |
SONDA TEPELNÁ | Na dotaz | Zadat poptávku | |
| 017 SPIW309 |
C00385825
482000092111 |
Clamp | Na dotaz | Zadat poptávku | |
| 018 SPIW309 |
C00385835
482000018034 |
Connection cl. | Na dotaz | Zadat poptávku | |
| 019 SPIW309 |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| 020 SPIW309 |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| 021 SPIW309 |
C00520283
482000098626 |
Control board indoor main | Na dotaz | Zadat poptávku | |
| 022 SPIW309 |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| 023 SPIW309 |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| 024 SPIW309 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| 025 SPIW309 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 026 SPIW309 |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| 027 SPIW309 |
C00520285
482000098628 |
P.U.shell | Na dotaz | Zadat poptávku | |
| 028 SPIW309 |
C00630577
488000630577 |
shell | Na dotaz | Zadat poptávku | |
| 029 SPIW309 |
C00520286
482000098629 |
P.U.shell | Na dotaz | Zadat poptávku | |
| 030 SPIW309 |
C00520287
482000098630 |
Filter net | Na dotaz | Zadat poptávku | |
| 031 SPIW309 |
C00520288
482000098631 |
Display unit | Na dotaz | Zadat poptávku | |
| 032 SPIW309 |
C00520289
482000098632 |
Front panel seat | Na dotaz | Zadat poptávku | |
| 033 SPIW309 |
C00520309
482000098652 |
Panel | Na dotaz | Zadat poptávku | |
| 034 SPIW309 |
C00506412
482000095044 |
Electronic box | Na dotaz | Zadat poptávku | |
| 035 SPIW309 |
C00506467
482000095064 |
Plate Communication conver | Na dotaz | Zadat poptávku | |
| 001 SPIW309U |
C00520212
482000098596 |
Panel parts | Na dotaz | Zadat poptávku | |
| 002 SPIW309U |
C00506433
482000095066 |
Fan | Na dotaz | Zadat poptávku | |
| 003 SPIW309U |
C00506434
482000095067 |
Motor fan | Na dotaz | Zadat poptávku | |
| 004 SPIW309U |
C00520214
482000098598 |
Motor supporter assy | Na dotaz | Zadat poptávku | |
| 005 SPIW309U |
C00506436
482000095069 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 006 SPIW309U |
C00506437
482000095070 |
Plate upper | Na dotaz | Zadat poptávku | |
| 007 SPIW309U |
C00506438
482000095071 |
Guard back | Na dotaz | Zadat poptávku | |
| 008 SPIW309U |
C00506439
482000095072 |
Condenser | Na dotaz | Zadat poptávku | |
| 009 SPIW309U |
C00506440
482000095073 |
Holder | Na dotaz | Zadat poptávku | |
| 010 SPIW309U |
C00506441
482000095074 |
Partition | Na dotaz | Zadat poptávku | |
| 011 SPIW309U |
C00627245
488000627245 |
Induktor PFC | Na dotaz | Zadat poptávku | |
| 012 SPIW309U |
C00506442
482000095075 |
Valve 4 way | Na dotaz | Zadat poptávku | |
| 013 SPIW309U |
C00386291
482000021198 |
Coil | Na dotaz | Zadat poptávku | |
| 014 SPIW309U |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| 015 SPIW309U |
C00506443
482000095076 |
Compressor | Na dotaz | Zadat poptávku | |
| 016 SPIW309U |
C00386293
482000021200 |
Cable harness | Na dotaz | Zadat poptávku | |
| 017 SPIW309U |
C00506445
482000095078 |
Valve Electronic expansion | Na dotaz | Zadat poptávku | |
| 018 SPIW309U |
C00506446
482000095079 |
Valve 2 way | Na dotaz | Zadat poptávku | |
| 019 SPIW309U |
C00512581
488000512581 |
3-WAY VENTIL | Na dotaz | Zadat poptávku | |
| 020 SPIW309U |
C00506447
482000095080 |
Kryt kabelů | 1 309 Kč
€ 51.60 |
||
| 021 SPIW309U |
C00503746
482000093976 |
kryt | 240 Kč
€ 9.50 |
||
| 022 SPIW309U |
C00636791
488000636791 |
Connecting Board | Na dotaz | Zadat poptávku | |
| 023 SPIW309U |
C00506469
482000095082 |
Terminal board | Na dotaz | Zadat poptávku | |
| 024 SPIW309U |
C00636792
488000636792 |
electric box | Na dotaz | Zadat poptávku | |
| 025 SPIW309U |
C00636798
488000636798 |
Outdoor Main Control Board Component | Na dotaz | Zadat poptávku | |
| 026 SPIW309U |
C00520235
482000098619 |
Cover electric box | Na dotaz | Zadat poptávku | |
| 027 SPIW309U |
C00506473
482000095086 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 028 SPIW309U |
C00506474
482000095087 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 029 SPIW309U |
C00386310
482000021210 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 030 SPIW309U |
C00506475
482000095088 |
Sensor mounting plate | Na dotaz | Zadat poptávku | |
