| Komerční kód: | SPIW409A2WF |
| Kód 12NC: | 853005001000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

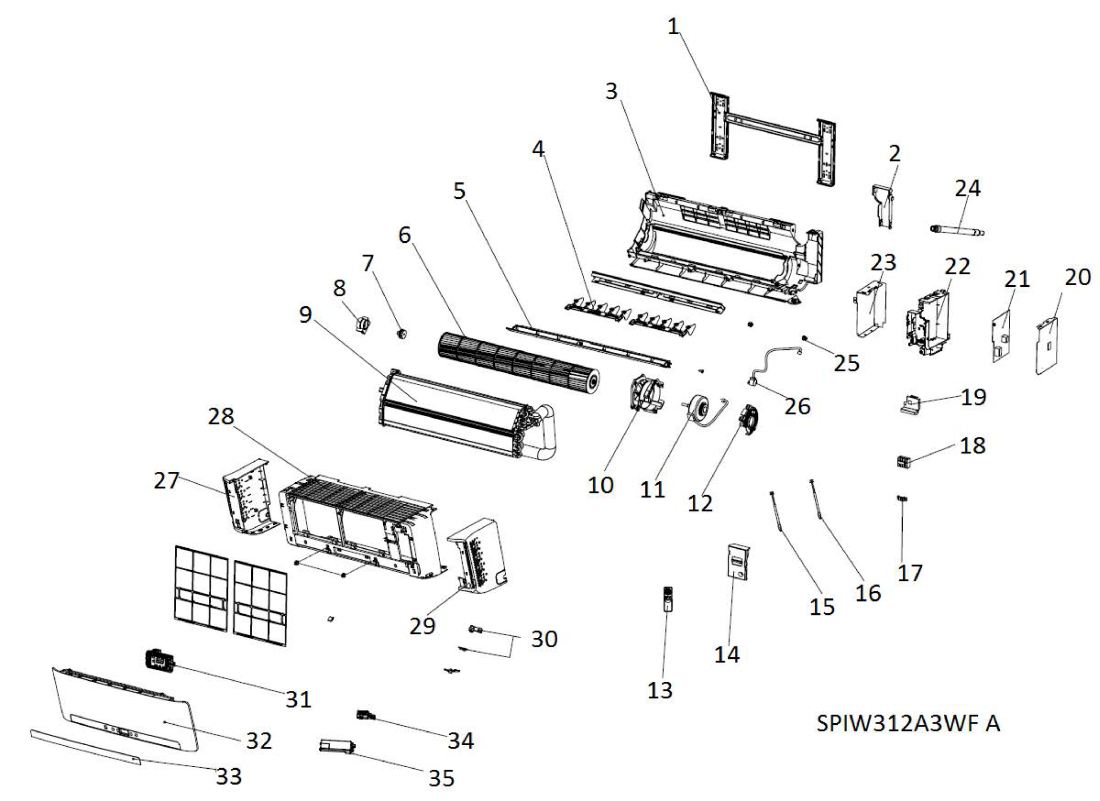

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 10A WHR11395 |
C00385815
482000010311 |
Protect motor | Na dotaz | Zadat poptávku | |
| 10B WHR11395 |
C00385879
482000000390 |
Separator | Na dotaz | Zadat poptávku | |
| 11A WHR11395 |
C00378271
482000010312 |
Motor fan | Na dotaz | Zadat poptávku | |
| 11B WHR11395 |
C00385880
482000000386 |
Transformer | Na dotaz | Zadat poptávku | |
| 12A WHR11395 |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
| 12B WHR11395 |
C00386343
482000010345 |
Valve 4 way cpl. | Na dotaz | Zadat poptávku | |
| 13A WHR11395 |
C00506428
482000095060 |
Dálkové ovládání | 4 663 Kč
€ 183.90 |
||
| 13B WHR11395 |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| 14A WHR11395 |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| 14B WHR11395 |
C00385885
482000000397 |
Valve magnet | Na dotaz | Zadat poptávku | |
| 15A WHR11395 |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 15B WHR11395 |
C00386344
482000017848 |
Compressor ASM89D18UFZ - R410A | Na dotaz | Zadat poptávku | |
| 16A WHR11395 |
C00385824
482000010333 |
SONDA TEPELNÁ | Na dotaz | Zadat poptávku | |
| 16B WHR11395 |
C00385937
482000000391 |
Cable harness | Na dotaz | Zadat poptávku | |
| 17A WHR11395 |
C00385825
482000092111 |
Clamp | Na dotaz | Zadat poptávku | |
| 17B WHR11395 |
C00377024
480150100887 |
Support Valve | Na dotaz | Zadat poptávku | |
| 18A WHR11395 |
C00385835
482000018034 |
Connection cl. | Na dotaz | Zadat poptávku | |
| 18B WHR11395 |
C00386345
482000021179 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 19A WHR11395 |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| 19B WHR11395 |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| 1A WHR11395 |
C00536088
482000010365 |
installation plate assy | Na dotaz | Zadat poptávku | |
| 1B WHR11395 |
C00385865
482000000500 |
Panel front | Na dotaz | Zadat poptávku | |
| 20A WHR11395 |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| 20B WHR11395 |
C00385957
482000010346 |
Valve 3 way | Na dotaz | Zadat poptávku | |
| 21A WHR11395 |
C00506482
482000095095 |
Control board indoor | Na dotaz | Zadat poptávku | |
| 21B WHR11395 |
C00385958
480150100879 |
Panel side | Na dotaz | Zadat poptávku | |
| 22A WHR11395 |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| 22B WHR11395 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| 23A WHR11395 |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| 23B WHR11395 |
C00385966
482000000379 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| 24A WHR11395 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| 24B WHR11395 |
C00385981
482000000382 |
Support plate | Na dotaz | Zadat poptávku | |
| 25A WHR11395 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 25B WHR11395 |
C00385982
482000021177 |
Terminal board | Na dotaz | Zadat poptávku | |
| 26A WHR11395 |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| 26B WHR11395 |
C00506484
482000095097 |
Control unit | Na dotaz | Zadat poptávku | |
| 27A WHR11395 |
C00386264
482000021165 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| 27B WHR11395 |
C00506414
482000095046 |
Filter box | Na dotaz | Zadat poptávku | |
| 28A WHR11395 |
C00386335
482000091815 |
SHELL | Na dotaz | Zadat poptávku | |
| 28B WHR11395 |
C00385985
480150100377 |
Sensor temper. Outdoor ambient | Na dotaz | Zadat poptávku | |
| 29A WHR11395 |
C00386267
482000021166 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| 29B WHR11395 |
C00378141
482000000402 |
TEMPERATURE SENSOR | Na dotaz | Zadat poptávku | |
| 2A WHR11395 |
C00513507
482000010355 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 2B WHR11395 |
C00378154
482000000515 |
Vrtule ventilátoru | 963 Kč
€ 38.00 |
||
| 30A WHR11395 |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
| 30B WHR11395 |
C00378140
482000000401 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 31A WHR11395 |
C00506430
482000095062 |
Display unit | Na dotaz | Zadat poptávku | |
| 32A WHR11395 |
C00417416
482000021169 |
Front panel | Na dotaz | Zadat poptávku | |
| 33A WHR11395 |
C00506483
482000095096 |
Display membrane | Na dotaz | Zadat poptávku | |
| 34A WHR11395 |
C00506412
482000095044 |
Electronic box | Na dotaz | Zadat poptávku | |
| 35A WHR11395 |
C00506467
482000095064 |
Plate Communication conver | Na dotaz | Zadat poptávku | |
| 3A WHR11395 |
C00385800
482000021162 |
Rear panel | Na dotaz | Zadat poptávku | |
| 3B WHR11395 |
C00385866
482000017843 |
Motor fan outdoor | Na dotaz | Zadat poptávku | |
| 4A WHR11395 |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| 4B WHR11395 |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| 5A WHR11395 |
C00386332
482000021163 |
Air guide | Na dotaz | Zadat poptávku | |
| 5B WHR11395 |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
| 6A WHR11395 |
C00385810
482000010356 |
Ventilátor klim.vnitřní jednotka | 2 031 Kč
€ 80.10 |
||
| 6B WHR11395 |
C00385871
480150100111 |
Cover top | Na dotaz | Zadat poptávku | |
| 7A WHR11395 |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| 7B WHR11395 |
C00385873
482000000384 |
Air grid REAR | Na dotaz | Zadat poptávku | |
| 8A WHR11395 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| 8B WHR11395 |
C00386342
482000010341 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| 999 WHR11395 |
C00541607 | IFU WHP | Na dotaz | Zadat poptávku | |
| 9A WHR11395 |
C00385813
482000017859 |
Evaporator | Na dotaz | Zadat poptávku | |
| 9B WHR11395 |
C00385878
482000010350 |
Base | Na dotaz | Zadat poptávku | |
