| Komerční kód: | SPOW4304/3D |
| Kód 12NC: | 852644379000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

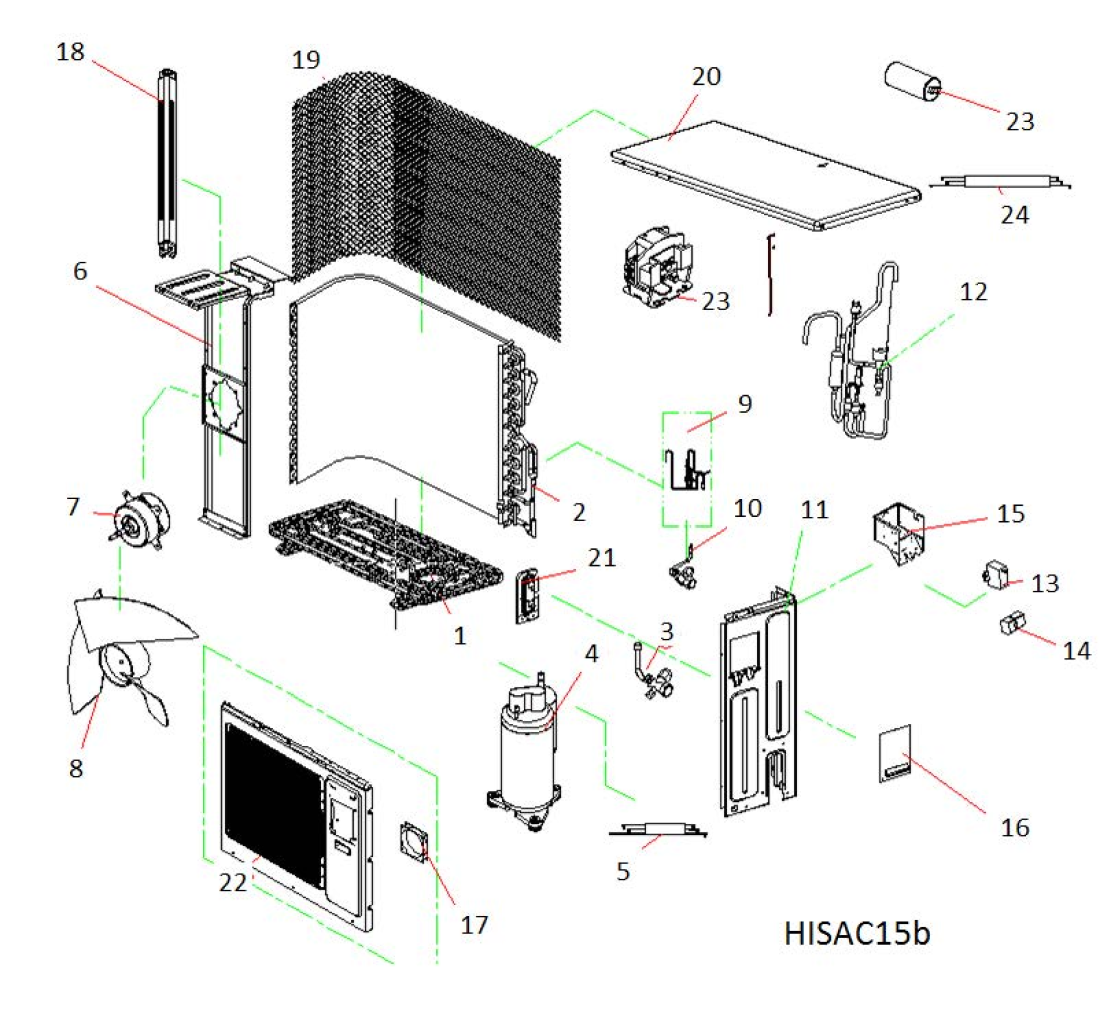

| 001 HISAC15b |
C00503810
482000093992 |
Base | Na dotaz | Zadat poptávku | |
| 002 HISAC15b |
C00627350
488000627350 |
condenser | Na dotaz | Zadat poptávku | |
| 003 HISAC15b |
C00386202
482000006161 |
Valve 3 Way | Na dotaz | Zadat poptávku | |
| 004 HISAC15b |
C00627351
488000627351 |
Compressor | Na dotaz | Zadat poptávku | |
| 005 HISAC15b |
C00413858
482000013802 |
Cable | Na dotaz | Zadat poptávku | |
| 006 HISAC15b |
C00503813
482000093995 |
Bracket | Na dotaz | Zadat poptávku | |
| 007 HISAC15b |
C00627352
488000627352 |
fan motor | Na dotaz | Zadat poptávku | |
| 008 HISAC15b |
C00386196
482000017885 |
Fan outdoor | Na dotaz | Zadat poptávku | |
| 010 HISAC15b |
C00386205
482000017891 |
Valve | Na dotaz | Zadat poptávku | |
| 010 HISAC15b |
C00627353
488000627353 |
Throttle Assembly | Na dotaz | Zadat poptávku | |
| 011 HISAC15b |
C00386216
482000017896 |
Panel side | Na dotaz | Zadat poptávku | |
| 012 HISAC15b |
C00627354
488000627354 |
compressor tube | Na dotaz | Zadat poptávku | |
| 013 HISAC15b |
C00503817
482000093999 |
Capacitor | Na dotaz | Zadat poptávku | |
| 014 HISAC15b |
C00377001
480150100267 |
Terminal Board 2U | Na dotaz | Zadat poptávku | |
| 015 HISAC15b |
C00627355
488000627355 |
electronic joint box assy | Na dotaz | Zadat poptávku | |
| 016 HISAC15b |
C00627294
488000627294 |
wiring distribution cover assy | Na dotaz | Zadat poptávku | |
| 017 HISAC15b |
C00386185
481249818794 |
Cover Handle | Na dotaz | Zadat poptávku | |
| 017 HISAC15b |
C00627296
488000627296 |
fan | Na dotaz | Zadat poptávku | |
| 017 HISAC15b |
C00627356
488000627356 |
panel | Na dotaz | Zadat poptávku | |
| 018 HISAC15b |
C00386200
482000010447 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 019 HISAC15b |
C00413864
482000013809 |
Grid air | Na dotaz | Zadat poptávku | |
| 020 HISAC15b |
C00386249
482000017900 |
Cover top | Na dotaz | Zadat poptávku | |
| 021 HISAC15b |
C00386213
482000092473 |
valve seat | Na dotaz | Zadat poptávku | |
| 022 HISAC15b |
C00505492
481221458214 |
kondenzator | 4 254 Kč
€ 167.90 |
||
| 023 HISAC15b |
C00419697
482000091859 |
Capacitor | Na dotaz | Zadat poptávku | |
| 001 HISAC16 |
C00627357
488000627357 |
installation plate | Na dotaz | Zadat poptávku | |
| 002 HISAC16 |
C00413826
482000013770 |
Chassis | Na dotaz | Zadat poptávku | |
| 003 HISAC16 |
C00413827
482000013771 |
Fan wheel Indoor | Na dotaz | Zadat poptávku | |
| 004 HISAC16 |
C00401834
481240418496 |
Bearing | Na dotaz | Zadat poptávku | |
| 005 HISAC16 |
C00503804
482000093986 |
Outlet Stud | Na dotaz | Zadat poptávku | |
| 006 HISAC16 |
C00376989
480150100135 |
Motorek | 495 Kč
€ 19.50 |
||
| 007 HISAC16 |
C00503805
482000093987 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 008 HISAC16 |
C00419713
482000091875 |
osy | Na dotaz | Zadat poptávku | |
| 009 HISAC16 |
C00503806
482000093988 |
Link | Na dotaz | Zadat poptávku | |
| 010 HISAC16 |
C00419715
482000091877 |
Bearing | Na dotaz | Zadat poptávku | |
| 011 HISAC16 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| 012 HISAC16 |
C00413829
482000013773 |
Steppin motor | Na dotaz | Zadat poptávku | |
| 013 HISAC16 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 014 HISAC16 |
C00413830
482000013774 |
Conveyor air | Na dotaz | Zadat poptávku | |
| 015 HISAC16 |
C00413831
482000013775 |
Conveyor air horizontal | Na dotaz | Zadat poptávku | |
| 016 HISAC16 |
C00413832
482000013776 |
Conveyor air horizontal | Na dotaz | Zadat poptávku | |
| 017 HISAC16 |
C00413833
482000013777 |
Cabinet | Na dotaz | Zadat poptávku | |
| 018 HISAC16 |
C00413835
482000013779 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 019 HISAC16 |
C00503807
482000093989 |
Display | Na dotaz | Zadat poptávku | |
| 020 HISAC16 |
C00413836
482000013780 |
Front panel | Na dotaz | Zadat poptávku | |
| 021 HISAC16 |
C00627358
488000627358 |
display film pattern | Na dotaz | Zadat poptávku | |
| 022 HISAC16 |
C00413841
482000013785 |
Evaporator System | Na dotaz | Zadat poptávku | |
| 023 HISAC16 |
C00413842
482000013786 |
Protect motor | Na dotaz | Zadat poptávku | |
| 024 HISAC16 |
C00627359
488000627359 |
fan motor | Na dotaz | Zadat poptávku | |
| 025 HISAC16 |
C00513349
482000096832 |
Remote control | Na dotaz | Zadat poptávku | |
| 026 HISAC16 |
C00378139
482000000400 |
Sensor temper. coil | Na dotaz | Zadat poptávku | |
| 027 HISAC16 |
C00413845
482000013789 |
Sensor temper. Indoor | Na dotaz | Zadat poptávku | |
| 028 HISAC16 |
C00413846
482000013790 |
Cover | Na dotaz | Zadat poptávku | |
| 029 HISAC16 |
C00413847
482000013791 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| 030 HISAC16 |
C00500748
481221778151 |
Electr.device | Na dotaz | Zadat poptávku | |
| 031 HISAC16 |
C00413849
482000013793 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| 032 HISAC16 |
C00627360
488000627360 |
Indoor Main Control Board Component | Na dotaz | Zadat poptávku | |
| 033 HISAC16 |
C00413844
482000013788 |
Electric plate box | Na dotaz | Zadat poptávku | |
| 034 HISAC16 |
C00413851
482000013795 |
Electric plate box | Na dotaz | Zadat poptávku | |
| 035 HISAC16 |
C00413852
482000013796 |
Plate cover | Na dotaz | Zadat poptávku | |
| 037 HISAC16 |
C00413854
482000013798 |
Display window | Na dotaz | Zadat poptávku | |
| 999 HISAC16 |
C00627467
488000627467 |
filter | Na dotaz | Zadat poptávku | |
