BAUKNECHT STC 8363
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | STC 8363 |
| Kód 12NC: | 855891916000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR45320 |
C00634732 | Installation Instruction WHP | Na dotaz | Zadat poptávku | |

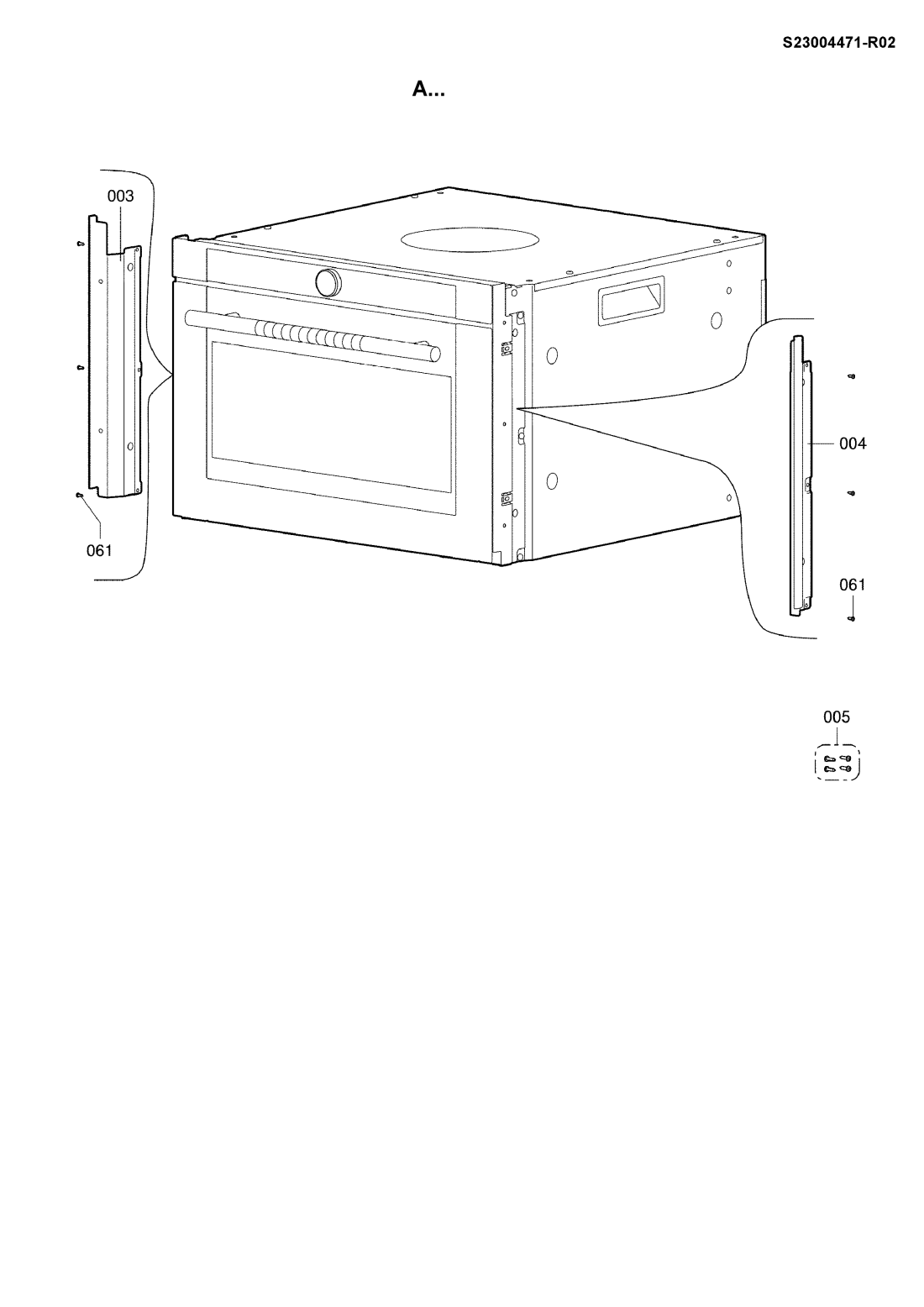

| A003 WHR45320 |
C00390538
480121102254 |
Strip ,LEFT | Na dotaz | Zadat poptávku | |
| A004 WHR45320 |
C00390539
480121102255 |
Strip ,RIGHT | Na dotaz | Zadat poptávku | |
| A005 WHR45320 |
C00415821
482000018290 |
Screw | Na dotaz | Zadat poptávku | |
| A020 WHR45320 |
C00418670
482000023915 |
Control panel cpl. | Na dotaz | Zadat poptávku | |
| A022 WHR45320 |
C00418671
482000023916 |
Control unit | Na dotaz | Zadat poptávku | |
| A026 WHR45320 |
C00418672
482000023917 |
Knob | Na dotaz | Zadat poptávku | |
| A061 WHR45320 |
C00415829
482000018298 |
Screw SZ, 4.2 x 9.5, black | Na dotaz | Zadat poptávku | |
| B001 WHR45320 |
C00418673
482000023918 |
Door cpl. | Na dotaz | Zadat poptávku | |
| B002 WHR45320 |
C00418674
482000023919 |
Glass | Na dotaz | Zadat poptávku | |
| B003 WHR45320 |
C00390610
480121102338 |
Handle complete | Na dotaz | Zadat poptávku | |
| B004 WHR45320 |
C00391072
480121103059 |
Washer oven door handle | Na dotaz | Zadat poptávku | |
| B005 WHR45320 |
C00389923
480121101206 |
Samořezný šroub | 61 Kč
€ 2.40 |
||
| B007 WHR45320 |
C00405113
481246688891 |
Gasket | Na dotaz | Zadat poptávku | |
| B008 WHR45320 |
C00418675
482000023920 |
Gasket | Na dotaz | Zadat poptávku | |
| B010 WHR45320 |
C00409703
482000005990 |
Door glass inner. | Na dotaz | Zadat poptávku | |
| B011 WHR45320 |
C00390612
480121102341 |
Glass ,MIDDLE | Na dotaz | Zadat poptávku | |
| B012 WHR45320 |
C00390606
480121102334 |
Gasket door | Na dotaz | Zadat poptávku | |
| B061 WHR45320 |
C00415836
482000018306 |
Screw 3.5 x 11, black | Na dotaz | Zadat poptávku | |
| C001 WHR45320 |
C00400804
481225938193 |
Heating element PTC | Na dotaz | Zadat poptávku | |
| C002 WHR45320 |
C00488540
481225998434 |
Heating element forced air 1900 W | Na dotaz | Zadat poptávku | |
| C003 WHR45320 |
C00409612
482000005832 |
Gasket HL Heating | Na dotaz | Zadat poptávku | |
| C005 WHR45320 |
C00418676
482000023921 |
Lamp holder | Na dotaz | Zadat poptávku | |
| C005 WHR45320 |
C00504739
482000094487 |
Housing Light G9 | Na dotaz | Zadat poptávku | |
| C006 WHR45320 |
C00415839
482000018309 |
Lamp 230V/25W | Na dotaz | Zadat poptávku | |
| C007 WHR45320 |
C00418677
482000023922 |
Lamp screen | Na dotaz | Zadat poptávku | |
| C008 WHR45320 |
C00405066
481246648117 |
Gasket BO-Lampe | Na dotaz | Zadat poptávku | |
| C009 WHR45320 |
C00404668
481246079188 |
Frame BO-Lampe | Na dotaz | Zadat poptávku | |
| C010 WHR45320 |
C00390543
480121102261 |
Cabinet | Na dotaz | Zadat poptávku | |
| C011 WHR45320 |
C00390544
480121102262 |
Rear panel | Na dotaz | Zadat poptávku | |
| C012 WHR45320 |
C00390545
480121102263 |
Gasket ,door | Na dotaz | Zadat poptávku | |
| C013 WHR45320 |
C00409704
482000005991 |
Inset grid left | Na dotaz | Zadat poptávku | |
| C014 WHR45320 |
C00409705
482000005992 |
Inset grid right | Na dotaz | Zadat poptávku | |
| C015 WHR45320 |
C00418678
482000023923 |
Knurled Nut M5 | Na dotaz | Zadat poptávku | |
| C016 WHR45320 |
C00418679
482000023924 |
Connection silicon | Na dotaz | Zadat poptávku | |
| C017 WHR45320 |
C00409616
482000005836 |
Gasket PT sensor | Na dotaz | Zadat poptávku | |
| C018 WHR45320 |
C00390550
480121102271 |
Connection ,silicon, slide | Na dotaz | Zadat poptávku | |
| C019 WHR45320 |
C00390556
480121102277 |
Sensor ,temp. 16A,250V | Na dotaz | Zadat poptávku | |
| C021 WHR45320 |
C00490222
481251528099 |
Fan wheel forced air motor | Na dotaz | Zadat poptávku | |
| C022 WHR45320 |
C00492062
481250518376 |
Nut anti-clockwise | Na dotaz | Zadat poptávku | |
| C023 WHR45320 |
C00391076
480121103064 |
Disc | Na dotaz | Zadat poptávku | |
| C024 WHR45320 |
C00390409
480121101869 |
Shield | Na dotaz | Zadat poptávku | |
| C026 WHR45320 |
C00390557
480121102278 |
Connector ,3 pos. | Na dotaz | Zadat poptávku | |
| C027 WHR45320 |
C00390558
480121102279 |
Gasket | Na dotaz | Zadat poptávku | |
| C028 WHR45320 |
C00390559
480121102281 |
Cover | Na dotaz | Zadat poptávku | |
| C030 WHR45320 |
C00404932
481246378015 |
Buffer | Na dotaz | Zadat poptávku | |
| C062,C064 WHR45320 |
C00418680
482000023925 |
Screw 4.2x13 | Na dotaz | Zadat poptávku | |
| C063 WHR45320 |
C00405420
481250218734 |
Screw Torx RfSt. 4.2x9.5 | Na dotaz | Zadat poptávku | |
| C065 WHR45320 |
C00418681
482000023926 |
Nut 18/10 M4 | Na dotaz | Zadat poptávku | |
| C066 WHR45320 |
C00405449
481250568026 |
Nut ST10 EZN M5 | Na dotaz | Zadat poptávku | |
| C067 WHR45320 |
C00418682
482000023927 |
Nut 6Kt. 3/8-32 | Na dotaz | Zadat poptávku | |
| C069,E062 WHR45320 |
C00415831
482000018300 |
Screw selftap 4.2 x 10.5 | Na dotaz | Zadat poptávku | |
| C070 WHR45320 |
C00418683
482000023928 |
Washer 6.4/18x1.6 | Na dotaz | Zadat poptávku | |
| D001 WHR45320 |
C00390618
480121102368 |
Pump outflow | Na dotaz | Zadat poptávku | |
| D002 WHR45320 |
C00390604
480121102332 |
Sieve | Na dotaz | Zadat poptávku | |
| D003 WHR45320 |
C00390561
480121102283 |
Housing ,pump | Na dotaz | Zadat poptávku | |
| D004 WHR45320 |
C00390562
480121102284 |
Bracket | Na dotaz | Zadat poptávku | |
| D005 WHR45320 |
C00390563
480121102285 |
Damper | Na dotaz | Zadat poptávku | |
| D011 WHR45320 |
C00390617
480121102367 |
Evaporator ,cpl | Na dotaz | Zadat poptávku | |
| D012 WHR45320 |
C00390565
480121102287 |
Probe | Na dotaz | Zadat poptávku | |
| D013 WHR45320 |
C00390566
480121102288 |
Sleeve | Na dotaz | Zadat poptávku | |
| D014 WHR45320 |
C00401007
481228219942 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| D016 WHR45320 |
C00390603
480121102331 |
Hose steam | Na dotaz | Zadat poptávku | |
| D017 WHR45320 |
C00390602
480121102329 |
Plate | Na dotaz | Zadat poptávku | |
| D021 WHR45320 |
C00391442
480121104118 |
Pan cabinet | Na dotaz | Zadat poptávku | |
| D023 WHR45320 |
C00391439
480121104115 |
Valve water | Na dotaz | Zadat poptávku | |
| D030 WHR45320 |
C00390573
480121102296 |
Switch | Na dotaz | Zadat poptávku | |
| D062 WHR45320 |
C00418684
482000023929 |
Screw 4.2x13 | Na dotaz | Zadat poptávku | |
| D063 WHR45320 |
C00313774
481250218695 |
sroub | 3 038 Kč
€ 119.90 |
||
| E001 WHR45320 |
C00418685
482000023930 |
Platine | Na dotaz | Zadat poptávku | |
| E001 WHR45320 |
C00504738
482000094486 |
Control unit Auxiliary external | Na dotaz | Zadat poptávku | |
| E002 WHR45320 |
C00390997
480121102948 |
Cable mains | Na dotaz | Zadat poptávku | |
| E003 WHR45320 |
C00390581
480121102306 |
Ventilator | Na dotaz | Zadat poptávku | |
| E004 WHR45320 |
C00390582
480121102307 |
Motor ,cpl cst/st 230v | Na dotaz | Zadat poptávku | |
| E005 WHR45320 |
C00316419
481236118558 |
Motor Schritt m. Zahnrad | Na dotaz | Zadat poptávku | |
| E006 WHR45320 |
C00418686
482000023931 |
Sensor temper. to 300*C | Na dotaz | Zadat poptávku | |
| E007 WHR45320 |
C00390678
480121102449 |
Feeler Pt1000 | Na dotaz | Zadat poptávku | |
| E009 WHR45320 |
C00390586
480121102312 |
Slide ,cpl | Na dotaz | Zadat poptávku | |
| E010 WHR45320 |
C00621354
481232118156 |
Screwed joint cable | Na dotaz | Zadat poptávku | |
| E011 WHR45320 |
C00499854
481250518392 |
Nut M20 | Na dotaz | Zadat poptávku | |
| E015 WHR45320 |
C00486170
481246688712 |
Shaft seal | Na dotaz | Zadat poptávku | |
| E016 WHR45320 |
C00491994
481249258046 |
Spring,compres. | Na dotaz | Zadat poptávku | |
| E018 WHR45320 |
C00390587
480121102313 |
Bracket | Na dotaz | Zadat poptávku | |
| E021 WHR45320 |
C00418687
482000023932 |
Housing | Na dotaz | Zadat poptávku | |
| E022 WHR45320 |
C00409707
482000005994 |
Water conveyor condensate | Na dotaz | Zadat poptávku | |
| E022 WHR45320 |
C00409824
482000006252 |
Water conveyor condensate 60 black | Na dotaz | Zadat poptávku | |
| E023 WHR45320 |
C00390590
480121102316 |
Housing,l eft side | Na dotaz | Zadat poptávku | |
| E023 WHR45320 |
C00390591
480121102317 |
Housing, right side, not shown | Na dotaz | Zadat poptávku | |
| E025 WHR45320 |
C00390592
480121102318 |
Handle | Na dotaz | Zadat poptávku | |
| E026 WHR45320 |
C00390593
480121102319 |
Cabinet | Na dotaz | Zadat poptávku | |
| E027 WHR45320 |
C00418688
482000023933 |
Cover | Na dotaz | Zadat poptávku | |
| E028 WHR45320 |
C00409708
482000005995 |
Conveyor | Na dotaz | Zadat poptávku | |
| E029 WHR45320 |
C00391465
480121104257 |
Hose | Na dotaz | Zadat poptávku | |
| E051 WHR45320 |
C00504168
482000094191 |
Buzzer cpl. | Na dotaz | Zadat poptávku | |
| E061 WHR45320 |
C00415848
482000018319 |
Screw SZ, 4.2 x 9.5 | Na dotaz | Zadat poptávku | |
| E063 WHR45320 |
C00418689
482000023934 |
Screw 3.5x10 | Na dotaz | Zadat poptávku | |
| E065 WHR45320 |
C00405425
481250218753 |
Screw Torx Furch ST CAD 4x16 | Na dotaz | Zadat poptávku | |
| E068 WHR45320 |
C00418690
482000023935 |
Screw 4.2x22 | Na dotaz | Zadat poptávku | |
| E070 WHR45320 |
C00390596
480121102323 |
Holder | Na dotaz | Zadat poptávku | |
| E071 WHR45320 |
C00409618
482000005838 |
Holder | Na dotaz | Zadat poptávku | |
| F001 WHR45320 |
C00409709
482000005996 |
Baking sheet | Na dotaz | Zadat poptávku | |
| F002 WHR45320 |
C00409710
482000005997 |
Tray | Na dotaz | Zadat poptávku | |
| F003 WHR45320 |
C00409711
482000005998 |
Grating | Na dotaz | Zadat poptávku | |
| F005 WHR45320 |
C00390598
480121102325 |
Kontajner | 2 496 Kč
€ 98.50 |
||
| F006 WHR45320 |
C00390599
480121102326 |
Kryt | 384 Kč
€ 15.20 |
||
| F007 WHR45320 |
C00389919
480121101202 |
Sensor Gargut | Na dotaz | Zadat poptávku | |
| F011 WHR45320 |
C00486348
481269048011 |
Descaler bottle | Na dotaz | Zadat poptávku | |
| G001 WHR45320 |
C00409712
482000005999 |
Sliding base | Na dotaz | Zadat poptávku | |
| G002 WHR45320 |
C00390601
480121102328 |
Angle iron set | Na dotaz | Zadat poptávku | |
