BAUKNECHT TGV 3523 IN
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TGV 3523 IN |
| Kód 12NC: | 857422215050 |
| Značka: | BAUKNECHT |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

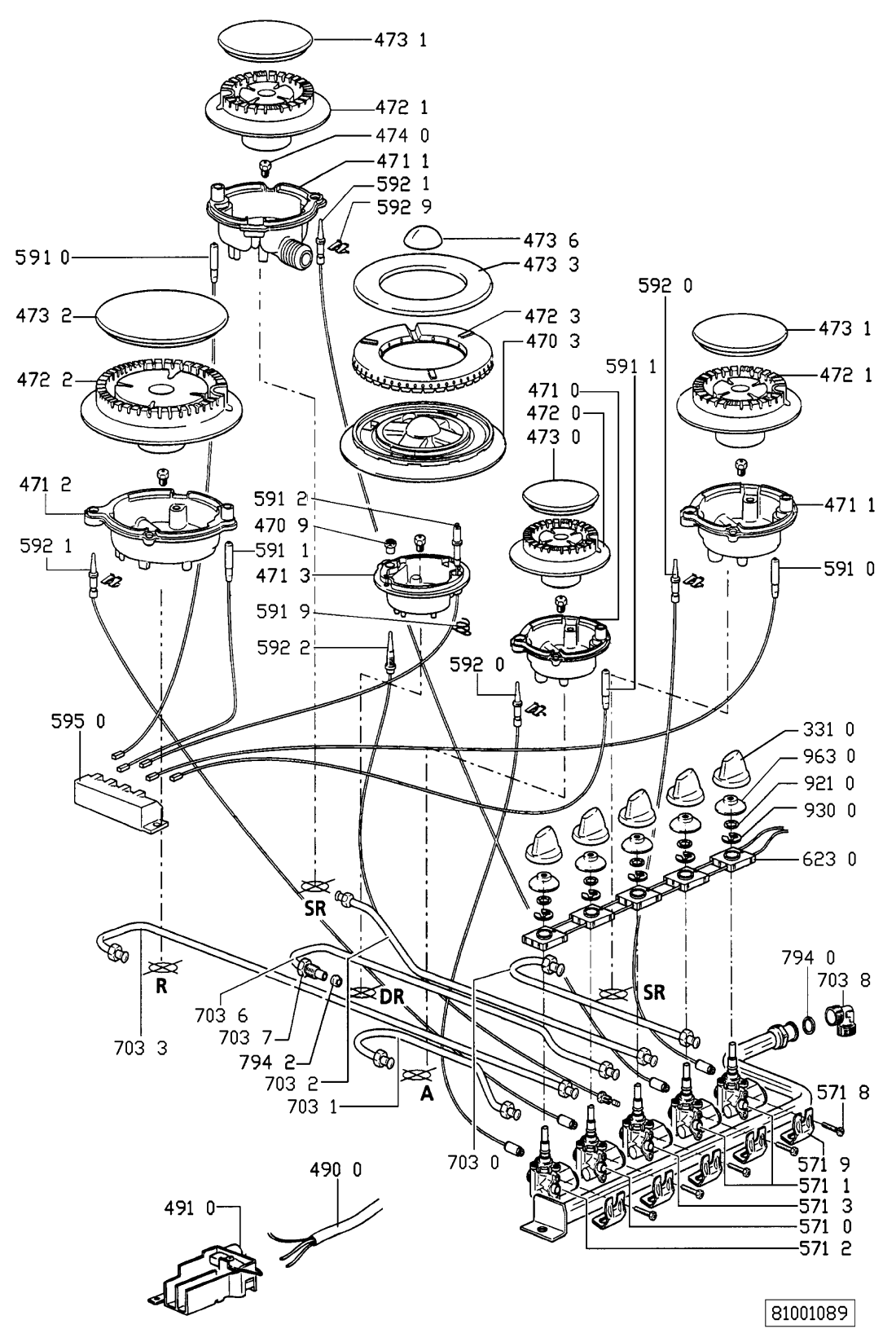

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 031 0 WHR113859 |
C00755655
481245319754 |
Hob | Na dotaz | Zadat poptávku | |
| 031 1 WHR113859 |
C00582857
481940478845 |
DRZIAK | Na dotaz | Zadat poptávku | |
| 241 0 WHR113859 |
C00582941
481945868137 |
GRID FOR HOB. | Na dotaz | Zadat poptávku | |
| 241 1 WHR113859 |
C00582944
481945868139 |
MRIEZKA | Na dotaz | Zadat poptávku | |
| 241 2 WHR113859 |
C00755656
481245858176 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 331 0 WHR113859 |
C00487411
481241318251 |
KNOB | Na dotaz | Zadat poptávku | |
| 470 3 WHR113859 |
C00582844
481936069771 |
Spreader,burner double Ring. | Na dotaz | Zadat poptávku | |
| 470 9 WHR113859 |
C00583001
481950518361 |
NUT. | Na dotaz | Zadat poptávku | |
| 471 0 WHR113859 |
C00621561
481936069761 |
Burner small. | Na dotaz | Zadat poptávku | |
| 471 1 WHR113859 |
C00621562
481936069762 |
Burner medium. | Na dotaz | Zadat poptávku | |
| 471 2 WHR113859 |
C00621563
481936069763 |
Burner large. | Na dotaz | Zadat poptávku | |
| 471 3 WHR113859 |
C00582843
481936069769 |
Burner double ring. | Na dotaz | Zadat poptávku | |
| 472 0 WHR113859 |
C00582842
481936069765 |
Spreader,burner A. | Na dotaz | Zadat poptávku | |
| 472 1 WHR113859 |
C00484330
481936069766 |
Spreader,burner SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR113859 |
C00484331
481936069767 |
Spreader,burner R | Na dotaz | Zadat poptávku | |
| 472 3 WHR113859 |
C00582846
481936069773 |
SPREADER,BURNER DR. | Na dotaz | Zadat poptávku | |
| 473 0 WHR113859 |
C00484328
481936069753 |
viko horaku - male | 756 Kč
€ 29.80 |
||
| 473 1 WHR113859 |
C00484329
481936069754 |
KRYT HORAKA SR | Na dotaz | Zadat poptávku | |
| 473 2 WHR113859 |
C00381039
481936069755 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 473 3 WHR113859 |
C00582845
481936069772 |
Burner cap DR - outer. | Na dotaz | Zadat poptávku | |
| 473 6 WHR113859 |
C00582847
481936069774 |
Burner cap DR - inner. | Na dotaz | Zadat poptávku | |
| 474 0 WHR113859 |
C00595458
481931039651 |
Set of nozzles G20. | Na dotaz | Zadat poptávku | |
| 490 0 WHR113859 |
C00557408
481932118311 |
CABLE,MAINS.. | Na dotaz | Zadat poptávku | |
| 491 0 WHR113859 |
C00621545
481929068353 |
Terminal block. | Na dotaz | Zadat poptávku | |
| 491 1 WHR113859 |
C00582974
481946689224 |
Plate protect. terminal block. | Na dotaz | Zadat poptávku | |
| 571 0 WHR113859 |
C00582560
481936058708 |
Tap R | Na dotaz | Zadat poptávku | |
| 571 1 WHR113859 |
C00582822
481936058707 |
Tap SR | Na dotaz | Zadat poptávku | |
| 571 2 WHR113859 |
C00379031
481936058706 |
Tap A | Na dotaz | Zadat poptávku | |
| 571 3 WHR113859 |
C00582823
481936058711 |
Tap DR | Na dotaz | Zadat poptávku | |
| 571 8 WHR113859 |
C00582998
481950218479 |
Screw. | Na dotaz | Zadat poptávku | |
| 571 9 WHR113859 |
C00582862
481940479367 |
Holder. | Na dotaz | Zadat poptávku | |
| 591 0 WHR113859 |
C00582789
481925268153 |
Spark plug 550mm. | Na dotaz | Zadat poptávku | |
| 591 1 WHR113859 |
C00486434
481925268152 |
Spark plug 400mm | Na dotaz | Zadat poptávku | |
| 591 2 WHR113859 |
C00582791
481925268155 |
Spark plug double ring 350mm. | Na dotaz | Zadat poptávku | |
| 591 9 WHR113859 |
C00582989
481949268807 |
SPRING. | Na dotaz | Zadat poptávku | |
| 592 0 WHR113859 |
C00621527
481913838117 |
TERMO POISTKA L=200mm | Na dotaz | Zadat poptávku | |
| 592 1 WHR113859 |
C00373417
481913838118 |
Thermo couple l=750mm | Na dotaz | Zadat poptávku | |
| 592 2 WHR113859 |
C00492195
481913838121 |
Thermo couple for double ring L=500 mm | Na dotaz | Zadat poptávku | |
| 592 9 WHR113859 |
C00582990
481949268809 |
Spring for thermocouple. | Na dotaz | Zadat poptávku | |
| 595 0 WHR113859 |
C00820481
481214038002 |
LEAFLET-179216 | Na dotaz | Zadat poptávku | |
| 623 0 WHR113859 |
C00481294
481927138264 |
Microswitch | Na dotaz | Zadat poptávku | |
| 703 0 WHR113859 |
C00621602
481953048699 |
Pipe, burner. | Na dotaz | Zadat poptávku | |
| 703 1 WHR113859 |
C00583003
481953048698 |
Pipe, burner. | Na dotaz | Zadat poptávku | |
| 703 2 WHR113859 |
C00494743
481953048704 |
PIPE, BURNER | Na dotaz | Zadat poptávku | |
| 703 3 WHR113859 |
C00583004
481953048705 |
PIPE, BURNER. | Na dotaz | Zadat poptávku | |
| 703 6 WHR113859 |
C00583006
481953048707 |
PIPE, BURNER. | Na dotaz | Zadat poptávku | |
| 703 7 WHR113859 |
C00583000
481950518359 |
Nut for burner. | Na dotaz | Zadat poptávku | |
| 703 8 WHR113859 |
C00494711
481953043058 |
Gas connection M/M Benor | Na dotaz | Zadat poptávku | |
| 794 0 WHR113859 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.10 |
||
| 794 2 WHR113859 |
C00582841
481936069758 |
BICONE. | Na dotaz | Zadat poptávku | |
| 904 0 WHR113859 |
C00582687
481244019607 |
krytka | 78 Kč
€ 3.10 |
||
| 904 5 WHR113859 |
C00582979
481946699119 |
Spacer. | Na dotaz | Zadat poptávku | |
| 910 0 WHR113859 |
C00582586
481222008008 |
šroub | 67 Kč
€ 2.60 |
||
| 921 0 WHR113859 |
C00595015
481953058081 |
O-Ring. | Na dotaz | Zadat poptávku | |
| 923 0 WHR113859 |
C00594927
481246688531 |
GASKET. | Na dotaz | Zadat poptávku | |
| 923 5 WHR113859 |
C00594928
481246688532 |
GASKET. | Na dotaz | Zadat poptávku | |
| 930 0 WHR113859 |
C00494779
481953288047 |
Washer,spring | Na dotaz | Zadat poptávku | |
| 963 0 WHR113859 |
C00595016
481953058089 |
GASKET. | Na dotaz | Zadat poptávku | |
| 964 0 WHR113859 |
C00582981
481946818297 |
TESNENIE DOSKY | Na dotaz | Zadat poptávku | |
