| Komerční kód: | TGW 5575/IN/01 |
| Kód 12NC: | 858240412010 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 858240412011 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

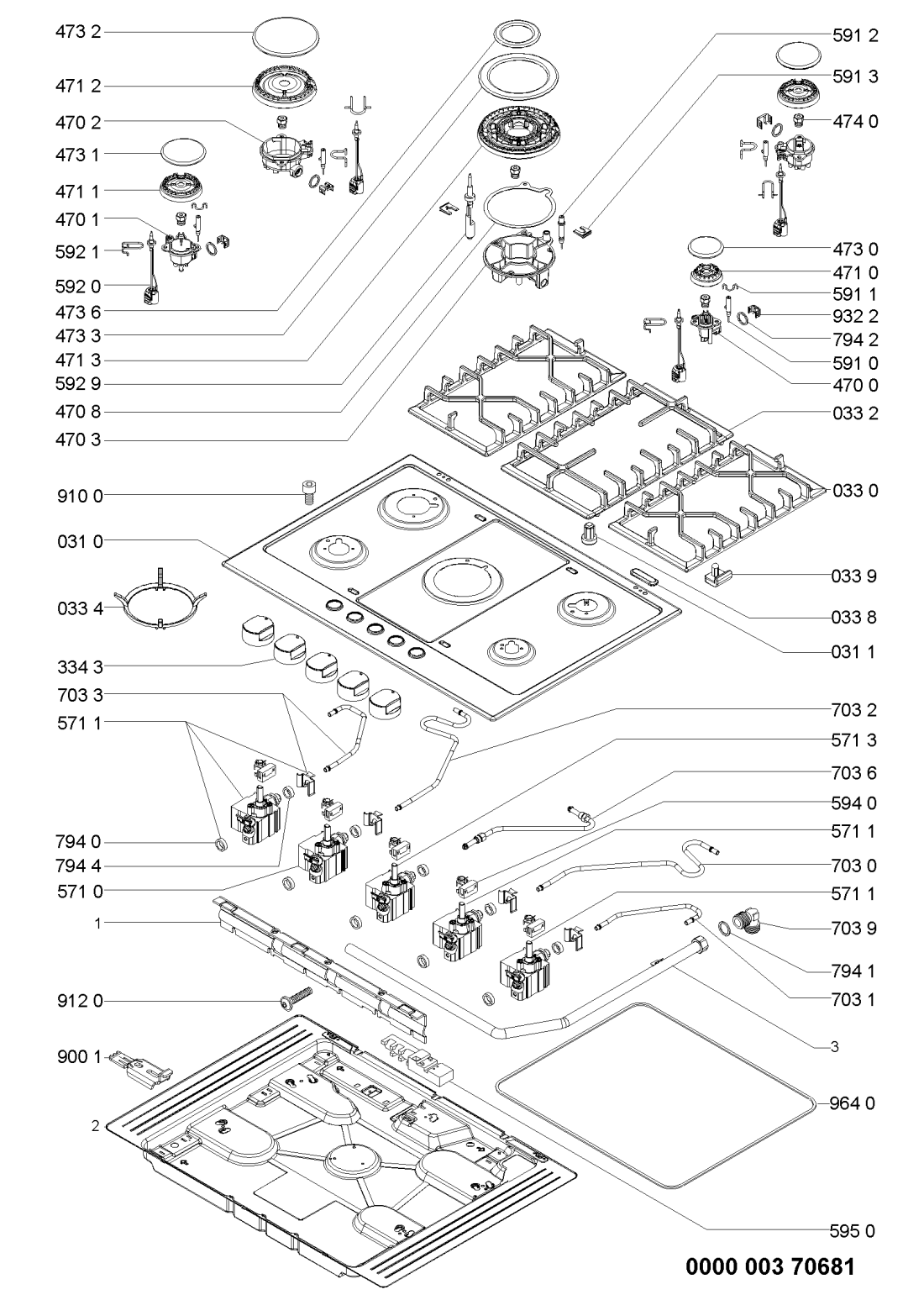

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0310 WHR33411 |
C00459287
481244039606 |
Hob | Na dotaz | Zadat poptávku | |
| 0311 WHR33411 |
C00319395
481246228718 |
zaslepka | 459 Kč
€ 18.10 |
||
| 0330 WHR33411 |
C00391057
480121103026 |
Grid assembly left/right | Na dotaz | Zadat poptávku | |
| 0332 WHR33411 |
C00391056
480121103025 |
Grid assembly | Na dotaz | Zadat poptávku | |
| 0334 WHR33411 |
C00330139
481245838433 |
Grid Wok | Na dotaz | Zadat poptávku | |
| 0338 WHR33411 |
C00315214
481246818081 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 0339 WHR33411 |
C00330939
481246668851 |
Podložka (nožička) mřížky plynové varné desky Whirlpool, GMA 7522/IX, GMF 7522/IXL. | 54 Kč
€ 2.10 |
||
| 3343 WHR33411 |
C00329467
481241279238 |
knob | Na dotaz | Zadat poptávku | |
| 4700 WHR33411 |
C00401499
481236058626 |
Injector holder A G25-25 mbar | Na dotaz | Zadat poptávku | |
| 4701 WHR33411 |
C00401572
481236068817 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 4702 WHR33411 |
C00401573
481236068818 |
Injector holder R | Na dotaz | Zadat poptávku | |
| 4703 WHR33411 |
C00491447
481236068733 |
Injector holder 4-crown burner | Na dotaz | Zadat poptávku | |
| 4708 WHR33411 |
C00316031
481246688837 |
tesneni | 291 Kč
€ 11.50 |
||
| 4710 WHR33411 |
C00316269
481236078135 |
teleso horaku male | Na dotaz | Zadat poptávku | |
| 4710 WHR33411 |
C00313402
480121103803 |
teleso horaku | Na dotaz | Zadat poptávku | |
| 4711 WHR33411 |
C00313807
481236078136 |
Těleso hořáku plynové varné desky Whirlpool - střední | 345 Kč
€ 13.60 |
||
| 4711 WHR33411 |
C00312844
480121103652 |
horak | 744 Kč
€ 29.40 |
||
| 4712 WHR33411 |
C00328773
481236078143 |
Těleso hořáku | 845 Kč
€ 33.40 |
||
| 4712 WHR33411 |
C00312908
480121103653 |
Hořák | 283 Kč
€ 11.20 |
||
| 4713 WHR33411 |
C00312490
481236078138 |
horak | 1 914 Kč
€ 75.60 |
||
| 4730 WHR33411 |
C00328713
481236068889 |
Víko hořáku - malé | 760 Kč
€ 30.00 |
||
| 4730 WHR33411 |
C00316972
480121103804 |
Víko hořáku malé | 255 Kč
€ 10.10 |
||
| 4731 WHR33411 |
C00328714
481236068891 |
kryt horaku | 621 Kč
€ 24.50 |
||
| 4731 WHR33411 |
C00313478
480121103655 |
Víko hořáku střední | 687 Kč
€ 27.10 |
||
| 4732 WHR33411 |
C00328784
481236078175 |
viko horaku | 1 404 Kč
€ 55.40 |
||
| 4732 WHR33411 |
C00315552
480121103656 |
Víko hořáku - Rapid (průměr 94 mm) | 240 Kč
€ 9.50 |
||
| 4733 WHR33411 |
C00313813
481236078155 |
viko horaku | 1 453 Kč
€ 57.40 |
||
| 4736 WHR33411 |
C00313811
481236078154 |
viko horaku | 1 081 Kč
€ 42.70 |
||
| 4740 WHR33411 |
C00482666
481231038972 |
Set of nozzles G25-25 mbar | Na dotaz | Zadat poptávku | |
| 5710 WHR33411 |
C00381480
481236058524 |
Gas cock R | Na dotaz | Zadat poptávku | |
| 5711 WHR33411 |
C00381481
481236058525 |
Gas cock SR/A | Na dotaz | Zadat poptávku | |
| 5713 WHR33411 |
C00401447
481236058527 |
Gas cock 4-crown burner | Na dotaz | Zadat poptávku | |
| 5910 WHR33411 |
C00314182
481225268078 |
svicka zapalovaci | 306 Kč
€ 12.10 |
||
| 5911 WHR33411 |
C00316649
481249268204 |
Spring spark plug | Na dotaz | Zadat poptávku | |
| 5912 WHR33411 |
C00312417
481225268079 |
svicka zapalovaci | 610 Kč
€ 24.10 |
||
| 5913 WHR33411 |
C00345757
481249268206 |
pružina | 661 Kč
€ 26.10 |
||
| 5920 WHR33411 |
C00311810
481213838041 |
Thermocouple 520mm | Na dotaz | Zadat poptávku | |
| 5921 WHR33411 |
C00318235
481249268205 |
pružina | 324 Kč
€ 12.80 |
||
| 5929 WHR33411 |
C00312078
481213838042 |
Termočlánek plynové varné desky Whirlpool, Bauknecht | 830 Kč
€ 32.80 |
||
| 5940 WHR33411 |
C00313680
481227658164 |
zapalovac | 1 279 Kč
€ 50.50 |
||
| 5950 WHR33411 |
C00312410
481213818015 |
Ignition generator + terminal block | Na dotaz | Zadat poptávku | |
| 7030 WHR33411 |
C00332552
481253049007 |
Gas pipe SR RR | Na dotaz | Zadat poptávku | |
| 7031 WHR33411 |
C00332554
481253049009 |
Gas pipe A | Na dotaz | Zadat poptávku | |
| 7032 WHR33411 |
C00332553
481253049008 |
Gas pipe R | Na dotaz | Zadat poptávku | |
| 7033 WHR33411 |
C00332551
481253049006 |
Gas pipe SR FL | Na dotaz | Zadat poptávku | |
| 7036 WHR33411 |
C00320331
481253049118 |
Gas pipe 4-crown burner | Na dotaz | Zadat poptávku | |
| 7039 WHR33411 |
C00317975
481931039599 |
Koleno | 361 Kč
€ 14.30 |
||
| 7940 WHR33411 |
C00331499
481246688767 |
Gasket | Na dotaz | Zadat poptávku | |
| 7941 WHR33411 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.10 |
||
| 7942 WHR33411 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 7944 WHR33411 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 9001 WHR33411 |
C00314843
481240478776 |
Držáky +šrouby | 343 Kč
€ 13.50 |
||
| 9100 WHR33411 |
C00332120
481250218746 |
Śroub | 70 Kč
€ 2.80 |
||
| 9120 WHR33411 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 9322 WHR33411 |
C00317038
481249268203 |
Pružina | 89 Kč
€ 3.50 |
||
| 9640 WHR33411 |
C00331502
481246688772 |
Gasket | Na dotaz | Zadat poptávku | |
| 999 WHR33411 |
C00590292 | Gas table WHP | Na dotaz | Zadat poptávku | |
