BAUKNECHT TGW 5576 IXL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TGW 5576 IXL |
| Kód 12NC: | 858240420020 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 858240420021 |
Potřebujete servis? Jsme tady pro Vás

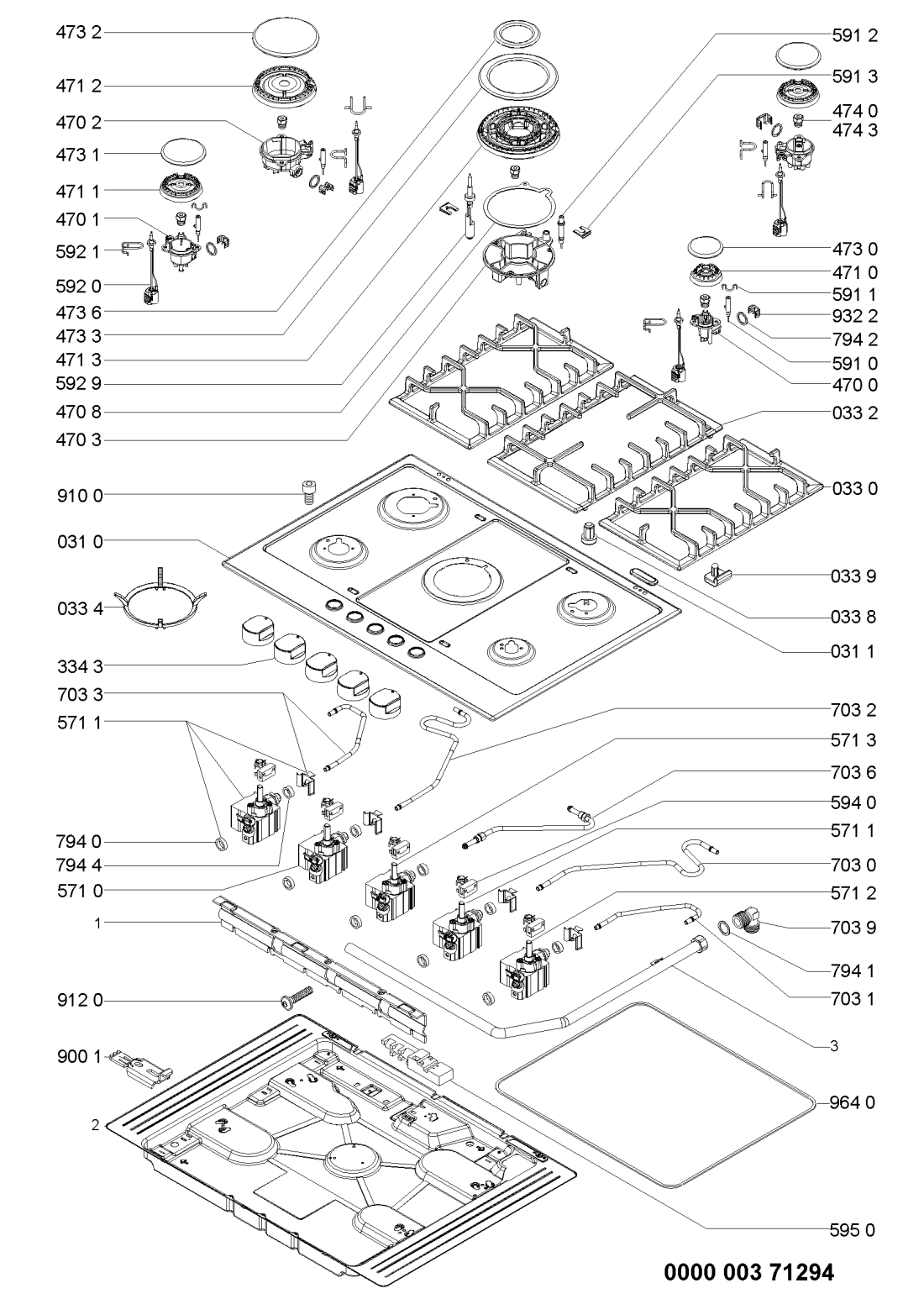

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR33420 |
C00330544
481246228747 |
Lid | Na dotaz | Zadat poptávku | |
| 002 1 WHR33420 |
C00330380
481246068574 |
Profile lid | Na dotaz | Zadat poptávku | |
| 031 0 WHR33420 |
C00431122
480121104219 |
Hob IX | Na dotaz | Zadat poptávku | |
| 031 1 WHR33420 |
C00319395
481246228718 |
zaslepka | 459 Kč
€ 18.10 |
||
| 033 0 WHR33420 |
C00391057
480121103026 |
Grid assembly left/right | Na dotaz | Zadat poptávku | |
| 033 2 WHR33420 |
C00391056
480121103025 |
Grid assembly | Na dotaz | Zadat poptávku | |
| 033 4 WHR33420 |
C00330139
481245838433 |
Grid Wok | Na dotaz | Zadat poptávku | |
| 033 7 WHR33420 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 59 Kč
€ 2.30 |
||
| 033 8 WHR33420 |
C00315214
481246818081 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 033 9 WHR33420 |
C00330939
481246668851 |
Podložka (nožička) mřížky plynové varné desky Whirlpool, GMA 7522/IX, GMF 7522/IXL. | 54 Kč
€ 2.10 |
||
| 043 0 WHR33420 |
C00332993
481941719598 |
Hinge right | Na dotaz | Zadat poptávku | |
| 043 1 WHR33420 |
C00332994
481941719599 |
Hinge left | Na dotaz | Zadat poptávku | |
| 043 2 WHR33420 |
C00329213
481240478745 |
Support hinge right | Na dotaz | Zadat poptávku | |
| 043 3 WHR33420 |
C00329019
481240438754 |
Support hinge left | Na dotaz | Zadat poptávku | |
| 043 4 WHR33420 |
C00327656
481231038994 |
Fastener lid assembly | Na dotaz | Zadat poptávku | |
| 043 5 WHR33420 |
C00333141
481946698736 |
Gasket | Na dotaz | Zadat poptávku | |
| 334 3 WHR33420 |
C00313974
480121104812 |
Knoflík stříbrný | 710 Kč
€ 28.00 |
||
| 470 0 WHR33420 |
C00319136
481236068814 |
teleso hořáku | 371 Kč
€ 14.60 |
||
| 470 1 WHR33420 |
C00318490
481236068815 |
Dno hořáku | 472 Kč
€ 18.60 |
||
| 470 2 WHR33420 |
C00316385
481236058482 |
Injector holder R | Na dotaz | Zadat poptávku | |
| 470 3 WHR33420 |
C00328683
481236068736 |
teleso horaku komplet | 1 377 Kč
€ 54.40 |
||
| 470 8 WHR33420 |
C00316031
481246688837 |
tesneni | 291 Kč
€ 11.50 |
||
| 471 0 WHR33420 |
C00316269
481236078135 |
teleso horaku male | Na dotaz | Zadat poptávku | |
| 471 1 WHR33420 |
C00313807
481236078136 |
Těleso hořáku plynové varné desky Whirlpool - střední | 345 Kč
€ 13.60 |
||
| 471 2 WHR33420 |
C00328773
481236078143 |
Těleso hořáku | 845 Kč
€ 33.40 |
||
| 471 3 WHR33420 |
C00312490
481236078138 |
horak | 1 914 Kč
€ 75.60 |
||
| 473 0 WHR33420 |
C00328713
481236068889 |
Víko hořáku - malé | 760 Kč
€ 30.00 |
||
| 473 1 WHR33420 |
C00328714
481236068891 |
kryt horaku | 621 Kč
€ 24.50 |
||
| 473 2 WHR33420 |
C00328784
481236078175 |
viko horaku | 1 404 Kč
€ 55.40 |
||
| 473 3 WHR33420 |
C00313813
481236078155 |
viko horaku | 1 453 Kč
€ 57.40 |
||
| 473 6 WHR33420 |
C00313811
481236078154 |
viko horaku | 1 081 Kč
€ 42.70 |
||
| 474 0 WHR33420 |
C00327651
481231038975 |
Set of nozzles G20-20 mbar | Na dotaz | Zadat poptávku | |
| 474 3 WHR33420 |
C00313659
481231038976 |
Set of nozzles G30-29 mbar | Na dotaz | Zadat poptávku | |
| 571 0 WHR33420 |
C00313759
481236058489 |
Gas cock R/UR G20 | Na dotaz | Zadat poptávku | |
| 571 1 WHR33420 |
C00313896
481236058491 |
kohout stredni | 2 201 Kč
€ 86.90 |
||
| 571 2 WHR33420 |
C00315277
481236058492 |
ventil | 2 201 Kč
€ 86.90 |
||
| 571 3 WHR33420 |
C00313761
481236058493 |
kohout | 1 456 Kč
€ 57.50 |
||
| 591 0 WHR33420 |
C00314182
481225268078 |
svicka zapalovaci | 306 Kč
€ 12.10 |
||
| 591 1 WHR33420 |
C00316649
481249268204 |
Spring spark plug | Na dotaz | Zadat poptávku | |
| 591 2 WHR33420 |
C00312417
481225268079 |
svicka zapalovaci | 610 Kč
€ 24.10 |
||
| 591 3 WHR33420 |
C00345757
481249268206 |
pružina | 661 Kč
€ 26.10 |
||
| 592 0 WHR33420 |
C00311810
481213838041 |
Thermocouple 520mm | Na dotaz | Zadat poptávku | |
| 592 1 WHR33420 |
C00318235
481249268205 |
pružina | 324 Kč
€ 12.80 |
||
| 592 9 WHR33420 |
C00312078
481213838042 |
Termočlánek plynové varné desky Whirlpool, Bauknecht | 830 Kč
€ 32.80 |
||
| 594 0 WHR33420 |
C00313680
481227658164 |
zapalovac | 1 279 Kč
€ 50.50 |
||
| 595 0 WHR33420 |
C00312410
481213818015 |
Ignition generator + terminal block | Na dotaz | Zadat poptávku | |
| 703 0 WHR33420 |
C00332552
481253049007 |
Gas pipe SR RR | Na dotaz | Zadat poptávku | |
| 703 1 WHR33420 |
C00332554
481253049009 |
Gas pipe A | Na dotaz | Zadat poptávku | |
| 703 2 WHR33420 |
C00332553
481253049008 |
Gas pipe R | Na dotaz | Zadat poptávku | |
| 703 3 WHR33420 |
C00332551
481253049006 |
Gas pipe SR FL | Na dotaz | Zadat poptávku | |
| 703 6 WHR33420 |
C00320331
481253049118 |
Gas pipe 4-crown burner | Na dotaz | Zadat poptávku | |
| 703 9 WHR33420 |
C00328429
481231039153 |
Tube bend | Na dotaz | Zadat poptávku | |
| 794 0 WHR33420 |
C00333119
481946668874 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 1 WHR33420 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.10 |
||
| 794 2 WHR33420 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 4 WHR33420 |
C00313483
480111101551 |
tesneni | Na dotaz | Zadat poptávku | |
| 900 1 WHR33420 |
C00314843
481240478776 |
Držáky +šrouby | 343 Kč
€ 13.50 |
||
| 910 0 WHR33420 |
C00317070
481250218833 |
Screw | Na dotaz | Zadat poptávku | |
| 912 0 WHR33420 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 922 7 WHR33420 |
C00333318
481953258281 |
Washer | Na dotaz | Zadat poptávku | |
| 932 2 WHR33420 |
C00317038
481249268203 |
Pružina | 89 Kč
€ 3.50 |
||
| 964 0 WHR33420 |
C00331502
481246688772 |
Gasket | Na dotaz | Zadat poptávku | |
| 999 WHR33420 |
C00590304 | Gas table WHP | Na dotaz | Zadat poptávku | |
