BAUKNECHT TRA4350 TUMBLE DRYER BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TRA4350 TUMBLE DRYER BK |
| Kód 12NC: | 856043520010 |
| Značka: | BAUKNECHT |
| Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás

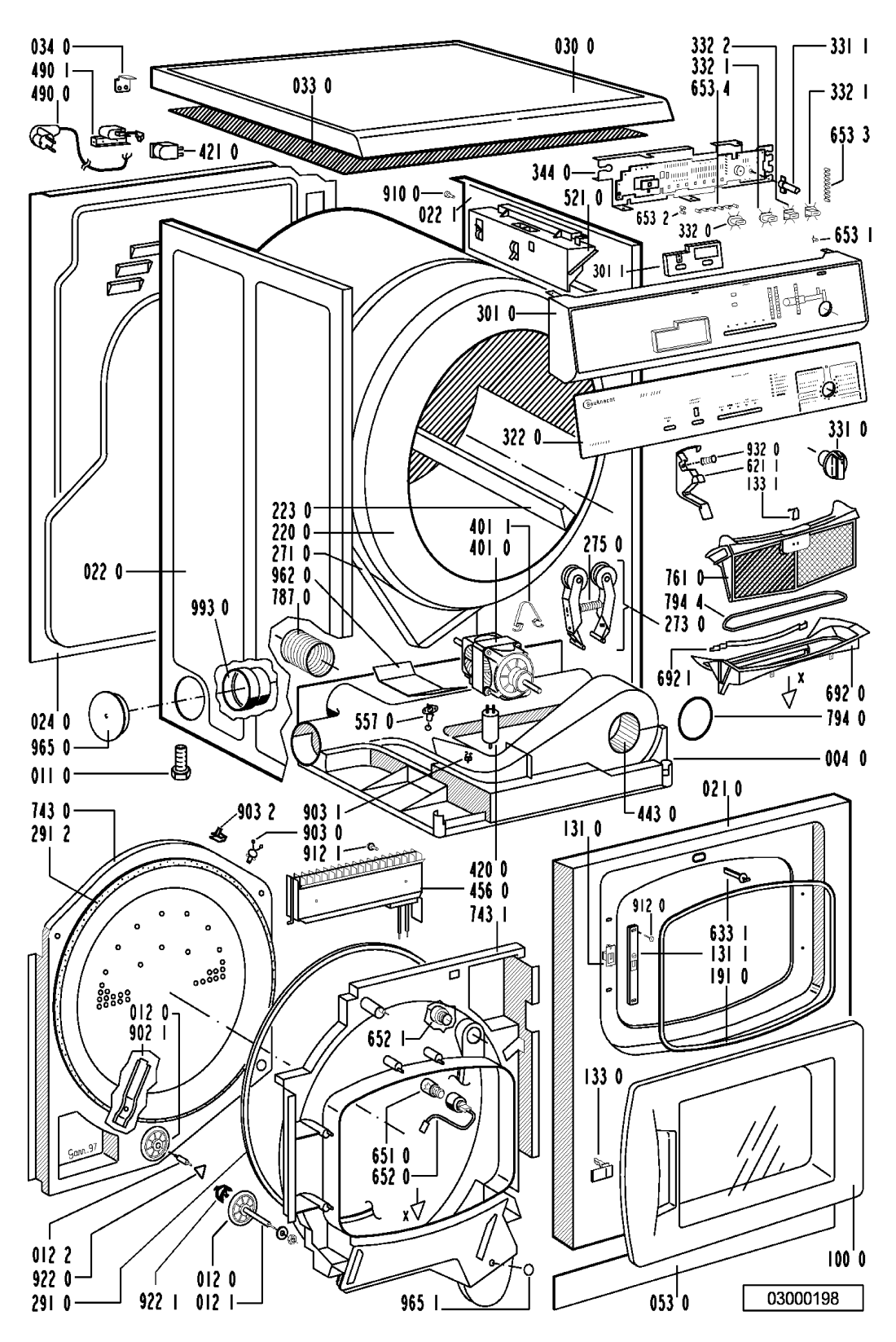

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR74062 |
C00636100
481253048112 |
Bottom air vent.. | Na dotaz | Zadat poptávku | |
| 011 0 WHR74062 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 012 0 WHR74062 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.20 |
||
| 012 1 WHR74062 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.60 |
||
| 012 2 WHR74062 |
C00316679
481252028068 |
osa kolecka zadniho | 381 Kč
€ 15.00 |
||
| 021 0 WHR74062 |
C00592280
481245218948 |
FRONT. | Na dotaz | Zadat poptávku | |
| 022 0 WHR74062 |
C00527979
481244018601 |
PANEL,SIDE LEFT left | Na dotaz | Zadat poptávku | |
| 022 1 WHR74062 |
C00592075
481244018602 |
Panel side right. | Na dotaz | Zadat poptávku | |
| 024 0 WHR74062 |
C00341540
481244019467 |
Panel rear from 98/34 | Na dotaz | Zadat poptávku | |
| 024 0 WHR74062 |
C00497931
481244019441 |
STENA ZADNA DO33/98 AWZ121 N | Na dotaz | Zadat poptávku | |
| 030 0 WHR74062 |
C00491384
481231018402 |
Table top kit BK | Na dotaz | Zadat poptávku | |
| 033 0 WHR74062 |
C00337800
481244018568 |
Plate | Na dotaz | Zadat poptávku | |
| 034 0 WHR74062 |
C00340984
481241778015 |
Fastener Tabletop | Na dotaz | Zadat poptávku | |
| 053 0 WHR74062 |
C00592397
481245938009 |
Plinth. | Na dotaz | Zadat poptávku | |
| 100 0 WHR74062 |
C00342129
481244019452 |
Door | Na dotaz | Zadat poptávku | |
| 131 0 WHR74062 |
C00317473
481227138362 |
Door lock | Na dotaz | Zadat poptávku | |
| 131 1 WHR74062 |
C00342436
481241718797 |
Cover plate | Na dotaz | Zadat poptávku | |
| 133 0 WHR74062 |
C00341450
481241728054 |
Pin door | Na dotaz | Zadat poptávku | |
| 133 1 WHR74062 |
C00338336
481241728056 |
Lock Bag filter | Na dotaz | Zadat poptávku | |
| 191 0 WHR74062 |
C00498454
481246668461 |
tesneni dveri | 637 Kč
€ 25.10 |
||
| 220 0 WHR74062 |
C00311837
481241818177 |
Buben sušičky | 4 185 Kč
€ 165.20 |
||
| 223 0 WHR74062 |
C00341178
481241888027 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR74062 |
C00319959
481235818155 |
Belt 1970-H 7 | Na dotaz | Zadat poptávku | |
| 273 0 WHR74062 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.50 |
||
| 275 0 WHR74062 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR74062 |
C00312073
481246668563 |
Těsnění bubnu přední | 1 968 Kč
€ 77.70 |
||
| 291 2 WHR74062 |
C00315965
481246668562 |
Gasket Drum rear | Na dotaz | Zadat poptávku | |
| 301 0 WHR74062 |
C00592307
481245219514 |
CONTROL PANEL. | Na dotaz | Zadat poptávku | |
| 301 1 WHR74062 |
C00498146
481245219367 |
Frame | Na dotaz | Zadat poptávku | |
| 322 0 WHR74062 |
C00592326
481245219742 |
Insert panel. | Na dotaz | Zadat poptávku | |
| 331 0 WHR74062 |
C00338580
481241348222 |
Knob | Na dotaz | Zadat poptávku | |
| 331 1 WHR74062 |
C00344652
481241348239 |
Adapter | Na dotaz | Zadat poptávku | |
| 332 0 WHR74062 |
C00343985
481227618259 |
Button start | Na dotaz | Zadat poptávku | |
| 332 1 WHR74062 |
C00344051
481227618262 |
TLACITKO | 145 Kč
€ 5.70 |
||
| 332 2 WHR74062 |
C00344052
481227618263 |
Button | Na dotaz | Zadat poptávku | |
| 344 0 WHR74062 |
C00482259
481221478183 |
Display board low | Na dotaz | Zadat poptávku | |
| 401 0 WHR74062 |
C00592033
481236158074 |
motor | 3 247 Kč
€ 128.20 |
||
| 401 1 WHR74062 |
C00343345
481240118226 |
CLAMP MOTOR | Na dotaz | Zadat poptávku | |
| 420 0 WHR74062 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 421 0 WHR74062 |
C00497241
481212118121 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 443 0 WHR74062 |
C00490225
481251548005 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 456 0 WHR74062 |
C00339928
481225928674 |
Heating element 2300W - 1T18275001 | Na dotaz | Zadat poptávku | |
| 490 0 WHR74062 |
C00319506
481232118043 |
Connect.cable 5m | Na dotaz | Zadat poptávku | |
| 490 0 WHR74062 |
C00316354
481232118042 |
Connect.cable 3m | Na dotaz | Zadat poptávku | |
| 490 1 WHR74062 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 521 0 WHR74062 |
C00373738
481931039521 |
CONTROL BOARD KIT | Na dotaz | Zadat poptávku | |
| 557 0 WHR74062 |
C00491366
481228248164 |
termostat | 1 591 Kč
€ 62.80 |
||
| 621 1 WHR74062 |
C00335733
481227018001 |
Switch lever Doorswitch | Na dotaz | Zadat poptávku | |
| 633 1 WHR74062 |
C00316629
481227618271 |
kolik | Na dotaz | Zadat poptávku | |
| 651 0 WHR74062 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR74062 |
C00341824
481213428056 |
Osvětlení komplet | 1 050 Kč
€ 41.50 |
||
| 652 1 WHR74062 |
C00342519
481213428055 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 653 1 WHR74062 |
C00338348
481213448213 |
Light guide on/off | Na dotaz | Zadat poptávku | |
| 653 2 WHR74062 |
C00497248
481213448209 |
Light guide | Na dotaz | Zadat poptávku | |
| 653 3 WHR74062 |
C00497249
481213448211 |
Light guide vertical | Na dotaz | Zadat poptávku | |
| 653 4 WHR74062 |
C00497250
481213448212 |
Light guide horizontal | Na dotaz | Zadat poptávku | |
| 692 0 WHR74062 |
C00340755
481248058079 |
filtr sušičky | 1 092 Kč
€ 43.10 |
||
| 692 1 WHR74062 |
C00311657
481227858001 |
senzor vlhkosti | 1 134 Kč
€ 44.80 |
||
| 743 0 WHR74062 |
C00343139
481253048151 |
Conveyor | Na dotaz | Zadat poptávku | |
| 743 1 WHR74062 |
C00344580
481231018442 |
Air guide Kit with holKit with hole | Na dotaz | Zadat poptávku | |
| 761 0 WHR74062 |
C00320129
481248058081 |
Filter Bag | Na dotaz | Zadat poptávku | |
| 787 0 WHR74062 |
C00314770
481231018413 |
sada pro odvětrání sušičky | Na dotaz | Zadat poptávku | |
| 794 0 WHR74062 |
C00337980
481246628105 |
O-RING | Na dotaz | Zadat poptávku | |
| 794 4 WHR74062 |
C00340495
481246668547 |
tesneni | 784 Kč
€ 31.00 |
||
| 902 1 WHR74062 |
C00344157
481225638002 |
Bracket Roller | Na dotaz | Zadat poptávku | |
| 903 0 WHR74062 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 903 1 WHR74062 |
C00343322
481229088053 |
PLASTOVA PRICHYTKA | 198 Kč
€ 7.80 |
||
| 903 2 WHR74062 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR74062 |
C00336554
481250238057 |
Screw Torx 4,2x13 | Na dotaz | Zadat poptávku | |
| 912 0 WHR74062 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 912 1 WHR74062 |
C00336571
481250238142 |
Screw M5 x 10 | Na dotaz | Zadat poptávku | |
| 922 0 WHR74062 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 922 1 WHR74062 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.90 |
||
| 932 0 WHR74062 |
C00497339
481227818001 |
Spring | Na dotaz | Zadat poptávku | |
| 962 0 WHR74062 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
| 965 0 WHR74062 |
C00636101
481253048113 |
Cover vent exhaust. | Na dotaz | Zadat poptávku | |
| 965 1 WHR74062 |
C00592406
481246668465 |
Stopper thermostat. | Na dotaz | Zadat poptávku | |
| 993 0 WHR74062 |
C00327219
481226378014 |
priruba hadice plast | 483 Kč
€ 19.10 |
||
