BAUKNECHT TRAS 6120 TUMBLE DRYER BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TRAS 6120 TUMBLE DRYER BK |
| Kód 12NC: | 856061212000 |
| I.C. kód: | 856061212004 |
| Značka: | BAUKNECHT |
| Typ produktu: | Sušičky |
| Další podobné modely: | 856061203000, 856061203001, 856061212001, 856061212000, 856061212003, 856061220000, 856061220001, 856061217000, 856061217001, 856061220003, 856061220004, 856061242000, 856061242001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

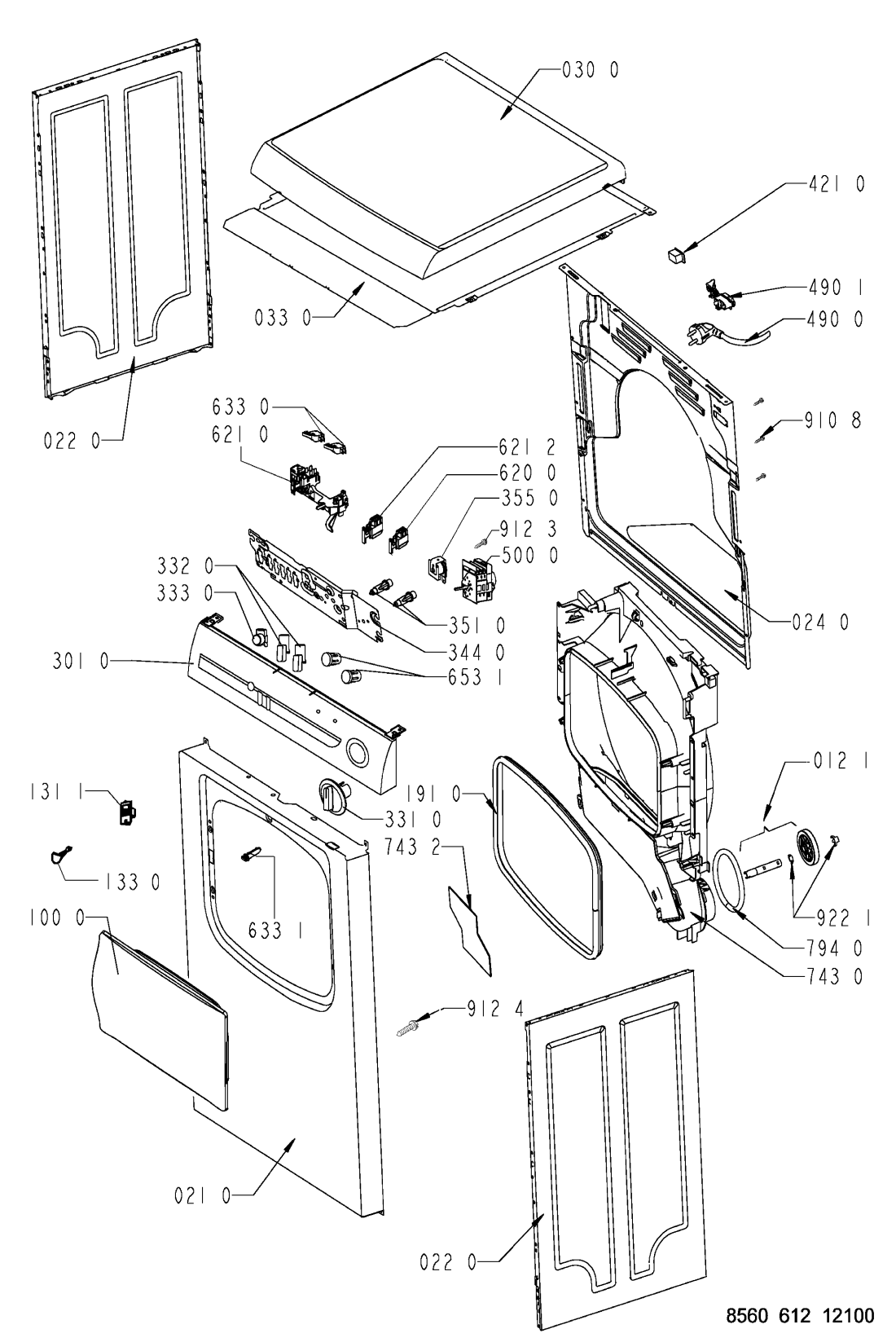

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR81448 |
C00344297
481244011038 |
kryt ventilatoru | 1 704 Kč
€ 67.30 |
||
| 004 1 WHR81448 |
C00337127
481246638078 |
Protec,el.parts /bottom AV | Na dotaz | Zadat poptávku | |
| 011 0 WHR81448 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 012 0 WHR81448 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.20 |
||
| 012 1 WHR81448 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.60 |
||
| 012 2 WHR81448 |
C00316679
481252028068 |
osa kolecka zadniho | 381 Kč
€ 15.00 |
||
| 021 0 WHR81448 |
C00340643
481244010832 |
Front,panel | Na dotaz | Zadat poptávku | |
| 022 0 WHR81448 |
C00341534
481244010866 |
Panel side GW | Na dotaz | Zadat poptávku | |
| 024 0 WHR81448 |
C00341542
481244010713 |
Panel rear AV | Na dotaz | Zadat poptávku | |
| 030 0 WHR81448 |
C00553555
481244010882 |
Table top | Na dotaz | Zadat poptávku | |
| 033 0 WHR81448 |
C00318645
481231018582 |
Kit Push in cover | Na dotaz | Zadat poptávku | |
| 100 0 WHR81448 |
C00381055
481244010831 |
Dveře pračky GW | 1 984 Kč
€ 78.30 |
||
| 131 1 WHR81448 |
C00313210
481227138462 |
Zámek sušičky | 185 Kč
€ 7.30 |
||
| 133 0 WHR81448 |
C00311468
481241728094 |
kolik dveri | 395 Kč
€ 15.60 |
||
| 191 0 WHR81448 |
C00314982
481246668539 |
Gasket door | Na dotaz | Zadat poptávku | |
| 220 0 WHR81448 |
C00311837
481241818177 |
Buben sušičky | 4 185 Kč
€ 165.20 |
||
| 223 0 WHR81448 |
C00316053
481241889017 |
žebro bubnu sušičky | 539 Kč
€ 21.30 |
||
| 271 0 WHR81448 |
C00314936
481235818162 |
Belt 1965-H7 EH81 | Na dotaz | Zadat poptávku | |
| 273 0 WHR81448 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.50 |
||
| 275 0 WHR81448 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR81448 |
C00312073
481246668563 |
Těsnění bubnu přední | 1 968 Kč
€ 77.70 |
||
| 291 2 WHR81448 |
C00315965
481246668562 |
Gasket Drum rear | Na dotaz | Zadat poptávku | |
| 301 0 WHR81448 |
C00592113
481245210973 |
Control panel TRAS 6120. | Na dotaz | Zadat poptávku | |
| 331 0 WHR81448 |
C00487560
481241458198 |
Knob timer BK GW | Na dotaz | Zadat poptávku | |
| 332 0 WHR81448 |
C00491112
481227618445 |
Button Option BK VBL TS GW | Na dotaz | Zadat poptávku | |
| 333 0 WHR81448 |
C00491111
481227618444 |
Button Start BK VBL TS GW | Na dotaz | Zadat poptávku | |
| 344 0 WHR81448 |
C00592405
481246448157 |
Support f. Control panel | Na dotaz | Zadat poptávku | |
| 351 0 WHR81448 |
C00341482
481213448227 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 355 0 WHR81448 |
C00343958
481228018023 |
Buzzer | Na dotaz | Zadat poptávku | |
| 401 0 WHR81448 |
C00313823
481236118361 |
Motor incl. fan wheel | Na dotaz | Zadat poptávku | |
| 401 1 WHR81448 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 9.80 |
||
| 420 0 WHR81448 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 421 0 WHR81448 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 443 0 WHR81448 |
C00311873
481236118292 |
Blower wheel | Na dotaz | Zadat poptávku | |
| 456 0 WHR81448 |
C00339928
481225928674 |
Heating element 2300W - 1T18275001 | Na dotaz | Zadat poptávku | |
| 490 0 WHR81448 |
C00316380
481232118044 |
CABLE,MAINS 5M 4X1 | Na dotaz | Zadat poptávku | |
| 490 1 WHR81448 |
C00335990
481232128421 |
Strain relief | Na dotaz | Zadat poptávku | |
| 492 1 WHR81448 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 500 0 WHR81448 |
C00315666
481228218457 |
Timer EC4605.01 TRA EC4605.01 | Na dotaz | Zadat poptávku | |
| 551 3 WHR81448 |
C00317435
481227128528 |
termostat susicky NT | Na dotaz | Zadat poptávku | |
| 620 0 WHR81448 |
C00491082
481227618277 |
Switch Buzzer Rold SC002012510 | Na dotaz | Zadat poptávku | |
| 621 0 WHR81448 |
C00312641
481227818003 |
Switch start reset | Na dotaz | Zadat poptávku | |
| 621 2 WHR81448 |
C00320043
481227618278 |
spinac | 1 044 Kč
€ 41.20 |
||
| 633 0 WHR81448 |
C00315649
481227618248 |
spinac tlacitkovy | 1 101 Kč
€ 43.50 |
||
| 633 1 WHR81448 |
C00312237
481227618422 |
Kolík | 540 Kč
€ 21.30 |
||
| 653 1 WHR81448 |
C00340146
481204728001 |
Guide,light WH VBL | Na dotaz | Zadat poptávku | |
| 743 0 WHR81448 |
C00316709
481253048631 |
navadec vzduchu | 2 979 Kč
€ 117.60 |
||
| 743 1 WHR81448 |
C00343139
481253048151 |
Conveyor | Na dotaz | Zadat poptávku | |
| 743 2 WHR81448 |
C00330911
481246668538 |
tesneni | 480 Kč
€ 18.90 |
||
| 761 0 WHR81448 |
C00317019
481248058323 |
Filtr sušičky - dveřní | 924 Kč
€ 36.50 |
||
| 794 0 WHR81448 |
C00319697
481246628107 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 1 WHR81448 |
C00343322
481229088053 |
PLASTOVA PRICHYTKA | 198 Kč
€ 7.80 |
||
| 902 1 WHR81448 |
C00344157
481225638002 |
Bracket Roller | Na dotaz | Zadat poptávku | |
| 903 0 WHR81448 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 910 8 WHR81448 |
C00332164
481250248348 |
Screw ST 4,2x11 | Na dotaz | Zadat poptávku | |
| 912 1 WHR81448 |
C00336571
481250238142 |
Screw M5 x 10 | Na dotaz | Zadat poptávku | |
| 912 3 WHR81448 |
C00336600
481250218369 |
Screw A2F M4x6 | Na dotaz | Zadat poptávku | |
| 912 4 WHR81448 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 922 0 WHR81448 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 922 1 WHR81448 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.90 |
||
| 962 0 WHR81448 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
| 993 0 WHR81448 |
C00327219
481226378014 |
priruba hadice plast | 483 Kč
€ 19.10 |
||
| 993 1 WHR81448 |
C00314770
481231018413 |
sada pro odvětrání sušičky | Na dotaz | Zadat poptávku | |
