BAUKNECHT TRK5620 TUMBLE DRYER BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TRK5620 TUMBLE DRYER BK |
| Kód 12NC: | 856056217010 |
| I.C. kód: | 856056217011 |
| Značka: | BAUKNECHT |
| Typ produktu: | Sušičky |
| Další podobné modely: | 856056229001, 856056217010, 856056217012, 856056220000, 856056220001, 856056220002, 856056229000, 856056229002 |
Potřebujete servis? Jsme tady pro Vás

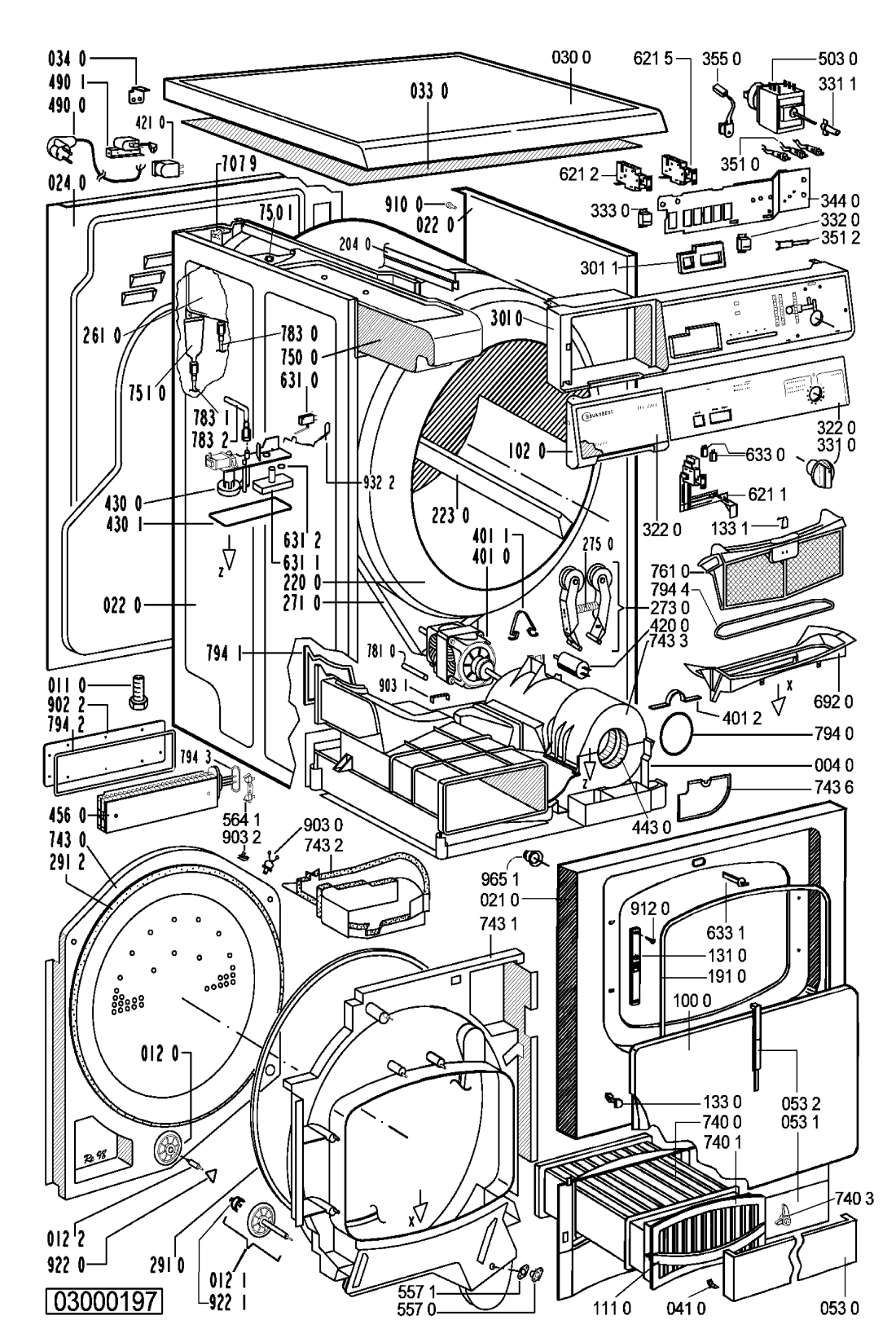

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR81408 |
C00344305
481244019518 |
BOTTOM | Na dotaz | Zadat poptávku | |
| 011 0 WHR81408 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 012 0 WHR81408 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.20 |
||
| 012 1 WHR81408 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.60 |
||
| 012 2 WHR81408 |
C00316679
481252028068 |
osa kolecka zadniho | 381 Kč
€ 15.00 |
||
| 021 0 WHR81408 |
C00340639
481244069045 |
Front,panel paint | Na dotaz | Zadat poptávku | |
| 022 0 WHR81408 |
C00341500
481244019445 |
Panel side | Na dotaz | Zadat poptávku | |
| 024 0 WHR81408 |
C00341540
481244019467 |
Panel rear from 98/34 | Na dotaz | Zadat poptávku | |
| 024 0 WHR81408 |
C00497931
481244019441 |
STENA ZADNA DO33/98 AWZ121 N | Na dotaz | Zadat poptávku | |
| 030 0 WHR81408 |
C00335652
481244019446 |
TABLE TOP | Na dotaz | Zadat poptávku | |
| 033 0 WHR81408 |
C00337800
481244018568 |
Plate | Na dotaz | Zadat poptávku | |
| 034 0 WHR81408 |
C00340984
481241778015 |
Fastener Tabletop | Na dotaz | Zadat poptávku | |
| 041 0 WHR81408 |
C00497777
481241718812 |
drzak soklu | Na dotaz | Zadat poptávku | |
| 053 0 WHR81408 |
C00337674
481244019336 |
sokl susicky kovovy | 26 103 Kč
€ 1,030.50 |
||
| 053 1 WHR81408 |
C00337721
481244019443 |
sokl susicky plast | 1 377 Kč
€ 54.40 |
||
| 053 2 WHR81408 |
C00338395
481241728042 |
Lever,fastener plinth | Na dotaz | Zadat poptávku | |
| 100 0 WHR81408 |
C00342131
481241738013 |
dvere susicky | Na dotaz | Zadat poptávku | |
| 102 0 WHR81408 |
C00339302
481245219522 |
Door flap | Na dotaz | Zadat poptávku | |
| 111 0 WHR81408 |
C00592036
481240148571 |
Handle | Na dotaz | Zadat poptávku | |
| 131 0 WHR81408 |
C00313071
481227138354 |
Zámek sušičky | 467 Kč
€ 18.40 |
||
| 133 0 WHR81408 |
C00319932
481241728039 |
hak uzaveru | 496 Kč
€ 19.60 |
||
| 133 1 WHR81408 |
C00338336
481241728056 |
Lock Bag filter | Na dotaz | Zadat poptávku | |
| 191 0 WHR81408 |
C00498454
481246668461 |
tesneni dveri | 637 Kč
€ 25.10 |
||
| 204 0 WHR81408 |
C00337108
481246638014 |
OCHRANA AWZ565 | 431 Kč
€ 17.00 |
||
| 220 0 WHR81408 |
C00341183
481241818199 |
Drum coatedcoated | Na dotaz | Zadat poptávku | |
| 223 0 WHR81408 |
C00341178
481241888027 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 261 0 WHR81408 |
C00342779
481241878952 |
Case | Na dotaz | Zadat poptávku | |
| 271 0 WHR81408 |
C00312959
481235818156 |
Řemen sušičky 1951 H7 | 143 Kč
€ 5.60 |
||
| 273 0 WHR81408 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.50 |
||
| 275 0 WHR81408 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR81408 |
C00313025
481246668561 |
tesneni bubnu predni | 1 262 Kč
€ 49.80 |
||
| 291 2 WHR81408 |
C00315965
481246668562 |
Gasket Drum rear | Na dotaz | Zadat poptávku | |
| 301 0 WHR81408 |
C00343247
481245219381 |
Control panel cpl | Na dotaz | Zadat poptávku | |
| 301 1 WHR81408 |
C00592282
481245219316 |
INSERT. | Na dotaz | Zadat poptávku | |
| 322 0 WHR81408 |
C00592086
481245210003 |
Insert print symbols. | Na dotaz | Zadat poptávku | |
| 322 0 WHR81408 |
C00592096
481245210116 |
Insert print 3 languages. | Na dotaz | Zadat poptávku | |
| 331 0 WHR81408 |
C00338580
481241348222 |
Knob | Na dotaz | Zadat poptávku | |
| 331 1 WHR81408 |
C00344652
481241348239 |
Adapter | Na dotaz | Zadat poptávku | |
| 332 0 WHR81408 |
C00592037
481241028551 |
BUTTON. | Na dotaz | Zadat poptávku | |
| 333 0 WHR81408 |
C00592016
481227618254 |
BUTTON. | Na dotaz | Zadat poptávku | |
| 344 0 WHR81408 |
C00592404
481246448109 |
Holder. | Na dotaz | Zadat poptávku | |
| 351 0 WHR81408 |
C00341482
481213448227 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 351 2 WHR81408 |
C00488441
481213448203 |
PILOT LAMP | Na dotaz | Zadat poptávku | |
| 355 0 WHR81408 |
C00498868
481928018015 |
BZUCIAK N | Na dotaz | Zadat poptávku | |
| 401 0 WHR81408 |
C00497525
481236118188 |
MOTOR AWZ565 N | Na dotaz | Zadat poptávku | |
| 401 1 WHR81408 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 9.80 |
||
| 401 2 WHR81408 |
C00343344
481240118229 |
SPOJKA | 317 Kč
€ 12.50 |
||
| 420 0 WHR81408 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 421 0 WHR81408 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 430 0 WHR81408 |
C00319784
481931039727 |
Čerpadlo kondenzační | 1 980 Kč
€ 78.20 |
||
| 430 1 WHR81408 |
C00340581
481246628104 |
tesneni | 189 Kč
€ 7.50 |
||
| 443 0 WHR81408 |
C00497526
481236118189 |
VRTULKA VENTIL?TORA AWZ470 **plastN | Na dotaz | Zadat poptávku | |
| 456 0 WHR81408 |
C00311310
481225928679 |
Heating element 2050 W | Na dotaz | Zadat poptávku | |
| 490 0 WHR81408 |
C00319506
481232118043 |
Connect.cable 5m | Na dotaz | Zadat poptávku | |
| 490 0 WHR81408 |
C00316354
481232118042 |
Connect.cable 3m | Na dotaz | Zadat poptávku | |
| 490 1 WHR81408 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 503 0 WHR81408 |
C00319737
481232818175 |
Timer | Na dotaz | Zadat poptávku | |
| 557 0 WHR81408 |
C00335526
481227128209 |
Termostat sušičky Whirlpool, Bauknecht 145 °C | 691 Kč
€ 27.30 |
||
| 557 1 WHR81408 |
C00340582
481253058069 |
Gasket | Na dotaz | Zadat poptávku | |
| 564 1 WHR81408 |
C00313080
481225928681 |
Sestava termostatů sušičky prádla Whirlpool, Bauknecht | 793 Kč
€ 31.30 |
||
| 621 1 WHR81408 |
C00312641
481227818003 |
Switch start reset | Na dotaz | Zadat poptávku | |
| 621 2 WHR81408 |
C00320043
481227618278 |
spinac | 1 044 Kč
€ 41.20 |
||
| 621 5 WHR81408 |
C00554935
481227618227 |
Pushbuttonswit. "Buzze.. | Na dotaz | Zadat poptávku | |
| 631 0 WHR81408 |
C00338100
481227138076 |
Microswitch | Na dotaz | Zadat poptávku | |
| 631 1 WHR81408 |
C00318395
481236018374 |
plovak | 693 Kč
€ 27.40 |
||
| 631 2 WHR81408 |
C00315269
481236058093 |
tesneni | Na dotaz | Zadat poptávku | |
| 633 0 WHR81408 |
C00315649
481227618248 |
spinac tlacitkovy | 1 101 Kč
€ 43.50 |
||
| 633 1 WHR81408 |
C00316629
481227618271 |
kolik | Na dotaz | Zadat poptávku | |
| 692 0 WHR81408 |
C00340755
481248058079 |
filtr sušičky | 1 092 Kč
€ 43.10 |
||
| 707 9 WHR81408 |
C00337380
481253048165 |
TRUBKA AWZ565 | 581 Kč
€ 22.90 |
||
| 740 0 WHR81408 |
C00339965
481251148202 |
kondenzator | 3 771 Kč
€ 148.90 |
||
| 740 1 WHR81408 |
C00488623
481231048025 |
kondenzator | 4 935 Kč
€ 194.80 |
||
| 740 3 WHR81408 |
C00339997
481252518002 |
Handle looking | Na dotaz | Zadat poptávku | |
| 743 0 WHR81408 |
C00484093
481253048164 |
Conveyor coated | Na dotaz | Zadat poptávku | |
| 743 1 WHR81408 |
C00497387
481231018443 |
NAVADZAC VZDUCHU BEZ OTVORU N | Na dotaz | Zadat poptávku | |
| 743 2 WHR81408 |
C00498634
481253048126 |
Cover bar | Na dotaz | Zadat poptávku | |
| 743 3 WHR81408 |
C00341064
481246448092 |
Fan box | Na dotaz | Zadat poptávku | |
| 743 6 WHR81408 |
C00336504
481253048158 |
SEPARATOR LOWER | Na dotaz | Zadat poptávku | |
| 750 0 WHR81408 |
C00497855
481241878979 |
ZASOBNIK KONDENZOVANEJ VODY N | Na dotaz | Zadat poptávku | |
| 750 1 WHR81408 |
C00337202
481253028856 |
Water guide | Na dotaz | Zadat poptávku | |
| 751 0 WHR81408 |
C00337222
481253048166 |
SPOJKA AWZ565 | 1 914 Kč
€ 75.60 |
||
| 761 0 WHR81408 |
C00320129
481248058081 |
Filter Bag | Na dotaz | Zadat poptávku | |
| 781 0 WHR81408 |
C00341125
481253028243 |
Hadice výtoková - sušička 1,5m | 308 Kč
€ 12.20 |
||
| 783 0 WHR81408 |
C00339391
481253028854 |
Hose bottom-inflow | Na dotaz | Zadat poptávku | |
| 783 1 WHR81408 |
C00339255
481253028855 |
Hose reflow | Na dotaz | Zadat poptávku | |
| 783 2 WHR81408 |
C00339259
481253028853 |
Hose pump-bottom | Na dotaz | Zadat poptávku | |
| 794 0 WHR81408 |
C00498447
481246628109 |
"""KRUZOK """"O"""" AWZ565 | Na dotaz | Zadat poptávku | |
| 794 1 WHR81408 |
C00319699
481246628108 |
tesneni | 695 Kč
€ 27.40 |
||
| 794 2 WHR81408 |
C00336536
481246698935 |
Sealing Heater holder | Na dotaz | Zadat poptávku | |
| 794 3 WHR81408 |
C00320041
481246698937 |
Sealing | Na dotaz | Zadat poptávku | |
| 794 4 WHR81408 |
C00313984
481246688521 |
Těsnění dveřního filtru sušičky | 1 125 Kč
€ 44.40 |
||
| 902 2 WHR81408 |
C00339599
481225638004 |
Holder heater | Na dotaz | Zadat poptávku | |
| 903 0 WHR81408 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 903 1 WHR81408 |
C00497549
481240118228 |
Fastener. | Na dotaz | Zadat poptávku | |
| 903 2 WHR81408 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR81408 |
C00336554
481250238057 |
Screw Torx 4,2x13 | Na dotaz | Zadat poptávku | |
| 912 0 WHR81408 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 922 0 WHR81408 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 922 1 WHR81408 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.90 |
||
| 932 2 WHR81408 |
C00335668
481931039726 |
SPONA PRUZNA AWZ | 665 Kč
€ 26.30 |
||
| 965 1 WHR81408 |
C00342821
481246279651 |
Cap Frosty | Na dotaz | Zadat poptávku | |
