BAUKNECHT TRKK 6840 TUMBLE DRYER BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TRKK 6840 TUMBLE DRYER BK |
| Kód 12NC: | 856068412000 |
| I.C. kód: | 856068412001 |
| Značka: | BAUKNECHT |
| Typ produktu: | Sušičky |
| Další podobné modely: | 856068403003, 856068412000, 856068403000, 856068403001, 856068412003 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

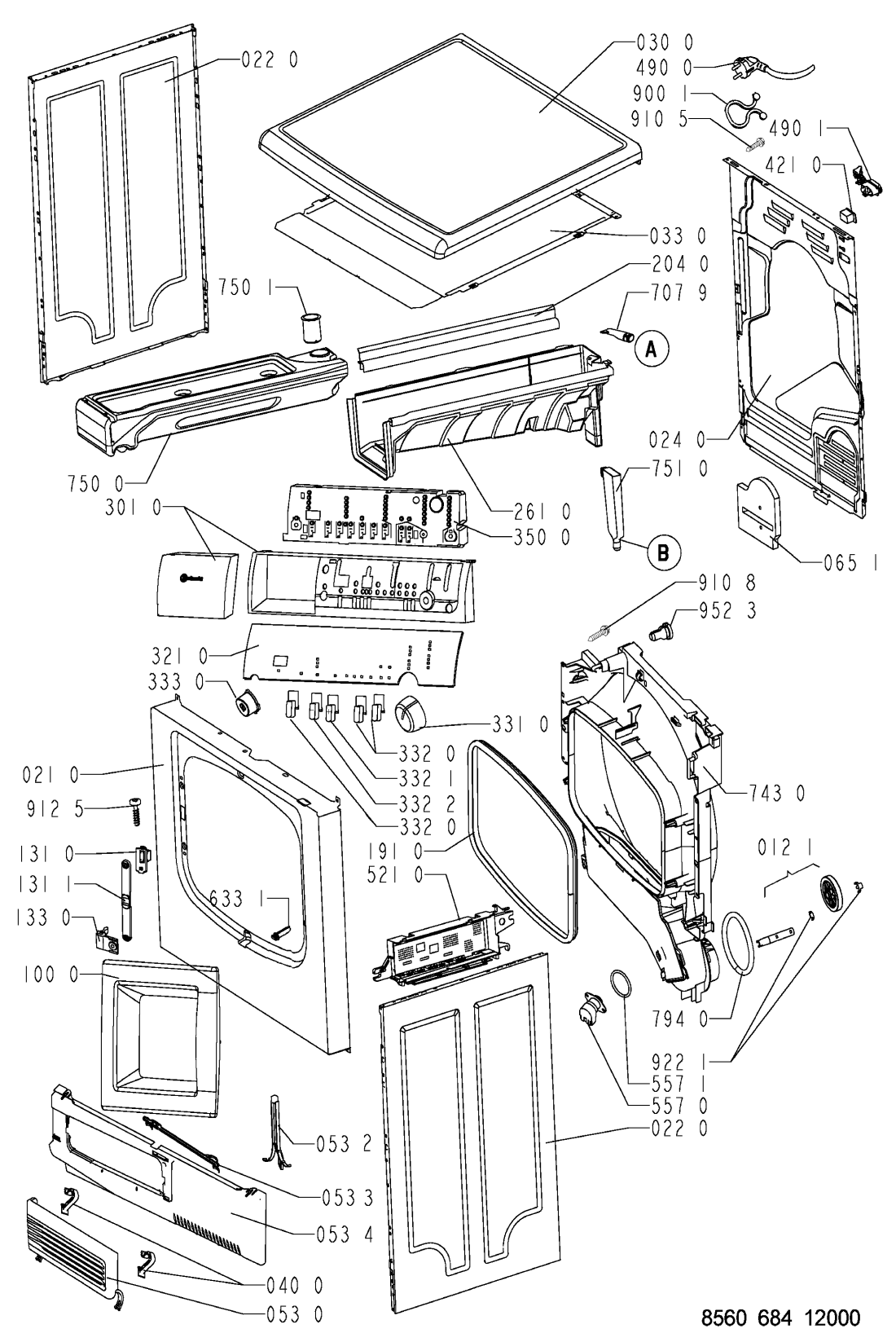

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR69511 |
C00316150
481244019718 |
sokl | 4 064 Kč
€ 160.30 |
||
| 011 0 WHR69511 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 012 0 WHR69511 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.10 |
||
| 012 1 WHR69511 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.50 |
||
| 012 2 WHR69511 |
C00316679
481252028068 |
osa kolecka zadniho | 381 Kč
€ 15.00 |
||
| 021 0 WHR69511 |
C00527939
481244010576 |
Front VBL BK VBL BK | Na dotaz | Zadat poptávku | |
| 022 0 WHR69511 |
C00341500
481244019445 |
Panel side | Na dotaz | Zadat poptávku | |
| 024 0 WHR69511 |
C00341524
481244019708 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 030 0 WHR69511 |
C00491711
481244010575 |
Table top VBL BK | Na dotaz | Zadat poptávku | |
| 033 0 WHR69511 |
C00318645
481231018582 |
Kit Push in cover | Na dotaz | Zadat poptávku | |
| 040 0 WHR69511 |
C00488992
481241728078 |
ZAVES DVERI VYMENNIKU | Na dotaz | Zadat poptávku | |
| 053 0 WHR69511 |
C00528185
481244089002 |
Flap cpl. VBL BK | Na dotaz | Zadat poptávku | |
| 053 2 WHR69511 |
C00338396
481241728061 |
Lever,fastener plinth | Na dotaz | Zadat poptávku | |
| 053 3 WHR69511 |
C00338319
481241728062 |
Lock transmit. | Na dotaz | Zadat poptávku | |
| 053 4 WHR69511 |
C00489307
481244089001 |
Plinth VBL BK | Na dotaz | Zadat poptávku | |
| 065 1 WHR69511 |
C00338694
481232518009 |
Insulation rear panel | Na dotaz | Zadat poptávku | |
| 065 4 WHR69511 |
C00338705
481232518008 |
Insulation housing | Na dotaz | Zadat poptávku | |
| 100 0 WHR69511 |
C00342129
481244019452 |
Door | Na dotaz | Zadat poptávku | |
| 131 0 WHR69511 |
C00317473
481227138362 |
Door lock | Na dotaz | Zadat poptávku | |
| 131 1 WHR69511 |
C00342436
481241718797 |
Cover plate | Na dotaz | Zadat poptávku | |
| 133 0 WHR69511 |
C00341450
481241728054 |
Pin door | Na dotaz | Zadat poptávku | |
| 133 2 WHR69511 |
C00338336
481241728056 |
Lock Bag filter | Na dotaz | Zadat poptávku | |
| 191 0 WHR69511 |
C00312285
481246668607 |
Těsnění dveří sušičky | 1 007 Kč
€ 39.70 |
||
| 204 0 WHR69511 |
C00337108
481246638014 |
OCHRANA AWZ565 | 431 Kč
€ 17.00 |
||
| 220 0 WHR69511 |
C00311837
481241818177 |
Buben sušičky | 4 185 Kč
€ 165.10 |
||
| 223 0 WHR69511 |
C00341178
481241888027 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 261 0 WHR69511 |
C00342779
481241878952 |
Case | Na dotaz | Zadat poptávku | |
| 271 0 WHR69511 |
C00311016
481235818164 |
Řemen sušičky 1936H6 | 201 Kč
€ 7.90 |
||
| 273 0 WHR69511 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.40 |
||
| 275 0 WHR69511 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR69511 |
C00313025
481246668561 |
tesneni bubnu predni | 1 262 Kč
€ 49.80 |
||
| 291 2 WHR69511 |
C00315965
481246668562 |
Gasket Drum rear | Na dotaz | Zadat poptávku | |
| 301 0 WHR69511 |
C00592166
481245211471 |
Control panel Cpl. | Na dotaz | Zadat poptávku | |
| 321 0 WHR69511 |
C00592165
481245211469 |
Insert panel TRKK 6840. | Na dotaz | Zadat poptávku | |
| 331 0 WHR69511 |
C00487558
481241458167 |
Knob timer OMEGA VBL BK | Na dotaz | Zadat poptávku | |
| 332 0 WHR69511 |
C00491631
481241028898 |
Button Opt. VBL BK | Na dotaz | Zadat poptávku | |
| 332 1 WHR69511 |
C00592046
481241028899 |
Button Opt. + VBL BK. | Na dotaz | Zadat poptávku | |
| 332 2 WHR69511 |
C00592047
481241028901 |
Button Opt. - VBL BK. | Na dotaz | Zadat poptávku | |
| 333 0 WHR69511 |
C00491630
481241028897 |
Button Start VBL BK | Na dotaz | Zadat poptávku | |
| 350 0 WHR69511 |
C00592006
481221478804 |
deska displeje | 3 685 Kč
€ 145.30 |
||
| 401 0 WHR69511 |
C00314669
481236118291 |
Motor incl. fan wheel | Na dotaz | Zadat poptávku | |
| 401 1 WHR69511 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 9.80 |
||
| 401 2 WHR69511 |
C00343344
481240118229 |
SPOJKA | 317 Kč
€ 12.50 |
||
| 420 0 WHR69511 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 421 0 WHR69511 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 430 0 WHR69511 |
C00311834
481236058212 |
Čerpadlo kondenzační pro sušičky Whirlpool, Bauknecht | 1 524 Kč
€ 60.10 |
||
| 443 0 WHR69511 |
C00311873
481236118292 |
Blower wheel | Na dotaz | Zadat poptávku | |
| 443 1 WHR69511 |
C00315307
481236118293 |
vrtule ventilatoru | 444 Kč
€ 17.50 |
||
| 443 2 WHR69511 |
C00316172
481229088066 |
pojistka | Na dotaz | Zadat poptávku | |
| 456 0 WHR69511 |
C00313601
481231018627 |
Topení sušičky | 2 902 Kč
€ 114.50 |
||
| 490 0 WHR69511 |
C00316380
481232118044 |
CABLE,MAINS 5M 4X1 | Na dotaz | Zadat poptávku | |
| 490 0 WHR69511 |
C00316354
481232118042 |
Connect.cable 3m | Na dotaz | Zadat poptávku | |
| 490 1 WHR69511 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 492 1 WHR69511 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 521 0 WHR69511 |
C00620336
481221478781 |
programator susicky | 3 326 Kč
€ 131.20 |
||
| 557 0 WHR69511 |
C00311889
481228208008 |
Termostat sušičky Whirlpool, Bauknecht 85 °C | 1 521 Kč
€ 60.00 |
||
| 557 1 WHR69511 |
C00340422
481228298005 |
Gasket Thermostat | Na dotaz | Zadat poptávku | |
| 564 0 WHR69511 |
C00313080
481225928681 |
Sestava termostatů sušičky prádla Whirlpool, Bauknecht | 793 Kč
€ 31.30 |
||
| 631 0 WHR69511 |
C00497324
481227138396 |
MIKROSPINAC | Na dotaz | Zadat poptávku | |
| 631 1 WHR69511 |
C00312420
481236018476 |
Plovák | Na dotaz | Zadat poptávku | |
| 631 2 WHR69511 |
C00315269
481236058093 |
tesneni | Na dotaz | Zadat poptávku | |
| 633 1 WHR69511 |
C00316629
481227618271 |
kolik | Na dotaz | Zadat poptávku | |
| 692 0 WHR69511 |
C00344155
481221058006 |
Bracket Sensor | Na dotaz | Zadat poptávku | |
| 692 1 WHR69511 |
C00311657
481227858001 |
senzor vlhkosti | 1 134 Kč
€ 44.70 |
||
| 707 9 WHR69511 |
C00337380
481253048165 |
TRUBKA AWZ565 | 581 Kč
€ 22.90 |
||
| 740 0 WHR69511 |
C00339962
481251148243 |
VYPARNIK | 3 273 Kč
€ 129.10 |
||
| 741 0 WHR69511 |
C00316083
481244008003 |
VENTILATOR | 372 Kč
€ 14.70 |
||
| 741 1 WHR69511 |
C00318903
481253048244 |
Cover blower house | Na dotaz | Zadat poptávku | |
| 743 0 WHR69511 |
C00344565
481253048242 |
Air guide withoutholewithouthole | Na dotaz | Zadat poptávku | |
| 743 1 WHR69511 |
C00339955
481253048254 |
Heating chamber SS | Na dotaz | Zadat poptávku | |
| 743 3 WHR69511 |
C00342555
481253048239 |
kryt | 1 502 Kč
€ 59.20 |
||
| 743 4 WHR69511 |
C00342435
481246448122 |
Cover plate | Na dotaz | Zadat poptávku | |
| 743 8 WHR69511 |
C00340450
481246688519 |
tesneni | 216 Kč
€ 8.50 |
||
| 750 0 WHR69511 |
C00497855
481241878979 |
ZASOBNIK KONDENZOVANEJ VODY N | Na dotaz | Zadat poptávku | |
| 750 1 WHR69511 |
C00337202
481253028856 |
Water guide | Na dotaz | Zadat poptávku | |
| 751 0 WHR69511 |
C00337222
481253048166 |
SPOJKA AWZ565 | 1 914 Kč
€ 75.50 |
||
| 751 1 WHR69511 |
C00314706
481241888044 |
nadoba sberna | 684 Kč
€ 27.00 |
||
| 751 2 WHR69511 |
C00343340
481240118472 |
Clamp sump cover | Na dotaz | Zadat poptávku | |
| 751 3 WHR69511 |
C00342343
481227118014 |
Cover water switch | Na dotaz | Zadat poptávku | |
| 761 0 WHR69511 |
C00320129
481248058081 |
Filter Bag | Na dotaz | Zadat poptávku | |
| 781 0 WHR69511 |
C00341125
481253028243 |
Hadice výtoková - sušička 1,5m | 308 Kč
€ 12.10 |
||
| 783 0 WHR69511 |
C00339355
481253008003 |
Vypouštěcí hadice sušičky Whirlpool, Bauknecht | 775 Kč
€ 30.60 |
||
| 783 1 WHR69511 |
C00339253
481253008002 |
Hose reflowreflow | Na dotaz | Zadat poptávku | |
| 783 2 WHR69511 |
C00339260
481253008001 |
Hose Pump bottom | Na dotaz | Zadat poptávku | |
| 794 0 WHR69511 |
C00315088
481246688523 |
tesneni | 255 Kč
€ 10.10 |
||
| 794 1 WHR69511 |
C00319699
481246628108 |
tesneni | 695 Kč
€ 27.40 |
||
| 794 2 WHR69511 |
C00336536
481246698935 |
Sealing Heater holder | Na dotaz | Zadat poptávku | |
| 794 3 WHR69511 |
C00320041
481246698937 |
Sealing | Na dotaz | Zadat poptávku | |
| 794 4 WHR69511 |
C00313984
481246688521 |
Těsnění dveřního filtru sušičky | 1 125 Kč
€ 44.40 |
||
| 900 1 WHR69511 |
C00343322
481229088053 |
PLASTOVA PRICHYTKA | 198 Kč
€ 7.80 |
||
| 902 2 WHR69511 |
C00339599
481225638004 |
Holder heater | Na dotaz | Zadat poptávku | |
| 903 0 WHR69511 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 903 1 WHR69511 |
C00497549
481240118228 |
Fastener. | Na dotaz | Zadat poptávku | |
| 910 1 WHR69511 |
C00318431
481250248347 |
sroub CCTFI 3,5x14 | 165 Kč
€ 6.50 |
||
| 910 5 WHR69511 |
C00336551
481950238265 |
sroub VAB 4,5*20 | 40 Kč
€ 1.60 |
||
| 910 8 WHR69511 |
C00332164
481250248348 |
Screw ST 4,2x11 | Na dotaz | Zadat poptávku | |
| 912 4 WHR69511 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 912 5 WHR69511 |
C00336589
481222008014 |
Screw door lock pin | Na dotaz | Zadat poptávku | |
| 922 0 WHR69511 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 922 1 WHR69511 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.80 |
||
| 950 1 WHR69511 |
C00312097
481246688517 |
Těsnění sběrné nádoby | 680 Kč
€ 26.80 |
||
| 952 3 WHR69511 |
C00340432
481246688522 |
Gasket sensor wiring | Na dotaz | Zadat poptávku | |
| 962 0 WHR69511 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
