BAUKNECHT TRKK 6858/3 EX TUMBLE DRYER BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TRKK 6858/3 EX TUMBLE DRYER BK |
| Kód 12NC: | 856068503380 |
| Značka: | BAUKNECHT |
| Typ produktu: | Sušičky |
| Další podobné modely: | 856068503384, 856068503382, 856068503381, 856068503385, 856068503383 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

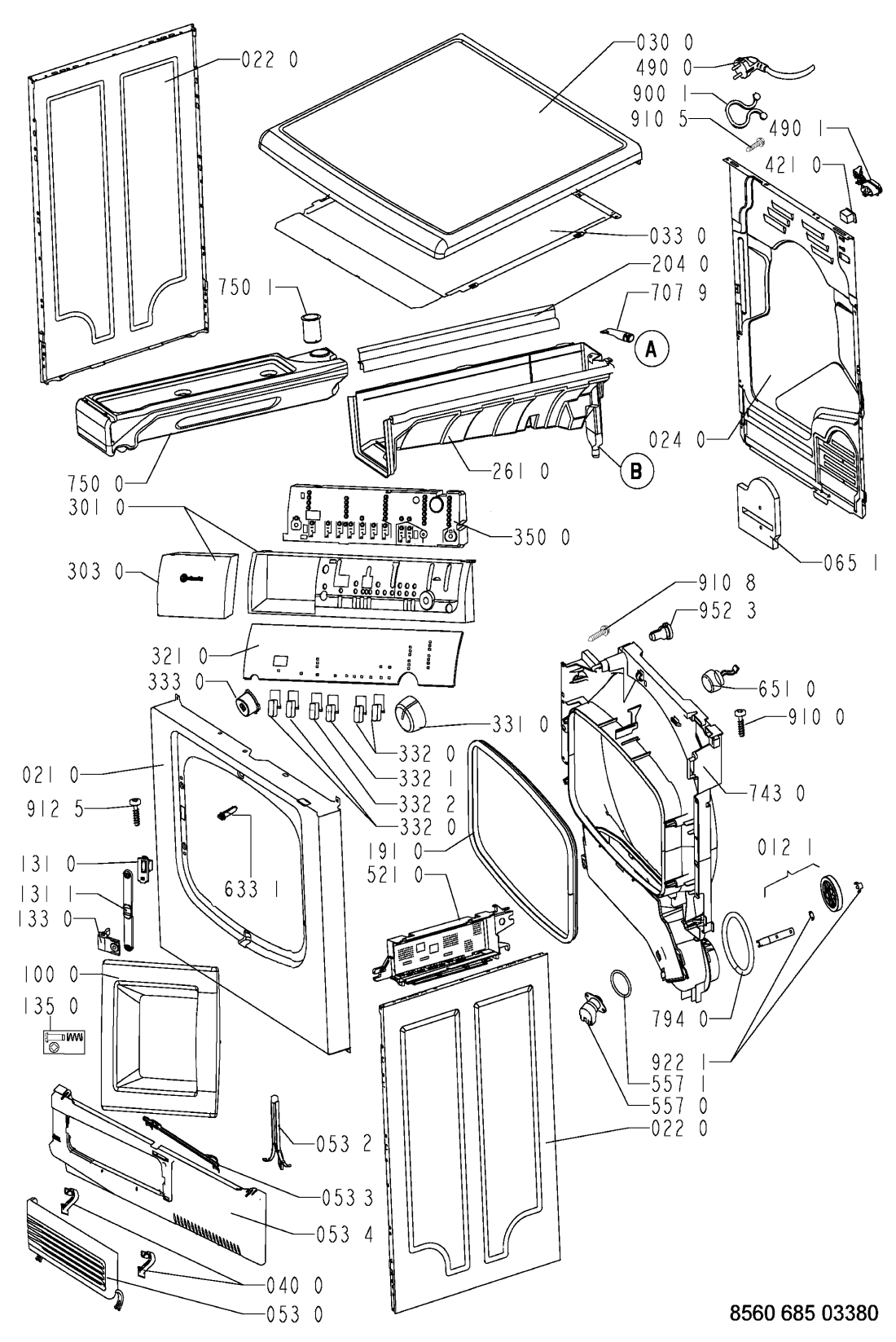

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR74334 |
C00316150
481244019718 |
sokl | 4 064 Kč
€ 160.40 |
||
| 011 0 WHR74334 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 012 0 WHR74334 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.20 |
||
| 012 1 WHR74334 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.60 |
||
| 012 2 WHR74334 |
C00316679
481252028068 |
osa kolecka zadniho | 381 Kč
€ 15.00 |
||
| 021 0 WHR74334 |
C00340646
481244010819 |
Stěna přední | 3 440 Kč
€ 135.80 |
||
| 022 0 WHR74334 |
C00327967
481244010821 |
stena bocni prava | 3 916 Kč
€ 154.60 |
||
| 024 0 WHR74334 |
C00341524
481244019708 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 030 0 WHR74334 |
C00335625
481244010928 |
Table top VBL BK CD-GW | Na dotaz | Zadat poptávku | |
| 033 0 WHR74334 |
C00318645
481231018582 |
Kit Push in cover | Na dotaz | Zadat poptávku | |
| 040 0 WHR74334 |
C00592065
481241728091 |
Hinge | Na dotaz | Zadat poptávku | |
| 053 0 WHR74334 |
C00340836
481244089044 |
Flap kpl.BK VBL GW | Na dotaz | Zadat poptávku | |
| 053 2 WHR74334 |
C00318009
481241719306 |
PACKA | 521 Kč
€ 20.60 |
||
| 053 3 WHR74334 |
C00338320
481241728089 |
Lock transmit plinth GW | Na dotaz | Zadat poptávku | |
| 053 4 WHR74334 |
C00337660
481244089043 |
Plinth VBL BK GW | Na dotaz | Zadat poptávku | |
| 065 1 WHR74334 |
C00338694
481232518009 |
Insulation rear panel | Na dotaz | Zadat poptávku | |
| 100 0 WHR74334 |
C00592069
481244010858 |
Door | Na dotaz | Zadat poptávku | |
| 131 0 WHR74334 |
C00313210
481227138462 |
Zámek sušičky | 185 Kč
€ 7.30 |
||
| 131 1 WHR74334 |
C00379238
481241719194 |
Cover plate GW | Na dotaz | Zadat poptávku | |
| 133 0 WHR74334 |
C00314493
481241728092 |
hak dveri | 1 142 Kč
€ 45.10 |
||
| 133 2 WHR74334 |
C00338336
481241728056 |
Lock Bag filter | Na dotaz | Zadat poptávku | |
| 135 0 WHR74334 |
C00592013
481227138459 |
Door lock system GW | Na dotaz | Zadat poptávku | |
| 191 0 WHR74334 |
C00312285
481246668607 |
Těsnění dveří sušičky | 1 007 Kč
€ 39.80 |
||
| 204 0 WHR74334 |
C00337108
481246638014 |
OCHRANA AWZ565 | 431 Kč
€ 17.00 |
||
| 220 0 WHR74334 |
C00311837
481241818177 |
Buben sušičky | 4 185 Kč
€ 165.20 |
||
| 223 0 WHR74334 |
C00316053
481241889017 |
žebro bubnu sušičky | 539 Kč
€ 21.30 |
||
| 261 0 WHR74334 |
C00342775
481241879821 |
Case f.water cont. | Na dotaz | Zadat poptávku | |
| 271 0 WHR74334 |
C00311016
481235818164 |
Řemen sušičky 1936H6 | 201 Kč
€ 7.90 |
||
| 273 0 WHR74334 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.50 |
||
| 275 0 WHR74334 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR74334 |
C00313025
481246668561 |
tesneni bubnu predni | 1 262 Kč
€ 49.80 |
||
| 291 2 WHR74334 |
C00311349
481246668837 |
Těsnění bubnu zadní | 1 868 Kč
€ 73.70 |
||
| 301 0 WHR74334 |
C00483379
481245215126 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 303 0 WHR74334 |
C00340036
481245213597 |
Handle drawer VBL-BK-GW | Na dotaz | Zadat poptávku | |
| 321 0 WHR74334 |
C00489725
481245215127 |
Insert panel TRKK 6858/3 | Na dotaz | Zadat poptávku | |
| 331 0 WHR74334 |
C00487418
481241318287 |
Knob timer VBL BK alu dull | Na dotaz | Zadat poptávku | |
| 332 0 WHR74334 |
C00344001
481241029092 |
Button Options VBL BK GW | Na dotaz | Zadat poptávku | |
| 332 1 WHR74334 |
C00344045
481241029128 |
Button | Na dotaz | Zadat poptávku | |
| 332 2 WHR74334 |
C00344054
481241029129 |
Button | Na dotaz | Zadat poptávku | |
| 333 0 WHR74334 |
C00493364
481241028982 |
Button Start VBL BK alu dull | Na dotaz | Zadat poptávku | |
| 350 0 WHR74334 |
C00592006
481221478804 |
deska displeje | 3 685 Kč
€ 145.50 |
||
| 401 0 WHR74334 |
C00314669
481236118291 |
Motor incl. fan wheel | Na dotaz | Zadat poptávku | |
| 401 1 WHR74334 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 9.80 |
||
| 420 0 WHR74334 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 421 0 WHR74334 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 430 0 WHR74334 |
C00311834
481236058212 |
Čerpadlo kondenzační pro sušičky Whirlpool, Bauknecht | 1 524 Kč
€ 60.20 |
||
| 443 0 WHR74334 |
C00311873
481236118292 |
Blower wheel | Na dotaz | Zadat poptávku | |
| 443 1 WHR74334 |
C00341045
481231018991 |
vrtule ventilatoru | 307 Kč
€ 12.10 |
||
| 443 2 WHR74334 |
C00316172
481229088066 |
pojistka | Na dotaz | Zadat poptávku | |
| 456 0 WHR74334 |
C00313601
481231018627 |
Topení sušičky | 2 902 Kč
€ 114.60 |
||
| 490 0 WHR74334 |
C00316380
481232118044 |
CABLE,MAINS 5M 4X1 | Na dotaz | Zadat poptávku | |
| 490 0 WHR74334 |
C00316354
481232118042 |
Connect.cable 3m | Na dotaz | Zadat poptávku | |
| 490 1 WHR74334 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 492 1 WHR74334 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 521 0 WHR74334 |
C00526880
481221479287 |
jednotka kontrolní | 4 140 Kč
€ 163.40 |
||
| 557 0 WHR74334 |
C00311889
481228208008 |
Termostat sušičky Whirlpool, Bauknecht 85 °C | 1 521 Kč
€ 60.00 |
||
| 557 1 WHR74334 |
C00340422
481228298005 |
Gasket Thermostat | Na dotaz | Zadat poptávku | |
| 564 0 WHR74334 |
C00313080
481225928681 |
Sestava termostatů sušičky prádla Whirlpool, Bauknecht | 793 Kč
€ 31.30 |
||
| 631 0 WHR74334 |
C00497324
481227138396 |
MIKROSPINAC | Na dotaz | Zadat poptávku | |
| 631 1 WHR74334 |
C00312420
481236018476 |
Plovák | Na dotaz | Zadat poptávku | |
| 631 2 WHR74334 |
C00315269
481236058093 |
tesneni | Na dotaz | Zadat poptávku | |
| 633 1 WHR74334 |
C00312237
481227618422 |
Kolík | 540 Kč
€ 21.30 |
||
| 651 0 WHR74334 |
C00341824
481213428056 |
Osvětlení komplet | 1 050 Kč
€ 41.50 |
||
| 692 0 WHR74334 |
C00319184
481221058035 |
kryt senzoru | 1 286 Kč
€ 50.80 |
||
| 692 1 WHR74334 |
C00311657
481227858001 |
senzor vlhkosti | 1 134 Kč
€ 44.80 |
||
| 707 9 WHR74334 |
C00337380
481253048165 |
TRUBKA AWZ565 | 581 Kč
€ 22.90 |
||
| 740 0 WHR74334 |
C00339962
481251148243 |
VYPARNIK | 3 273 Kč
€ 129.20 |
||
| 741 0 WHR74334 |
C00316089
481244008035 |
Blower cold air | Na dotaz | Zadat poptávku | |
| 741 1 WHR74334 |
C00318903
481253048244 |
Cover blower house | Na dotaz | Zadat poptávku | |
| 743 0 WHR74334 |
C00344568
481253048683 |
Air guide w/o Light/old Sensor ho. | Na dotaz | Zadat poptávku | |
| 743 1 WHR74334 |
C00339955
481253048254 |
Heating chamber SS | Na dotaz | Zadat poptávku | |
| 743 3 WHR74334 |
C00320447
481253048923 |
kryt ventilatoru | 373 Kč
€ 14.70 |
||
| 743 4 WHR74334 |
C00342435
481246448122 |
Cover plate | Na dotaz | Zadat poptávku | |
| 743 8 WHR74334 |
C00340450
481246688519 |
tesneni | 216 Kč
€ 8.50 |
||
| 750 0 WHR74334 |
C00317107
481241879823 |
zasobnik vody | 2 354 Kč
€ 92.90 |
||
| 750 1 WHR74334 |
C00337202
481253028856 |
Water guide | Na dotaz | Zadat poptávku | |
| 751 1 WHR74334 |
C00314706
481241888044 |
nadoba sberna | 684 Kč
€ 27.00 |
||
| 751 2 WHR74334 |
C00343340
481240118472 |
Clamp sump cover | Na dotaz | Zadat poptávku | |
| 751 3 WHR74334 |
C00342343
481227118014 |
Cover water switch | Na dotaz | Zadat poptávku | |
| 761 0 WHR74334 |
C00311293
481248058322 |
Filtr sušičky | 1 045 Kč
€ 41.30 |
||
| 781 0 WHR74334 |
C00341125
481253028243 |
Hadice výtoková - sušička 1,5m | 308 Kč
€ 12.20 |
||
| 783 0 WHR74334 |
C00339355
481253008003 |
Vypouštěcí hadice sušičky Whirlpool, Bauknecht | 775 Kč
€ 30.60 |
||
| 783 1 WHR74334 |
C00339254
481253008009 |
hadice sušičky čerpadlo-nádoba | 278 Kč
€ 11.00 |
||
| 783 2 WHR74334 |
C00339260
481253008001 |
Hose Pump bottom | Na dotaz | Zadat poptávku | |
| 794 0 WHR74334 |
C00315088
481246688523 |
tesneni | 255 Kč
€ 10.10 |
||
| 794 1 WHR74334 |
C00319699
481246628108 |
tesneni | 695 Kč
€ 27.40 |
||
| 794 2 WHR74334 |
C00336536
481246698935 |
Sealing Heater holder | Na dotaz | Zadat poptávku | |
| 794 3 WHR74334 |
C00320041
481246698937 |
Sealing | Na dotaz | Zadat poptávku | |
| 794 4 WHR74334 |
C00313984
481246688521 |
Těsnění dveřního filtru sušičky | 1 125 Kč
€ 44.40 |
||
| 900 1 WHR74334 |
C00343322
481229088053 |
PLASTOVA PRICHYTKA | 198 Kč
€ 7.80 |
||
| 902 2 WHR74334 |
C00339599
481225638004 |
Holder heater | Na dotaz | Zadat poptávku | |
| 903 0 WHR74334 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 903 1 WHR74334 |
C00497549
481240118228 |
Fastener. | Na dotaz | Zadat poptávku | |
| 910 0 WHR74334 |
C00336554
481250238057 |
Screw Torx 4,2x13 | Na dotaz | Zadat poptávku | |
| 910 1 WHR74334 |
C00318431
481250248347 |
sroub CCTFI 3,5x14 | 165 Kč
€ 6.50 |
||
| 910 5 WHR74334 |
C00336551
481950238265 |
sroub VAB 4,5*20 | 40 Kč
€ 1.60 |
||
| 910 8 WHR74334 |
C00332164
481250248348 |
Screw ST 4,2x11 | Na dotaz | Zadat poptávku | |
| 912 4 WHR74334 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 912 5 WHR74334 |
C00336589
481222008014 |
Screw door lock pin | Na dotaz | Zadat poptávku | |
| 922 0 WHR74334 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 922 1 WHR74334 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.90 |
||
| 950 0 WHR74334 |
C00319725
481246648101 |
Felt,strip bottom group | Na dotaz | Zadat poptávku | |
| 950 1 WHR74334 |
C00312097
481246688517 |
Těsnění sběrné nádoby | 680 Kč
€ 26.80 |
||
| 952 3 WHR74334 |
C00340432
481246688522 |
Gasket sensor wiring | Na dotaz | Zadat poptávku | |
| 962 0 WHR74334 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
