WHIRLPOOL VS 601 IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | VS 601 IX |
| Kód 12NC: | 850123084020 |
| I.C. kód: | 850123084021 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850123084020 |
Potřebujete servis? Jsme tady pro Vás

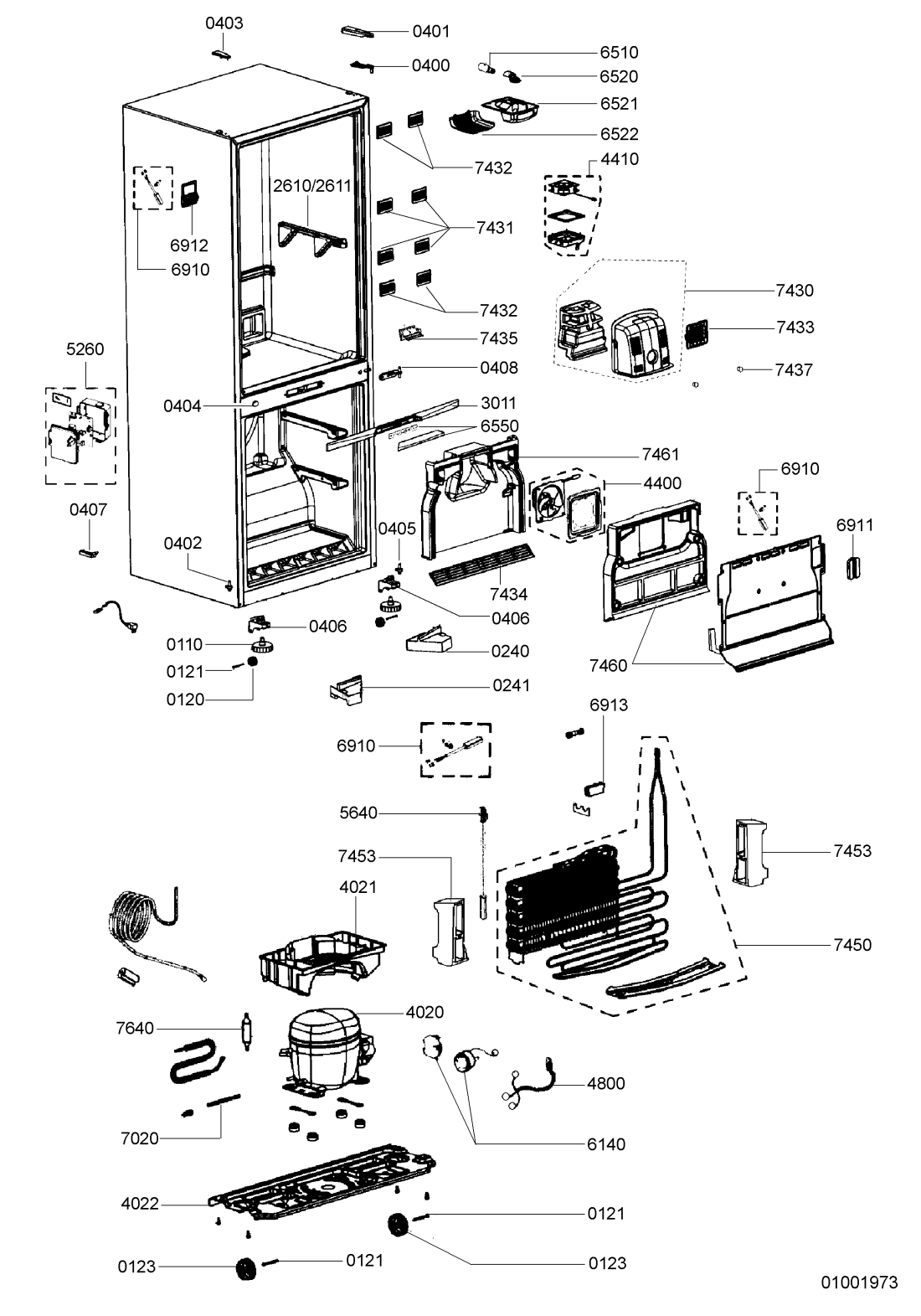

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 5 WHR62116 |
C00330373
481246058444 |
Cover Door | Na dotaz | Zadat poptávku | |
| 011 0 WHR62116 |
C00330451
481246218246 |
Foot | Na dotaz | Zadat poptávku | |
| 012 0 WHR62116 |
C00332374
481252878071 |
Roller | Na dotaz | Zadat poptávku | |
| 012 1 WHR62116 |
C00332719
481253548034 |
Shaft roller | Na dotaz | Zadat poptávku | |
| 012 3 WHR62116 |
C00332375
481252878072 |
Roller | Na dotaz | Zadat poptávku | |
| 024 0 WHR62116 |
C00330760
481246279911 |
Cover right IN | Na dotaz | Zadat poptávku | |
| 024 1 WHR62116 |
C00330761
481246279912 |
Cover left IN | Na dotaz | Zadat poptávku | |
| 040 0 WHR62116 |
C00329725
481241719285 |
pant | 389 Kč
€ 15.40 |
||
| 040 1 WHR62116 |
C00330766
481246279929 |
kryt | 108 Kč
€ 4.30 |
||
| 040 2 WHR62116 |
C00329739
481241719355 |
Pin hinge left | Na dotaz | Zadat poptávku | |
| 040 3 WHR62116 |
C00330767
481246279931 |
Cover IN | Na dotaz | Zadat poptávku | |
| 040 4 WHR62116 |
C00492112
481253288015 |
Bushing | Na dotaz | Zadat poptávku | |
| 040 5 WHR62116 |
C00329738
481241719354 |
Pin hinge right | Na dotaz | Zadat poptávku | |
| 040 6 WHR62116 |
C00329724
481241719284 |
pant | 525 Kč
€ 20.70 |
||
| 040 7 WHR62116 |
C00329073
481240449608 |
Spacer | Na dotaz | Zadat poptávku | |
| 040 8 WHR62116 |
C00377659
481241719326 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 042 0 WHR62116 |
C00402771
481241719504 |
Door reverse kit | Na dotaz | Zadat poptávku | |
| 047 0 WHR62116 |
C00329740
481241719357 |
Bushing IN | Na dotaz | Zadat poptávku | |
| 047 1 WHR62116 |
C00320235
481253288096 |
PANT | 65 Kč
€ 2.60 |
||
| 047 2 WHR62116 |
C00332696
481253288051 |
Bushing IN | Na dotaz | Zadat poptávku | |
| 047 3 WHR62116 |
C00317580
481244688153 |
Pouzdro | 407 Kč
€ 16.10 |
||
| 047 4 WHR62116 |
C00332699
481253288065 |
Cover bushing IN | Na dotaz | Zadat poptávku | |
| 101 0 WHR62116 |
C00402599
481241610652 |
Door freezer IN | Na dotaz | Zadat poptávku | |
| 103 3 WHR62116 |
C00393947
480132100175 |
Cover Drawer | Na dotaz | Zadat poptávku | |
| 104 0 WHR62116 |
C00402598
481241610651 |
Door refriger. IN | Na dotaz | Zadat poptávku | |
| 110 0 WHR62116 |
C00405354
481249818783 |
Handle refrigerator door | Na dotaz | Zadat poptávku | |
| 110 1 WHR62116 |
C00405355
481249818784 |
Handle freezer door | Na dotaz | Zadat poptávku | |
| 111 7 WHR62116 |
C00404499
481245918302 |
Nameplate Whirlpool | Na dotaz | Zadat poptávku | |
| 152 0 WHR62116 |
C00403062
481241848969 |
Door dairy | Na dotaz | Zadat poptávku | |
| 152 1 WHR62116 |
C00402837
481241820035 |
Door dairy | Na dotaz | Zadat poptávku | |
| 152 2 WHR62116 |
C00402834
481241820029 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 152 3 WHR62116 |
C00402842
481241820041 |
Door dairy | Na dotaz | Zadat poptávku | |
| 152 4 WHR62116 |
C00330811
481246418185 |
Hoop door dairy | Na dotaz | Zadat poptávku | |
| 152 5 WHR62116 |
C00403060
481241848965 |
Separator | Na dotaz | Zadat poptávku | |
| 152 6 WHR62116 |
C00402917
481241828903 |
Separator Bottle shelf | Na dotaz | Zadat poptávku | |
| 156 0 WHR62116 |
C00403059
481241848964 |
Rack egg | Na dotaz | Zadat poptávku | |
| 191 0 WHR62116 |
C00331515
481246688849 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
| 191 1 WHR62116 |
C00331514
481246688847 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| 239 0 WHR62116 |
C00402829
481241820024 |
Tank Ice maker | Na dotaz | Zadat poptávku | |
| 239 1 WHR62116 |
C00377668
481241820022 |
Ice maker | Na dotaz | Zadat poptávku | |
| 239 2 WHR62116 |
C00329014
481240438733 |
Support ice maker | Na dotaz | Zadat poptávku | |
| 239 3 WHR62116 |
C00402840
481241820038 |
Tray ice maker | Na dotaz | Zadat poptávku | |
| 241 0 WHR62116 |
C00327703
481241828884 |
Drawer | Na dotaz | Zadat poptávku | |
| 241 1 WHR62116 |
C00327706
481241828888 |
Drawer | Na dotaz | Zadat poptávku | |
| 241 2 WHR62116 |
C00402828
481241820023 |
Drawer | Na dotaz | Zadat poptávku | |
| 241 4 WHR62116 |
C00402838
481241820036 |
Front panel Drawer | Na dotaz | Zadat poptávku | |
| 242 0 WHR62116 |
C00327767
481241829967 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 1 WHR62116 |
C00377724
481244229347 |
Front panel Crisper | Na dotaz | Zadat poptávku | |
| 242 2 WHR62116 |
C00402839
481241820037 |
Separator Crisper | Na dotaz | Zadat poptávku | |
| 255 0 WHR62116 |
C00377760
481245088505 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 255 1 WHR62116 |
C00331207
481245088315 |
rošt plastový | 844 Kč
€ 33.30 |
||
| 255 2 WHR62116 |
C00403873
481245088514 |
Shelf glass | Na dotaz | Zadat poptávku | |
| 255 3 WHR62116 |
C00331209
481245088326 |
Grid freezer | Na dotaz | Zadat poptávku | |
| 261 0 WHR62116 |
C00404882
481246238335 |
Rail right | Na dotaz | Zadat poptávku | |
| 261 1 WHR62116 |
C00404883
481246238336 |
Rail left | Na dotaz | Zadat poptávku | |
| 301 1 WHR62116 |
C00500899
481246469119 |
Console silver | Na dotaz | Zadat poptávku | |
| 402 0 WHR62116 |
C00482713
481236038961 |
Compressor EG 100 HLR | Na dotaz | Zadat poptávku | |
| 402 1 WHR62116 |
C00377666
481241818687 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 402 2 WHR62116 |
C00331559
481246699005 |
Base compressor | Na dotaz | Zadat poptávku | |
| 440 0 WHR62116 |
C00312642
481202858346 |
Motor ventilatoru mrazáku | 1 944 Kč
€ 76.70 |
||
| 441 0 WHR62116 |
C00313903
481202858347 |
motor ventilatoru | 2 470 Kč
€ 97.50 |
||
| 480 0 WHR62116 |
C00317517
481201978857 |
Cable harness | Na dotaz | Zadat poptávku | |
| 526 0 WHR62116 |
C00377481
481223678545 |
Control board | Na dotaz | Zadat poptávku | |
| 526 1 WHR62116 |
C00403556
481244079322 |
Slide Regulator | Na dotaz | Zadat poptávku | |
| 526 2 WHR62116 |
C00377480
481223678541 |
Interface | Na dotaz | Zadat poptávku | |
| 526 5 WHR62116 |
C00403925
481245229026 |
Reflector Interface | Na dotaz | Zadat poptávku | |
| 564 0 WHR62116 |
C00497303
481225228045 |
Thermal fuse | Na dotaz | Zadat poptávku | |
| 614 0 WHR62116 |
C00490944
481221838269 |
Relay overload protection | Na dotaz | Zadat poptávku | |
| 622 0 WHR62116 |
C00377778
481245228691 |
Cover user board | Na dotaz | Zadat poptávku | |
| 651 0 WHR62116 |
C00574299
481213488025 |
Lamp. | Na dotaz | Zadat poptávku | |
| 652 0 WHR62116 |
C00490972
481225518281 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 652 1 WHR62116 |
C00399841
481213488086 |
Support lamp | Na dotaz | Zadat poptávku | |
| 652 2 WHR62116 |
C00326817
481213418037 |
Protector lamp | Na dotaz | Zadat poptávku | |
| 655 0 WHR62116 |
C00377782
481245238239 |
Control board + cover | Na dotaz | Zadat poptávku | |
| 691 0 WHR62116 |
C00312619
481213428075 |
senzor teploty | 1 456 Kč
€ 57.50 |
||
| 691 1 WHR62116 |
C00329067
481240449597 |
Support sensor | Na dotaz | Zadat poptávku | |
| 691 2 WHR62116 |
C00345201
481213428102 |
Cover sensor | Na dotaz | Zadat poptávku | |
| 691 3 WHR62116 |
C00329015
481240438735 |
držák senzoru | 321 Kč
€ 12.70 |
||
| 702 0 WHR62116 |
C00332353
481252648253 |
Tube | Na dotaz | Zadat poptávku | |
| 743 0 WHR62116 |
C00326716
481202858357 |
Air diffuser set | Na dotaz | Zadat poptávku | |
| 743 1 WHR62116 |
C00399766
481212338003 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| 743 2 WHR62116 |
C00404834
481246229384 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| 743 3 WHR62116 |
C00329069
481240449601 |
Support anti-bacterial filter | Na dotaz | Zadat poptávku | |
| 743 4 WHR62116 |
C00328138
481244029495 |
Air guide | Na dotaz | Zadat poptávku | |
| 743 5 WHR62116 |
C00326796
481212338002 |
Diaphragm | Na dotaz | Zadat poptávku | |
| 743 7 WHR62116 |
C00330537
481246228701 |
Cover WH | Na dotaz | Zadat poptávku | |
| 745 0 WHR62116 |
C00318465
481251138327 |
Evaporator kit | Na dotaz | Zadat poptávku | |
| 745 3 WHR62116 |
C00329068
481240449598 |
Bracket | Na dotaz | Zadat poptávku | |
| 746 0 WHR62116 |
C00328137
481244029494 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 746 1 WHR62116 |
C00328144
481244029523 |
Cabinet evaporator | Na dotaz | Zadat poptávku | |
| 764 0 WHR62116 |
C00313426
481248028088 |
Filtr - patronka | 211 Kč
€ 8.30 |
||
| 904 0 WHR62116 |
C00319419
481240449842 |
Spona | 158 Kč
€ 6.20 |
||
| 904 1 WHR62116 |
C00329132
481240449843 |
Kolejnice levá | 592 Kč
€ 23.40 |
||
| 904 2 WHR62116 |
C00332346
481252648192 |
příchytka | 224 Kč
€ 8.80 |
||
