BAUKNECHT WA 2540/WS-D
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WA 2540/WS-D |
| Kód 12NC: | 855491903000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
| Další podobné modely: | 855491903001, 855491903002 |
Potřebujete servis? Jsme tady pro Vás

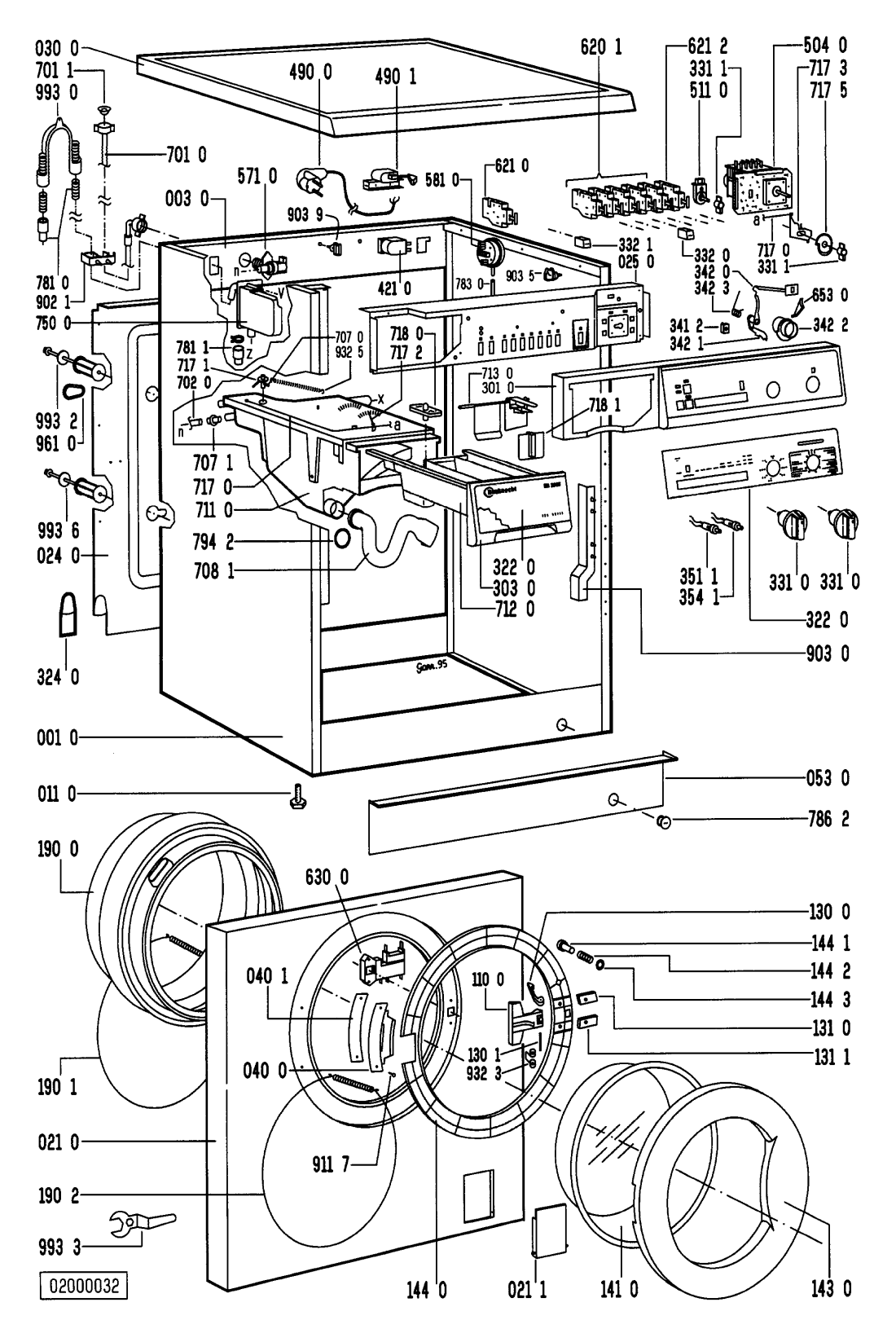

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR98872 |
C00343946
481244018996 |
Cabinet | Na dotaz | Zadat poptávku | |
| 003 0 WHR98872 |
C00591849
481246448097 |
Crossbar Rear top degre. | Na dotaz | Zadat poptávku | |
| 011 0 WHR98872 |
C00556618
481250018072 |
Foot Variable.. | Na dotaz | Zadat poptávku | |
| 021 0 WHR98872 |
C00340697
481244019329 |
Front | Na dotaz | Zadat poptávku | |
| 021 1 WHR98872 |
C00340845
481244019331 |
Flap Filter | Na dotaz | Zadat poptávku | |
| 024 0 WHR98872 |
C00341521
481244018997 |
PANEL, REAR | Na dotaz | Zadat poptávku | |
| 025 0 WHR98872 |
C00555288
481244018989 |
HOLDER CONTROL.. | Na dotaz | Zadat poptávku | |
| 030 0 WHR98872 |
C00335667
481231038181 |
Table top | Na dotaz | Zadat poptávku | |
| 040 0 WHR98872 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 040 1 WHR98872 |
C00497791
481241728009 |
PODLOZKA ZAVESU AWM 242 N | Na dotaz | Zadat poptávku | |
| 053 0 WHR98872 |
C00497145
481245938011 |
Plinth | Na dotaz | Zadat poptávku | |
| 061 1 WHR98872 |
C00555559
481246688457 |
COUNTER WEIGHT.. | Na dotaz | Zadat poptávku | |
| 080 0 WHR98872 |
C00555528
481246648053 |
Shock absorber.. | Na dotaz | Zadat poptávku | |
| 084 0 WHR98872 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 0 WHR98872 |
C00316610
481240118409 |
Holder Shock Absorber Shock Absorber | Na dotaz | Zadat poptávku | |
| 086 2 WHR98872 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR98872 |
C00339968
481249818139 |
Handle,door white | Na dotaz | Zadat poptávku | |
| 130 0 WHR98872 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 130 1 WHR98872 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 0 WHR98872 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 131 1 WHR98872 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 141 0 WHR98872 |
C00339065
481245068218 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR98872 |
C00340314
481244018988 |
Glassdoor frame white | Na dotaz | Zadat poptávku | |
| 144 0 WHR98872 |
C00340711
481245928043 |
Frame,door glas | Na dotaz | Zadat poptávku | |
| 144 1 WHR98872 |
C00345878
481249818137 |
Knob Door safetyDoor safety | Na dotaz | Zadat poptávku | |
| 144 2 WHR98872 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 144 3 WHR98872 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 190 0 WHR98872 |
C00555539
481246668507 |
NAHRADENE 481246668546 N | Na dotaz | Zadat poptávku | |
| 190 1 WHR98872 |
C00335947
481249218015 |
Strap Fix. Bellow | Na dotaz | Zadat poptávku | |
| 190 2 WHR98872 |
C00311875
481249298011 |
spona TVO - přední stěna | 166 Kč
€ 6.60 |
||
| 200 0 WHR98872 |
C00337457
481241818181 |
Tub | Na dotaz | Zadat poptávku | |
| 201 0 WHR98872 |
C00344300
481246448002 |
bocnice | 3 844 Kč
€ 151.80 |
||
| 210 0 WHR98872 |
C00318535
481252018034 |
Crosspiece,asm. | Na dotaz | Zadat poptávku | |
| 220 0 WHR98872 |
C00555225
481241818186 |
Drum 1200-1400,48L.. | Na dotaz | Zadat poptávku | |
| 228 0 WHR98872 |
C00555224
481241818185 |
Crosspiece,drum 1200.. | Na dotaz | Zadat poptávku | |
| 271 0 WHR98872 |
C00555027
481235818007 |
NAHRADENE 481235818157 N | Na dotaz | Zadat poptávku | |
| 272 0 WHR98872 |
C00337074
481252858004 |
Pulley | Na dotaz | Zadat poptávku | |
| 272 1 WHR98872 |
C00344074
481253228006 |
pouzdro plastove | 202 Kč
€ 8.00 |
||
| 292 0 WHR98872 |
C00340417
481253058003 |
tesneni bocnice | 637 Kč
€ 25.10 |
||
| 301 0 WHR98872 |
C00556568
481245219215 |
Control panel 5+1.. | Na dotaz | Zadat poptávku | |
| 303 0 WHR98872 |
C00498527
481249818138 |
Handle, drawer | Na dotaz | Zadat poptávku | |
| 322 0 WHR98872 |
C00754359
481245219296 |
Insert panel WA2540-D | Na dotaz | Zadat poptávku | |
| 324 0 WHR98872 |
C00338357
481244018992 |
Lid Rearcover | Na dotaz | Zadat poptávku | |
| 331 0 WHR98872 |
C00338580
481241348222 |
Knob | Na dotaz | Zadat poptávku | |
| 331 1 WHR98872 |
C00636641
481241318191 |
ADAPTER F. KNOB. | Na dotaz | Zadat poptávku | |
| 332 0 WHR98872 |
C00491591
481241028543 |
krytka tlacitka | 33 Kč
€ 1.30 |
||
| 332 1 WHR98872 |
C00587027
481241028544 |
Push button Start. | Na dotaz | Zadat poptávku | |
| 341 2 WHR98872 |
C00555187
481241378474 |
Indicator Spin-Speed.. | Na dotaz | Zadat poptávku | |
| 342 0 WHR98872 |
C00488803
481241318192 |
Program indic. | Na dotaz | Zadat poptávku | |
| 342 1 WHR98872 |
C00482560
481227888006 |
Slide Indicator | Na dotaz | Zadat poptávku | |
| 342 2 WHR98872 |
C00555180
481241318193 |
Cam Indicator.. | Na dotaz | Zadat poptávku | |
| 342 3 WHR98872 |
C00480768
481241318194 |
Spring | Na dotaz | Zadat poptávku | |
| 351 1 WHR98872 |
C00497247
481213448191 |
Lamp Door | Na dotaz | Zadat poptávku | |
| 354 1 WHR98872 |
C00341467
481213448179 |
SIGNÁLKA AWM248/1 | 238 Kč
€ 9.40 |
||
| 401 0 WHR98872 |
C00341661
481236158093 |
Motor MCA52/148-1200 | Na dotaz | Zadat poptávku | |
| 421 0 WHR98872 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR98872 |
C00337062
481236018362 |
PUMP | Na dotaz | Zadat poptávku | |
| 451 0 WHR98872 |
C00339927
481225928669 |
Topné těleso pračky Whirlpool 2050 W s NTC čidlem | 1 100 Kč
€ 43.40 |
||
| 490 0 WHR98872 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 490 1 WHR98872 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 504 0 WHR98872 |
C00554976
481228218452 |
Timer.. | Na dotaz | Zadat poptávku | |
| 511 0 WHR98872 |
C00336534
481241348223 |
Selector Temp./Spin | Na dotaz | Zadat poptávku | |
| 571 0 WHR98872 |
C00337287
481228128368 |
VALVE,MAGNET SINGLE | Na dotaz | Zadat poptávku | |
| 581 0 WHR98872 |
C00554922
481227128357 |
Pressostat 1 Level.. | Na dotaz | Zadat poptávku | |
| 620 1 WHR98872 |
C00335726
481227618238 |
Switch Options | Na dotaz | Zadat poptávku | |
| 621 0 WHR98872 |
C00335720
481227618239 |
Switch Start | Na dotaz | Zadat poptávku | |
| 621 2 WHR98872 |
C00491079
481227618241 |
spinac | 923 Kč
€ 36.40 |
||
| 630 0 WHR98872 |
C00315131
481228058019 |
Door lock | Na dotaz | Zadat poptávku | |
| 653 0 WHR98872 |
C00591603
481213448189 |
Guide,light On/Off. | Na dotaz | Zadat poptávku | |
| 701 0 WHR98872 |
C00309500
481953028928 |
hadice napousteci | Na dotaz | Zadat poptávku | |
| 701 0 WHR98872 |
C00339221
481253028082 |
Hose, inlet 3/8Z cpl. | Na dotaz | Zadat poptávku | |
| 701 0 WHR98872 |
C00498607
481253028081 |
HADICA | Na dotaz | Zadat poptávku | |
| 701 1 WHR98872 |
C00318772
482248050159 |
Sieve inlet | Na dotaz | Zadat poptávku | |
| 702 0 WHR98872 |
C00591857
481253028811 |
Hose Valve/D. Container. | Na dotaz | Zadat poptávku | |
| 707 0 WHR98872 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR98872 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 708 1 WHR98872 |
C00344350
481253048141 |
Bend | Na dotaz | Zadat poptávku | |
| 711 0 WHR98872 |
C00317871
481241888025 |
teleso nasypky | 2 101 Kč
€ 82.90 |
||
| 712 0 WHR98872 |
C00341235
481241878036 |
DRAWER DETERGENT | Na dotaz | Zadat poptávku | |
| 713 0 WHR98872 |
C00317121
481241888019 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR98872 |
C00555018
481232128365 |
Bowden cable.. | Na dotaz | Zadat poptávku | |
| 717 1 WHR98872 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR98872 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.30 |
||
| 717 3 WHR98872 |
C00336270
481227888007 |
posouvac | Na dotaz | Zadat poptávku | |
| 717 5 WHR98872 |
C00548186
481228218273 |
Cam. | Na dotaz | Zadat poptávku | |
| 718 0 WHR98872 |
C00318585
481252648027 |
viko prepadu nasypky | 121 Kč
€ 4.80 |
||
| 718 1 WHR98872 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 750 0 WHR98872 |
C00332502
481253048139 |
Expanzní nádoba pračky Whirlpool, Bauknecht | 287 Kč
€ 11.30 |
||
| 753 1 WHR98872 |
C00342744
481241868125 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 754 0 WHR98872 |
C00555636
481253028817 |
NAHRADA 481253028838 | Na dotaz | Zadat poptávku | |
| 760 0 WHR98872 |
C00340935
481248058075 |
Filter Set Pump | Na dotaz | Zadat poptávku | |
| 760 1 WHR98872 |
C00340427
481241868138 |
Gasket Sieve / Rough | Na dotaz | Zadat poptávku | |
| 781 0 WHR98872 |
C00339213
481253028815 |
HOSE,DRAINING | Na dotaz | Zadat poptávku | |
| 781 1 WHR98872 |
C00498614
481253028818 |
HADICA CERPADLO-KOMORA/D | Na dotaz | Zadat poptávku | |
| 783 0 WHR98872 |
C00339268
481253028816 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 3 WHR98872 |
C00310140
481253018001 |
Connection Part | Na dotaz | Zadat poptávku | |
| 786 0 WHR98872 |
C00314984
481253028812 |
Hadice vypouštěcího čerpadla pračky Whirlpool, Bauknecht, Ignis | 914 Kč
€ 36.10 |
||
| 786 1 WHR98872 |
C00498413
481246279641 |
Stopper | Na dotaz | Zadat poptávku | |
| 786 2 WHR98872 |
C00591847
481246279642 |
Threaded cap. | Na dotaz | Zadat poptávku | |
| 787 0 WHR98872 |
C00332411
481253028819 |
Hose with hole(exhaust) | Na dotaz | Zadat poptávku | |
| 794 2 WHR98872 |
C00337979
481253058005 |
O-Ring | Na dotaz | Zadat poptávku | |
| 794 5 WHR98872 |
C00498646
481253058015 |
Gasket | Na dotaz | Zadat poptávku | |
| 901 0 WHR98872 |
C00343364
481240118054 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 901 2 WHR98872 |
C00335973
481240118401 |
Strap | Na dotaz | Zadat poptávku | |
| 902 1 WHR98872 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 903 0 WHR98872 |
C00344192
481229088043 |
Bracket Door lock | Na dotaz | Zadat poptávku | |
| 903 5 WHR98872 |
C00327310
481229088048 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 903 9 WHR98872 |
C00343868
481229088046 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 910 0 WHR98872 |
C00331290
481245218994 |
Screw M8x20 A2F | Na dotaz | Zadat poptávku | |
| 910 1 WHR98872 |
C00555368
481245218995 |
NAHRADA 481950218417 | Na dotaz | Zadat poptávku | |
| 910 5 WHR98872 |
C00336591
481250218359 |
Screw damper | Na dotaz | Zadat poptávku | |
| 911 7 WHR98872 |
C00332781
481290308014 |
sroub M5x16 H | 89 Kč
€ 3.50 |
||
| 912 0 WHR98872 |
C00336566
481250218361 |
Screw M8x30 | Na dotaz | Zadat poptávku | |
| 921 0 WHR98872 |
C00336832
481201118522 |
Ring,circlip 52x252x2 | Na dotaz | Zadat poptávku | |
| 923 0 WHR98872 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 931 0 WHR98872 |
C00498517
481249238361 |
Spring Suspension Suspension | Na dotaz | Zadat poptávku | |
| 932 3 WHR98872 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 932 5 WHR98872 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 941 0 WHR98872 |
C00314254
481252028003 |
BEARING 6306 2Z C3 GJN | Na dotaz | Zadat poptávku | |
| 941 1 WHR98872 |
C00315491
481252028005 |
BEARING 6304 2Z C3 | Na dotaz | Zadat poptávku | |
| 953 0 WHR98872 |
C00320177
481253068001 |
tesneni bubnu VA-40 | 915 Kč
€ 36.10 |
||
| 961 0 WHR98872 |
C00343009
481232148004 |
Cover | Na dotaz | Zadat poptávku | |
| 962 0 WHR98872 |
C00342374
481246638011 |
Cover protect. heating element | Na dotaz | Zadat poptávku | |
| 993 0 WHR98872 |
C00344289
481253048017 |
Bow | Na dotaz | Zadat poptávku | |
| 993 2 WHR98872 |
C00555134
481239588005 |
Fastener.. | Na dotaz | Zadat poptávku | |
| 993 3 WHR98872 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 993 6 WHR98872 |
C00636429
481226818014 |
Lever,security. | Na dotaz | Zadat poptávku | |
