BAUKNECHT WA 3700
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WA 3700 |
| Kód 12NC: | 855451742000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
| Další podobné modely: | 855459942700, 855451742003 |
Potřebujete servis? Jsme tady pro Vás

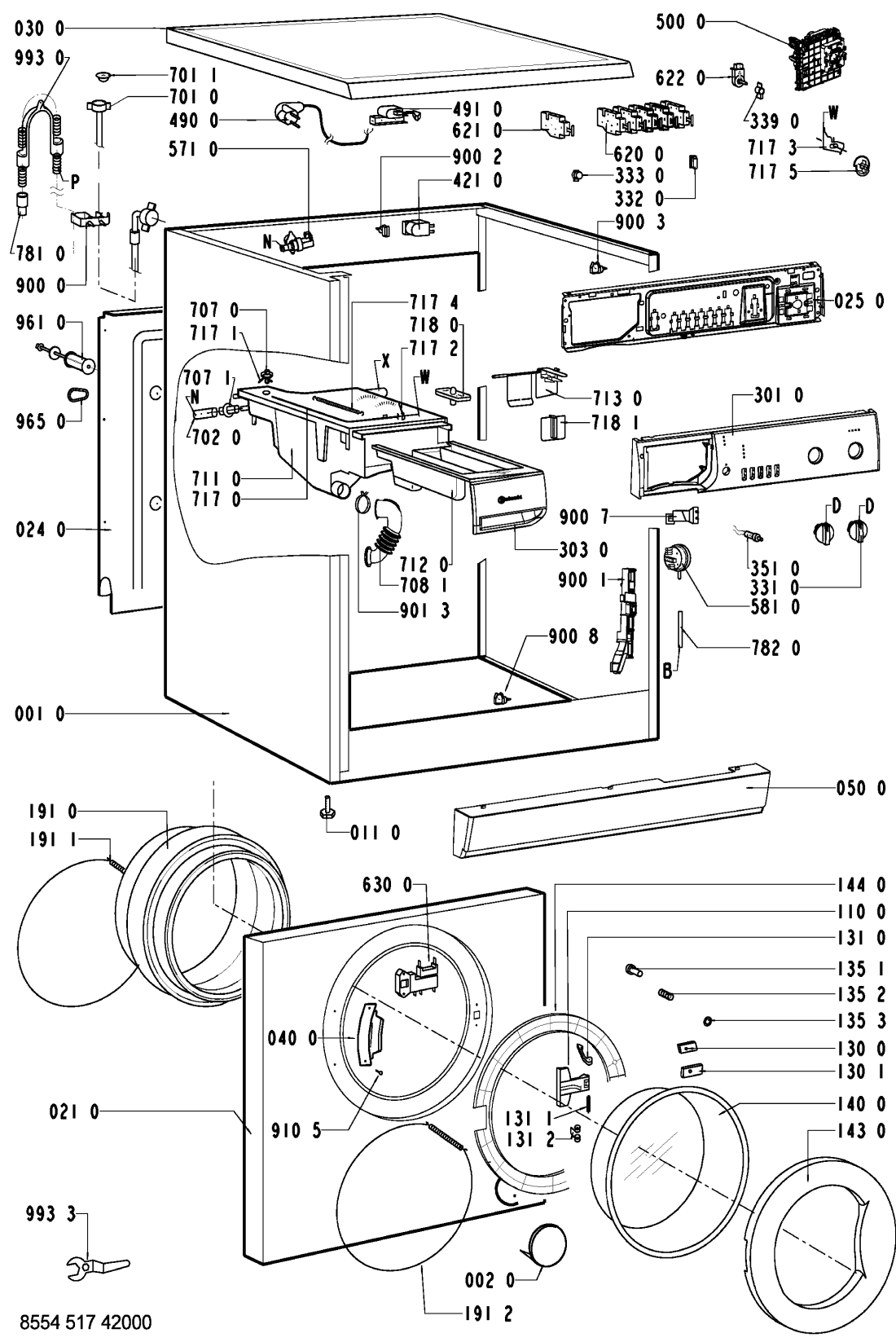

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR98785 |
C00343944
481944019716 |
skrin pracky | 4 336 Kč
€ 171.20 |
||
| 002 0 WHR98785 |
C00527942
481244010595 |
NAHRADENE 481244010876 | Na dotaz | Zadat poptávku | |
| 011 0 WHR98785 |
C00340814
481946248472 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR98785 |
C00340693
481244019818 |
stena predni | 2 268 Kč
€ 89.50 |
||
| 024 0 WHR98785 |
C00328103
481244018998 |
Stěna přední AWM250 | 1 101 Kč
€ 43.50 |
||
| 025 0 WHR98785 |
C00527933
481244010467 |
Holder VBL BK | Na dotaz | Zadat poptávku | |
| 030 0 WHR98785 |
C00587113
481244010468 |
Table top VBL BK. | Na dotaz | Zadat poptávku | |
| 040 0 WHR98785 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR98785 |
C00553588
481244088983 |
Plinth VBL BK | Na dotaz | Zadat poptávku | |
| 061 0 WHR98785 |
C00343070
481246688458 |
zavazi horni | 1 001 Kč
€ 39.50 |
||
| 061 1 WHR98785 |
C00316001
481246688607 |
Counter weight front, bottom | Na dotaz | Zadat poptávku | |
| 061 2 WHR98785 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 061 3 WHR98785 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 081 0 WHR98785 |
C00313104
481246648088 |
Tlumič třecí pro předem plněné pračky Whirlpool | 105 Kč
€ 4.10 |
||
| 084 0 WHR98785 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 1 WHR98785 |
C00312274
481240118413 |
Čep tlumiče | 924 Kč
€ 36.50 |
||
| 086 2 WHR98785 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR98785 |
C00339968
481249818139 |
Handle,door white | Na dotaz | Zadat poptávku | |
| 130 0 WHR98785 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR98785 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 131 0 WHR98785 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR98785 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR98785 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR98785 |
C00345878
481249818137 |
Knob Door safetyDoor safety | Na dotaz | Zadat poptávku | |
| 135 2 WHR98785 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR98785 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR98785 |
C00320431
481245068219 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR98785 |
C00527935
481244010477 |
Glassdoor frame white VBL BK | Na dotaz | Zadat poptávku | |
| 144 0 WHR98785 |
C00314075
481244019589 |
priruba dveri | 1 703 Kč
€ 67.20 |
||
| 191 0 WHR98785 |
C00313168
481246068532 |
DOOR BELLOW grease resistance | Na dotaz | Zadat poptávku | |
| 191 0 WHR98785 |
C00313381
481246068527 |
Door bellow standard | Na dotaz | Zadat poptávku | |
| 191 1 WHR98785 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR98785 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR98785 |
C00337438
481241818283 |
nadrz predni cast | 3 983 Kč
€ 157.20 |
||
| 200 2 WHR98785 |
C00311099
481241818318 |
Nádrž - zadní část | 4 953 Kč
€ 195.50 |
||
| 200 4 WHR98785 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR98785 |
C00316593
481241818281 |
Drum 53l, 1000 | Na dotaz | Zadat poptávku | |
| 271 0 WHR98785 |
C00311514
481935818152 |
Řemen víceklínový 1248J5 | 631 Kč
€ 24.90 |
||
| 272 0 WHR98785 |
C00337067
481252858027 |
pulley DIAM.298DIAM.298 | Na dotaz | Zadat poptávku | |
| 272 2 WHR98785 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 272 3 WHR98785 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR98785 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR98785 |
C00754248
481245211566 |
Control panel WA 3700 | Na dotaz | Zadat poptávku | |
| 303 0 WHR98785 |
C00487760
481249818205 |
Handle drawer VBL BK | Na dotaz | Zadat poptávku | |
| 331 0 WHR98785 |
C00487556
481241458156 |
Knob VBL BK | Na dotaz | Zadat poptávku | |
| 332 0 WHR98785 |
C00591015
481241028847 |
Button Options VBL BK. | Na dotaz | Zadat poptávku | |
| 333 0 WHR98785 |
C00491622
481241028846 |
Button Start VBL BK | Na dotaz | Zadat poptávku | |
| 339 0 WHR98785 |
C00317982
481223318006 |
unasec knofliku | 593 Kč
€ 23.40 |
||
| 351 0 WHR98785 |
C00314291
481213418011 |
Lamp | Na dotaz | Zadat poptávku | |
| 400 0 WHR98785 |
C00314675
481236118301 |
Motor 52/64-148 WHE14 - 9699.A3209 - WM | Na dotaz | Zadat poptávku | |
| 409 0 WHR98785 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR98785 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR98785 |
C00312598
481231018458 |
Pump SERVICE SET | Na dotaz | Zadat poptávku | |
| 451 0 WHR98785 |
C00538595
481225928759 |
OHRIEVACIE TELESO 2050W PONORNE | Na dotaz | Zadat poptávku | |
| 480 0 WHR98785 |
C00311380
481232178109 |
vodice svazek motor | 981 Kč
€ 38.70 |
||
| 490 0 WHR98785 |
C00493128
481232118084 |
Cable mains Israel 2m | Na dotaz | Zadat poptávku | |
| 491 0 WHR98785 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 500 0 WHR98785 |
C00501342
481228219292 |
Timer SC1 (EC,HL,RH,NS,SR) | Na dotaz | Zadat poptávku | |
| 571 0 WHR98785 |
C00312238
481227128375 |
Napouštěcí ventil pračky - jednocestný, boční vývod | 383 Kč
€ 15.10 |
||
| 581 0 WHR98785 |
C00313889
481227618327 |
presostat | 1 477 Kč
€ 58.30 |
||
| 620 0 WHR98785 |
C00332969
481941028998 |
spinac | 1 031 Kč
€ 40.70 |
||
| 621 0 WHR98785 |
C00311780
481941029004 |
Spínač síťový | 842 Kč
€ 33.20 |
||
| 622 0 WHR98785 |
C00336785
481241348279 |
Rotary selector + potentiometer. | Na dotaz | Zadat poptávku | |
| 630 0 WHR98785 |
C00315131
481228058019 |
Door lock | Na dotaz | Zadat poptávku | |
| 691 0 WHR98785 |
C00317366
481228218702 |
senzor NTC | 1 697 Kč
€ 67.00 |
||
| 701 0 WHR98785 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 701 1 WHR98785 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR98785 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 707 0 WHR98785 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR98785 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 708 1 WHR98785 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR98785 |
C00317871
481241888025 |
teleso nasypky | 2 101 Kč
€ 82.90 |
||
| 712 0 WHR98785 |
C00313433
481241868198 |
zasuvka nasypky | 1 592 Kč
€ 62.90 |
||
| 713 0 WHR98785 |
C00317121
481241888019 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR98785 |
C00311569
481932128092 |
Bovden komplet | 699 Kč
€ 27.60 |
||
| 717 1 WHR98785 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR98785 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.30 |
||
| 717 3 WHR98785 |
C00318843
481227888018 |
posouvac | 186 Kč
€ 7.30 |
||
| 717 4 WHR98785 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 717 5 WHR98785 |
C00317980
481223318004 |
vacka | 382 Kč
€ 15.10 |
||
| 718 0 WHR98785 |
C00332332
481252648051 |
sifon do nasypky | 723 Kč
€ 28.50 |
||
| 718 1 WHR98785 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 753 1 WHR98785 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.50 |
||
| 754 0 WHR98785 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR98785 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR98785 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR98785 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR98785 |
C00318230
481953028847 |
Hose,draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR98785 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 787 0 WHR98785 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.70 |
||
| 787 2 WHR98785 |
C00332932
481940118868 |
SPONA HADICE AW | 122 Kč
€ 4.80 |
||
| 794 5 WHR98785 |
C00340485
481253058095 |
tesneni vzdusniku | 35 Kč
€ 1.40 |
||
| 900 0 WHR98785 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR98785 |
C00327315
481229088086 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR98785 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 3 WHR98785 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR98785 |
C00332933
481940118872 |
SPONA HADICE AW | 119 Kč
€ 4.70 |
||
| 900 5 WHR98785 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 900 6 WHR98785 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR98785 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 8 WHR98785 |
C00332928
481940118823 |
SPONA | 393 Kč
€ 15.50 |
||
| 901 3 WHR98785 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 910 5 WHR98785 |
C00332081
481250218516 |
Screw 4,2 x 13 | Na dotaz | Zadat poptávku | |
| 930 0 WHR98785 |
C00320162
481949238139 |
pruzina | Na dotaz | Zadat poptávku | |
| 941 0 WHR98785 |
C00314732
481252028004 |
Ložisko 6206 2Z C3 GJN (SKF) | 371 Kč
€ 14.60 |
||
| 941 1 WHR98785 |
C00315230
481252028066 |
Ložisko 6204 2Z C3 GJN (SKF) | 297 Kč
€ 11.70 |
||
| 953 0 WHR98785 |
C00313798
481253058099 |
Shaft seal 1200 | Na dotaz | Zadat poptávku | |
| 961 0 WHR98785 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 965 0 WHR98785 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR98785 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR98785 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
