BAUKNECHT WA 9330/1 WS-F
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | WA 9330/1 WS-F |
Kód 12NC: | 855400529020 |
I.C. kód: | 855400529021 |
Značka: | BAUKNECHT |
Typ produktu: | |
Další podobné modely: | 855400529020 |
Potřebujete servis? Jsme tady pro Vás

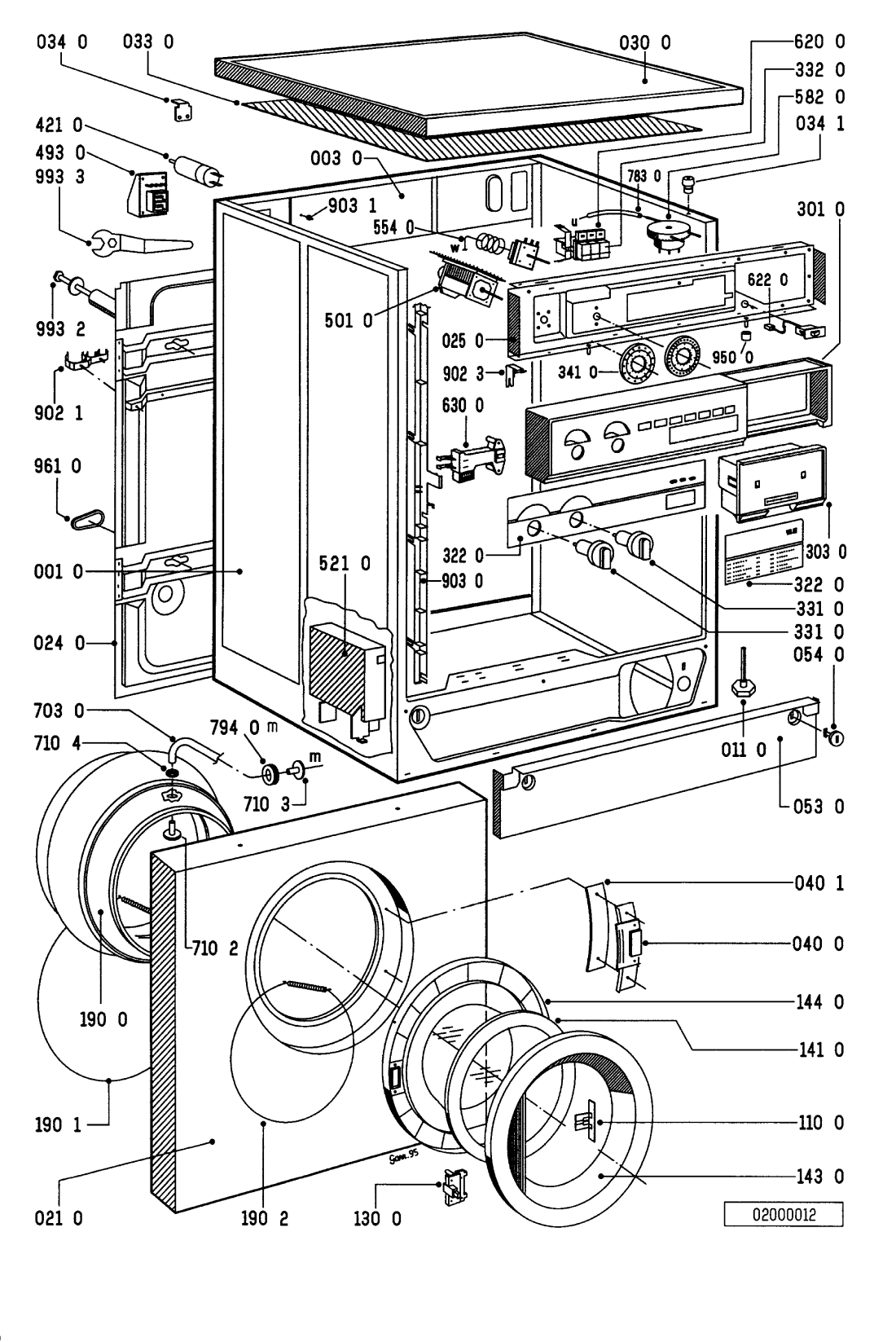

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
001 0 WHR113415 |
C00636060
481244018164 |
Cabinet. | Na dotaz | Zadat poptávku | |
003 0 WHR113415 |
C00753501
481246448004 |
Crossbar | Na dotaz | Zadat poptávku | |
011 0 WHR113415 |
C00555591
481250018005 |
Foot.. | Na dotaz | Zadat poptávku | |
021 0 WHR113415 |
C00591109
481244018141 |
Front. | Na dotaz | Zadat poptávku | |
024 0 WHR113415 |
C00636059
481244018106 |
Panel, rear. | Na dotaz | Zadat poptávku | |
025 0 WHR113415 |
C00753502
481244018127 |
Support Timer | Na dotaz | Zadat poptávku | |
030 0 WHR113415 |
C00753503
481231038057 |
Table top | Na dotaz | Zadat poptávku | |
033 0 WHR113415 |
C00636030
481231018267 |
INSULATION NOISE. | Na dotaz | Zadat poptávku | |
034 0 WHR113415 |
C00500523
481241758032 |
Fastener table top | Na dotaz | Zadat poptávku | |
034 1 WHR113415 |
C00591063
481241758012 |
Bushing table top. | Na dotaz | Zadat poptávku | |
040 0 WHR113415 |
C00753504
481241718345 |
Hinge cpl. | Na dotaz | Zadat poptávku | |
040 1 WHR113415 |
C00497791
481241728009 |
PODLOZKA ZAVESU AWM 242 N | Na dotaz | Zadat poptávku | |
053 0 WHR113415 |
C00591226
481245938004 |
Plinth WH. | Na dotaz | Zadat poptávku | |
054 0 WHR113415 |
C00753505
481241728007 |
Rotary locking | Na dotaz | Zadat poptávku | |
061 1 WHR113415 |
C00753506
481246688017 |
Counter weight Agg. 1 | Na dotaz | Zadat poptávku | |
080 0 WHR113415 |
C00486125
481246648001 |
tlumic | 986 Kč
€ 38.90 |
||
084 0 WHR113415 |
C00753507
481252918005 |
Buffer piece RUBBER | Na dotaz | Zadat poptávku | |
086 0 WHR113415 |
C00491471
481240118037 |
Holder damper | Na dotaz | Zadat poptávku | |
110 0 WHR113415 |
C00373761
481249818013 |
Grip | Na dotaz | Zadat poptávku | |
130 0 WHR113415 |
C00527823
481241728012 |
Lock door door | Na dotaz | Zadat poptávku | |
141 0 WHR113415 |
C00485353
481245068022 |
Door glass | Na dotaz | Zadat poptávku | |
143 0 WHR113415 |
C00485093
481244019335 |
Glassdoor frame | Na dotaz | Zadat poptávku | |
144 0 WHR113415 |
C00527803
481241718105 |
Frame,door glas + Hing + Hinge | Na dotaz | Zadat poptávku | |
190 0 WHR113415 |
C00633102
481246668269 |
TVO | 1 648 Kč
€ 65.10 |
||
190 1 WHR113415 |
C00491985
481249218001 |
Spring,tension | Na dotaz | Zadat poptávku | |
190 2 WHR113415 |
C00492005
481249298008 |
Strap | Na dotaz | Zadat poptávku | |
200 0 WHR113415 |
C00591064
481241818018 |
Container. | Na dotaz | Zadat poptávku | |
201 0 WHR113415 |
C00344300
481246448002 |
bocnice | 3 844 Kč
€ 151.80 |
||
210 0 WHR113415 |
C00486291
481252018011 |
Crosspiece Agg. 1 Agg. 1 | Na dotaz | Zadat poptávku | |
220 0 WHR113415 |
C00753508
481241818019 |
Drum Agg. 1 | Na dotaz | Zadat poptávku | |
228 0 WHR113415 |
C00591682
481241818094 |
Crosspiece,drum. | Na dotaz | Zadat poptávku | |
271 0 WHR113415 |
C00555027
481235818007 |
NAHRADENE 481235818157 N | Na dotaz | Zadat poptávku | |
272 0 WHR113415 |
C00337074
481252858004 |
Pulley | Na dotaz | Zadat poptávku | |
272 1 WHR113415 |
C00344074
481253228006 |
pouzdro plastove | 202 Kč
€ 8.00 |
||
292 0 WHR113415 |
C00340417
481253058003 |
tesneni bocnice | 637 Kč
€ 25.10 |
||
301 0 WHR113415 |
C00379067
481245218912 |
Control panel | Na dotaz | Zadat poptávku | |
303 0 WHR113415 |
C00620452
481249818022 |
Grip. | Na dotaz | Zadat poptávku | |
322 0 WHR113415 |
C00753509
481245218761 |
Panel insert | Na dotaz | Zadat poptávku | |
331 0 WHR113415 |
C00636048
481241348148 |
Knob wh. | Na dotaz | Zadat poptávku | |
332 0 WHR113415 |
C00491584
481241028515 |
PUSH BUTTON | Na dotaz | Zadat poptávku | |
341 0 WHR113415 |
C00753510
481241378218 |
Index,programm | Na dotaz | Zadat poptávku | |
341 1 WHR113415 |
C00491645
481241378105 |
Index,temperat. | Na dotaz | Zadat poptávku | |
401 0 WHR113415 |
C00753511
481236158057 |
Motor | Na dotaz | Zadat poptávku | |
421 0 WHR113415 |
C00481489
481212118024 |
INTERF.FILTER | Na dotaz | Zadat poptávku | |
430 0 WHR113415 |
C00633099
481236018018 |
CERPADLO LOPATKOVE N | Na dotaz | Zadat poptávku | |
432 0 WHR113415 |
C00753512
481236078033 |
Pump body | Na dotaz | Zadat poptávku | |
451 0 WHR113415 |
C00633090
481225928229 |
OHRIEVACIE TELESO 3000W ponorne N | Na dotaz | Zadat poptávku | |
493 0 WHR113415 |
C00753513
481229088003 |
Terminal block | Na dotaz | Zadat poptávku | |
501 0 WHR113415 |
C00491198
481228218265 |
Timer | Na dotaz | Zadat poptávku | |
521 0 WHR113415 |
C00482254
481221478128 |
Unit electrical BT 2218 Y | Na dotaz | Zadat poptávku | |
551 1 WHR113415 |
C00491364
481228248018 |
TERMOSTAT BIMET | 1 030 Kč
€ 40.70 |
||
554 0 WHR113415 |
C00379042
481227128177 |
TERMOSTAT BIMET | 1 767 Kč
€ 69.80 |
||
572 0 WHR113415 |
C00481520
481228128006 |
Valve magnet double | Na dotaz | Zadat poptávku | |
582 0 WHR113415 |
C00753514
481227128087 |
Pressostat | Na dotaz | Zadat poptávku | |
620 0 WHR113415 |
C00753515
481227638053 |
Switch,pushbut. | Na dotaz | Zadat poptávku | |
622 0 WHR113415 |
C00491145
481227718013 |
SWITCH,DOUBLE | Na dotaz | Zadat poptávku | |
630 0 WHR113415 |
C00620361
481228058012 |
ZAVORA DVIEROK | Na dotaz | Zadat poptávku | |
701 0 WHR113415 |
C00309500
481953028928 |
hadice napousteci | Na dotaz | Zadat poptávku | |
701 0 WHR113415 |
C00339221
481253028082 |
Hose, inlet 3/8Z cpl. | Na dotaz | Zadat poptávku | |
701 0 WHR113415 |
C00498607
481253028081 |
HADICA | Na dotaz | Zadat poptávku | |
701 1 WHR113415 |
C00318772
482248050159 |
Sieve inlet | Na dotaz | Zadat poptávku | |
702 0 WHR113415 |
C00636098
481253028053 |
HOSE, INLET 15CM. | Na dotaz | Zadat poptávku | |
703 0 WHR113415 |
C00481576
481253048005 |
Hose window rinsing | Na dotaz | Zadat poptávku | |
707 0 WHR113415 |
C00341599
481252648029 |
Nozzle | Na dotaz | Zadat poptávku | |
708 1 WHR113415 |
C00481567
481253028046 |
Bend | Na dotaz | Zadat poptávku | |
710 2 WHR113415 |
C00486312
481253048001 |
Nipple f.door seal f.door seal | Na dotaz | Zadat poptávku | |
710 3 WHR113415 |
C00486305
481252648002 |
Nipple | Na dotaz | Zadat poptávku | |
710 4 WHR113415 |
C00332649
481253078011 |
podlozka trysky spr. | 485 Kč
€ 19.10 |
||
711 0 WHR113415 |
C00620409
481241868121 |
Dispenser. | Na dotaz | Zadat poptávku | |
718 0 WHR113415 |
C00493674
481252648008 |
Siphon | Na dotaz | Zadat poptávku | |
750 0 WHR113415 |
C00484091
481253048031 |
Tank outlet receptable | Na dotaz | Zadat poptávku | |
753 1 WHR113415 |
C00342744
481241868125 |
Chamber,air | Na dotaz | Zadat poptávku | |
754 0 WHR113415 |
C00620457
481253028067 |
HADICA VYTOKOVA KOMPLET N | Na dotaz | Zadat poptávku | |
760 0 WHR113415 |
C00314883
481948058106 |
Filtr čerpadla | 198 Kč
€ 7.80 |
||
781 0 WHR113415 |
C00336274
481953028286 |
Sleeve hose | Na dotaz | Zadat poptávku | |
781 0 WHR113415 |
C00338654
481953028534 |
hadice vytok. mycky | 1 434 Kč
€ 56.60 |
||
781 1 WHR113415 |
C00481570
481253028072 |
Hose draining inside | Na dotaz | Zadat poptávku | |
783 0 WHR113415 |
C00481571
481253028078 |
Hose pressostat | Na dotaz | Zadat poptávku | |
783 1 WHR113415 |
C00591317
481253028061 |
Hose. | Na dotaz | Zadat poptávku | |
786 0 WHR113415 |
C00620458
481253028326 |
Hose. | Na dotaz | Zadat poptávku | |
786 1 WHR113415 |
C00317781
481246278179 |
threaded cap | Na dotaz | Zadat poptávku | |
787 0 WHR113415 |
C00753516
481253028085 |
Hose Exhaust | Na dotaz | Zadat poptávku | |
794 0 WHR113415 |
C00486310
481253028062 |
Gasket window rinsing | Na dotaz | Zadat poptávku | |
794 1 WHR113415 |
C00337981
481953058032 |
tesnici O krouzek | 605 Kč
€ 23.90 |
||
794 2 WHR113415 |
C00337979
481253058005 |
O-Ring | Na dotaz | Zadat poptávku | |
794 4 WHR113415 |
C00382230
481253058007 |
O-Ring | Na dotaz | Zadat poptávku | |
794 5 WHR113415 |
C00498646
481253058015 |
Gasket | Na dotaz | Zadat poptávku | |
794 6 WHR113415 |
C00486108
481246628099 |
Shaft seal | Na dotaz | Zadat poptávku | |
901 0 WHR113415 |
C00343364
481240118054 |
Clamp hose | Na dotaz | Zadat poptávku | |
902 1 WHR113415 |
C00591002
481240118052 |
Holder hose. | Na dotaz | Zadat poptávku | |
902 3 WHR113415 |
C00591060
481241728004 |
Angle iron. | Na dotaz | Zadat poptávku | |
903 0 WHR113415 |
C00590981
481229088007 |
Cable clamp. | Na dotaz | Zadat poptávku | |
903 2 WHR113415 |
C00491472
481240118055 |
Clip hose | Na dotaz | Zadat poptávku | |
903 3 WHR113415 |
C00492102
481253238003 |
Clip tub | Na dotaz | Zadat poptávku | |
903 4 WHR113415 |
C00590980
481229068013 |
Clamp cable motor. | Na dotaz | Zadat poptávku | |
910 0 WHR113415 |
C00331290
481245218994 |
Screw M8x20 A2F | Na dotaz | Zadat poptávku | |
910 1 WHR113415 |
C00555368
481245218995 |
NAHRADA 481950218417 | Na dotaz | Zadat poptávku | |
910 5 WHR113415 |
C00336591
481250218359 |
Screw damper | Na dotaz | Zadat poptávku | |
912 0 WHR113415 |
C00336566
481250218361 |
Screw M8x30 | Na dotaz | Zadat poptávku | |
915 0 WHR113415 |
C00753517
481290300304 |
Nut M 8 x 1 DIN 439 | Na dotaz | Zadat poptávku | |
921 0 WHR113415 |
C00492094
481253078002 |
Ring circlip | Na dotaz | Zadat poptávku | |
923 0 WHR113415 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
931 0 WHR113415 |
C00491383
481231018298 |
Spring,suspens. SET | Na dotaz | Zadat poptávku | |
932 0 WHR113415 |
C00636093
481249248009 |
Spring. | Na dotaz | Zadat poptávku | |
941 0 WHR113415 |
C00318543
481252028001 |
Bearing,ball BB1-0625 DD | Na dotaz | Zadat poptávku | |
941 1 WHR113415 |
C00315098
481252028002 |
Ložisko 6203 SKF 2Z C3 | 301 Kč
€ 11.90 |
||
950 0 WHR113415 |
C00753518
481246668429 |
Gasket | Na dotaz | Zadat poptávku | |
953 0 WHR113415 |
C00320177
481253068001 |
tesneni bubnu VA-40 | 915 Kč
€ 36.10 |
||
961 0 WHR113415 |
C00343009
481232148004 |
Cover | Na dotaz | Zadat poptávku | |
962 0 WHR113415 |
C00342374
481246638011 |
Cover protect. heating element | Na dotaz | Zadat poptávku | |
993 0 WHR113415 |
C00344289
481253048017 |
Bow | Na dotaz | Zadat poptávku | |
993 0 WHR113415 |
C00493292
481239578001 |
Unlock. spattel SET NOT SHOWN | Na dotaz | Zadat poptávku | |
993 0 WHR113415 |
C00753519
481239098004 |
Pipette AKTIVATOR T | Na dotaz | Zadat poptávku | |
993 2 WHR113415 |
C00555134
481239588005 |
Fastener.. | Na dotaz | Zadat poptávku | |
993 3 WHR113415 |
C00527478
481239558001 |
Tool f. foot f. foot | Na dotaz | Zadat poptávku |
