BAUKNECHT WA 9597 BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WA 9597 BK |
| Kód 12NC: | 858362116000 |
| I.C. kód: | 858362116005 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
| Další podobné modely: | 858362116000 |
Potřebujete servis? Jsme tady pro Vás

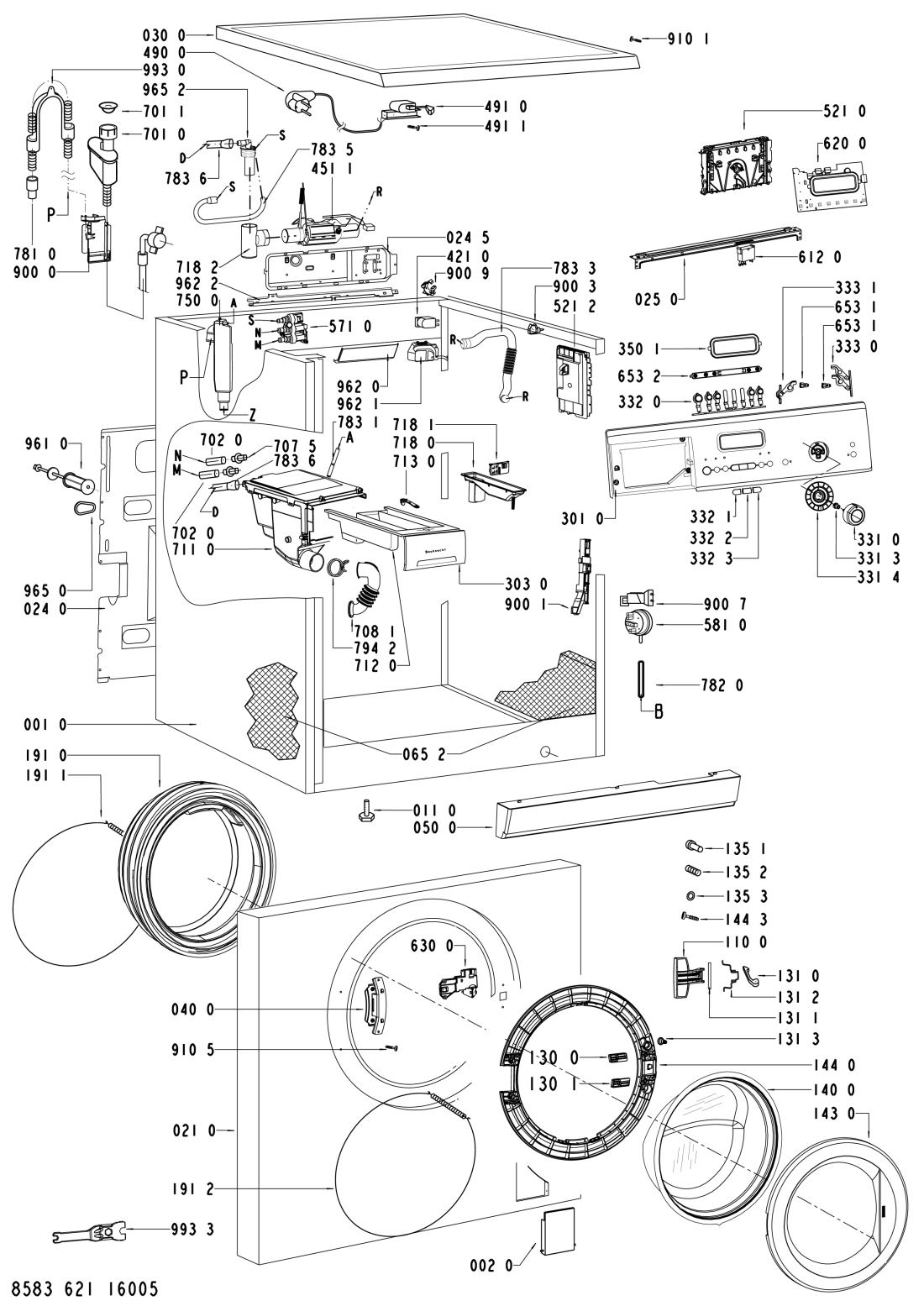

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR09968 |
C00320974
480111100657 |
skrin | 4 905 Kč
€ 193.50 |
||
| 002 0 WHR09968 |
C00316479
481244011131 |
kryt filtru | 213 Kč
€ 8.40 |
||
| 004 0 WHR09968 |
C00320966
480111100593 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 011 0 WHR09968 |
C00330679
481246248421 |
Adjust.foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR09968 |
C00459143
481244011639 |
PREDNY PANEL | Na dotaz | Zadat poptávku | |
| 024 0 WHR09968 |
C00316521
481244011544 |
stena zadni | 2 053 Kč
€ 81.00 |
||
| 024 5 WHR09968 |
C00328085
481244011745 |
Bracket MYST | Na dotaz | Zadat poptávku | |
| 025 0 WHR09968 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 030 0 WHR09968 |
C00328070
481244011661 |
deska horni | Na dotaz | Zadat poptávku | |
| 040 0 WHR09968 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR09968 |
C00313304
481244089097 |
sokl pracky EBL | 1 173 Kč
€ 46.30 |
||
| 061 0 WHR09968 |
C00331527
481246688936 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| 061 1 WHR09968 |
C00331542
481246688981 |
Counter weight bottom | Na dotaz | Zadat poptávku | |
| 061 2 WHR09968 |
C00320419
481231039135 |
Mounting kit weight top | Na dotaz | Zadat poptávku | |
| 065 2 WHR09968 |
C00319867
481231019136 |
Insulation | Na dotaz | Zadat poptávku | |
| 081 0 WHR09968 |
C00311556
480111100195 |
tlumič pračky Whirlpool AWOE | 276 Kč
€ 10.90 |
||
| 084 0 WHR09968 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 110 0 WHR09968 |
C00345884
481249818675 |
Rukojeť dveří | 971 Kč
€ 38.30 |
||
| 130 0 WHR09968 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR09968 |
C00318073
481241728108 |
podlozka | 619 Kč
€ 24.40 |
||
| 131 0 WHR09968 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR09968 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR09968 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 131 3 WHR09968 |
C00345875
481249258056 |
Spring Door Lock Child | Na dotaz | Zadat poptávku | |
| 135 1 WHR09968 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR09968 |
C00317024
481249148004 |
Pružina | 397 Kč
€ 15.70 |
||
| 135 3 WHR09968 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR09968 |
C00311241
481245059812 |
Sklo dveří | 1 741 Kč
€ 68.70 |
||
| 143 0 WHR09968 |
C00328006
481244011453 |
Glassdoor frame EBL BK | Na dotaz | Zadat poptávku | |
| 144 0 WHR09968 |
C00317167
481244011575 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 144 3 WHR09968 |
C00318393
481250218669 |
sroub pojistka dv. | 512 Kč
€ 20.20 |
||
| 191 0 WHR09968 |
C00312668
481246068615 |
Door bellow dark | Na dotaz | Zadat poptávku | |
| 191 1 WHR09968 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR09968 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR09968 |
C00318342
481241818716 |
nadrz predni cast | 3 461 Kč
€ 136.50 |
||
| 200 2 WHR09968 |
C00314643
481241818717 |
nadrz zadni cast | 6 852 Kč
€ 270.20 |
||
| 200 4 WHR09968 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR09968 |
C00312821
481241818628 |
Drum 1200,8kg-screw | Na dotaz | Zadat poptávku | |
| 271 0 WHR09968 |
C00311514
481935818152 |
Řemen víceklínový 1248J5 | 631 Kč
€ 24.90 |
||
| 272 0 WHR09968 |
C00315438
480111100924 |
remenice | 1 479 Kč
€ 58.30 |
||
| 272 3 WHR09968 |
C00314234
481250218794 |
Screw pulley frejus | Na dotaz | Zadat poptávku | |
| 292 0 WHR09968 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR09968 |
C00404117
481245311084 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 303 0 WHR09968 |
C00388310
480111101035 |
Handle drawer | Na dotaz | Zadat poptávku | |
| 331 0 WHR09968 |
C00329536
481241458338 |
Knoflík | 541 Kč
€ 21.30 |
||
| 331 3 WHR09968 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 405 Kč
€ 16.00 |
||
| 331 4 WHR09968 |
C00329535
481241458337 |
Disc Knob timer, silver | Na dotaz | Zadat poptávku | |
| 332 0 WHR09968 |
C00402265
481241029557 |
Push button SET | 760 Kč
€ 30.00 |
||
| 332 1 WHR09968 |
C00457773
481241029554 |
Button left | Na dotaz | Zadat poptávku | |
| 332 2 WHR09968 |
C00457774
481241029555 |
Button middle | Na dotaz | Zadat poptávku | |
| 332 3 WHR09968 |
C00457775
481241029556 |
Button right | Na dotaz | Zadat poptávku | |
| 333 0 WHR09968 |
C00402266
481241029558 |
Push button BGW-2 opt. | Na dotaz | Zadat poptávku | |
| 333 1 WHR09968 |
C00402267
481241029559 |
Push button BGW-1 opt. | Na dotaz | Zadat poptávku | |
| 350 1 WHR09968 |
C00330869
481246469354 |
Frame FLD | Na dotaz | Zadat poptávku | |
| 400 0 WHR09968 |
C00312140
481236158492 |
motor | 4 706 Kč
€ 185.60 |
||
| 400 1 WHR09968 |
C00332114
481250218737 |
Screw 8x38 | Na dotaz | Zadat poptávku | |
| 409 0 WHR09968 |
C00311255
481236248442 |
Brush,carbon ACC sub 481281719419 | Na dotaz | Zadat poptávku | |
| 421 0 WHR09968 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR09968 |
C00320191
481236018599 |
Vypouštěcí čerpadlo předem plněné pračky Whirlpool | 2 898 Kč
€ 114.30 |
||
| 451 0 WHR09968 |
C00456493
481225928918 |
Grzałka | Na dotaz | Zadat poptávku | |
| 451 1 WHR09968 |
C00327203
481225998591 |
topeni | 4 872 Kč
€ 192.20 |
||
| 480 0 WHR09968 |
C00312121
481232178351 |
Cable DOMINO-MOT 7 | Na dotaz | Zadat poptávku | |
| 490 0 WHR09968 |
C00493173
481232128368 |
Connect.cable CH | Na dotaz | Zadat poptávku | |
| 491 0 WHR09968 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR09968 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR09968 |
C00455631
481221470767 |
Control unit DOM.C3M-B-basic | Na dotaz | Zadat poptávku | |
| 521 0 WHR09968 |
C00455626
481221470762 |
Control unit DOMINO, programmed | Na dotaz | Zadat poptávku | |
| 521 2 WHR09968 |
C00315448
480111100951 |
elektronika | 4 518 Kč
€ 178.20 |
||
| 571 0 WHR09968 |
C00311493
481227128592 |
ventil triple | 1 510 Kč
€ 59.60 |
||
| 581 0 WHR09968 |
C00311217
481227128554 |
Presostat pračky | 218 Kč
€ 8.60 |
||
| 612 0 WHR09968 |
C00320136
481203618931 |
Relay MYST | Na dotaz | Zadat poptávku | |
| 620 0 WHR09968 |
C00319845
481223958088 |
Module B2 | Na dotaz | Zadat poptávku | |
| 630 0 WHR09968 |
C00311250
481228058048 |
Door lock Rold DA069516 | Na dotaz | Zadat poptávku | |
| 631 0 WHR09968 |
C00314788
480111100338 |
spinac | 1 109 Kč
€ 43.70 |
||
| 631 1 WHR09968 |
C00315271
481236058112 |
Plovák | 310 Kč
€ 12.20 |
||
| 653 1 WHR09968 |
C00326847
481213448391 |
Guide,light BGW-single | Na dotaz | Zadat poptávku | |
| 653 2 WHR09968 |
C00326846
481213448389 |
Guide,light opt. | Na dotaz | Zadat poptávku | |
| 691 0 WHR09968 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR09968 |
C00312612
481953028926 |
Přívodní hadice 2,5 m s aqua stopem | Na dotaz | Zadat poptávku | |
| 701 0 WHR09968 |
C00332408
481253028781 |
Přívodní hadice 3,5m: s Aqua Stopem | Na dotaz | Zadat poptávku | |
| 701 1 WHR09968 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR09968 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 707 5 WHR09968 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 708 1 WHR09968 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR09968 |
C00317093
481241868435 |
Dispenser | Na dotaz | Zadat poptávku | |
| 712 0 WHR09968 |
C00312664
481241868415 |
Drawer | Na dotaz | Zadat poptávku | |
| 713 0 WHR09968 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 718 0 WHR09968 |
C00315768
481241889085 |
Vložka násypky | 502 Kč
€ 19.80 |
||
| 718 1 WHR09968 |
C00315499
481252648252 |
Vložka násypky | 187 Kč
€ 7.40 |
||
| 718 2 WHR09968 |
C00332670
481253248066 |
Tank STEAMER, MYST | Na dotaz | Zadat poptávku | |
| 750 0 WHR09968 |
C00314658
481253049373 |
Chamber,expand. long | Na dotaz | Zadat poptávku | |
| 753 1 WHR09968 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.40 |
||
| 754 0 WHR09968 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR09968 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR09968 |
C00332452
481253029352 |
Příruba eco AWT,AWO/D | 539 Kč
€ 21.30 |
||
| 760 0 WHR09968 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR09968 |
C00314886
481253029355 |
hadice | Na dotaz | Zadat poptávku | |
| 782 0 WHR09968 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 1 WHR09968 |
C00332488
481253029473 |
hadice k nasypce | Na dotaz | Zadat poptávku | |
| 783 3 WHR09968 |
C00332494
481253029492 |
Hose Steamer-Tub,MYST | Na dotaz | Zadat poptávku | |
| 783 4 WHR09968 |
C00314522
481253029392 |
Hose pump/tank | Na dotaz | Zadat poptávku | |
| 783 5 WHR09968 |
C00332492
481253029489 |
Hose exhaust | Na dotaz | Zadat poptávku | |
| 783 6 WHR09968 |
C00332493
481253029491 |
Hose Siphon-Disp.MYST | Na dotaz | Zadat poptávku | |
| 794 2 WHR09968 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 794 5 WHR09968 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR09968 |
C00320981
480111100785 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 900 1 WHR09968 |
C00327315
481229088086 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 3 WHR09968 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR09968 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR09968 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.80 |
||
| 900 6 WHR09968 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR09968 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 9 WHR09968 |
C00327126
481225518286 |
Holder Hose outlet left | Na dotaz | Zadat poptávku | |
| 910 1 WHR09968 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 5 WHR09968 |
C00312157
481250218815 |
Šroub | 129 Kč
€ 5.10 |
||
| 930 0 WHR09968 |
C00345871
481249238411 |
Spring,suspens. D38 | Na dotaz | Zadat poptávku | |
| 941 0 WHR09968 |
C00332295
481252028186 |
Ložisko 6208 SKF 2Z, 6208 2Z C3 | 986 Kč
€ 38.90 |
||
| 941 1 WHR09968 |
C00317100
481252028071 |
Ložisko 6305 2Z C3 GJN (SKF) | 425 Kč
€ 16.80 |
||
| 953 0 WHR09968 |
C00332636
481253058177 |
gufero 50x93x12,5/9 | 832 Kč
€ 32.80 |
||
| 961 0 WHR09968 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 962 0 WHR09968 |
C00330966
481246668929 |
Cover shield Steamer, MYST | Na dotaz | Zadat poptávku | |
| 962 1 WHR09968 |
C00330967
481246668931 |
Cover RFI,MYST | Na dotaz | Zadat poptávku | |
| 962 2 WHR09968 |
C00330969
481246668934 |
Bracket | Na dotaz | Zadat poptávku | |
| 965 0 WHR09968 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 965 2 WHR09968 |
C00345866
481246818398 |
Cap Syphon-MYST | Na dotaz | Zadat poptávku | |
| 993 0 WHR09968 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.70 |
||
| 993 3 WHR09968 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR09968 |
C00353173 | Testprogram WHP | Na dotaz | Zadat poptávku | |
