BAUKNECHT WA PL 962 BW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WA PL 962 BW |
| Kód 12NC: | 858302303100 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
| Další podobné modely: | 858302303103 |
Potřebujete servis? Jsme tady pro Vás

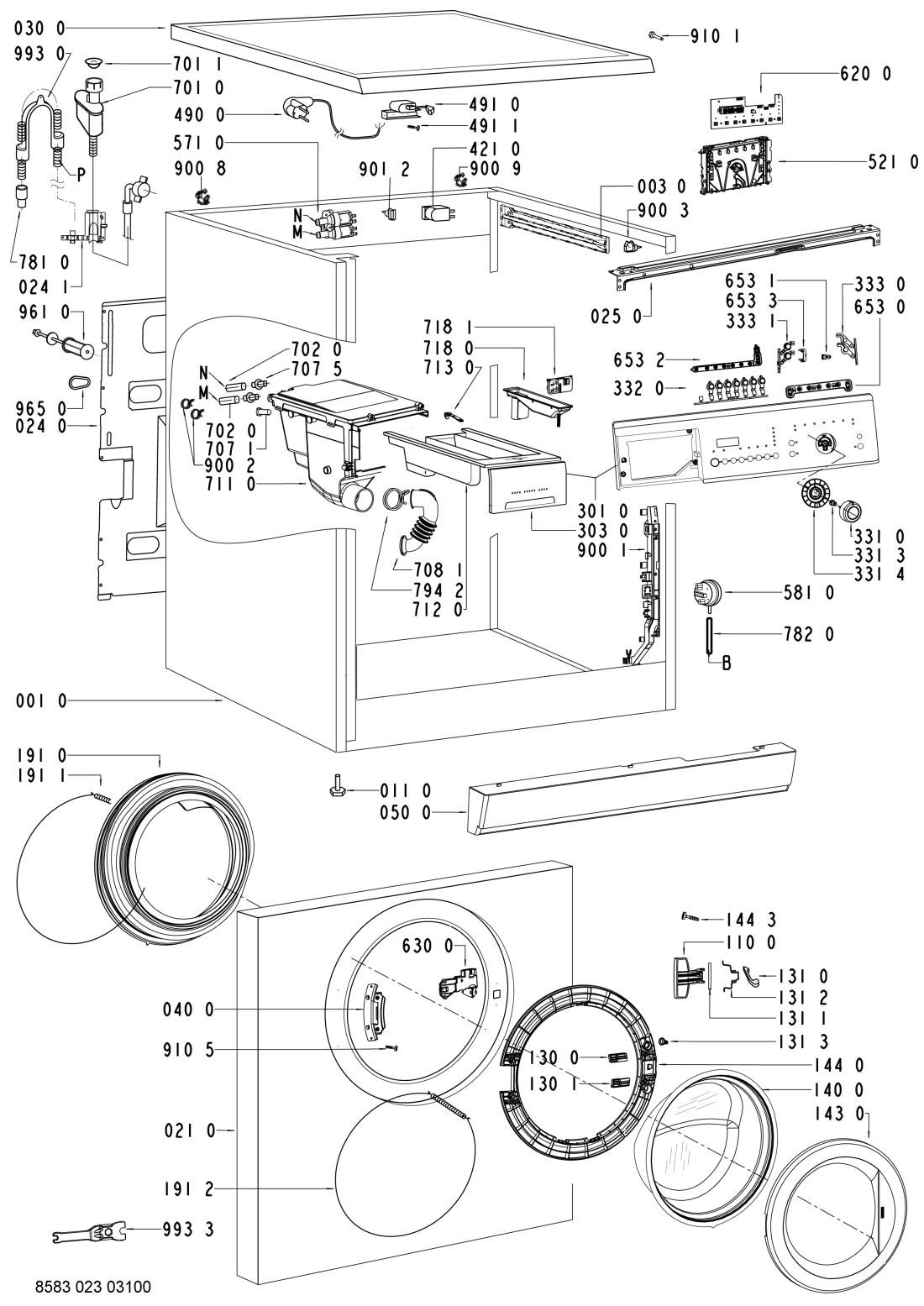

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR09672 |
C00320962
480111100352 |
Cabinet | Na dotaz | Zadat poptávku | |
| 003 0 WHR09672 |
C00319647
481246448161 |
sada odhlučňovací | 449 Kč
€ 17.70 |
||
| 004 0 WHR09672 |
C00320960
480111100337 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 011 0 WHR09672 |
C00312325
480111101039 |
Adjust. foot Eureka 490 | Na dotaz | Zadat poptávku | |
| 021 0 WHR09672 |
C00311725
481244011564 |
stena predni | 3 511 Kč
€ 138.60 |
||
| 024 0 WHR09672 |
C00316521
481244011544 |
stena zadni | 2 053 Kč
€ 81.10 |
||
| 024 1 WHR09672 |
C00331035
481244138021 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 025 0 WHR09672 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 030 0 WHR09672 |
C00328061
481244011645 |
Table top 42/50 DOM. UBS possible | Na dotaz | Zadat poptávku | |
| 040 0 WHR09672 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR09672 |
C00312706
481244010779 |
sokl pracky GW | 1 689 Kč
€ 66.70 |
||
| 061 0 WHR09672 |
C00313390
481246689017 |
Counter weight upper, Eureka 50-54l | Na dotaz | Zadat poptávku | |
| 061 1 WHR09672 |
C00312927
481246689018 |
Counter weight front, bottom, Eureka 50l | Na dotaz | Zadat poptávku | |
| 061 2 WHR09672 |
C00312077
481231039249 |
sroub+podlozka | 167 Kč
€ 6.60 |
||
| 081 0 WHR09672 |
C00313078
480111102361 |
Tlumič pračky Whirlpool FSCR | 209 Kč
€ 8.30 |
||
| 084 0 WHR09672 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 110 0 WHR09672 |
C00405333
481249818676 |
Handle,door | Na dotaz | Zadat poptávku | |
| 130 0 WHR09672 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR09672 |
C00318073
481241728108 |
podlozka | 619 Kč
€ 24.40 |
||
| 131 0 WHR09672 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR09672 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR09672 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 131 3 WHR09672 |
C00345875
481249258056 |
Spring Door Lock Child | Na dotaz | Zadat poptávku | |
| 140 0 WHR09672 |
C00311241
481245059812 |
Sklo dveří | 1 741 Kč
€ 68.70 |
||
| 143 0 WHR09672 |
C00328006
481244011453 |
Glassdoor frame EBL BK | Na dotaz | Zadat poptávku | |
| 144 0 WHR09672 |
C00317167
481244011575 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 144 3 WHR09672 |
C00332081
481250218516 |
Screw 4,2 x 13 | Na dotaz | Zadat poptávku | |
| 191 0 WHR09672 |
C00311125
481246068633 |
Těsnění dveří, manžeta do pračky Whirlpool, 481246068633 | 372 Kč
€ 14.70 |
||
| 191 1 WHR09672 |
C00312650
481249218028 |
spona TVO - vnitřní | 163 Kč
€ 6.40 |
||
| 191 2 WHR09672 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 0 WHR09672 |
C00314930
480111101507 |
Wash unit EUREKA/1200/50L | Na dotaz | Zadat poptávku | |
| 223 0 WHR09672 |
C00311026
480111104174 |
Žebro bubnu předem plněné pračky (50l) Whirlpool | 189 Kč
€ 7.50 |
||
| 271 0 WHR09672 |
C00310973
481235818215 |
Řemen vícekl. 1239J5 | 155 Kč
€ 6.10 |
||
| 272 0 WHR09672 |
C00311999
480111102563 |
Řemenice bubnu | 1 067 Kč
€ 42.10 |
||
| 272 3 WHR09672 |
C00313276
481250218817 |
sroub remenice | Na dotaz | Zadat poptávku | |
| 301 0 WHR09672 |
C00428046
480111104478 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 303 0 WHR09672 |
C00426501
480111102132 |
Handle, drawer | Na dotaz | Zadat poptávku | |
| 331 0 WHR09672 |
C00329536
481241458338 |
Knoflík | 541 Kč
€ 21.40 |
||
| 331 3 WHR09672 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 405 Kč
€ 16.00 |
||
| 331 4 WHR09672 |
C00425421
480111100467 |
Collarring Timer, silver | Na dotaz | Zadat poptávku | |
| 332 0 WHR09672 |
C00464786
481251318178 |
Push button 7 opt. | Na dotaz | Zadat poptávku | |
| 333 0 WHR09672 |
C00314700
481251318177 |
Tlačítko start-reset | 551 Kč
€ 21.80 |
||
| 333 1 WHR09672 |
C00329323
481241029478 |
Push button 2 opt. | Na dotaz | Zadat poptávku | |
| 400 0 WHR09672 |
C00311638
480111102595 |
motor | 4 730 Kč
€ 186.70 |
||
| 400 1 WHR09672 |
C00332143
481250218816 |
Screw P8x50 | Na dotaz | Zadat poptávku | |
| 409 0 WHR09672 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR09672 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR09672 |
C00310955
480111100786 |
Pump,draining | Na dotaz | Zadat poptávku | |
| 451 0 WHR09672 |
C00318278
481225928919 |
Heating element 2050W, 230V + NTC | Na dotaz | Zadat poptávku | |
| 480 0 WHR09672 |
C00313012
480111100719 |
Kabeláž Motor 7-pole DOMINO | 1 070 Kč
€ 42.20 |
||
| 490 0 WHR09672 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR09672 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR09672 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR09672 |
C00315074
480111102878 |
Control unit Domino C2 Basic | Na dotaz | Zadat poptávku | |
| 521 0 WHR09672 |
C00428045
480111104477 |
Control unit DOMINO,prog eSam | Na dotaz | Zadat poptávku | |
| 571 0 WHR09672 |
C00311060
481227128558 |
Napouštěcí ventil pračky - dvoucestný, rohový | 764 Kč
€ 30.20 |
||
| 581 0 WHR09672 |
C00311217
481227128554 |
Presostat pračky | 218 Kč
€ 8.60 |
||
| 620 0 WHR09672 |
C00314020
481223958075 |
Modul displeje pračky Whirlpool, Bauknecht | 3 973 Kč
€ 156.90 |
||
| 630 0 WHR09672 |
C00311250
481228058048 |
Door lock Rold DA069516 | Na dotaz | Zadat poptávku | |
| 631 0 WHR09672 |
C00314788
480111100338 |
spinac | 1 109 Kč
€ 43.80 |
||
| 631 1 WHR09672 |
C00315271
481236058112 |
Plovák | 310 Kč
€ 12.20 |
||
| 653 0 WHR09672 |
C00326821
481213418064 |
Light guide prog. flow | Na dotaz | Zadat poptávku | |
| 653 1 WHR09672 |
C00314404
481213418047 |
kolik | 323 Kč
€ 12.80 |
||
| 653 2 WHR09672 |
C00425420
480111100466 |
Light guide BK-BGW | Na dotaz | Zadat poptávku | |
| 653 3 WHR09672 |
C00319090
481213448362 |
svetlovod | 101 Kč
€ 4.00 |
||
| 691 0 WHR09672 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR09672 |
C00309499
481253029256 |
Přívodní hadice 1,5m s Aqua Stopem | 897 Kč
€ 35.40 |
||
| 701 0 WHR09672 |
C00312612
481953028926 |
Přívodní hadice 2,5 m s aqua stopem | Na dotaz | Zadat poptávku | |
| 701 0 WHR09672 |
C00332408
481253028781 |
Přívodní hadice 3,5m: s Aqua Stopem | Na dotaz | Zadat poptávku | |
| 701 1 WHR09672 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR09672 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 707 1 WHR09672 |
C00330775
481246279955 |
Threaded cap for dispenser | Na dotaz | Zadat poptávku | |
| 707 5 WHR09672 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 708 1 WHR09672 |
C00313076
481253049392 |
Hadice násypka-nádrž | 447 Kč
€ 17.60 |
||
| 711 0 WHR09672 |
C00313206
480111101255 |
teleso nasypky | 2 169 Kč
€ 85.60 |
||
| 712 0 WHR09672 |
C00312664
481241868415 |
Drawer | Na dotaz | Zadat poptávku | |
| 713 0 WHR09672 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 718 0 WHR09672 |
C00315768
481241889085 |
Vložka násypky | 502 Kč
€ 19.80 |
||
| 718 1 WHR09672 |
C00315499
481252648252 |
Vložka násypky | 187 Kč
€ 7.40 |
||
| 754 0 WHR09672 |
C00313144
481253029495 |
Hadice čerpadlo - nádrž pračky Whirlpool | 607 Kč
€ 24.00 |
||
| 754 1 WHR09672 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 760 0 WHR09672 |
C00312342
481248058385 |
Filtr čerpadla Whirlpool AWO/D | 189 Kč
€ 7.50 |
||
| 781 0 WHR09672 |
C00311421
480111100272 |
Hadice výtoková | 412 Kč
€ 16.30 |
||
| 782 0 WHR09672 |
C00312246
481253029497 |
Hadice k presostatu pračky Whirlpool | 93 Kč
€ 3.70 |
||
| 794 2 WHR09672 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 900 1 WHR09672 |
C00327322
481229088123 |
Bracket eureka | Na dotaz | Zadat poptávku | |
| 900 2 WHR09672 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 900 3 WHR09672 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR09672 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR09672 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 900 8 WHR09672 |
C00320945
480111100143 |
Holder hose right | Na dotaz | Zadat poptávku | |
| 900 9 WHR09672 |
C00327126
481225518286 |
Holder Hose outlet left | Na dotaz | Zadat poptávku | |
| 901 2 WHR09672 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 910 1 WHR09672 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 5 WHR09672 |
C00317066
481250218719 |
Screw L-Schr.I6rdFurch M5x12 | Na dotaz | Zadat poptávku | |
| 930 0 WHR09672 |
C00345873
481249238421 |
Pružina nádrže | Na dotaz | Zadat poptávku | |
| 961 0 WHR09672 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 965 0 WHR09672 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR09672 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR09672 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR09672 |
C00364608 | Testprogram WHP | Na dotaz | Zadat poptávku | |
