BAUKNECHT WAE 8560 - SK WASHING MACHINE BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WAE 8560 - SK WASHING MACHINE BK |
| Kód 12NC: | 858347561000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás

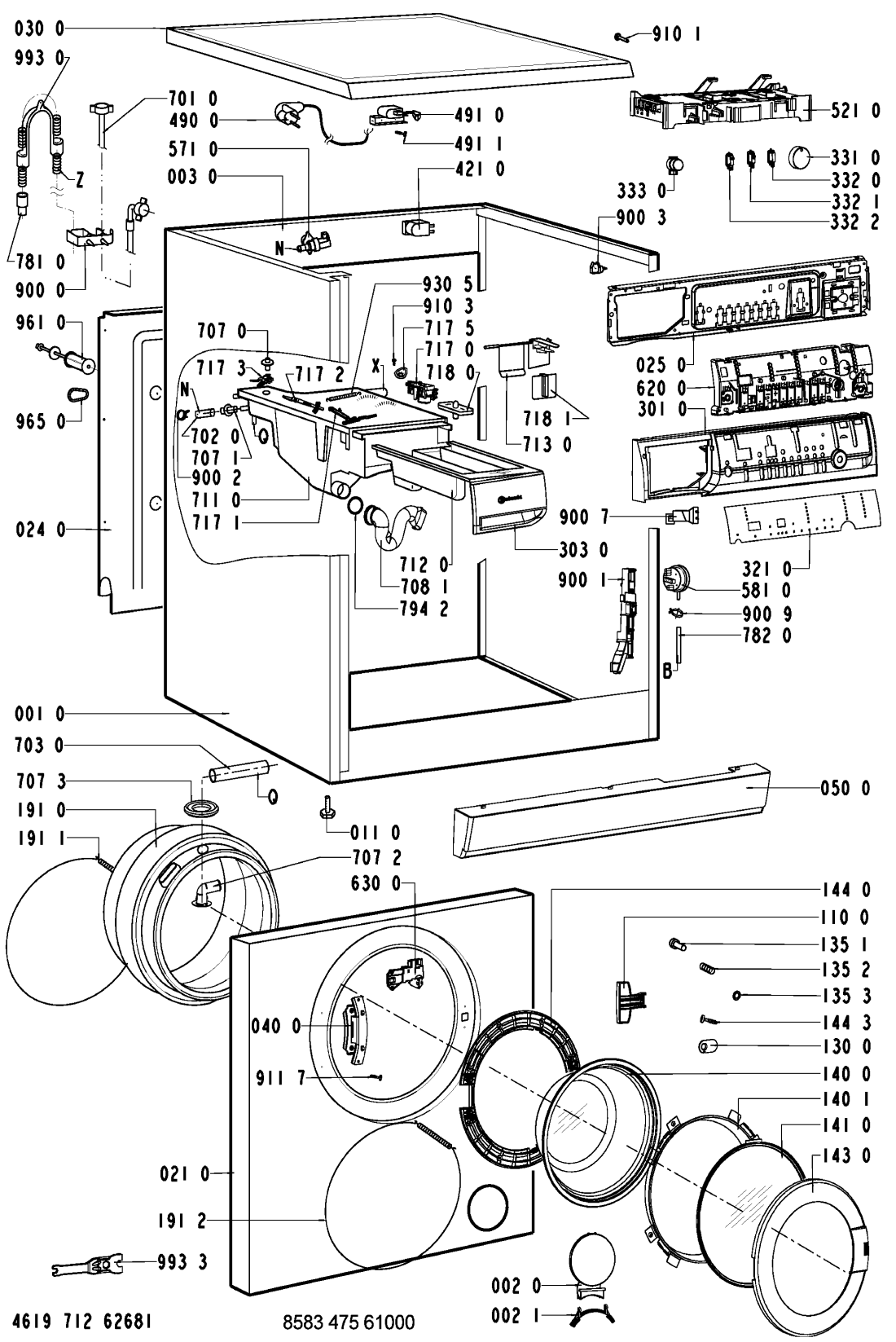

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR76542 |
C00343946
481244018996 |
Cabinet | Na dotaz | Zadat poptávku | |
| 002 0 WHR76542 |
C00497883
481244010466 |
Flap Filter round VBL BK | Na dotaz | Zadat poptávku | |
| 002 1 WHR76542 |
C00497576
481240438591 |
Holder flap, filter | Na dotaz | Zadat poptávku | |
| 003 0 WHR76542 |
C00594457
481246448101 |
PRIEAKA SKRINE - ZADN? N | Na dotaz | Zadat poptávku | |
| 011 0 WHR76542 |
C00340775
481250018068 |
Nastavitelná noha pračky | 474 Kč
€ 18.70 |
||
| 021 0 WHR76542 |
C00340645
481244010582 |
Front VBL with BraceVBL with Brace rou | Na dotaz | Zadat poptávku | |
| 024 0 WHR76542 |
C00328103
481244018998 |
Stěna přední AWM250 | 1 101 Kč
€ 43.40 |
||
| 025 0 WHR76542 |
C00527933
481244010467 |
Holder VBL BK | Na dotaz | Zadat poptávku | |
| 030 0 WHR76542 |
C00587113
481244010468 |
Table top VBL BK. | Na dotaz | Zadat poptávku | |
| 040 0 WHR76542 |
C00488944
481241719023 |
Hinge door cpl. VBL BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR76542 |
C00553588
481244088983 |
Plinth VBL BK | Na dotaz | Zadat poptávku | |
| 061 0 WHR76542 |
C00343070
481246688458 |
zavazi horni | 1 001 Kč
€ 39.50 |
||
| 061 1 WHR76542 |
C00343085
481246688459 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 061 2 WHR76542 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 061 3 WHR76542 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 081 0 WHR76542 |
C00312055
481252918038 |
Shock absorber until 1200 | Na dotaz | Zadat poptávku | |
| 084 0 WHR76542 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 0 WHR76542 |
C00316610
481240118409 |
Holder Shock Absorber Shock Absorber | Na dotaz | Zadat poptávku | |
| 086 1 WHR76542 |
C00312274
481240118413 |
Čep tlumiče | 924 Kč
€ 36.40 |
||
| 086 2 WHR76542 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.00 |
||
| 110 0 WHR76542 |
C00487761
481249818217 |
Handle,door cpl. silver VBL BK | Na dotaz | Zadat poptávku | |
| 130 0 WHR76542 |
C00491661
481241728074 |
Fixation Plate VBL BK | Na dotaz | Zadat poptávku | |
| 135 1 WHR76542 |
C00345878
481249818137 |
Knob Door safetyDoor safety | Na dotaz | Zadat poptávku | |
| 135 2 WHR76542 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR76542 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR76542 |
C00339065
481245068218 |
Door glass | Na dotaz | Zadat poptávku | |
| 140 1 WHR76542 |
C00527934
481244010471 |
Fastener f. door glas f. door glas | Na dotaz | Zadat poptávku | |
| 141 0 WHR76542 |
C00485255
481245058551 |
Glass door safety touch VBL BK | Na dotaz | Zadat poptávku | |
| 143 0 WHR76542 |
C00496198
481244010469 |
Glassdoor frame white VBL BK | Na dotaz | Zadat poptávku | |
| 144 0 WHR76542 |
C00636058
481244010472 |
Frame,door glas VBL BK | Na dotaz | Zadat poptávku | |
| 144 3 WHR76542 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 191 0 WHR76542 |
C00373762
481246668574 |
TVO | 1 545 Kč
€ 60.90 |
||
| 191 1 WHR76542 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR76542 |
C00311875
481249298011 |
spona TVO - přední stěna | 166 Kč
€ 6.50 |
||
| 200 1 WHR76542 |
C00315540
481241818369 |
Tub, half front 48 l | Na dotaz | Zadat poptávku | |
| 200 2 WHR76542 |
C00636322
481241818208 |
TUB REAR PART. | Na dotaz | Zadat poptávku | |
| 200 3 WHR76542 |
C00339179
481252018065 |
Ložiskový domek AWM 250 | 2 151 Kč
€ 84.80 |
||
| 200 4 WHR76542 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR76542 |
C00312242
481241818191 |
Drum 1200 0,5MM PP 48L | Na dotaz | Zadat poptávku | |
| 271 0 WHR76542 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 178 Kč
€ 7.00 |
||
| 272 0 WHR76542 |
C00337067
481252858027 |
pulley DIAM.298DIAM.298 | Na dotaz | Zadat poptávku | |
| 272 2 WHR76542 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 272 3 WHR76542 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR76542 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR76542 |
C00604870
481245211178 |
Control panel. | Na dotaz | Zadat poptávku | |
| 303 0 WHR76542 |
C00487760
481249818205 |
Handle drawer VBL BK | Na dotaz | Zadat poptávku | |
| 321 0 WHR76542 |
C00604911
481245211296 |
English description. | Na dotaz | Zadat poptávku | |
| 331 0 WHR76542 |
C00487414
481241318274 |
Knob timer OMEGA VBL BK | Na dotaz | Zadat poptávku | |
| 332 0 WHR76542 |
C00587030
481241028844 |
Button Options OMEGA VBL BK. | Na dotaz | Zadat poptávku | |
| 332 1 WHR76542 |
C00491621
481241028841 |
Button Temp.+ OMEGA VBL BK | Na dotaz | Zadat poptávku | |
| 332 2 WHR76542 |
C00587028
481241028842 |
Button Temp.- OMEGA VBL BK. | Na dotaz | Zadat poptávku | |
| 333 0 WHR76542 |
C00587029
481241028843 |
Button Start OMEGA VBL BK. | Na dotaz | Zadat poptávku | |
| 400 0 WHR76542 |
C00315331
481236158094 |
Motor 1000,1200 MCA52/ | Na dotaz | Zadat poptávku | |
| 400 1 WHR76542 |
C00336568
481250218401 |
sroub do zavazi | 40 Kč
€ 1.60 |
||
| 409 0 WHR76542 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR76542 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR76542 |
C00312598
481231018458 |
Pump SERVICE SET | Na dotaz | Zadat poptávku | |
| 451 0 WHR76542 |
C00557941
481225928758 |
NAHRADENE 481225928835 N | Na dotaz | Zadat poptávku | |
| 480 0 WHR76542 |
C00311380
481232178109 |
vodice svazek motor | 981 Kč
€ 38.70 |
||
| 490 0 WHR76542 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR76542 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR76542 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR76542 |
C00526852
481221478735 |
Control board 1200 VBL 1200 VBL BK | Na dotaz | Zadat poptávku | |
| 571 0 WHR76542 |
C00312238
481227128375 |
Napouštěcí ventil pračky - jednocestný, boční vývod | 383 Kč
€ 15.10 |
||
| 581 0 WHR76542 |
C00337540
481227128382 |
Presostat pračky | 1 007 Kč
€ 39.70 |
||
| 620 0 WHR76542 |
C00554946
481227628396 |
Module BK2 C, OMEGA.. | Na dotaz | Zadat poptávku | |
| 630 0 WHR76542 |
C00315131
481228058019 |
Door lock | Na dotaz | Zadat poptávku | |
| 691 0 WHR76542 |
C00317366
481228218702 |
senzor NTC | 1 697 Kč
€ 66.90 |
||
| 701 0 WHR76542 |
C00332419
481253029127 |
Hose inlet with Filter 1.5 m | Na dotaz | Zadat poptávku | |
| 702 0 WHR76542 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 703 0 WHR76542 |
C00339473
481253048359 |
Hose | Na dotaz | Zadat poptávku | |
| 707 0 WHR76542 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR76542 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 707 2 WHR76542 |
C00498636
481253048161 |
Fitting | Na dotaz | Zadat poptávku | |
| 707 3 WHR76542 |
C00332649
481253078011 |
podlozka trysky spr. | 485 Kč
€ 19.10 |
||
| 708 1 WHR76542 |
C00538614
481253048356 |
KOLENO VBL BK | Na dotaz | Zadat poptávku | |
| 711 0 WHR76542 |
C00553540
481241868273 |
Dispenser | Na dotaz | Zadat poptávku | |
| 712 0 WHR76542 |
C00312119
481241888051 |
zasuvka nasypky | Na dotaz | Zadat poptávku | |
| 713 0 WHR76542 |
C00317121
481241888019 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR76542 |
C00314912
481232318006 |
motorek distribuce vody násypky pračky | 893 Kč
€ 35.20 |
||
| 717 1 WHR76542 |
C00338398
481232138015 |
Lever water distr. OME | Na dotaz | Zadat poptávku | |
| 717 2 WHR76542 |
C00338404
481232138014 |
Lever OMEGA/GAMMA | Na dotaz | Zadat poptávku | |
| 717 3 WHR76542 |
C00338410
481232138016 |
Lever connection OMEGAconnection OMEG | Na dotaz | Zadat poptávku | |
| 717 5 WHR76542 |
C00342853
481231018459 |
VACKA AKTUATORA OMEG | 489 Kč
€ 19.30 |
||
| 718 0 WHR76542 |
C00318585
481252648027 |
viko prepadu nasypky | 121 Kč
€ 4.80 |
||
| 718 1 WHR76542 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 753 1 WHR76542 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.40 |
||
| 754 0 WHR76542 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR76542 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR76542 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR76542 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR76542 |
C00318230
481953028847 |
Hose,draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR76542 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 787 0 WHR76542 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.60 |
||
| 787 2 WHR76542 |
C00332932
481940118868 |
SPONA HADICE AW | 122 Kč
€ 4.80 |
||
| 794 2 WHR76542 |
C00337979
481253058005 |
O-Ring | Na dotaz | Zadat poptávku | |
| 794 5 WHR76542 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR76542 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR76542 |
C00344192
481229088043 |
Bracket Door lock | Na dotaz | Zadat poptávku | |
| 900 2 WHR76542 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.50 |
||
| 900 3 WHR76542 |
C00327310
481229088048 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR76542 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR76542 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.80 |
||
| 900 6 WHR76542 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR76542 |
C00327120
481225518205 |
Držák presostatu pračky Whirlpool | 211 Kč
€ 8.30 |
||
| 900 9 WHR76542 |
C00343347
481240148569 |
Clamp hose pressostat | Na dotaz | Zadat poptávku | |
| 904 0 WHR76542 |
C00330742
481246278165 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 910 0 WHR76542 |
C00336553
481250218383 |
sroub M8*25loz.domu | 169 Kč
€ 6.70 |
||
| 910 1 WHR76542 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 3 WHR76542 |
C00332062
481250218409 |
Screw cam actuator | Na dotaz | Zadat poptávku | |
| 911 7 WHR76542 |
C00316731
481290308196 |
sroub | 67 Kč
€ 2.60 |
||
| 930 0 WHR76542 |
C00320162
481949238139 |
pruzina | Na dotaz | Zadat poptávku | |
| 930 5 WHR76542 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 941 0 WHR76542 |
C00314732
481252028004 |
Ložisko 6206 2Z C3 GJN (SKF) | 371 Kč
€ 14.60 |
||
| 941 1 WHR76542 |
C00315230
481252028066 |
Ložisko 6204 2Z C3 GJN (SKF) | 297 Kč
€ 11.70 |
||
| 941 5 WHR76542 |
C00339180
481252018067 |
Hub 1200,48L | Na dotaz | Zadat poptávku | |
| 953 0 WHR76542 |
C00313798
481253058099 |
Shaft seal 1200 | Na dotaz | Zadat poptávku | |
| 953 1 WHR76542 |
C00337964
481253058096 |
krouzek lozisk.domu | 396 Kč
€ 15.60 |
||
| 961 0 WHR76542 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 965 0 WHR76542 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR76542 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.70 |
||
| 993 3 WHR76542 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
