BAUKNECHT WAECO 8770 BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WAECO 8770 BK |
| Kód 12NC: | 858342761000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás

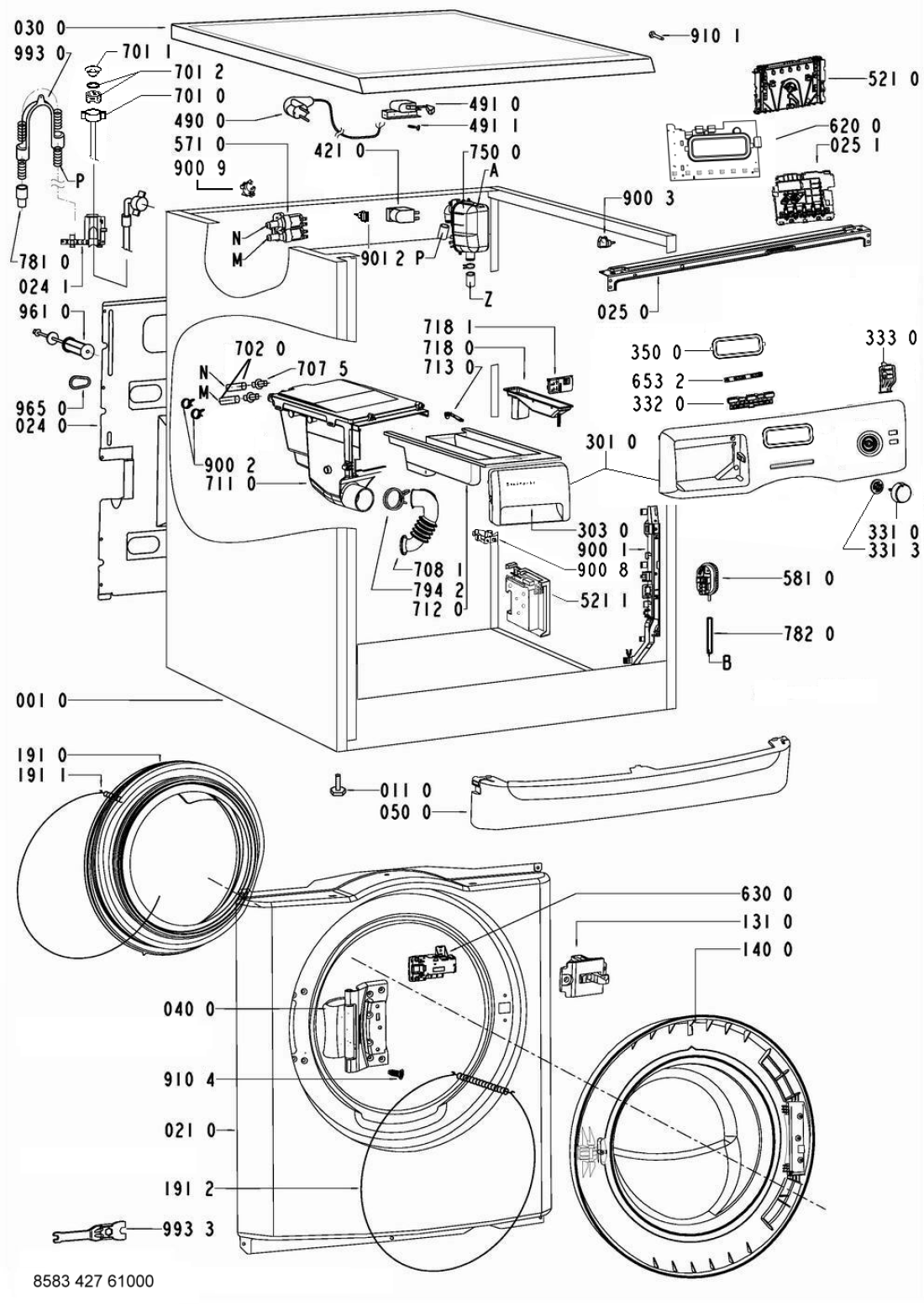

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR09716 |
C00321034
480111101727 |
skrin | 3 906 Kč
€ 154.10 |
||
| 011 0 WHR09716 |
C00312325
480111101039 |
Adjust. foot Eureka 490 | Na dotaz | Zadat poptávku | |
| 021 0 WHR09716 |
C00313270
480111100198 |
stena predni | 3 265 Kč
€ 128.80 |
||
| 024 0 WHR09716 |
C00316521
481244011544 |
stena zadni | 2 053 Kč
€ 81.00 |
||
| 024 1 WHR09716 |
C00320981
480111100785 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 025 0 WHR09716 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 025 1 WHR09716 |
C00321055
480111102202 |
Support Display | Na dotaz | Zadat poptávku | |
| 030 0 WHR09716 |
C00312507
480111100218 |
deska horni | Na dotaz | Zadat poptávku | |
| 040 0 WHR09716 |
C00314881
480111100209 |
Hinge Eureka 490 | Na dotaz | Zadat poptávku | |
| 050 0 WHR09716 |
C00314611
480111102161 |
Sokl | 1 608 Kč
€ 63.40 |
||
| 061 0 WHR09716 |
C00314406
480111100193 |
Závaží horní | 2 207 Kč
€ 87.00 |
||
| 061 1 WHR09716 |
C00315057
480111101399 |
Závaží spodní | 1 615 Kč
€ 63.70 |
||
| 061 2 WHR09716 |
C00312077
481231039249 |
sroub+podlozka | 167 Kč
€ 6.60 |
||
| 081 0 WHR09716 |
C00311556
480111100195 |
tlumič pračky Whirlpool AWOE | 276 Kč
€ 10.90 |
||
| 084 0 WHR09716 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 131 0 WHR09716 |
C00311268
480111101377 |
Hák dveří | Na dotaz | Zadat poptávku | |
| 140 0 WHR09716 |
C00320374
480111102165 |
Door cpl. BK CORE08 | Na dotaz | Zadat poptávku | |
| 191 0 WHR09716 |
C00311135
480111100188 |
Těsnění dveří pračky (TVO) | 728 Kč
€ 28.70 |
||
| 191 1 WHR09716 |
C00311853
480111100191 |
Spona těsnění dveří pračky (TVO) | 401 Kč
€ 15.80 |
||
| 191 2 WHR09716 |
C00311661
480111100189 |
Ring Bellow-Panel, Eureka 490 | Na dotaz | Zadat poptávku | |
| 200 0 WHR09716 |
C00311148
480111102416 |
Nádrž kompletní | Na dotaz | Zadat poptávku | |
| 223 0 WHR09716 |
C00311464
480111100186 |
Drum lifter sub 480111104173 | Na dotaz | Zadat poptávku | |
| 271 0 WHR09716 |
C00313032
480111102198 |
Řemen vícekl. 1249J6 | 755 Kč
€ 29.80 |
||
| 272 0 WHR09716 |
C00311999
480111102563 |
Řemenice bubnu | 1 067 Kč
€ 42.10 |
||
| 272 3 WHR09716 |
C00313276
481250218817 |
sroub remenice | Na dotaz | Zadat poptávku | |
| 301 0 WHR09716 |
C00427358
480111103382 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 303 0 WHR09716 |
C00340064
480111102168 |
Handle drawer | Na dotaz | Zadat poptávku | |
| 331 0 WHR09716 |
C00321054
480111102195 |
Knob timer BK chrome-white | Na dotaz | Zadat poptávku | |
| 331 3 WHR09716 |
C00312359
480111100231 |
pouzdro | 459 Kč
€ 18.10 |
||
| 332 0 WHR09716 |
C00321058
480111102213 |
Button assy | Na dotaz | Zadat poptávku | |
| 333 0 WHR09716 |
C00312376
480111102172 |
tlacitko | 285 Kč
€ 11.20 |
||
| 350 0 WHR09716 |
C00321056
480111102203 |
Sklíčko dispeje | 1 673 Kč
€ 66.00 |
||
| 400 0 WHR09716 |
C00314148
480111102413 |
motor | 4 861 Kč
€ 191.70 |
||
| 400 1 WHR09716 |
C00332143
481250218816 |
Screw P8x50 | Na dotaz | Zadat poptávku | |
| 421 0 WHR09716 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR09716 |
C00311151
480111101394 |
Pump Eureka 490, EM Outlet | Na dotaz | Zadat poptávku | |
| 451 0 WHR09716 |
C00318278
481225928919 |
Heating element 2050W, 230V + NTC | Na dotaz | Zadat poptávku | |
| 480 0 WHR09716 |
C00342880
480111102415 |
Cable MCU-Motor 7-po | Na dotaz | Zadat poptávku | |
| 490 0 WHR09716 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR09716 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR09716 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR09716 |
C00343168
480111102409 |
Control unit DOMINO CIM F2, basic | Na dotaz | Zadat poptávku | |
| 521 0 WHR09716 |
C00427357
480111103381 |
Control unit DOMINO,prog eSam | Na dotaz | Zadat poptávku | |
| 521 1 WHR09716 |
C00314130
480111102412 |
modul | 8 178 Kč
€ 322.50 |
||
| 571 0 WHR09716 |
C00311060
481227128558 |
Napouštěcí ventil pračky - dvoucestný, rohový | 764 Kč
€ 30.10 |
||
| 581 0 WHR09716 |
C00311217
481227128554 |
Presostat pračky | 218 Kč
€ 8.60 |
||
| 620 0 WHR09716 |
C00319890
480111102194 |
Module B2 | Na dotaz | Zadat poptávku | |
| 630 0 WHR09716 |
C00311157
480111101392 |
Blokování dveří předem plněné pračky Whirlpool | 671 Kč
€ 26.50 |
||
| 653 2 WHR09716 |
C00321057
480111102204 |
Light guide MR BK08 | Na dotaz | Zadat poptávku | |
| 691 0 WHR09716 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR09716 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 701 1 WHR09716 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 701 2 WHR09716 |
C00332476
481253029456 |
Hose inlet KIT ADAPTOR | Na dotaz | Zadat poptávku | |
| 702 0 WHR09716 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 707 5 WHR09716 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 708 1 WHR09716 |
C00313076
481253049392 |
Hadice násypka-nádrž | 447 Kč
€ 17.60 |
||
| 711 0 WHR09716 |
C00315978
480111101434 |
Dispenser | Na dotaz | Zadat poptávku | |
| 712 0 WHR09716 |
C00311522
480111100203 |
nasypka | Na dotaz | Zadat poptávku | |
| 713 0 WHR09716 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 718 0 WHR09716 |
C00312808
481252648226 |
Dávkovač aviváže | Na dotaz | Zadat poptávku | |
| 718 1 WHR09716 |
C00314043
481241889066 |
separator do nasypky | 609 Kč
€ 24.00 |
||
| 750 0 WHR09716 |
C00312027
480111100202 |
Chamber Expand | Na dotaz | Zadat poptávku | |
| 754 0 WHR09716 |
C00313144
481253029495 |
Hadice čerpadlo - nádrž pračky Whirlpool | 607 Kč
€ 23.90 |
||
| 754 1 WHR09716 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 760 0 WHR09716 |
C00312342
481248058385 |
Filtr čerpadla Whirlpool AWO/D | 308 Kč
€ 12.10 |
||
| 781 0 WHR09716 |
C00311863
480111100342 |
Vypouštěcí hadice pračky Whirlpool, Bauknecht | 693 Kč
€ 27.30 |
||
| 782 0 WHR09716 |
C00312246
481253029497 |
Hadice k presostatu pračky Whirlpool | 93 Kč
€ 3.70 |
||
| 783 1 WHR09716 |
C00312415
480111100207 |
Hadička násypka/nádrž | 481 Kč
€ 19.00 |
||
| 783 4 WHR09716 |
C00312724
480111100206 |
Hadice | 699 Kč
€ 27.60 |
||
| 786 0 WHR09716 |
C00320204
480111101395 |
hadice | 213 Kč
€ 8.40 |
||
| 786 1 WHR09716 |
C00317781
481246278179 |
threaded cap | Na dotaz | Zadat poptávku | |
| 794 2 WHR09716 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 900 1 WHR09716 |
C00320950
480111100204 |
Bracket cable, Eureka 490 | Na dotaz | Zadat poptávku | |
| 900 2 WHR09716 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.50 |
||
| 900 3 WHR09716 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR09716 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR09716 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.80 |
||
| 900 8 WHR09716 |
C00320945
480111100143 |
Holder hose right | Na dotaz | Zadat poptávku | |
| 900 9 WHR09716 |
C00327126
481225518286 |
Holder Hose outlet left | Na dotaz | Zadat poptávku | |
| 901 2 WHR09716 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 910 1 WHR09716 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 4 WHR09716 |
C00320952
480111100213 |
Screw M5x12 hinge-front | Na dotaz | Zadat poptávku | |
| 930 0 WHR09716 |
C00320949
480111100197 |
pružina nádrže pračky Whirlpool | 440 Kč
€ 17.40 |
||
| 961 0 WHR09716 |
C00320953
480111100217 |
Safety device 54, 64 l | Na dotaz | Zadat poptávku | |
| 965 0 WHR09716 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR09716 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.70 |
||
| 993 3 WHR09716 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR09716 |
C00352898 | Testprogram WHP | Na dotaz | Zadat poptávku | |
