BAUKNECHT WAK 6950 WASHING MACHINES BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WAK 6950 WASHING MACHINES BK |
| Kód 12NC: | 858360303600 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
| Další podobné modely: | 858360303000 |
Potřebujete servis? Jsme tady pro Vás

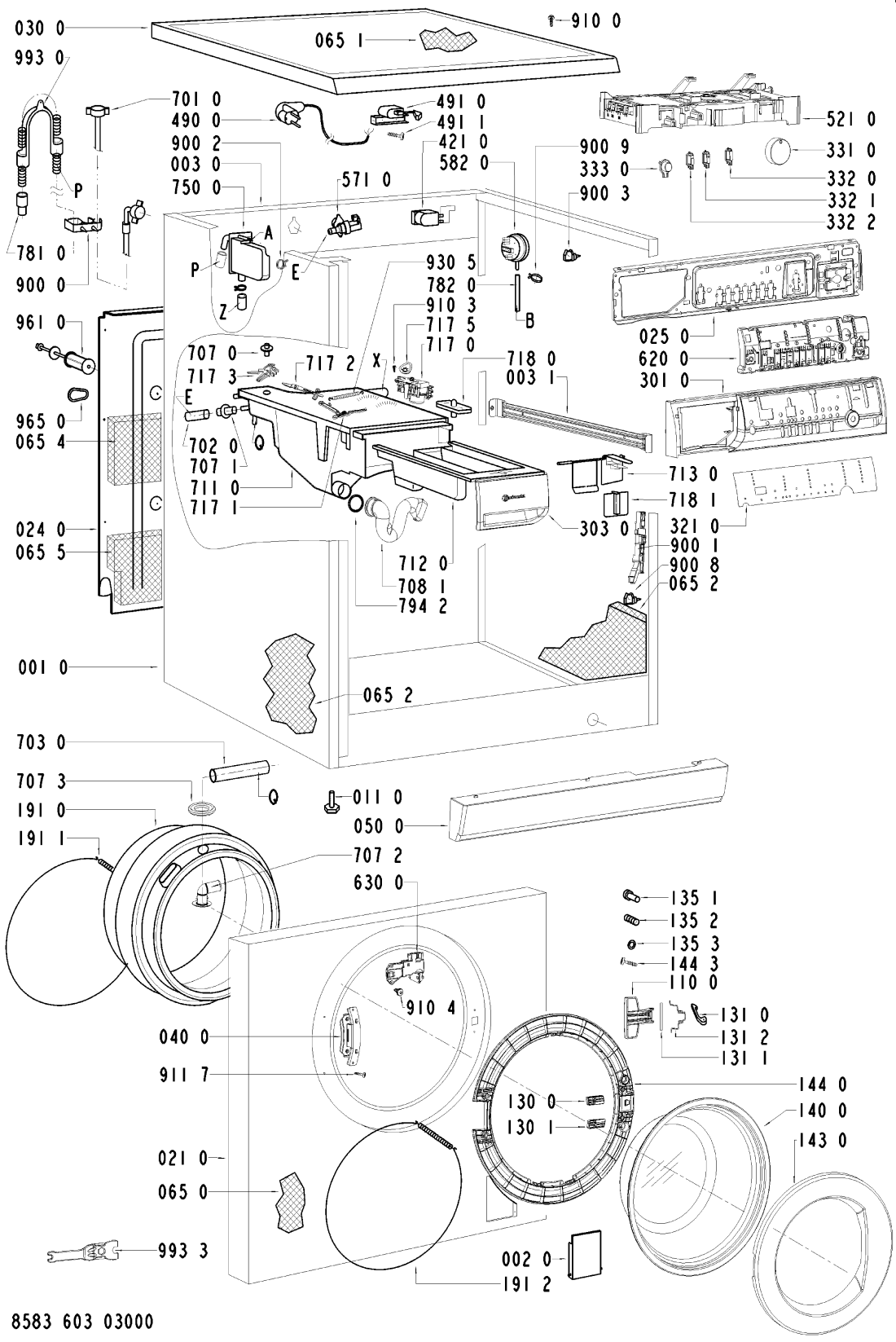

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR88041 |
C00327957
481244010784 |
Cabinet GW | Na dotaz | Zadat poptávku | |
| 002 0 WHR88041 |
C00340841
481244010812 |
Flap Filter square GW | Na dotaz | Zadat poptávku | |
| 003 0 WHR88041 |
C00342257
481246448112 |
pricka skrine zadni | 498 Kč
€ 19.70 |
||
| 003 1 WHR88041 |
C00319647
481246448161 |
sada odhlučňovací | 449 Kč
€ 17.70 |
||
| 011 0 WHR88041 |
C00311705
481250018099 |
noha pracky M8*34/A | Na dotaz | Zadat poptávku | |
| 021 0 WHR88041 |
C00340649
481244010927 |
Front square flap GW 50mm | Na dotaz | Zadat poptávku | |
| 024 0 WHR88041 |
C00341514
481231018653 |
Panel, rear SS KIT | Na dotaz | Zadat poptávku | |
| 025 0 WHR88041 |
C00527933
481244010467 |
Holder VBL BK | Na dotaz | Zadat poptávku | |
| 030 0 WHR88041 |
C00491738
481244011207 |
Table top with insulation VBL BK3 | Na dotaz | Zadat poptávku | |
| 040 0 WHR88041 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR88041 |
C00489312
481244089046 |
Plinth VBL BK GW | Na dotaz | Zadat poptávku | |
| 061 1 WHR88041 |
C00498469
481246688464 |
Counter weight SS-TUB, SS-TUB,1400,1600 | Na dotaz | Zadat poptávku | |
| 065 0 WHR88041 |
C00497383
481231018339 |
Insulation Front Pane | Na dotaz | Zadat poptávku | |
| 065 1 WHR88041 |
C00338692
481231018236 |
Insulation table top | Na dotaz | Zadat poptávku | |
| 065 2 WHR88041 |
C00497386
481231018399 |
Insulation | Na dotaz | Zadat poptávku | |
| 065 4 WHR88041 |
C00338701
481231018335 |
Insulation Middle Pane | Na dotaz | Zadat poptávku | |
| 065 5 WHR88041 |
C00338702
481231018336 |
Insulation Lower | Na dotaz | Zadat poptávku | |
| 081 0 WHR88041 |
C00336357
481246648057 |
tlumic | 889 Kč
€ 35.10 |
||
| 081 1 WHR88041 |
C00336592
481250218424 |
Screw damper | Na dotaz | Zadat poptávku | |
| 084 0 WHR88041 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 084 1 WHR88041 |
C00339699
481240468021 |
Holder | Na dotaz | Zadat poptávku | |
| 086 2 WHR88041 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR88041 |
C00316653
481249818261 |
Rukojeť dveří GW UZ NEBUDE !!!!!!! | Na dotaz | Zadat poptávku | |
| 130 0 WHR88041 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR88041 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 131 0 WHR88041 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR88041 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR88041 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR88041 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR88041 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR88041 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR88041 |
C00339065
481245068218 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR88041 |
C00340315
481244010815 |
Glassdoor frame VBL-DELTAVBL BK GW | Na dotaz | Zadat poptávku | |
| 144 0 WHR88041 |
C00314075
481244019589 |
priruba dveri | 1 703 Kč
€ 67.20 |
||
| 144 3 WHR88041 |
C00318393
481250218669 |
sroub pojistka dv. | 512 Kč
€ 20.20 |
||
| 191 0 WHR88041 |
C00319757
481246668557 |
Door bellow DELTA EPDM | Na dotaz | Zadat poptávku | |
| 191 1 WHR88041 |
C00335947
481249218015 |
Strap Fix. Bellow | Na dotaz | Zadat poptávku | |
| 191 2 WHR88041 |
C00311875
481249298011 |
spona TVO - přední stěna | 166 Kč
€ 6.60 |
||
| 200 0 WHR88041 |
C00337457
481241818181 |
Tub | Na dotaz | Zadat poptávku | |
| 201 0 WHR88041 |
C00344300
481246448002 |
bocnice | 3 844 Kč
€ 151.80 |
||
| 210 0 WHR88041 |
C00318535
481252018034 |
Crosspiece,asm. | Na dotaz | Zadat poptávku | |
| 210 1 WHR88041 |
C00331290
481245218994 |
Screw M8x20 A2F | Na dotaz | Zadat poptávku | |
| 220 0 WHR88041 |
C00344691
481241818509 |
1RUM 1600/SS/48L/D+ V-ring, 1600 | Na dotaz | Zadat poptávku | |
| 271 0 WHR88041 |
C00344354
481235818157 |
Řemen vicekl. 1254J4 | 753 Kč
€ 29.70 |
||
| 272 0 WHR88041 |
C00337074
481252858004 |
Pulley | Na dotaz | Zadat poptávku | |
| 272 1 WHR88041 |
C00344074
481253228006 |
pouzdro plastove | 202 Kč
€ 8.00 |
||
| 272 2 WHR88041 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 272 3 WHR88041 |
C00336705
481950218417 |
sroub remenice NT | 117 Kč
€ 4.60 |
||
| 292 0 WHR88041 |
C00340417
481253058003 |
tesneni bocnice | 637 Kč
€ 25.10 |
||
| 301 0 WHR88041 |
C00483045
481245212328 |
Control panel GW | Na dotaz | Zadat poptávku | |
| 303 0 WHR88041 |
C00490182
481249818278 |
Handle, drawer VBL-BK/SILVER/DELTA* VBL | Na dotaz | Zadat poptávku | |
| 321 0 WHR88041 |
C00489674
481245214769 |
Insert panel WAK 6950 | Na dotaz | Zadat poptávku | |
| 331 0 WHR88041 |
C00497685
481241318292 |
Knoflík časovače | 172 Kč
€ 6.80 |
||
| 332 0 WHR88041 |
C00344001
481241029092 |
Button Options VBL BK GW | Na dotaz | Zadat poptávku | |
| 332 1 WHR88041 |
C00343979
481241029268 |
Button Temp. + | Na dotaz | Zadat poptávku | |
| 332 2 WHR88041 |
C00493444
481241029269 |
Button Temp. - | Na dotaz | Zadat poptávku | |
| 333 0 WHR88041 |
C00343982
481241029091 |
Button Start VBL BK GW | Na dotaz | Zadat poptávku | |
| 400 0 WHR88041 |
C00315341
481236158409 |
Motor 1600 rpm, Siemens | Na dotaz | Zadat poptávku | |
| 400 1 WHR88041 |
C00336566
481250218361 |
Screw M8x30 | Na dotaz | Zadat poptávku | |
| 409 0 WHR88041 |
C00316594
481236248436 |
Brush,carbon RI 222 528 | Na dotaz | Zadat poptávku | |
| 421 0 WHR88041 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR88041 |
C00311139
481231028144 |
Čerpadlo vypouštěcí DELTA | 1 120 Kč
€ 44.20 |
||
| 451 0 WHR88041 |
C00339927
481225928669 |
Topné těleso pračky Whirlpool 2050 W s NTC čidlem | 1 100 Kč
€ 43.40 |
||
| 480 0 WHR88041 |
C00343884
481232178242 |
Cable | Na dotaz | Zadat poptávku | |
| 490 0 WHR88041 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR88041 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR88041 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR88041 |
C00400586
481221479837 |
programator-OMEGA 3 | 4 883 Kč
€ 192.80 |
||
| 521 0 WHR88041 |
C00496606
481221479374 |
Control board OMEGA | Na dotaz | Zadat poptávku | |
| 571 0 WHR88041 |
C00312238
481227128375 |
Napouštěcí ventil pračky - jednocestný, boční vývod | 383 Kč
€ 15.10 |
||
| 582 0 WHR88041 |
C00317784
481227128394 |
Hladinový spínač | 1 341 Kč
€ 52.90 |
||
| 620 0 WHR88041 |
C00341733
481227628413 |
Module BK0 C, OMEGA | Na dotaz | Zadat poptávku | |
| 630 0 WHR88041 |
C00311146
481228058044 |
Blokování dveří předem plněné pračky Whirlpool | 488 Kč
€ 19.30 |
||
| 691 0 WHR88041 |
C00327154
481225928692 |
Resistor,NTC | Na dotaz | Zadat poptávku | |
| 701 0 WHR88041 |
C00315515
481253029329 |
Hose, inlet EN 11770 Reflex | Na dotaz | Zadat poptávku | |
| 702 0 WHR88041 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 703 0 WHR88041 |
C00339211
481253048466 |
Hosedoor rinsing 535 MM | Na dotaz | Zadat poptávku | |
| 707 0 WHR88041 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR88041 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 707 2 WHR88041 |
C00498636
481253048161 |
Fitting | Na dotaz | Zadat poptávku | |
| 707 3 WHR88041 |
C00332649
481253078011 |
podlozka trysky spr. | 485 Kč
€ 19.10 |
||
| 708 1 WHR88041 |
C00538542
481253048355 |
Bend OMEGA VBL BK | Na dotaz | Zadat poptávku | |
| 711 0 WHR88041 |
C00317065
481241868166 |
těleso násypky | 2 264 Kč
€ 89.40 |
||
| 712 0 WHR88041 |
C00312119
481241888051 |
zasuvka nasypky | Na dotaz | Zadat poptávku | |
| 713 0 WHR88041 |
C00314041
481241889037 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR88041 |
C00314912
481232318006 |
motorek distribuce vody násypky pračky | 893 Kč
€ 35.30 |
||
| 717 1 WHR88041 |
C00338398
481232138015 |
Lever water distr. OME | Na dotaz | Zadat poptávku | |
| 717 2 WHR88041 |
C00338404
481232138014 |
Lever OMEGA/GAMMA | Na dotaz | Zadat poptávku | |
| 717 3 WHR88041 |
C00338410
481232138016 |
Lever connection OMEGAconnection OMEG | Na dotaz | Zadat poptávku | |
| 717 5 WHR88041 |
C00342853
481231018459 |
VACKA AKTUATORA OMEG | 489 Kč
€ 19.30 |
||
| 718 0 WHR88041 |
C00315497
481252648157 |
mrizka kryci | 147 Kč
€ 5.80 |
||
| 718 1 WHR88041 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 750 0 WHR88041 |
C00332502
481253048139 |
Expanzní nádoba pračky Whirlpool, Bauknecht | 287 Kč
€ 11.30 |
||
| 753 1 WHR88041 |
C00342744
481241868125 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 754 0 WHR88041 |
C00498615
481253028838 |
HADICA NADRZ-CERPADLO/DELTA | Na dotaz | Zadat poptávku | |
| 754 4 WHR88041 |
C00343364
481240118054 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 760 0 WHR88041 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR88041 |
C00312966
481953028959 |
Výtoková hadice 1,5m (koncovky rovná/rovná) | Na dotaz | Zadat poptávku | |
| 782 0 WHR88041 |
C00339268
481253028816 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 3 WHR88041 |
C00310140
481253018001 |
Connection Part | Na dotaz | Zadat poptávku | |
| 783 4 WHR88041 |
C00498614
481253028818 |
HADICA CERPADLO-KOMORA/D | Na dotaz | Zadat poptávku | |
| 787 0 WHR88041 |
C00332411
481253028819 |
Hose with hole(exhaust) | Na dotaz | Zadat poptávku | |
| 787 2 WHR88041 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 794 2 WHR88041 |
C00337979
481253058005 |
O-Ring | Na dotaz | Zadat poptávku | |
| 794 5 WHR88041 |
C00498646
481253058015 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 0 WHR88041 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR88041 |
C00344192
481229088043 |
Bracket Door lock | Na dotaz | Zadat poptávku | |
| 900 2 WHR88041 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 900 3 WHR88041 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR88041 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 8 WHR88041 |
C00327310
481229088048 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 9 WHR88041 |
C00343347
481240148569 |
Clamp hose pressostat | Na dotaz | Zadat poptávku | |
| 910 0 WHR88041 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 3 WHR88041 |
C00332062
481250218409 |
Screw cam actuator | Na dotaz | Zadat poptávku | |
| 910 4 WHR88041 |
C00316741
481293008022 |
Šroub | 117 Kč
€ 4.60 |
||
| 911 7 WHR88041 |
C00316731
481290308196 |
sroub | 67 Kč
€ 2.60 |
||
| 921 0 WHR88041 |
C00336837
481990300796 |
Ring security 47247x1,75 D4 | Na dotaz | Zadat poptávku | |
| 930 0 WHR88041 |
C00498517
481249238361 |
Spring Suspension Suspension | Na dotaz | Zadat poptávku | |
| 930 5 WHR88041 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 941 0 WHR88041 |
C00314254
481252028003 |
BEARING 6306 2Z C3 GJN | Na dotaz | Zadat poptávku | |
| 941 1 WHR88041 |
C00315491
481252028005 |
BEARING 6304 2Z C3 | Na dotaz | Zadat poptávku | |
| 953 0 WHR88041 |
C00320177
481253068001 |
tesneni bubnu VA-40 | 915 Kč
€ 36.10 |
||
| 961 0 WHR88041 |
C00342138
481239598005 |
Distance sleeve Delta | Na dotaz | Zadat poptávku | |
| 962 0 WHR88041 |
C00342374
481246638011 |
Cover protect. heating element | Na dotaz | Zadat poptávku | |
| 965 0 WHR88041 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR88041 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR88041 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
