BAUKNECHT WAK 7508 BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WAK 7508 BK |
| Kód 12NC: | 858361042000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
| Další podobné modely: | 858361042005 |
Potřebujete servis? Jsme tady pro Vás

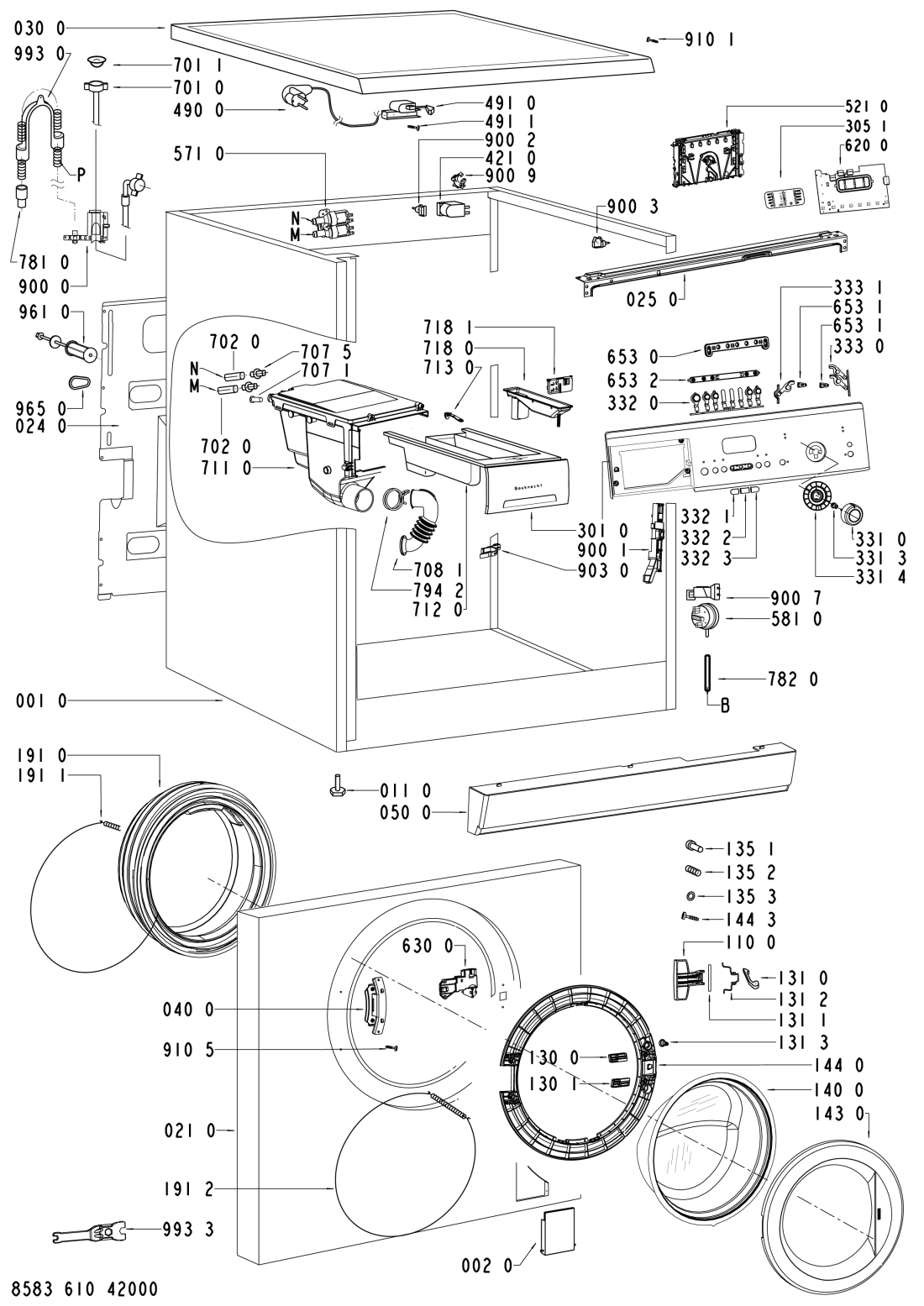

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR09764 |
C00328039
481244011538 |
skrin | 3 747 Kč
€ 147.80 |
||
| 002 0 WHR09764 |
C00316479
481244011131 |
kryt filtru | 213 Kč
€ 8.40 |
||
| 011 0 WHR09764 |
C00330679
481246248421 |
Adjust.foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR09764 |
C00459143
481244011639 |
PREDNY PANEL | Na dotaz | Zadat poptávku | |
| 024 0 WHR09764 |
C00316521
481244011544 |
stena zadni | 2 053 Kč
€ 81.00 |
||
| 025 0 WHR09764 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 030 0 WHR09764 |
C00328070
481244011661 |
deska horni | Na dotaz | Zadat poptávku | |
| 040 0 WHR09764 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR09764 |
C00313304
481244089097 |
sokl pracky EBL | 1 173 Kč
€ 46.30 |
||
| 061 0 WHR09764 |
C00331527
481246688936 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| 061 1 WHR09764 |
C00316001
481246688607 |
Counter weight front, bottom | Na dotaz | Zadat poptávku | |
| 061 2 WHR09764 |
C00320419
481231039135 |
Mounting kit weight top | Na dotaz | Zadat poptávku | |
| 081 0 WHR09764 |
C00313104
481246648088 |
Tlumič třecí pro předem plněné pračky Whirlpool | 105 Kč
€ 4.10 |
||
| 084 0 WHR09764 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 2 WHR09764 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.00 |
||
| 110 0 WHR09764 |
C00405333
481249818676 |
Handle,door | Na dotaz | Zadat poptávku | |
| 130 0 WHR09764 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR09764 |
C00318073
481241728108 |
podlozka | 619 Kč
€ 24.40 |
||
| 131 0 WHR09764 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR09764 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR09764 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 131 3 WHR09764 |
C00345875
481249258056 |
Spring Door Lock Child | Na dotaz | Zadat poptávku | |
| 135 1 WHR09764 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR09764 |
C00317024
481249148004 |
Pružina | 397 Kč
€ 15.70 |
||
| 135 3 WHR09764 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR09764 |
C00311241
481245059812 |
Sklo dveří | 1 741 Kč
€ 68.70 |
||
| 143 0 WHR09764 |
C00328006
481244011453 |
Glassdoor frame EBL BK | Na dotaz | Zadat poptávku | |
| 144 0 WHR09764 |
C00317167
481244011575 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 144 3 WHR09764 |
C00318393
481250218669 |
sroub pojistka dv. | 512 Kč
€ 20.20 |
||
| 191 0 WHR09764 |
C00311137
481246068617 |
Manžeta pračky Whilrlpool (TVO) Delta | 391 Kč
€ 15.40 |
||
| 191 1 WHR09764 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR09764 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR09764 |
C00316958
481241818656 |
nadrz predni cast | 4 933 Kč
€ 194.60 |
||
| 200 2 WHR09764 |
C00314367
481241818675 |
Tub rear,1200-7KG. | Na dotaz | Zadat poptávku | |
| 200 4 WHR09764 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR09764 |
C00313504
481241818612 |
buben | Na dotaz | Zadat poptávku | |
| 271 0 WHR09764 |
C00311514
481935818152 |
Řemen víceklínový 1248J5 | 631 Kč
€ 24.90 |
||
| 272 0 WHR09764 |
C00313543
481252858041 |
remenice bubnu | 1 562 Kč
€ 61.60 |
||
| 272 3 WHR09764 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR09764 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR09764 |
C00404116
481245311079 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 305 1 WHR09764 |
C00462481
481245310423 |
Sticker LEDBAR 1200rpm | Na dotaz | Zadat poptávku | |
| 331 0 WHR09764 |
C00329536
481241458338 |
Knoflík | 541 Kč
€ 21.30 |
||
| 331 3 WHR09764 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 405 Kč
€ 16.00 |
||
| 331 4 WHR09764 |
C00329535
481241458337 |
Disc Knob timer, silver | Na dotaz | Zadat poptávku | |
| 332 0 WHR09764 |
C00402265
481241029557 |
Push button SET | 760 Kč
€ 30.00 |
||
| 332 1 WHR09764 |
C00457773
481241029554 |
Button left | Na dotaz | Zadat poptávku | |
| 332 2 WHR09764 |
C00457774
481241029555 |
Button middle | Na dotaz | Zadat poptávku | |
| 332 3 WHR09764 |
C00457775
481241029556 |
Button right | Na dotaz | Zadat poptávku | |
| 333 0 WHR09764 |
C00402266
481241029558 |
Push button BGW-2 opt. | Na dotaz | Zadat poptávku | |
| 333 1 WHR09764 |
C00402267
481241029559 |
Push button BGW-1 opt. | Na dotaz | Zadat poptávku | |
| 400 0 WHR09764 |
C00311587
481236158505 |
motor | 4 520 Kč
€ 178.30 |
||
| 400 1 WHR09764 |
C00332114
481250218737 |
Screw 8x38 | Na dotaz | Zadat poptávku | |
| 409 0 WHR09764 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR09764 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR09764 |
C00313238
481236018578 |
Čerpadlo vypouštěcí pračky Whirlpool, Bauknecht | 1 874 Kč
€ 73.90 |
||
| 451 0 WHR09764 |
C00373838
481225928905 |
Topné těleso + NTC | 1 714 Kč
€ 67.60 |
||
| 480 0 WHR09764 |
C00312121
481232178351 |
Cable DOMINO-MOT 7 | Na dotaz | Zadat poptávku | |
| 490 0 WHR09764 |
C00457199
481232118311 |
Cable mains Israel | Na dotaz | Zadat poptávku | |
| 491 0 WHR09764 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR09764 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR09764 |
C00317775
481221470694 |
Control unit DOM,C3 basic | Na dotaz | Zadat poptávku | |
| 521 0 WHR09764 |
C00455622
481221470757 |
Control unit DOMINO, programmed | Na dotaz | Zadat poptávku | |
| 571 0 WHR09764 |
C00311060
481227128558 |
Napouštěcí ventil pračky - dvoucestný, rohový | 764 Kč
€ 30.10 |
||
| 581 0 WHR09764 |
C00311861
481227128585 |
Pressostat 50/25 INVENS. | Na dotaz | Zadat poptávku | |
| 620 0 WHR09764 |
C00456461
481223958093 |
Module B3 | Na dotaz | Zadat poptávku | |
| 630 0 WHR09764 |
C00311250
481228058048 |
Door lock Rold DA069516 | Na dotaz | Zadat poptávku | |
| 653 0 WHR09764 |
C00455026
481213448393 |
Light guide ALARMS-LED-BK | Na dotaz | Zadat poptávku | |
| 653 1 WHR09764 |
C00326847
481213448391 |
Guide,light BGW-single | Na dotaz | Zadat poptávku | |
| 653 2 WHR09764 |
C00326846
481213448389 |
Guide,light opt. | Na dotaz | Zadat poptávku | |
| 691 0 WHR09764 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR09764 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 701 1 WHR09764 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR09764 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 707 1 WHR09764 |
C00330775
481246279955 |
Threaded cap for dispenser | Na dotaz | Zadat poptávku | |
| 707 5 WHR09764 |
C00327352
481231019102 |
Tryska násypky pračky | 555 Kč
€ 21.90 |
||
| 708 1 WHR09764 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR09764 |
C00311070
481241868391 |
teleso nasypky | 2 237 Kč
€ 88.20 |
||
| 712 0 WHR09764 |
C00320425
481241868436 |
Drawer | Na dotaz | Zadat poptávku | |
| 713 0 WHR09764 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 718 0 WHR09764 |
C00327923
481241889098 |
Siphon blue | Na dotaz | Zadat poptávku | |
| 718 1 WHR09764 |
C00332364
481252648272 |
Separator blue | Na dotaz | Zadat poptávku | |
| 753 1 WHR09764 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.40 |
||
| 754 0 WHR09764 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR09764 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR09764 |
C00332452
481253029352 |
Příruba eco AWT,AWO/D | 539 Kč
€ 21.30 |
||
| 760 0 WHR09764 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR09764 |
C00332470
481253029438 |
Vypouštěcí hadice pračky Whirlpool, Bauknecht, Ignis | 514 Kč
€ 20.30 |
||
| 782 0 WHR09764 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 794 2 WHR09764 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 794 5 WHR09764 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR09764 |
C00331035
481244138021 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 900 1 WHR09764 |
C00327315
481229088086 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR09764 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 3 WHR09764 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR09764 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR09764 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.80 |
||
| 900 6 WHR09764 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR09764 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 9 WHR09764 |
C00327126
481225518286 |
Holder Hose outlet left | Na dotaz | Zadat poptávku | |
| 903 0 WHR09764 |
C00328928
481240118834 |
Clamp hose fixation int. | Na dotaz | Zadat poptávku | |
| 910 1 WHR09764 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 5 WHR09764 |
C00332081
481250218516 |
Screw 4,2 x 13 | Na dotaz | Zadat poptávku | |
| 930 0 WHR09764 |
C00345869
481249238391 |
Spring Suspension 53l, 1400 | Na dotaz | Zadat poptávku | |
| 941 0 WHR09764 |
C00314254
481252028003 |
BEARING 6306 2Z C3 GJN | Na dotaz | Zadat poptávku | |
| 941 1 WHR09764 |
C00317100
481252028071 |
Ložisko 6305 2Z C3 GJN (SKF) | 425 Kč
€ 16.80 |
||
| 953 0 WHR09764 |
C00332640
481253058185 |
gufero 50x70x12 | Na dotaz | Zadat poptávku | |
| 961 0 WHR09764 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 965 0 WHR09764 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR09764 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.70 |
||
| 993 3 WHR09764 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR09764 |
C00364608 | Testprogram WHP | Na dotaz | Zadat poptávku | |
