BAUKNECHT WAS 4550 ROK WASHING MACHINES BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WAS 4550 ROK WASHING MACHINES BK |
| Kód 12NC: | 858354574000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás

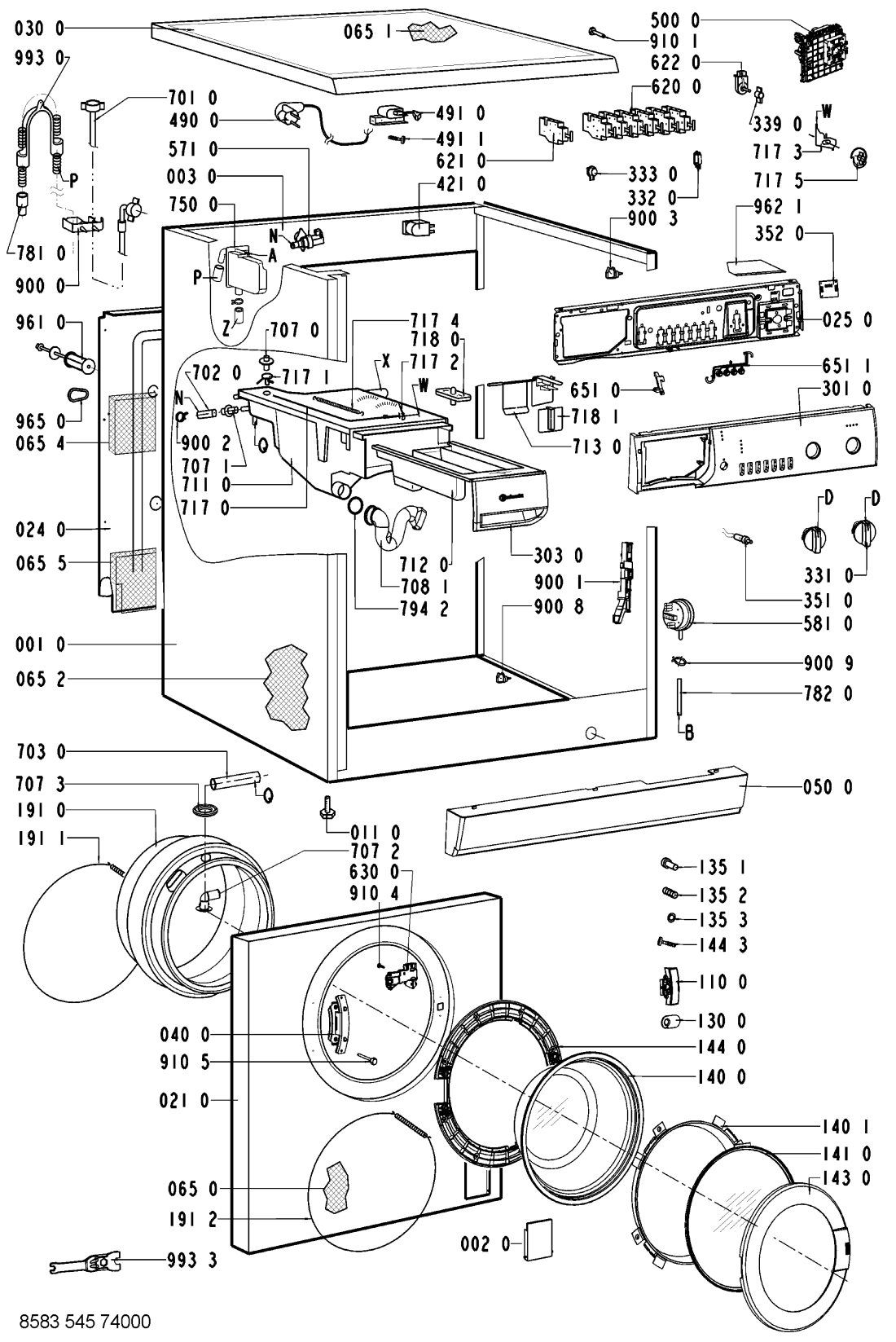

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR84872 |
C00343946
481244018996 |
Cabinet | Na dotaz | Zadat poptávku | |
| 002 0 WHR84872 |
C00340845
481244019331 |
Flap Filter | Na dotaz | Zadat poptávku | |
| 003 0 WHR84872 |
C00342257
481246448112 |
pricka skrine zadni | 498 Kč
€ 19.70 |
||
| 011 0 WHR84872 |
C00340814
481946248472 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR84872 |
C00340697
481244019329 |
Front | Na dotaz | Zadat poptávku | |
| 024 0 WHR84872 |
C00341514
481231018653 |
Panel, rear SS KIT | Na dotaz | Zadat poptávku | |
| 025 0 WHR84872 |
C00527933
481244010467 |
Holder VBL BK | Na dotaz | Zadat poptávku | |
| 030 0 WHR84872 |
C00587113
481244010468 |
Table top VBL BK. | Na dotaz | Zadat poptávku | |
| 040 0 WHR84872 |
C00488944
481241719023 |
Hinge door cpl. VBL BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR84872 |
C00553588
481244088983 |
Plinth VBL BK | Na dotaz | Zadat poptávku | |
| 061 1 WHR84872 |
C00343073
481246688463 |
Counter weight SS-TUB,1000,1200 | Na dotaz | Zadat poptávku | |
| 065 0 WHR84872 |
C00497383
481231018339 |
Insulation Front Pane | Na dotaz | Zadat poptávku | |
| 065 1 WHR84872 |
C00338692
481231018236 |
Insulation table top | Na dotaz | Zadat poptávku | |
| 065 2 WHR84872 |
C00497386
481231018399 |
Insulation | Na dotaz | Zadat poptávku | |
| 065 4 WHR84872 |
C00338701
481231018335 |
Insulation Middle Pane | Na dotaz | Zadat poptávku | |
| 065 5 WHR84872 |
C00338702
481231018336 |
Insulation Lower | Na dotaz | Zadat poptávku | |
| 081 0 WHR84872 |
C00336357
481246648057 |
tlumic | 889 Kč
€ 35.10 |
||
| 081 1 WHR84872 |
C00336592
481250218424 |
Screw damper | Na dotaz | Zadat poptávku | |
| 084 0 WHR84872 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 084 1 WHR84872 |
C00339699
481240468021 |
Holder | Na dotaz | Zadat poptávku | |
| 086 0 WHR84872 |
C00316610
481240118409 |
Holder Shock Absorber Shock Absorber | Na dotaz | Zadat poptávku | |
| 086 2 WHR84872 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR84872 |
C00373760
481249818206 |
Handle door cpl. chrome VBL | Na dotaz | Zadat poptávku | |
| 130 0 WHR84872 |
C00491661
481241728074 |
Fixation Plate VBL BK | Na dotaz | Zadat poptávku | |
| 135 1 WHR84872 |
C00345878
481249818137 |
Knob Door safetyDoor safety | Na dotaz | Zadat poptávku | |
| 135 2 WHR84872 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR84872 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR84872 |
C00339065
481245068218 |
Door glass | Na dotaz | Zadat poptávku | |
| 140 1 WHR84872 |
C00527934
481244010471 |
Fastener f. door glas f. door glas | Na dotaz | Zadat poptávku | |
| 141 0 WHR84872 |
C00485255
481245058551 |
Glass door safety touch VBL BK | Na dotaz | Zadat poptávku | |
| 143 0 WHR84872 |
C00485042
481244010478 |
Glassdoor frame chrome chrome VBL BK | Na dotaz | Zadat poptávku | |
| 144 0 WHR84872 |
C00636058
481244010472 |
Frame,door glas VBL BK | Na dotaz | Zadat poptávku | |
| 144 3 WHR84872 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 191 0 WHR84872 |
C00319757
481246668557 |
Door bellow DELTA EPDM | Na dotaz | Zadat poptávku | |
| 191 1 WHR84872 |
C00335947
481249218015 |
Strap Fix. Bellow | Na dotaz | Zadat poptávku | |
| 191 2 WHR84872 |
C00311875
481249298011 |
spona TVO - přední stěna | 166 Kč
€ 6.60 |
||
| 200 0 WHR84872 |
C00337457
481241818181 |
Tub | Na dotaz | Zadat poptávku | |
| 201 0 WHR84872 |
C00344300
481246448002 |
bocnice | 3 844 Kč
€ 151.80 |
||
| 210 0 WHR84872 |
C00342244
481252018071 |
Crosspiece 1200 RPM | Na dotaz | Zadat poptávku | |
| 210 1 WHR84872 |
C00331290
481245218994 |
Screw M8x20 A2F | Na dotaz | Zadat poptávku | |
| 220 0 WHR84872 |
C00497801
481241818178 |
NAHRADA 481241818512 | Na dotaz | Zadat poptávku | |
| 271 0 WHR84872 |
C00344354
481235818157 |
Řemen vicekl. 1254J4 | 753 Kč
€ 29.70 |
||
| 272 0 WHR84872 |
C00337074
481252858004 |
Pulley | Na dotaz | Zadat poptávku | |
| 272 1 WHR84872 |
C00344074
481253228006 |
pouzdro plastove | 202 Kč
€ 8.00 |
||
| 272 2 WHR84872 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 272 3 WHR84872 |
C00336705
481950218417 |
sroub remenice NT | 117 Kč
€ 4.60 |
||
| 292 0 WHR84872 |
C00340417
481253058003 |
tesneni bocnice | 637 Kč
€ 25.10 |
||
| 301 0 WHR84872 |
C00604952
481245211653 |
Control panel WAS 4550. | Na dotaz | Zadat poptávku | |
| 303 0 WHR84872 |
C00487760
481249818205 |
Handle drawer VBL BK | Na dotaz | Zadat poptávku | |
| 331 0 WHR84872 |
C00487556
481241458156 |
Knob VBL BK | Na dotaz | Zadat poptávku | |
| 332 0 WHR84872 |
C00591015
481241028847 |
Button Options VBL BK. | Na dotaz | Zadat poptávku | |
| 333 0 WHR84872 |
C00491622
481241028846 |
Button Start VBL BK | Na dotaz | Zadat poptávku | |
| 339 0 WHR84872 |
C00317982
481223318006 |
unasec knofliku | 593 Kč
€ 23.40 |
||
| 351 0 WHR84872 |
C00314291
481213418011 |
Lamp | Na dotaz | Zadat poptávku | |
| 352 0 WHR84872 |
C00488468
481223958007 |
Indication unit progra | Na dotaz | Zadat poptávku | |
| 400 0 WHR84872 |
C00553402
481236158167 |
Motor MCA 61/64-148/Bk | Na dotaz | Zadat poptávku | |
| 400 1 WHR84872 |
C00336566
481250218361 |
Screw M8x30 | Na dotaz | Zadat poptávku | |
| 409 0 WHR84872 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR84872 |
C00594111
481212118178 |
Interf.filter. | Na dotaz | Zadat poptávku | |
| 430 0 WHR84872 |
C00491435
481236018526 |
Pump,draining RAST 2.5 220V/60Hz | Na dotaz | Zadat poptávku | |
| 451 0 WHR84872 |
C00488485
481225928734 |
Heating element 2'050W-230V+NTC - 303257 | Na dotaz | Zadat poptávku | |
| 480 0 WHR84872 |
C00379065
481232178108 |
CABLE MOTOR SC1 SS | Na dotaz | Zadat poptávku | |
| 490 0 WHR84872 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR84872 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR84872 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 500 0 WHR84872 |
C00501345
481228219309 |
Timer SC1, 1200 | Na dotaz | Zadat poptávku | |
| 571 0 WHR84872 |
C00312238
481227128375 |
Napouštěcí ventil pračky - jednocestný, boční vývod | 383 Kč
€ 15.10 |
||
| 581 0 WHR84872 |
C00491004
481227128434 |
PRESSOSTAT SC1-SS SC1-SS | Na dotaz | Zadat poptávku | |
| 620 0 WHR84872 |
C00332969
481941028998 |
spinac | 1 031 Kč
€ 40.70 |
||
| 621 0 WHR84872 |
C00311780
481941029004 |
Spínač síťový | 842 Kč
€ 33.20 |
||
| 622 0 WHR84872 |
C00336785
481241348279 |
Rotary selector + potentiometer. | Na dotaz | Zadat poptávku | |
| 630 0 WHR84872 |
C00315131
481228058019 |
Door lock | Na dotaz | Zadat poptávku | |
| 651 0 WHR84872 |
C00484593
481213448272 |
Light guide on/off VBL BK | Na dotaz | Zadat poptávku | |
| 651 1 WHR84872 |
C00484594
481213448273 |
Light guide Program VBL BK | Na dotaz | Zadat poptávku | |
| 691 0 WHR84872 |
C00317366
481228218702 |
senzor NTC | 1 697 Kč
€ 67.00 |
||
| 701 0 WHR84872 |
C00332419
481253029127 |
Hose inlet with Filter 1.5 m | Na dotaz | Zadat poptávku | |
| 702 0 WHR84872 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 703 0 WHR84872 |
C00339211
481253048466 |
Hosedoor rinsing 535 MM | Na dotaz | Zadat poptávku | |
| 707 0 WHR84872 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR84872 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 707 2 WHR84872 |
C00498636
481253048161 |
Fitting | Na dotaz | Zadat poptávku | |
| 707 3 WHR84872 |
C00332649
481253078011 |
podlozka trysky spr. | 485 Kč
€ 19.10 |
||
| 708 1 WHR84872 |
C00538542
481253048355 |
Bend OMEGA VBL BK | Na dotaz | Zadat poptávku | |
| 711 0 WHR84872 |
C00317065
481241868166 |
těleso násypky | 2 264 Kč
€ 89.40 |
||
| 712 0 WHR84872 |
C00312119
481241888051 |
zasuvka nasypky | Na dotaz | Zadat poptávku | |
| 713 0 WHR84872 |
C00317121
481241888019 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR84872 |
C00311569
481932128092 |
Bovden komplet | 699 Kč
€ 27.60 |
||
| 717 1 WHR84872 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR84872 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.30 |
||
| 717 3 WHR84872 |
C00318843
481227888018 |
posouvac | 186 Kč
€ 7.30 |
||
| 717 4 WHR84872 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 717 5 WHR84872 |
C00317980
481223318004 |
vacka | 382 Kč
€ 15.10 |
||
| 718 0 WHR84872 |
C00318585
481252648027 |
viko prepadu nasypky | 121 Kč
€ 4.80 |
||
| 718 1 WHR84872 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 750 0 WHR84872 |
C00332502
481253048139 |
Expanzní nádoba pračky Whirlpool, Bauknecht | 287 Kč
€ 11.30 |
||
| 753 1 WHR84872 |
C00342744
481241868125 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 754 0 WHR84872 |
C00498615
481253028838 |
HADICA NADRZ-CERPADLO/DELTA | Na dotaz | Zadat poptávku | |
| 754 1 WHR84872 |
C00343364
481240118054 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 760 0 WHR84872 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR84872 |
C00312966
481953028959 |
Výtoková hadice 1,5m (koncovky rovná/rovná) | Na dotaz | Zadat poptávku | |
| 782 0 WHR84872 |
C00339268
481253028816 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 3 WHR84872 |
C00310140
481253018001 |
Connection Part | Na dotaz | Zadat poptávku | |
| 783 4 WHR84872 |
C00498614
481253028818 |
HADICA CERPADLO-KOMORA/D | Na dotaz | Zadat poptávku | |
| 787 0 WHR84872 |
C00332411
481253028819 |
Hose with hole(exhaust) | Na dotaz | Zadat poptávku | |
| 787 2 WHR84872 |
C00332932
481940118868 |
SPONA HADICE AW | 122 Kč
€ 4.80 |
||
| 794 2 WHR84872 |
C00337979
481253058005 |
O-Ring | Na dotaz | Zadat poptávku | |
| 794 5 WHR84872 |
C00498646
481253058015 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 0 WHR84872 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR84872 |
C00344192
481229088043 |
Bracket Door lock | Na dotaz | Zadat poptávku | |
| 900 2 WHR84872 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 900 3 WHR84872 |
C00327310
481229088048 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR84872 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 8 WHR84872 |
C00332928
481940118823 |
SPONA | 393 Kč
€ 15.50 |
||
| 900 9 WHR84872 |
C00343347
481240148569 |
Clamp hose pressostat | Na dotaz | Zadat poptávku | |
| 910 1 WHR84872 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 4 WHR84872 |
C00316741
481293008022 |
Šroub | 117 Kč
€ 4.60 |
||
| 910 5 WHR84872 |
C00316731
481290308196 |
sroub | 67 Kč
€ 2.60 |
||
| 921 0 WHR84872 |
C00336837
481990300796 |
Ring security 47247x1,75 D4 | Na dotaz | Zadat poptávku | |
| 930 0 WHR84872 |
C00336071
481249238357 |
Spring SuspensionSuspension | Na dotaz | Zadat poptávku | |
| 941 0 WHR84872 |
C00317100
481252028071 |
Ložisko 6305 2Z C3 GJN (SKF) | 425 Kč
€ 16.80 |
||
| 941 1 WHR84872 |
C00344390
481252028072 |
Ložisko 6303 SKF 2Z | 97 Kč
€ 3.80 |
||
| 953 0 WHR84872 |
C00320177
481253068001 |
tesneni bubnu VA-40 | 915 Kč
€ 36.10 |
||
| 961 0 WHR84872 |
C00342138
481239598005 |
Distance sleeve Delta | Na dotaz | Zadat poptávku | |
| 962 0 WHR84872 |
C00342374
481246638011 |
Cover protect. heating element | Na dotaz | Zadat poptávku | |
| 962 1 WHR84872 |
C00587005
481223858001 |
PROTEC,EL.PARTS. | Na dotaz | Zadat poptávku | |
| 965 0 WHR84872 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR84872 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR84872 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
