BAUKNECHT WAS 4749/2 WASHING MACHINES BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WAS 4749/2 WASHING MACHINES BK |
| Kód 12NC: | 855459672000 |
| I.C. kód: | 855459672001 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
| Další podobné modely: | 855459672000 |
Potřebujete servis? Jsme tady pro Vás

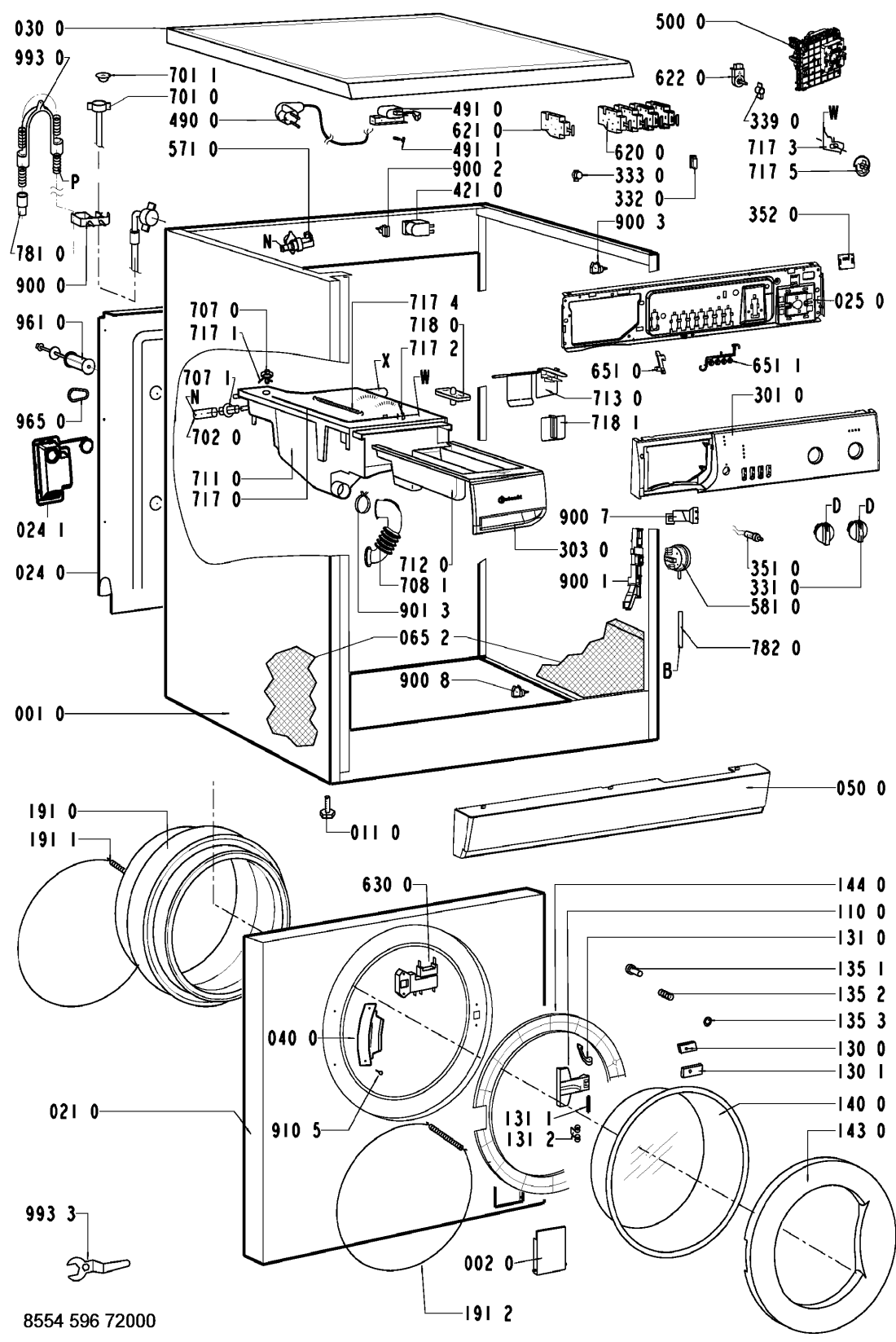

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR15157 |
C00327957
481244010784 |
Cabinet GW | Na dotaz | Zadat poptávku | |
| 002 0 WHR15157 |
C00340841
481244010812 |
Flap Filter square GW | Na dotaz | Zadat poptávku | |
| 011 0 WHR15157 |
C00330679
481246248421 |
Adjust.foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR15157 |
C00340649
481244010927 |
Front square flap GW 50mm | Na dotaz | Zadat poptávku | |
| 024 0 WHR15157 |
C00341563
481944019892 |
Panel rear | Na dotaz | Zadat poptávku | |
| 024 1 WHR15157 |
C00344275
481941879837 |
Box hose | Na dotaz | Zadat poptávku | |
| 025 0 WHR15157 |
C00339638
481240438744 |
Holder control board, BK | Na dotaz | Zadat poptávku | |
| 030 0 WHR15157 |
C00497906
481244011072 |
Table top | Na dotaz | Zadat poptávku | |
| 040 0 WHR15157 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR15157 |
C00337676
481244010823 |
sokl pracky GW | 1 453 Kč
€ 57.30 |
||
| 061 0 WHR15157 |
C00320755
481246688833 |
zavazi horni | 2 012 Kč
€ 79.40 |
||
| 061 1 WHR15157 |
C00316001
481246688607 |
Counter weight front, bottom | Na dotaz | Zadat poptávku | |
| 061 2 WHR15157 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 061 3 WHR15157 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 065 2 WHR15157 |
C00327325
481231018401 |
Insulation side panel | Na dotaz | Zadat poptávku | |
| 081 0 WHR15157 |
C00313104
481246648088 |
Tlumič třecí pro předem plněné pračky Whirlpool | 105 Kč
€ 4.10 |
||
| 084 0 WHR15157 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 1 WHR15157 |
C00312274
481240118413 |
Čep tlumiče | 924 Kč
€ 36.40 |
||
| 086 2 WHR15157 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.00 |
||
| 110 0 WHR15157 |
C00316653
481249818261 |
Rukojeť dveří GW UZ NEBUDE !!!!!!! | Na dotaz | Zadat poptávku | |
| 130 0 WHR15157 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR15157 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 131 0 WHR15157 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR15157 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR15157 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR15157 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR15157 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR15157 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR15157 |
C00339065
481245068218 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR15157 |
C00340315
481244010815 |
Glassdoor frame VBL-DELTAVBL BK GW | Na dotaz | Zadat poptávku | |
| 144 0 WHR15157 |
C00340747
481244010833 |
priruba dveri GW | 1 467 Kč
€ 57.90 |
||
| 191 0 WHR15157 |
C00311374
481246668729 |
TVO | 1 613 Kč
€ 63.60 |
||
| 191 1 WHR15157 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR15157 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR15157 |
C00458611
481241818562 |
Tub, half | Na dotaz | Zadat poptávku | |
| 200 2 WHR15157 |
C00312574
481241818368 |
Tub, half rear 48l, 1400 | Na dotaz | Zadat poptávku | |
| 200 4 WHR15157 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR15157 |
C00311478
481241818466 |
buben | Na dotaz | Zadat poptávku | |
| 271 0 WHR15157 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 178 Kč
€ 7.00 |
||
| 272 0 WHR15157 |
C00313543
481252858041 |
remenice bubnu | 1 562 Kč
€ 61.60 |
||
| 272 2 WHR15157 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 272 3 WHR15157 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR15157 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR15157 |
C00483171
481245213933 |
Control panel WAS 4749/2 | Na dotaz | Zadat poptávku | |
| 303 0 WHR15157 |
C00490182
481249818278 |
Handle, drawer VBL-BK/SILVER/DELTA* VBL | Na dotaz | Zadat poptávku | |
| 331 0 WHR15157 |
C00487561
481241458203 |
Knob VBL BK GW | Na dotaz | Zadat poptávku | |
| 332 0 WHR15157 |
C00493395
481241029111 |
Button Options VBL BK GW | Na dotaz | Zadat poptávku | |
| 333 0 WHR15157 |
C00493394
481241029109 |
Button Start VBL BK GW | Na dotaz | Zadat poptávku | |
| 339 0 WHR15157 |
C00317982
481223318006 |
unasec knofliku | 593 Kč
€ 23.40 |
||
| 351 0 WHR15157 |
C00314291
481213418011 |
Lamp | Na dotaz | Zadat poptávku | |
| 352 0 WHR15157 |
C00456441
481223958053 |
Indication unit 3955 BB | Na dotaz | Zadat poptávku | |
| 400 0 WHR15157 |
C00311341
481236158377 |
motor | 4 930 Kč
€ 194.40 |
||
| 400 1 WHR15157 |
C00336568
481250218401 |
sroub do zavazi | 40 Kč
€ 1.60 |
||
| 409 0 WHR15157 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR15157 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR15157 |
C00311139
481231028144 |
Čerpadlo vypouštěcí DELTA | 1 120 Kč
€ 44.20 |
||
| 451 0 WHR15157 |
C00318278
481225928919 |
Heating element 2050W, 230V + NTC | Na dotaz | Zadat poptávku | |
| 480 0 WHR15157 |
C00311380
481232178109 |
vodice svazek motor | 981 Kč
€ 38.70 |
||
| 490 0 WHR15157 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR15157 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR15157 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 500 0 WHR15157 |
C00311629
481228219399 |
programator | 3 302 Kč
€ 130.20 |
||
| 500 0 WHR15157 |
C00501419
481228219555 |
Timer SC1 (IR,RH,EI,SR) | Na dotaz | Zadat poptávku | |
| 571 0 WHR15157 |
C00312238
481227128375 |
Napouštěcí ventil pračky - jednocestný, boční vývod | 383 Kč
€ 15.10 |
||
| 581 0 WHR15157 |
C00313403
481227128441 |
presostat | 1 536 Kč
€ 60.60 |
||
| 620 0 WHR15157 |
C00332969
481941028998 |
spinac | 1 031 Kč
€ 40.70 |
||
| 621 0 WHR15157 |
C00311780
481941029004 |
Spínač síťový | 842 Kč
€ 33.20 |
||
| 622 0 WHR15157 |
C00497333
481227348003 |
Selector Temp./Spin | Na dotaz | Zadat poptávku | |
| 630 0 WHR15157 |
C00311146
481228058044 |
Blokování dveří předem plněné pračky Whirlpool | 488 Kč
€ 19.20 |
||
| 651 0 WHR15157 |
C00484593
481213448272 |
Light guide on/off VBL BK | Na dotaz | Zadat poptávku | |
| 651 1 WHR15157 |
C00484594
481213448273 |
Light guide Program VBL BK | Na dotaz | Zadat poptávku | |
| 691 0 WHR15157 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR15157 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 701 1 WHR15157 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR15157 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 707 0 WHR15157 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR15157 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 708 1 WHR15157 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR15157 |
C00317871
481241888025 |
teleso nasypky | 2 101 Kč
€ 82.90 |
||
| 712 0 WHR15157 |
C00313433
481241868198 |
zasuvka nasypky | 1 592 Kč
€ 62.80 |
||
| 713 0 WHR15157 |
C00314041
481241889037 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR15157 |
C00311569
481932128092 |
Bovden komplet | 699 Kč
€ 27.60 |
||
| 717 1 WHR15157 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR15157 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.20 |
||
| 717 3 WHR15157 |
C00318843
481227888018 |
posouvac | 186 Kč
€ 7.30 |
||
| 717 4 WHR15157 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 717 5 WHR15157 |
C00317980
481223318004 |
vacka | 382 Kč
€ 15.10 |
||
| 718 0 WHR15157 |
C00332332
481252648051 |
sifon do nasypky | 723 Kč
€ 28.50 |
||
| 718 1 WHR15157 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 753 1 WHR15157 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.40 |
||
| 754 0 WHR15157 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR15157 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR15157 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR15157 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR15157 |
C00318230
481953028847 |
Hose,draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR15157 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 787 0 WHR15157 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.60 |
||
| 787 2 WHR15157 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 794 5 WHR15157 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR15157 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR15157 |
C00327315
481229088086 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR15157 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 3 WHR15157 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR15157 |
C00332933
481940118872 |
SPONA HADICE AW | 119 Kč
€ 4.70 |
||
| 900 5 WHR15157 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.80 |
||
| 900 6 WHR15157 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR15157 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 8 WHR15157 |
C00332928
481940118823 |
SPONA | 393 Kč
€ 15.50 |
||
| 901 3 WHR15157 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 910 5 WHR15157 |
C00332081
481250218516 |
Screw 4,2 x 13 | Na dotaz | Zadat poptávku | |
| 930 0 WHR15157 |
C00320162
481949238139 |
pruzina | Na dotaz | Zadat poptávku | |
| 941 0 WHR15157 |
C00314254
481252028003 |
BEARING 6306 2Z C3 GJN | Na dotaz | Zadat poptávku | |
| 941 1 WHR15157 |
C00315491
481252028005 |
BEARING 6304 2Z C3 | Na dotaz | Zadat poptávku | |
| 953 0 WHR15157 |
C00314432
481253058142 |
gufero 35x75x12 | Na dotaz | Zadat poptávku | |
| 961 0 WHR15157 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 965 0 WHR15157 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR15157 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.70 |
||
| 993 3 WHR15157 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
