BAUKNECHT WAT 9555D WASHING MACHINES BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WAT 9555D WASHING MACHINES BK |
| Kód 12NC: | 858395512000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás

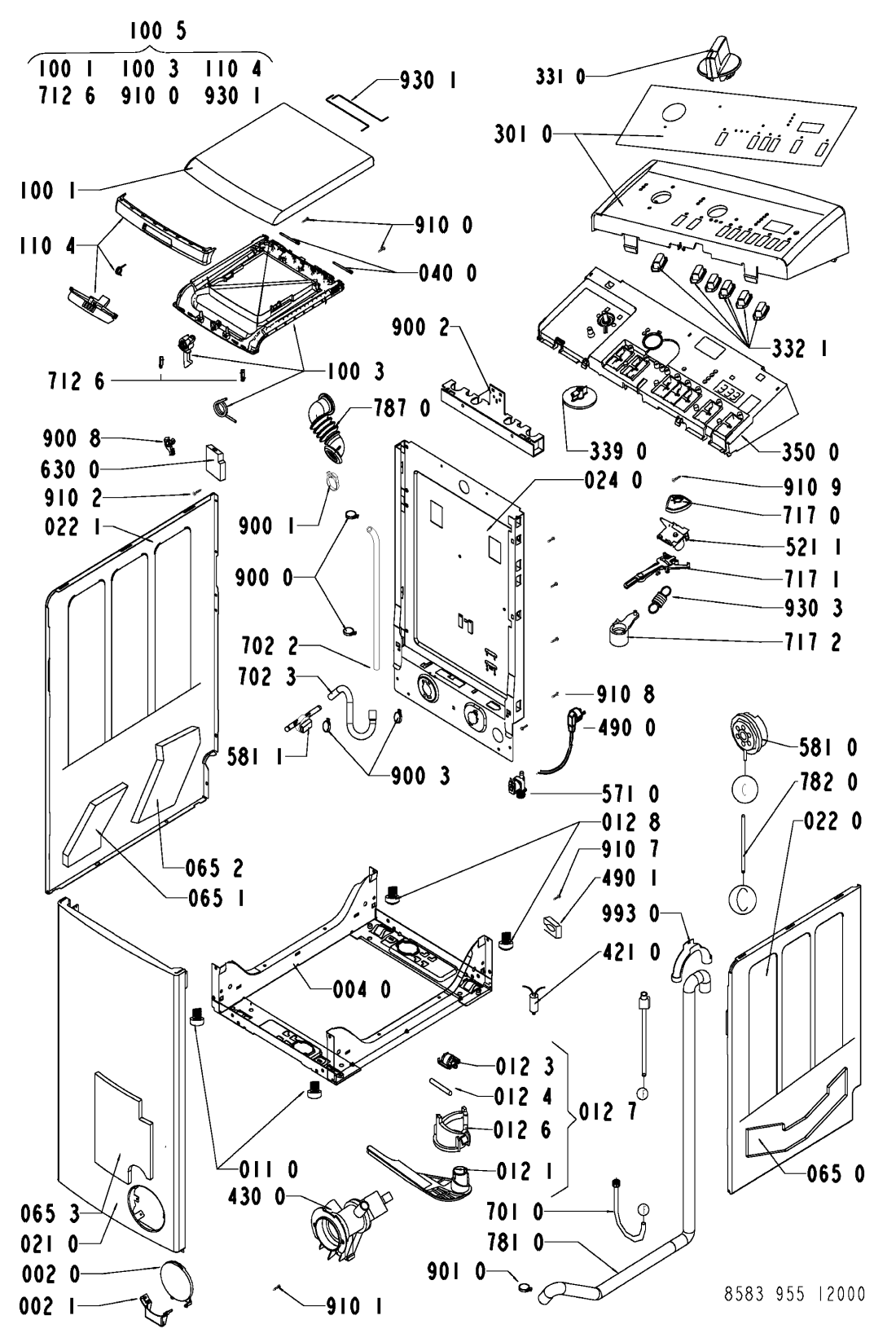

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR65724 |
C00340876
481245938016 |
Kryt čerpadla | 290 Kč
€ 11.40 |
||
| 002 1 WHR65724 |
C00498300
481245938017 |
DRZIAK KRYTU CERP.AWT8123 PLAST ND | Na dotaz | Zadat poptávku | |
| 004 0 WHR65724 |
C00341216
481244019496 |
RAM SKRINE AWT8123 K | 1 635 Kč
€ 64.50 |
||
| 010 0 WHR65724 |
C00339299
481245848349 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 010 1 WHR65724 |
C00340716
481244019566 |
ram pracky bily | 1 593 Kč
€ 62.90 |
||
| 011 0 WHR65724 |
C00313162
481246248054 |
Noha pračky přední | 637 Kč
€ 25.10 |
||
| 012 1 WHR65724 |
C00338408
481252878035 |
PAKA PODVOZKU AWT812 | 393 Kč
€ 15.50 |
||
| 012 3 WHR65724 |
C00337178
481252878038 |
Wheel front | Na dotaz | Zadat poptávku | |
| 012 4 WHR65724 |
C00344543
481252878039 |
OSKA PODVOZKU A | 134 Kč
€ 5.30 |
||
| 012 6 WHR65724 |
C00498603
481252878037 |
DRZIAK PODVOZKU AWT8123 N | Na dotaz | Zadat poptávku | |
| 012 7 WHR65724 |
C00337458
481252878044 |
Trolley kit front | Na dotaz | Zadat poptávku | |
| 012 8 WHR65724 |
C00340790
481252878046 |
noha pracky zadni | 675 Kč
€ 26.60 |
||
| 021 0 WHR65724 |
C00592077
481244019548 |
STENA PREDNA N | Na dotaz | Zadat poptávku | |
| 022 0 WHR65724 |
C00497936
481244019492 |
stena bocni prava | 2 173 Kč
€ 85.80 |
||
| 022 1 WHR65724 |
C00336330
481244019493 |
stena bocni leva | 2 132 Kč
€ 84.20 |
||
| 024 0 WHR65724 |
C00497937
481244019495 |
STENA ZADNA AWT8123 N | Na dotaz | Zadat poptávku | |
| 040 0 WHR65724 |
C00339832
481241718815 |
Hinge bolt | Na dotaz | Zadat poptávku | |
| 061 0 WHR65724 |
C00330989
481246688466 |
zavazi leve k remen. | 1 454 Kč
€ 57.40 |
||
| 061 1 WHR65724 |
C00330988
481246688465 |
Závaží pravé | 1 714 Kč
€ 67.70 |
||
| 065 0 WHR65724 |
C00497388
481231018454 |
IZOLACIA PRAVA AWT8123 N | Na dotaz | Zadat poptávku | |
| 065 1 WHR65724 |
C00338704
481231018455 |
Insulation left | Na dotaz | Zadat poptávku | |
| 065 2 WHR65724 |
C00497389
481231018456 |
IZOLACIA LAVA AWT8123 N | Na dotaz | Zadat poptávku | |
| 065 3 WHR65724 |
C00338707
481231018457 |
Insulation front | Na dotaz | Zadat poptávku | |
| 081 4 WHR65724 |
C00315238
481252918042 |
tlumice - sada ( 2x tlumič,2x kolík ) | 393 Kč
€ 15.50 |
||
| 100 1 WHR65724 |
C00338359
481244019489 |
Lid outer | Na dotaz | Zadat poptávku | |
| 100 3 WHR65724 |
C00338366
481244019512 |
Lid inner cpl.inner cpl. | Na dotaz | Zadat poptávku | |
| 100 5 WHR65724 |
C00553564
481244019537 |
Lid cpl... | Na dotaz | Zadat poptávku | |
| 110 4 WHR65724 |
C00487583
481244019528 |
Handle | Na dotaz | Zadat poptávku | |
| 191 1 WHR65724 |
C00345877
481249298012 |
spona TVO kov.FR | 462 Kč
€ 18.20 |
||
| 191 2 WHR65724 |
C00497392
481231018484 |
sada tvo | Na dotaz | Zadat poptávku | |
| 200 0 WHR65724 |
C00337451
481241818222 |
Tub | Na dotaz | Zadat poptávku | |
| 201 0 WHR65724 |
C00316136
481244019487 |
bocnice nadrze | Na dotaz | Zadat poptávku | |
| 220 0 WHR65724 |
C00320110
481241818227 |
Drum door 210 mm | Na dotaz | Zadat poptávku | |
| 223 0 WHR65724 |
C00341179
481241848474 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 223 1 WHR65724 |
C00341172
481241848475 |
Žebro bubnu 84mm | Na dotaz | Zadat poptávku | |
| 271 0 WHR65724 |
C00319989
481235818158 |
Belt | Na dotaz | Zadat poptávku | |
| 272 0 WHR65724 |
C00318659
481252888077 |
Pulley 298 (MH) | Na dotaz | Zadat poptávku | |
| 290 0 WHR65724 |
C00486337
481253268069 |
TESNENIE NADZE AWT8123 gum/ploche N | Na dotaz | Zadat poptávku | |
| 301 0 WHR65724 |
C00605720
481245370621 |
CONTROL PANEL. | Na dotaz | Zadat poptávku | |
| 331 0 WHR65724 |
C00604760
481241258821 |
knoflik programatoru | 228 Kč
€ 9.00 |
||
| 332 1 WHR65724 |
C00604763
481241318224 |
Button Options A4. | Na dotaz | Zadat poptávku | |
| 339 0 WHR65724 |
C00344653
481241318241 |
Adapter | Na dotaz | Zadat poptávku | |
| 350 0 WHR65724 |
C00526824
481221458041 |
displej | Na dotaz | Zadat poptávku | |
| 400 0 WHR65724 |
C00557965
481236158133 |
nahradene 481236158387 | Na dotaz | Zadat poptávku | |
| 421 0 WHR65724 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR65724 |
C00318447
481236018385 |
Pump MH | Na dotaz | Zadat poptávku | |
| 451 0 WHR65724 |
C00557938
481225928703 |
nahrada 4812 259 28919 | Na dotaz | Zadat poptávku | |
| 451 1 WHR65724 |
C00327154
481225928692 |
Resistor,NTC | Na dotaz | Zadat poptávku | |
| 490 0 WHR65724 |
C00493126
481232118066 |
flexo kabel 2m | Na dotaz | Zadat poptávku | |
| 490 1 WHR65724 |
C00335983
481232118067 |
Strain relief | Na dotaz | Zadat poptávku | |
| 521 0 WHR65724 |
C00554872
481221478271 |
Control board A4 BK.. | Na dotaz | Zadat poptávku | |
| 521 1 WHR65724 |
C00314912
481232318006 |
motorek distribuce vody násypky pračky | 893 Kč
€ 35.30 |
||
| 571 0 WHR65724 |
C00337280
481228128393 |
Napouštěcí ventil pračky - jednocestný, boční vývod | Na dotaz | Zadat poptávku | |
| 581 0 WHR65724 |
C00337570
481227128389 |
presostat | 1 515 Kč
€ 59.80 |
||
| 581 1 WHR65724 |
C00317325
481227118011 |
Meter,flow OMEGA/ACCES SK 5420.06.2 | Na dotaz | Zadat poptávku | |
| 623 3 WHR65724 |
C00344145
481241818224 |
senzor bubnu-brzda | 1 256 Kč
€ 49.60 |
||
| 630 0 WHR65724 |
C00319007
481227138364 |
Blokování dveří | Na dotaz | Zadat poptávku | |
| 701 0 WHR65724 |
C00339388
481253028863 |
Hose cold fill | Na dotaz | Zadat poptávku | |
| 702 2 WHR65724 |
C00592412
481253028882 |
HADICA PRIETOK/VENTIL AWT8123 gum N | Na dotaz | Zadat poptávku | |
| 702 3 WHR65724 |
C00592411
481253028864 |
HADICA VENTIL/PRIETOK AWT8123 gum N | Na dotaz | Zadat poptávku | |
| 707 0 WHR65724 |
C00493675
481252648044 |
box + tryska awt2050 | 107 Kč
€ 4.20 |
||
| 712 4 WHR65724 |
C00336282
481241868162 |
Siphon f. softener | Na dotaz | Zadat poptávku | |
| 712 5 WHR65724 |
C00493541
481241868163 |
VEKO PREPADOVE BIELENIE AWT8123 N | Na dotaz | Zadat poptávku | |
| 712 6 WHR65724 |
C00315600
481241868164 |
Příchytka násypka | 453 Kč
€ 17.90 |
||
| 712 9 WHR65724 |
C00557995
481241868168 |
NAHRADENE 481241868359 | Na dotaz | Zadat poptávku | |
| 717 0 WHR65724 |
C00555021
481232318012 |
VACKA A4 AWT8123 N | Na dotaz | Zadat poptávku | |
| 717 1 WHR65724 |
C00555023
481232318023 |
NAHRADENE 481231018656 N | Na dotaz | Zadat poptávku | |
| 717 2 WHR65724 |
C00555020
481232318009 |
NAHRADENE 481231018656 N | Na dotaz | Zadat poptávku | |
| 753 0 WHR65724 |
C00327860
481241868182 |
Vzdušník | 262 Kč
€ 10.30 |
||
| 754 0 WHR65724 |
C00341282
481253028859 |
Hadice nádrž - čerpadlo pračky Whirlpool, Bauknecht | 728 Kč
€ 28.70 |
||
| 754 1 WHR65724 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR65724 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 781 0 WHR65724 |
C00337957
481253028861 |
Outlet Hose,draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR65724 |
C00339266
481253028866 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 787 0 WHR65724 |
C00339395
481253028865 |
Hose Air Exhaust | Na dotaz | Zadat poptávku | |
| 794 0 WHR65724 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR65724 |
C00335942
481229068157 |
Strap SNP 8 | Na dotaz | Zadat poptávku | |
| 900 1 WHR65724 |
C00328873
481240118431 |
Spona hadice cerpadl | 349 Kč
€ 13.80 |
||
| 900 2 WHR65724 |
C00497551
481240118432 |
DRZIAK HADIC AWT8123 N | Na dotaz | Zadat poptávku | |
| 900 3 WHR65724 |
C00491475
481240118449 |
SPONA HADICE AWT8123 N | Na dotaz | Zadat poptávku | |
| 900 6 WHR65724 |
C00317886
481240018048 |
kolik plast | 290 Kč
€ 11.40 |
||
| 900 8 WHR65724 |
C00343339
481240118447 |
Clamp top frame | Na dotaz | Zadat poptávku | |
| 901 0 WHR65724 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 904 0 WHR65724 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 910 0 WHR65724 |
C00318431
481250248347 |
sroub CCTFI 3,5x14 | 165 Kč
€ 6.50 |
||
| 910 1 WHR65724 |
C00332152
481250238151 |
Šroubek (4x14) vrchem plněné pračky Whirlpool AWE 50510, AWT 2284, AWT 8123 D. | 112 Kč
€ 4.40 |
||
| 910 2 WHR65724 |
C00336636
481250248346 |
Screw 3.5X14 | Na dotaz | Zadat poptávku | |
| 910 3 WHR65724 |
C00312644
481250218404 |
Šroub řemenice 6mm | 151 Kč
€ 6.00 |
||
| 910 5 WHR65724 |
C00336568
481250218401 |
sroub do zavazi | 40 Kč
€ 1.60 |
||
| 910 6 WHR65724 |
C00345896
481250218399 |
Nut Push in M 8Push in M 8 | Na dotaz | Zadat poptávku | |
| 910 7 WHR65724 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 910 8 WHR65724 |
C00332164
481250248348 |
Screw ST 4,2x11 | Na dotaz | Zadat poptávku | |
| 910 9 WHR65724 |
C00332062
481250218409 |
Screw cam actuator | Na dotaz | Zadat poptávku | |
| 921 0 WHR65724 |
C00314517
481240018047 |
Washer | Na dotaz | Zadat poptávku | |
| 930 1 WHR65724 |
C00335390
481249248085 |
Torsions spring | Na dotaz | Zadat poptávku | |
| 930 2 WHR65724 |
C00314200
481249248086 |
Pružina agregátu | 709 Kč
€ 28.00 |
||
| 930 3 WHR65724 |
C00491428
481232318011 |
PRUZINA PAKY AW | 5 906 Kč
€ 233.20 |
||
| 941 2 WHR65724 |
C00314774
481231018483 |
Ložisková sestava AWT kov. | 610 Kč
€ 24.10 |
||
| 953 0 WHR65724 |
C00319719
481232568001 |
Těsnění bubnu VA 22 | 21 Kč
€ 0.80 |
||
| 953 1 WHR65724 |
C00309364
481252028073 |
pouzdro kluzne | 748 Kč
€ 29.50 |
||
| 953 2 WHR65724 |
C00320179
481253068017 |
O-Ring | Na dotaz | Zadat poptávku | |
| 962 0 WHR65724 |
C00328110
481244019497 |
Cover f. Motor | Na dotaz | Zadat poptávku | |
| 993 0 WHR65724 |
C00344292
481253028875 |
Bow | Na dotaz | Zadat poptávku | |
