BAUKNECHT WATE 9570 WASHING MACHINES BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WATE 9570 WASHING MACHINES BK |
| Kód 12NC: | 858395703200 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

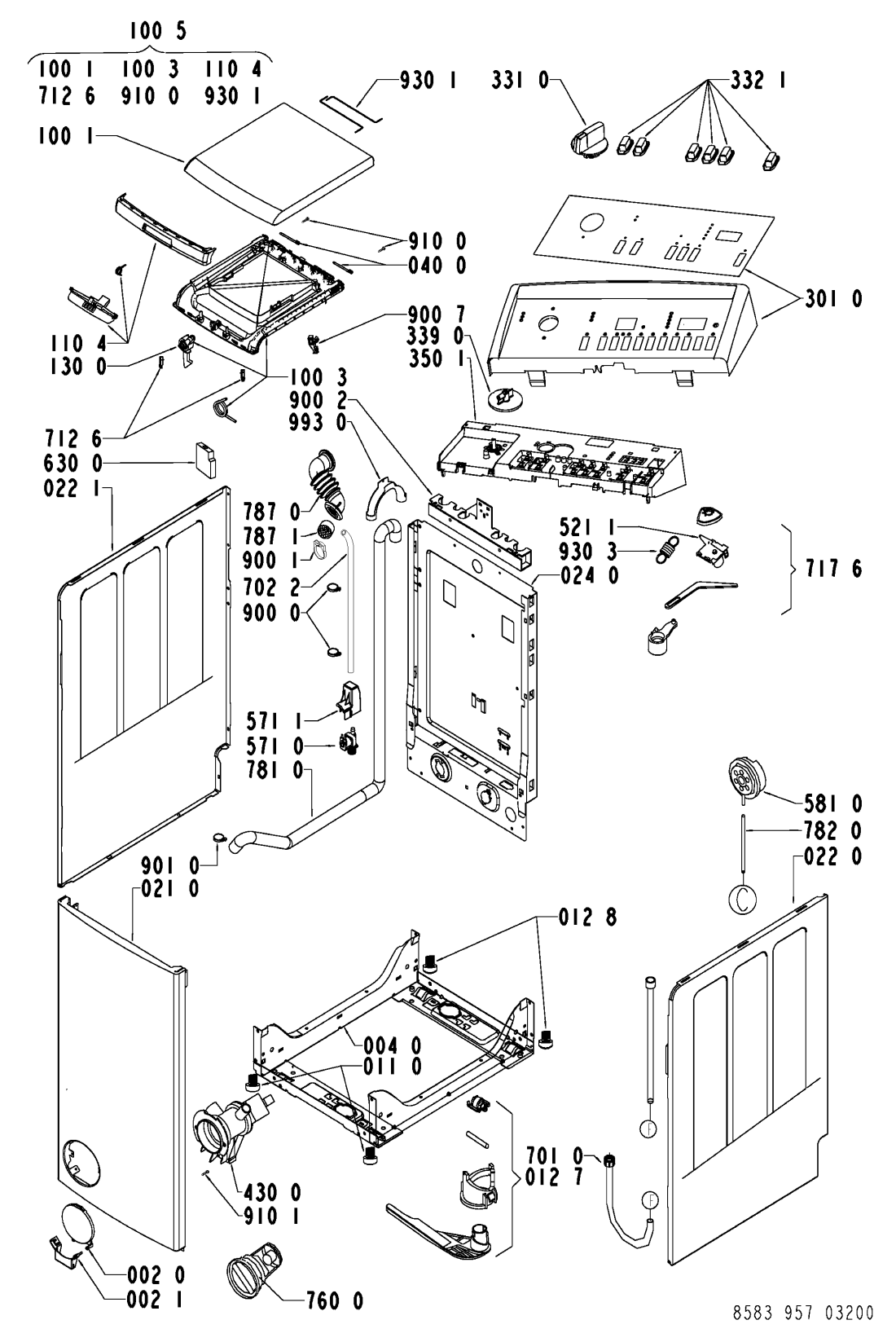

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR76153 |
C00330217
481245938057 |
kryt filtru GW | 733 Kč
€ 28.90 |
||
| 002 1 WHR76153 |
C00330219
481245938058 |
ZAVES PLAST | 175 Kč
€ 6.90 |
||
| 004 0 WHR76153 |
C00327947
481244010727 |
ram zakladni skrine | 1 191 Kč
€ 47.00 |
||
| 010 0 WHR76153 |
C00340734
481245948185 |
Frame lid inner GWinner, soft opening | Na dotaz | Zadat poptávku | |
| 010 1 WHR76153 |
C00340733
481244010741 |
ram pracky bily GW | 2 978 Kč
€ 117.50 |
||
| 011 0 WHR76153 |
C00313162
481246248054 |
Noha pračky přední | 637 Kč
€ 25.10 |
||
| 012 7 WHR76153 |
C00327327
481231018497 |
Podvozek výsuvný | 594 Kč
€ 23.40 |
||
| 012 8 WHR76153 |
C00340790
481252878046 |
noha pracky zadni | 675 Kč
€ 26.60 |
||
| 021 0 WHR76153 |
C00327949
481244010742 |
stena predni GW | 3 503 Kč
€ 138.20 |
||
| 022 0 WHR76153 |
C00327950
481244010743 |
stena bocni pravaGW | 3 518 Kč
€ 138.70 |
||
| 022 1 WHR76153 |
C00327951
481244010744 |
Side panel left GW | Na dotaz | Zadat poptávku | |
| 024 0 WHR76153 |
C00336923
481244010732 |
Rear panel | Na dotaz | Zadat poptávku | |
| 040 0 WHR76153 |
C00329711
481241719155 |
Čep pantu dveří vrchem plněných praček Whirlpool, Indesit AWT 2284, AWT 2050, BTW L50300 | 83 Kč
€ 3.30 |
||
| 061 0 WHR76153 |
C00330989
481246688466 |
zavazi leve k remen. | 1 454 Kč
€ 57.30 |
||
| 061 1 WHR76153 |
C00330988
481246688465 |
Závaží pravé | 1 714 Kč
€ 67.60 |
||
| 081 4 WHR76153 |
C00316013
481246688699 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 086 4 WHR76153 |
C00312814
481252918045 |
kolik tlum.pruzny | 729 Kč
€ 28.80 |
||
| 086 5 WHR76153 |
C00311472
481252918052 |
Damper f. Shock absorber | Na dotaz | Zadat poptávku | |
| 100 1 WHR76153 |
C00327952
481244010745 |
kryt dveri pracky GW-vyřazeno | 2 227 Kč
€ 87.80 |
||
| 100 3 WHR76153 |
C00338365
481244010746 |
Lid inner+hook+sprin GW | Na dotaz | Zadat poptávku | |
| 100 5 WHR76153 |
C00377700
481244010777 |
Dveře pračky | Na dotaz | Zadat poptávku | |
| 110 4 WHR76153 |
C00490181
481249818251 |
madlo | Na dotaz | Zadat poptávku | |
| 130 0 WHR76153 |
C00316880
481241719156 |
Hák uzávěru dveří GW | 837 Kč
€ 33.00 |
||
| 191 0 WHR76153 |
C00342115
481246668749 |
Door bellow | Na dotaz | Zadat poptávku | |
| 191 1 WHR76153 |
C00345877
481249298012 |
spona TVO kov.FR | 462 Kč
€ 18.20 |
||
| 191 2 WHR76153 |
C00316017
481246688703 |
tmel tesnici Allianc | Na dotaz | Zadat poptávku | |
| 200 0 WHR76153 |
C00337437
481241818407 |
Nádrž AWT | 4 475 Kč
€ 176.50 |
||
| 201 0 WHR76153 |
C00316136
481244019487 |
bocnice nadrze | Na dotaz | Zadat poptávku | |
| 220 0 WHR76153 |
C00341170
481241818463 |
Drum with soft openi210 latch/soft op. | Na dotaz | Zadat poptávku | |
| 223 0 WHR76153 |
C00315124
481941849713 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 223 1 WHR76153 |
C00327820
481241848605 |
Žebro bubnu pračky Whirlpool - vyvažovací | 459 Kč
€ 18.10 |
||
| 271 0 WHR76153 |
C00319989
481235818158 |
Belt | Na dotaz | Zadat poptávku | |
| 272 0 WHR76153 |
C00636097
481252888105 |
Nahradene 481252888111 | Na dotaz | Zadat poptávku | |
| 290 0 WHR76153 |
C00312292
481253268078 |
Těsnění bočnice | 586 Kč
€ 23.10 |
||
| 301 0 WHR76153 |
C00605568
481245213702 |
Control panel WATE 9570. | Na dotaz | Zadat poptávku | |
| 331 0 WHR76153 |
C00489462
481245212196 |
GOMBIK PROGRAMATORA | Na dotaz | Zadat poptávku | |
| 332 1 WHR76153 |
C00493367
481241029012 |
Button Options A4 BK GW | Na dotaz | Zadat poptávku | |
| 339 0 WHR76153 |
C00344653
481241318241 |
Adapter | Na dotaz | Zadat poptávku | |
| 350 1 WHR76153 |
C00526824
481221458041 |
displej | Na dotaz | Zadat poptávku | |
| 400 0 WHR76153 |
C00557965
481236158133 |
nahradene 481236158387 | Na dotaz | Zadat poptávku | |
| 421 0 WHR76153 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 421 2 WHR76153 |
C00491503
481240438708 |
Holder | Na dotaz | Zadat poptávku | |
| 430 0 WHR76153 |
C00314917
481236018529 |
Pump,draining 7818.69685 ALLIANCE faston | Na dotaz | Zadat poptávku | |
| 451 0 WHR76153 |
C00557942
481225928819 |
NAHRADENE 481225928919 | Na dotaz | Zadat poptávku | |
| 490 0 WHR76153 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 490 1 WHR76153 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 521 0 WHR76153 |
C00377458
481221479487 |
progr.servisni OMEGA | 4 305 Kč
€ 169.80 |
||
| 521 0 WHR76153 |
C00526860
481221478904 |
PROGRAMATOR OMEGA2/1200 | Na dotaz | Zadat poptávku | |
| 521 1 WHR76153 |
C00314912
481232318006 |
motorek distribuce vody násypky pračky | 893 Kč
€ 35.20 |
||
| 571 0 WHR76153 |
C00337280
481228128393 |
Napouštěcí ventil pračky - jednocestný, boční vývod | Na dotaz | Zadat poptávku | |
| 571 1 WHR76153 |
C00342508
481228118049 |
kryt ventilu | 287 Kč
€ 11.30 |
||
| 581 0 WHR76153 |
C00337570
481227128389 |
presostat | 1 515 Kč
€ 59.80 |
||
| 623 3 WHR76153 |
C00377665
481241818446 |
senzor bubnu-brzda pro pračku Whirlpool | 662 Kč
€ 26.10 |
||
| 630 0 WHR76153 |
C00319007
481227138364 |
Blokování dveří | Na dotaz | Zadat poptávku | |
| 691 0 WHR76153 |
C00327154
481225928692 |
Resistor,NTC | Na dotaz | Zadat poptávku | |
| 701 0 WHR76153 |
C00557593
481953029034 |
Pr#vodov# hadica so sitkom | Na dotaz | Zadat poptávku | |
| 702 2 WHR76153 |
C00339235
481253028871 |
hadice od ventilu | 244 Kč
€ 9.60 |
||
| 707 0 WHR76153 |
C00318593
481252648122 |
Box + tryska awt2050 | 429 Kč
€ 16.90 |
||
| 707 1 WHR76153 |
C00332331
481252648049 |
Spona boxu trysky | 168 Kč
€ 6.60 |
||
| 712 4 WHR76153 |
C00336282
481241868162 |
Siphon f. softener | Na dotaz | Zadat poptávku | |
| 712 5 WHR76153 |
C00493541
481241868163 |
VEKO PREPADOVE BIELENIE AWT8123 N | Na dotaz | Zadat poptávku | |
| 712 6 WHR76153 |
C00315600
481241868164 |
Příchytka násypka | 453 Kč
€ 17.90 |
||
| 712 9 WHR76153 |
C00527894
481241868288 |
Soap dispenser cpl. 3 cpl. 3 ch. GW | Na dotaz | Zadat poptávku | |
| 717 6 WHR76153 |
C00385110
481232318005 |
Distribuční zařízení pračky | 1 033 Kč
€ 40.70 |
||
| 753 0 WHR76153 |
C00342742
481253028874 |
vzdusnik | 359 Kč
€ 14.20 |
||
| 754 0 WHR76153 |
C00332430
481253029267 |
Hadice nádrž - čerpadlo pračky Whirlpool, Indesit, Bauknecht | 727 Kč
€ 28.70 |
||
| 754 1 WHR76153 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 760 0 WHR76153 |
C00320131
481248058089 |
Filtr čerpadla AWT | 671 Kč
€ 26.50 |
||
| 781 0 WHR76153 |
C00557375
481253028953 |
hadicevytokova | Na dotaz | Zadat poptávku | |
| 782 0 WHR76153 |
C00332431
481253029268 |
Hadice k presostatu pračky Whirlpool, Bauknecht, Indesit | 182 Kč
€ 7.20 |
||
| 787 0 WHR76153 |
C00339363
481253018043 |
hadice odparovaci | Na dotaz | Zadat poptávku | |
| 787 1 WHR76153 |
C00336171
481258038007 |
Sponge | Na dotaz | Zadat poptávku | |
| 794 0 WHR76153 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR76153 |
C00332920
481940118686 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 900 1 WHR76153 |
C00328873
481240118431 |
Spona hadice cerpadl | 349 Kč
€ 13.80 |
||
| 900 2 WHR76153 |
C00339595
481240438711 |
drzak hadic | 337 Kč
€ 13.30 |
||
| 900 6 WHR76153 |
C00317886
481240018048 |
kolik plast | 290 Kč
€ 11.40 |
||
| 900 7 WHR76153 |
C00343339
481240118447 |
Clamp top frame | Na dotaz | Zadat poptávku | |
| 901 0 WHR76153 |
C00328877
481240118462 |
Spona vytokovej hadi | 145 Kč
€ 5.70 |
||
| 910 0 WHR76153 |
C00318431
481250248347 |
sroub CCTFI 3,5x14 | 165 Kč
€ 6.50 |
||
| 910 1 WHR76153 |
C00332152
481250238151 |
Šroubek (4x14) vrchem plněné pračky Whirlpool AWE 50510, AWT 2284, AWT 8123 D. | 112 Kč
€ 4.40 |
||
| 910 3 WHR76153 |
C00312644
481250218404 |
Šroub řemenice 6mm | 151 Kč
€ 6.00 |
||
| 910 4 WHR76153 |
C00318381
481250218423 |
Šroub PT 7x15 | 126 Kč
€ 5.00 |
||
| 910 5 WHR76153 |
C00336568
481250218401 |
sroub do zavazi | 40 Kč
€ 1.60 |
||
| 910 6 WHR76153 |
C00345896
481250218399 |
Nut Push in M 8Push in M 8 | Na dotaz | Zadat poptávku | |
| 921 0 WHR76153 |
C00314517
481240018047 |
Washer | Na dotaz | Zadat poptávku | |
| 930 1 WHR76153 |
C00557359
481249248184 |
POLICE | Na dotaz | Zadat poptávku | |
| 930 2 WHR76153 |
C00314200
481249248086 |
Pružina agregátu | 709 Kč
€ 28.00 |
||
| 930 3 WHR76153 |
C00491428
481232318011 |
PRUZINA PAKY AW | 5 906 Kč
€ 232.90 |
||
| 941 1 WHR76153 |
C00344369
481952018041 |
Bearing ball 6203-2Z | Na dotaz | Zadat poptávku | |
| 941 2 WHR76153 |
C00313525
481252028182 |
Bearing,ball kit | Na dotaz | Zadat poptávku | |
| 953 0 WHR76153 |
C00319719
481232568001 |
Těsnění bubnu VA 22 | 21 Kč
€ 0.80 |
||
| 953 1 WHR76153 |
C00309364
481252028073 |
pouzdro kluzne | 748 Kč
€ 29.50 |
||
| 953 2 WHR76153 |
C00320179
481253068017 |
O-Ring | Na dotaz | Zadat poptávku | |
| 962 0 WHR76153 |
C00328110
481244019497 |
Cover f. Motor | Na dotaz | Zadat poptávku | |
| 993 0 WHR76153 |
C00344294
481253029269 |
Bow | Na dotaz | Zadat poptávku | |
