WHIRLPOOL WBD 500
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WBD 500 |
| Kód 12NC: | 853477565100 |
| Značka: | WHIRLPOOL |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

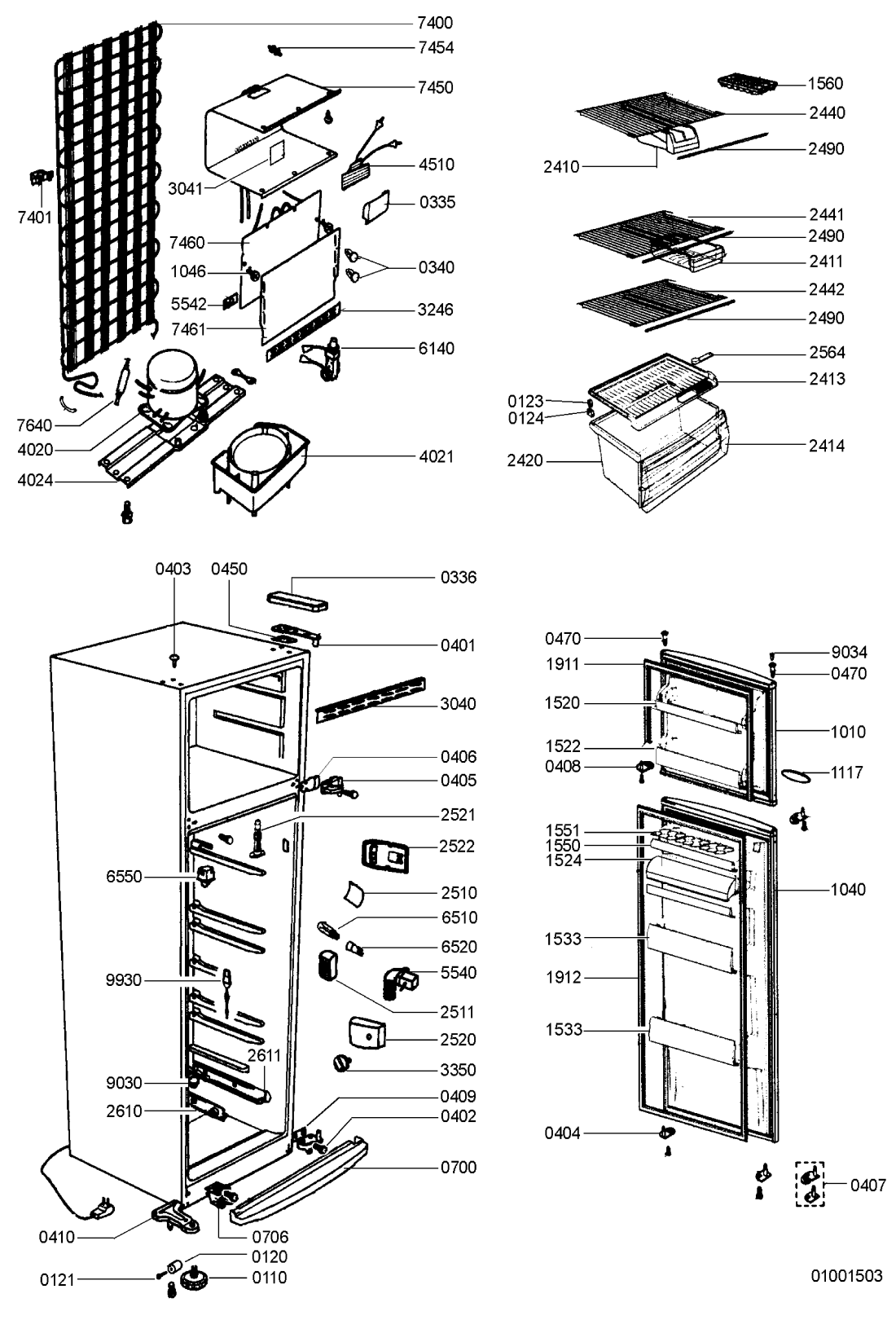

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR110475 |
C00491914
481246218282 |
Foot WH | Na dotaz | Zadat poptávku | |
| 012 0 WHR110475 |
C00332374
481252878071 |
Roller | Na dotaz | Zadat poptávku | |
| 012 1 WHR110475 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
| 012 3 WHR110475 |
C00517551
481246238242 |
Roller crisper. | Na dotaz | Zadat poptávku | |
| 012 4 WHR110475 |
C00336788
481240448673 |
Roller vegetables drawer | Na dotaz | Zadat poptávku | |
| 033 5 WHR110475 |
C00486008
481246228643 |
Protector Heating element | Na dotaz | Zadat poptávku | |
| 033 6 WHR110475 |
C00486019
481246228704 |
Cover hinge WH | Na dotaz | Zadat poptávku | |
| 034 0 WHR110475 |
C00498514
481249148034 |
Clip fix. | Na dotaz | Zadat poptávku | |
| 040 1 WHR110475 |
C00339759
481241719138 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR110475 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR110475 |
C00490978
481226278022 |
Cap | Na dotaz | Zadat poptávku | |
| 040 4 WHR110475 |
C00374018
481246228708 |
Bushing right WH | Na dotaz | Zadat poptávku | |
| 040 5 WHR110475 |
C00488941
481241718993 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 6 WHR110475 |
C00336367
481253538108 |
Shim | Na dotaz | Zadat poptávku | |
| 040 7 WHR110475 |
C00584492
481241719333 |
Hinge , set. | Na dotaz | Zadat poptávku | |
| 040 8 WHR110475 |
C00491657
481241719332 |
Pivot | Na dotaz | Zadat poptávku | |
| 040 9 WHR110475 |
C00336362
481252648092 |
Shim Hinge | Na dotaz | Zadat poptávku | |
| 041 0 WHR110475 |
C00336238
481246218185 |
Small plate | Na dotaz | Zadat poptávku | |
| 045 0 WHR110475 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR110475 |
C00344062
481253288067 |
Bushing WH | Na dotaz | Zadat poptávku | |
| 070 0 WHR110475 |
C00747742
481246488046 |
Plinth | Na dotaz | Zadat poptávku | |
| 070 6 WHR110475 |
C00492124
481253578089 |
Clip | Na dotaz | Zadat poptávku | |
| 101 0 WHR110475 |
C00747743
481241619729 |
Door freezer white color | Na dotaz | Zadat poptávku | |
| 104 0 WHR110475 |
C00747744
481241619731 |
Door refriger. white color | Na dotaz | Zadat poptávku | |
| 104 6 WHR110475 |
C00576410
481249148033 |
Clip fix.. | Na dotaz | Zadat poptávku | |
| 111 7 WHR110475 |
C00576370
481245918254 |
Nameplate Whirlpool.. | Na dotaz | Zadat poptávku | |
| 152 0 WHR110475 |
C00747745
481241828831 |
Front panel , freezer | Na dotaz | Zadat poptávku | |
| 152 2 WHR110475 |
C00747746
481241828832 |
Front panel , freezer, lower | Na dotaz | Zadat poptávku | |
| 152 4 WHR110475 |
C00747747
481241828833 |
Flap f. Door,dairy | Na dotaz | Zadat poptávku | |
| 153 3 WHR110475 |
C00747748
481241828834 |
Front | Na dotaz | Zadat poptávku | |
| 155 0 WHR110475 |
C00747749
481241828835 |
Front panel , refrigerator | Na dotaz | Zadat poptávku | |
| 155 1 WHR110475 |
C00747750
481241828836 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 156 0 WHR110475 |
C00576212
481241848653 |
Tray icecube.. | Na dotaz | Zadat poptávku | |
| 191 1 WHR110475 |
C00320069
481246818275 |
tesneni magneticke | 1 895 Kč
€ 74.80 |
||
| 191 2 WHR110475 |
C00320071
481246818276 |
tesneni magneticke | 2 141 Kč
€ 84.50 |
||
| 241 0 WHR110475 |
C00584522
481241828818 |
Drawer. | Na dotaz | Zadat poptávku | |
| 241 1 WHR110475 |
C00747751
481241848803 |
Drawer | Na dotaz | Zadat poptávku | |
| 241 3 WHR110475 |
C00747752
481241828837 |
Cover plate Crisper | Na dotaz | Zadat poptávku | |
| 241 4 WHR110475 |
C00517542
481241828838 |
Cover Crisper | Na dotaz | Zadat poptávku | |
| 242 0 WHR110475 |
C00747753
481241848804 |
Crisper | Na dotaz | Zadat poptávku | |
| 244 0 WHR110475 |
C00485364
481245088267 |
Shelf glass freezer | Na dotaz | Zadat poptávku | |
| 244 1 WHR110475 |
C00584991
481245088268 |
Shelf upper.. | Na dotaz | Zadat poptávku | |
| 244 2 WHR110475 |
C00584992
481245088269 |
Shelf lower.. | Na dotaz | Zadat poptávku | |
| 249 0 WHR110475 |
C00747754
481246049628 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 251 0 WHR110475 |
C00490082
481246098026 |
Reflector lamp | Na dotaz | Zadat poptávku | |
| 251 1 WHR110475 |
C00584752
481246228706 |
Cover f. lamp. | Na dotaz | Zadat poptávku | |
| 252 0 WHR110475 |
C00584585
481244079171 |
Casing. | Na dotaz | Zadat poptávku | |
| 252 1 WHR110475 |
C00482891
481240478703 |
Base | Na dotaz | Zadat poptávku | |
| 252 2 WHR110475 |
C00584774
481246448191 |
Fastener Thermostat. | Na dotaz | Zadat poptávku | |
| 256 4 WHR110475 |
C00574569
481246688827 |
Air regulator | Na dotaz | Zadat poptávku | |
| 261 0 WHR110475 |
C00345184
481246238239 |
Slide left.. | Na dotaz | Zadat poptávku | |
| 261 1 WHR110475 |
C00345118
481246238241 |
Slide right.. | Na dotaz | Zadat poptávku | |
| 304 0 WHR110475 |
C00585021
481246228645 |
Deflector Evaporator.. | Na dotaz | Zadat poptávku | |
| 304 1 WHR110475 |
C00486009
481246228646 |
Cover Evaporator | Na dotaz | Zadat poptávku | |
| 324 6 WHR110475 |
C00585022
481246228647 |
Deflector Evaporator.. | Na dotaz | Zadat poptávku | |
| 335 0 WHR110475 |
C00345217
481227138482 |
Knob Thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR110475 |
C00576143
481236038937 |
Compressor FFI 10 HAK 220V.. | Na dotaz | Zadat poptávku | |
| 402 1 WHR110475 |
C00318946
481241818319 |
Tray | Na dotaz | Zadat poptávku | |
| 402 4 WHR110475 |
C00331559
481246699005 |
Base compressor | Na dotaz | Zadat poptávku | |
| 451 0 WHR110475 |
C00584425
481236738002 |
Heating element cold plate 220-240V | Na dotaz | Zadat poptávku | |
| 554 0 WHR110475 |
C00491184
481228208645 |
Thermostat Invensys TSV2 | Na dotaz | Zadat poptávku | |
| 554 2 WHR110475 |
C00500796
481240478396 |
Fastener clip | Na dotaz | Zadat poptávku | |
| 614 0 WHR110475 |
C00495590
481228028012 |
Relay + overload | Na dotaz | Zadat poptávku | |
| 651 0 WHR110475 |
C00574299
481213488025 |
Lamp. | Na dotaz | Zadat poptávku | |
| 652 0 WHR110475 |
C00339579
481225528011 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 655 0 WHR110475 |
C00747755
481221818039 |
Switch | Na dotaz | Zadat poptávku | |
| 740 0 WHR110475 |
C00332238
481251148336 |
výměník | 2 213 Kč
€ 87.40 |
||
| 740 1 WHR110475 |
C00330489
481246228394 |
Holder Condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR110475 |
C00585045
481251138273 |
Evaporator.. | Na dotaz | Zadat poptávku | |
| 745 4 WHR110475 |
C00576445
481253048349 |
Connection LOKRING.. | Na dotaz | Zadat poptávku | |
| 746 0 WHR110475 |
C00585046
481251138274 |
Evaporator.. | Na dotaz | Zadat poptávku | |
| 746 1 WHR110475 |
C00585023
481246228648 |
Front Evaporator.. | Na dotaz | Zadat poptávku | |
| 764 0 WHR110475 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 903 0 WHR110475 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 903 4 WHR110475 |
C00342342
481253288072 |
Cover WH | Na dotaz | Zadat poptávku | |
| 993 0 WHR110475 |
C00584855
481269028016 |
Swab. | Na dotaz | Zadat poptávku | |
| 999 WHR110475 |
C00791256 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
