WHIRLPOOL WBM 37 REFRIGERATORS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WBM 37 REFRIGERATORS WP |
| Kód 12NC: | 853475265000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

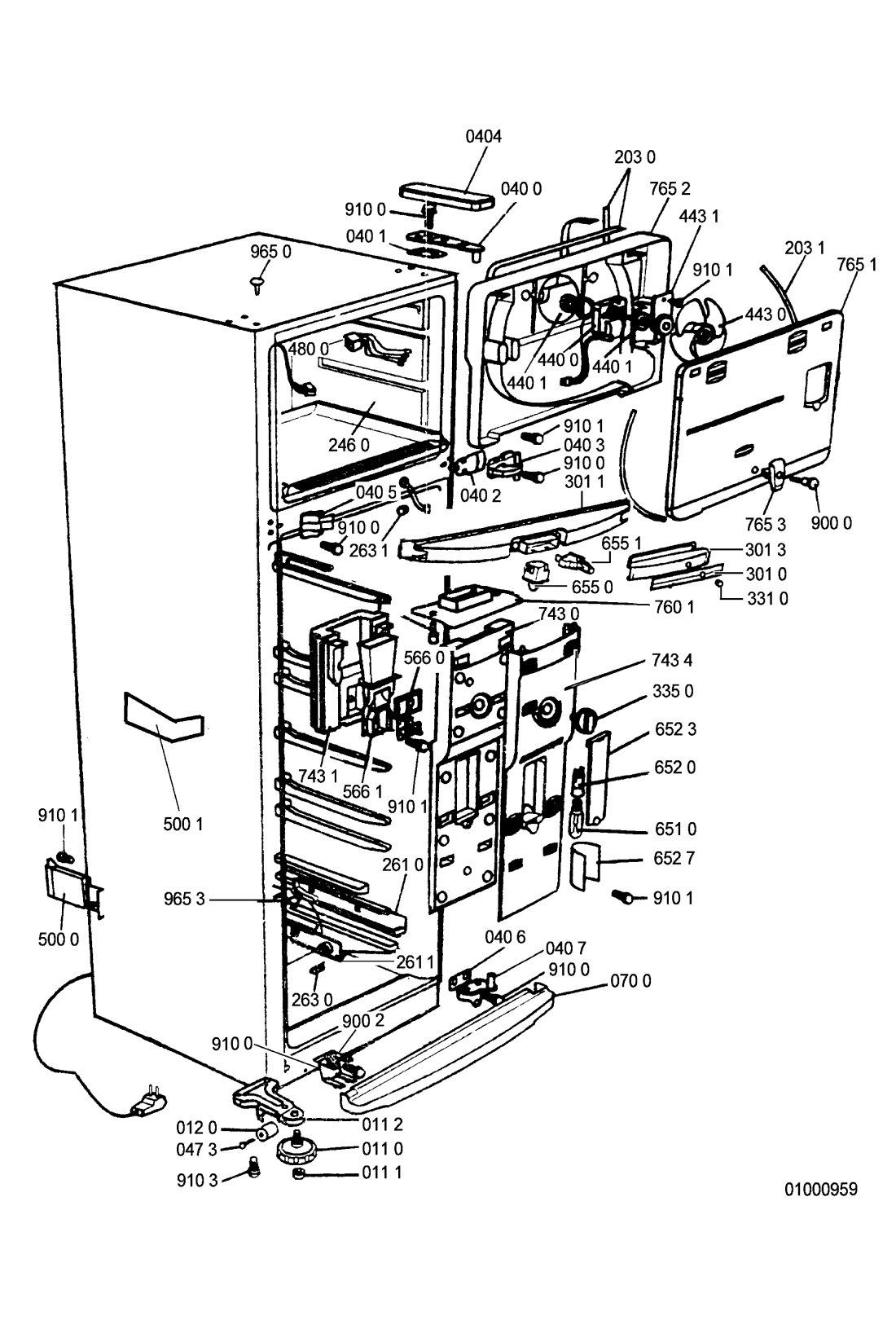

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR62995 |
C00340800
481246238082 |
Foot | Na dotaz | Zadat poptávku | |
| 011 1 WHR62995 |
C00636648
481246248061 |
DAMPING PART. | Na dotaz | Zadat poptávku | |
| 011 2 WHR62995 |
C00336238
481246218185 |
Small plate | Na dotaz | Zadat poptávku | |
| 012 0 WHR62995 |
C00336795
481252878048 |
Roller | Na dotaz | Zadat poptávku | |
| 040 0 WHR62995 |
C00583842
481241778019 |
Hinge upper. | Na dotaz | Zadat poptávku | |
| 040 1 WHR62995 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR62995 |
C00492120
481253538084 |
Shim | Na dotaz | Zadat poptávku | |
| 040 3 WHR62995 |
C00583837
481241718852 |
Hinge middle. | Na dotaz | Zadat poptávku | |
| 040 4 WHR62995 |
C00342472
481246228054 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 040 5 WHR62995 |
C00488925
481241718853 |
Hinge left | Na dotaz | Zadat poptávku | |
| 040 6 WHR62995 |
C00336366
481241778022 |
Shim | Na dotaz | Zadat poptávku | |
| 040 7 WHR62995 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 047 3 WHR62995 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
| 070 0 WHR62995 |
C00557168
481246488013 |
Panel.. | Na dotaz | Zadat poptávku | |
| 101 0 WHR62995 |
C00583890
481244268969 |
Door ,freezer. | Na dotaz | Zadat poptávku | |
| 102 0 WHR62995 |
C00485181
481244228969 |
EVAPOR.DOOR | Na dotaz | Zadat poptávku | |
| 102 1 WHR62995 |
C00583876
481244228971 |
Flap. | Na dotaz | Zadat poptávku | |
| 104 0 WHR62995 |
C00583889
481244268968 |
Door ,ref.. | Na dotaz | Zadat poptávku | |
| 105 0 WHR62995 |
C00344080
481253288011 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 1 WHR62995 |
C00336004
481253288012 |
zaslepka | 122 Kč
€ 4.80 |
||
| 105 2 WHR62995 |
C00344085
481253268079 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 3 WHR62995 |
C00492108
481253268081 |
BUSHING | Na dotaz | Zadat poptávku | |
| 111 0 WHR62995 |
C00583961
481249818165 |
HANDLE. | Na dotaz | Zadat poptávku | |
| 111 1 WHR62995 |
C00529825
481249878042 |
Insert ,handle handle | Na dotaz | Zadat poptávku | |
| 111 7 WHR62995 |
C00576352
481245918188 |
PLAQUE DE MARQUE.. | Na dotaz | Zadat poptávku | |
| 153 0 WHR62995 |
C00776614
481241879649 |
SCHROEF VOOR OVENZIJPANEEL | Na dotaz | Zadat poptávku | |
| 153 1 WHR62995 |
C00557161
481241828036 |
DOOR,DAIRY.. | Na dotaz | Zadat poptávku | |
| 153 6 WHR62995 |
C00491895
481246078892 |
SPACER | Na dotaz | Zadat poptávku | |
| 154 0 WHR62995 |
C00583852
481241848494 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 155 0 WHR62995 |
C00583924
481246088236 |
Holder eggs. | Na dotaz | Zadat poptávku | |
| 155 1 WHR62995 |
C00583856
481241879653 |
DOOR,DAIRY. | Na dotaz | Zadat poptávku | |
| 156 0 WHR62995 |
C00335336
481241828031 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 191 0 WHR62995 |
C00583954
481246818036 |
Magnetic seal. | Na dotaz | Zadat poptávku | |
| 191 1 WHR62995 |
C00583955
481246818037 |
Magnetic seal. | Na dotaz | Zadat poptávku | |
| 201 3 WHR62995 |
C00583802
481232518006 |
INSULATION. | Na dotaz | Zadat poptávku | |
| 203 0 WHR62995 |
C00338714
481232518003 |
Insulation ,rear | Na dotaz | Zadat poptávku | |
| 203 1 WHR62995 |
C00527316
481232518004 |
Insulation front | Na dotaz | Zadat poptávku | |
| 242 0 WHR62995 |
C00574466
481241879652 |
Crisper. | Na dotaz | Zadat poptávku | |
| 242 1 WHR62995 |
C00491575
481240488011 |
Front crisper | Na dotaz | Zadat poptávku | |
| 242 2 WHR62995 |
C00557167
481246238083 |
SLIDE.. | Na dotaz | Zadat poptávku | |
| 242 3 WHR62995 |
C00336788
481240448673 |
Roller vegetables drawer | Na dotaz | Zadat poptávku | |
| 244 0 WHR62995 |
C00487642
481245838033 |
GRID | Na dotaz | Zadat poptávku | |
| 244 1 WHR62995 |
C00583845
481241828035 |
TRAY. | Na dotaz | Zadat poptávku | |
| 244 2 WHR62995 |
C00500869
481245838034 |
GRID | Na dotaz | Zadat poptávku | |
| 244 3 WHR62995 |
C00487643
481245838035 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR62995 |
C00491688
481241848492 |
Bottom freezer | Na dotaz | Zadat poptávku | |
| 246 1 WHR62995 |
C00583851
481241848493 |
rost lahvi | 1 409 Kč
€ 55.60 |
||
| 261 0 WHR62995 |
C00336930
481246818014 |
Rail right | Na dotaz | Zadat poptávku | |
| 261 1 WHR62995 |
C00336932
481246218183 |
Rail left | Na dotaz | Zadat poptávku | |
| 263 0 WHR62995 |
C00336264
481246218184 |
Slide | Na dotaz | Zadat poptávku | |
| 263 1 WHR62995 |
C00335790
481240448671 |
drzak | 123 Kč
€ 4.90 |
||
| 301 0 WHR62995 |
C00583875
481244228967 |
Panel. | Na dotaz | Zadat poptávku | |
| 301 1 WHR62995 |
C00583921
481246078893 |
Front panel. | Na dotaz | Zadat poptávku | |
| 301 3 WHR62995 |
C00491852
481245298188 |
Panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR62995 |
C00583791
481227158166 |
Knob. | Na dotaz | Zadat poptávku | |
| 335 0 WHR62995 |
C00583789
481227158162 |
KNOB THERMOSTAT. | Na dotaz | Zadat poptávku | |
| 402 0 WHR62995 |
C00555054
481236038617 |
COMPRESSOR FFI 8,5.. | Na dotaz | Zadat poptávku | |
| 402 1 WHR62995 |
C00335359
481241879646 |
Tray | Na dotaz | Zadat poptávku | |
| 402 3 WHR62995 |
C00574570
481246698946 |
Fastener compressor. | Na dotaz | Zadat poptávku | |
| 402 4 WHR62995 |
C00574987
481253538085 |
Clip. | Na dotaz | Zadat poptávku | |
| 440 0 WHR62995 |
C00583809
481236138025 |
Motor fan. | Na dotaz | Zadat poptávku | |
| 440 1 WHR62995 |
C00315086
481246638021 |
Damper fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR62995 |
C00315305
481236118282 |
Fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR62995 |
C00335783
481246048881 |
Support Ventilator | Na dotaz | Zadat poptávku | |
| 451 0 WHR62995 |
C00583786
481225928718 |
Element defrost. | Na dotaz | Zadat poptávku | |
| 480 0 WHR62995 |
C00583796
481232058043 |
Cable harness. | Na dotaz | Zadat poptávku | |
| 491 0 WHR62995 |
C00498415
481246279703 |
Cover Relay. | Na dotaz | Zadat poptávku | |
| 500 0 WHR62995 |
C00583776
481210628002 |
PLATINE DE CONTROLE. | Na dotaz | Zadat poptávku | |
| 500 1 WHR62995 |
C00342539
481244028945 |
Cover Control board | Na dotaz | Zadat poptávku | |
| 566 0 WHR62995 |
C00319312
481228238041 |
Thermostat | Na dotaz | Zadat poptávku | |
| 566 1 WHR62995 |
C00339546
481246048885 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 566 2 WHR62995 |
C00314686
481228238042 |
termostat | 1 877 Kč
€ 74.10 |
||
| 566 3 WHR62995 |
C00498670
481253548011 |
Bracket. | Na dotaz | Zadat poptávku | |
| 614 0 WHR62995 |
C00491156
481228028013 |
Relay + overload | Na dotaz | Zadat poptávku | |
| 651 0 WHR62995 |
C00341807
481213428061 |
Lamp220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR62995 |
C00557158
481225528005 |
HOLDER,LAMP.. | Na dotaz | Zadat poptávku | |
| 652 3 WHR62995 |
C00342514
481246098006 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 652 7 WHR62995 |
C00342198
481246228057 |
Deflector | Na dotaz | Zadat poptávku | |
| 655 0 WHR62995 |
C00583790
481227158164 |
Switch. | Na dotaz | Zadat poptávku | |
| 655 1 WHR62995 |
C00574312
481227158165 |
Switch | Na dotaz | Zadat poptávku | |
| 691 0 WHR62995 |
C00336525
481228268021 |
Sensor kit | Na dotaz | Zadat poptávku | |
| 740 0 WHR62995 |
C00583970
481251148217 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 1 WHR62995 |
C00621451
481246698943 |
BRACKET. | Na dotaz | Zadat poptávku | |
| 740 2 WHR62995 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
| 743 0 WHR62995 |
C00498501
481248028035 |
difuzor | 214 Kč
€ 8.40 |
||
| 743 1 WHR62995 |
C00335877
481246048884 |
Support | Na dotaz | Zadat poptávku | |
| 743 4 WHR62995 |
C00583867
481244078919 |
Cover. | Na dotaz | Zadat poptávku | |
| 745 0 WHR62995 |
C00496277
481251138126 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 1 WHR62995 |
C00489321
481244228968 |
Heat shield Evaporator | Na dotaz | Zadat poptávku | |
| 745 2 WHR62995 |
C00583863
481244069033 |
Insulation. | Na dotaz | Zadat poptávku | |
| 745 3 WHR62995 |
C00583801
481232518005 |
Cover rubber. | Na dotaz | Zadat poptávku | |
| 745 4 WHR62995 |
C00335834
481253598061 |
Support Evaporator | Na dotaz | Zadat poptávku | |
| 760 1 WHR62995 |
C00319191
481246048883 |
Support Air clean filt. | Na dotaz | Zadat poptávku | |
| 764 0 WHR62995 |
C00583958
481248028036 |
DRYER. | Na dotaz | Zadat poptávku | |
| 765 1 WHR62995 |
C00583882
481244228996 |
Cover. | Na dotaz | Zadat poptávku | |
| 765 2 WHR62995 |
C00574476
481244069032 |
Separator rear/evaporator. | Na dotaz | Zadat poptávku | |
| 765 3 WHR62995 |
C00343377
481246048882 |
Clamp Cover | Na dotaz | Zadat poptávku | |
| 781 0 WHR62995 |
C00583977
481253028949 |
Tube. | Na dotaz | Zadat poptávku | |
| 900 0 WHR62995 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
| 900 2 WHR62995 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR62995 |
C00492137
481256018017 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 1 WHR62995 |
C00492138
481256018018 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 3 WHR62995 |
C00336570
481256018025 |
Screw M5x10mm | Na dotaz | Zadat poptávku | |
| 910 5 WHR62995 |
C00492140
481256018024 |
Screw | Na dotaz | Zadat poptávku | |
| 910 6 WHR62995 |
C00336665
481256018026 |
Screw | Na dotaz | Zadat poptávku | |
| 910 7 WHR62995 |
C00336667
481256018022 |
Screw | Na dotaz | Zadat poptávku | |
| 910 8 WHR62995 |
C00336668
481256018023 |
Screw | Na dotaz | Zadat poptávku | |
| 965 0 WHR62995 |
C00583927
481246228055 |
STOPPER. | Na dotaz | Zadat poptávku | |
| 965 3 WHR62995 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR62995 |
C00679057 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
