| Komerční kód: | WBM 475 |
| Kód 12NC: | 850140979000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850140963000, 850140986000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

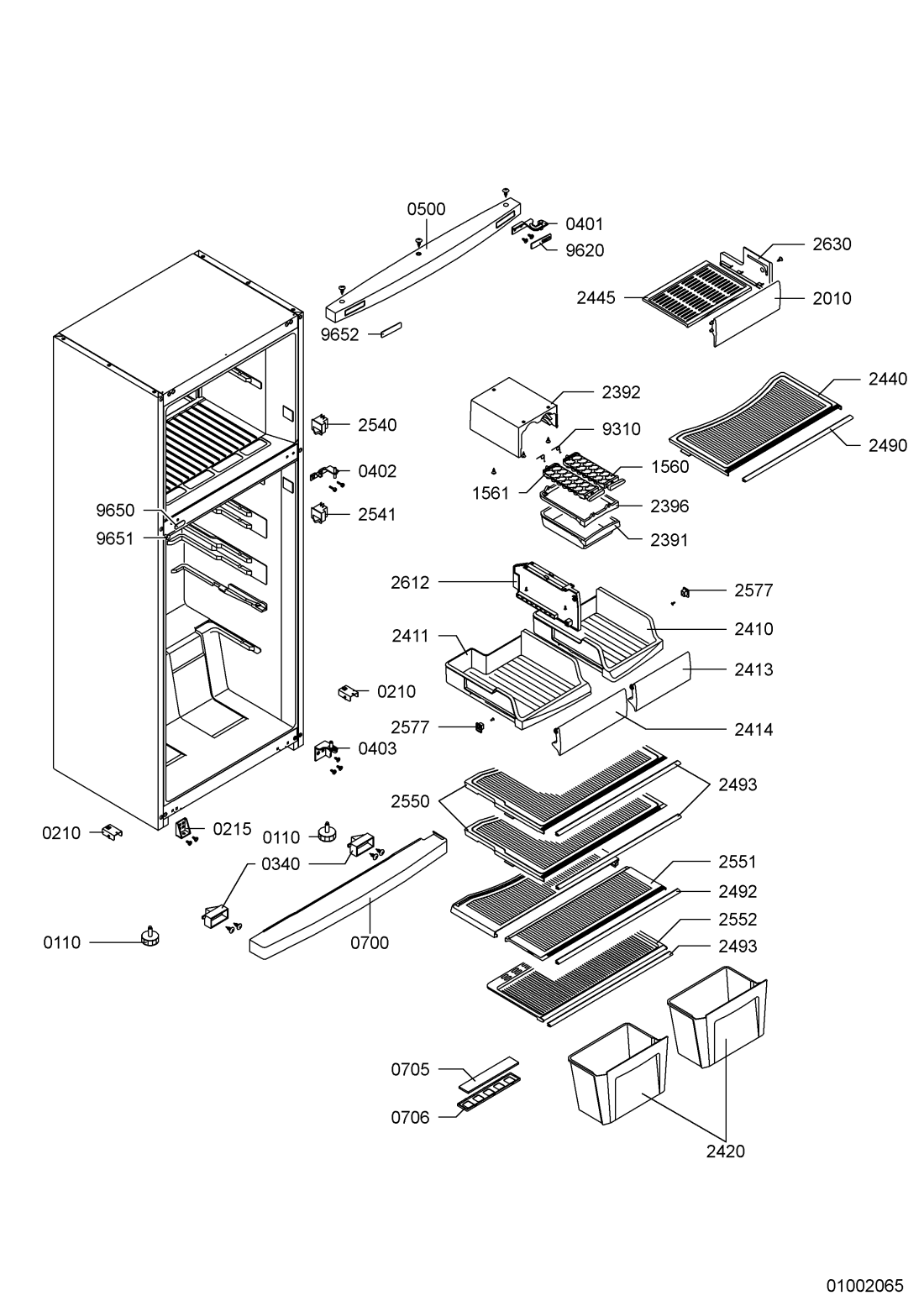

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR17399 |
C00330466
481246218308 |
Foot | Na dotaz | Zadat poptávku | |
| 011 6 WHR17399 |
C00394066
480132101035 |
Foot rear | Na dotaz | Zadat poptávku | |
| 012 0 WHR17399 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 012 1 WHR17399 |
C00332729
481253578083 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 021 0 WHR17399 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
| 021 5 WHR17399 |
C00330465
481246218306 |
Support foot | Na dotaz | Zadat poptávku | |
| 034 0 WHR17399 |
C00329017
481240438739 |
Holder plinth | Na dotaz | Zadat poptávku | |
| 040 1 WHR17399 |
C00329729
481241719301 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR17399 |
C00329763
481241719468 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 3 WHR17399 |
C00306412
480132101036 |
SPODNI ZAWES | Na dotaz | Zadat poptávku | |
| 047 0 WHR17399 |
C00312732
481244688154 |
Bushing | Na dotaz | Zadat poptávku | |
| 047 1 WHR17399 |
C00331108
481244688159 |
Bushing | Na dotaz | Zadat poptávku | |
| 050 0 WHR17399 |
C00330528
481246228668 |
Panel | Na dotaz | Zadat poptávku | |
| 070 0 WHR17399 |
C00328417
481244089185 |
Plinth | Na dotaz | Zadat poptávku | |
| 070 5 WHR17399 |
C00345718
481248058408 |
Filter | Na dotaz | Zadat poptávku | |
| 070 6 WHR17399 |
C00345720
481248128191 |
Filter body | Na dotaz | Zadat poptávku | |
| 101 0 WHR17399 |
C00394067
480132101037 |
Door freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR17399 |
C00394068
480132101038 |
Door refrigerator | Na dotaz | Zadat poptávku | |
| 110 0 WHR17399 |
C00394069
480132101039 |
Door handle freezer | Na dotaz | Zadat poptávku | |
| 111 0 WHR17399 |
C00394070
480132101041 |
Door handle refrigerator | Na dotaz | Zadat poptávku | |
| 111 7 WHR17399 |
C00480209
481245918218 |
logo Whirlpool | 429 Kč
€ 16.90 |
||
| 133 7 WHR17399 |
C00329805
481241778139 |
Stop door | Na dotaz | Zadat poptávku | |
| 152 0 WHR17399 |
C00329880
481241820115 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 0 WHR17399 |
C00329891
481241820131 |
Door dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR17399 |
C00329883
481241820118 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR17399 |
C00327730
481241829843 |
Separator | Na dotaz | Zadat poptávku | |
| 154 5 WHR17399 |
C00329882
481241820117 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 155 0 WHR17399 |
C00329884
481241820119 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 155 1 WHR17399 |
C00327731
481241829844 |
Egg trim | Na dotaz | Zadat poptávku | |
| 156 0 WHR17399 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
| 156 1 WHR17399 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
| 201 0 WHR17399 |
C00328375
481244079337 |
Cover | Na dotaz | Zadat poptávku | |
| 239 1 WHR17399 |
C00327734
481241829848 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 239 2 WHR17399 |
C00327735
481241829849 |
Panel icemaker | Na dotaz | Zadat poptávku | |
| 239 6 WHR17399 |
C00328988
481240418578 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
| 241 0 WHR17399 |
C00329885
481241820121 |
Drawer right | Na dotaz | Zadat poptávku | |
| 241 1 WHR17399 |
C00327736
481241829851 |
Drawer left | Na dotaz | Zadat poptávku | |
| 241 3 WHR17399 |
C00329886
481241820122 |
Flap drawer | Na dotaz | Zadat poptávku | |
| 241 4 WHR17399 |
C00327737
481241829853 |
Flap drawer | Na dotaz | Zadat poptávku | |
| 242 0 WHR17399 |
C00329887
481241820123 |
Crisper | Na dotaz | Zadat poptávku | |
| 244 0 WHR17399 |
C00394071
480132101042 |
Shelf freezer | Na dotaz | Zadat poptávku | |
| 244 5 WHR17399 |
C00329889
481241820125 |
Shelf | Na dotaz | Zadat poptávku | |
| 249 0 WHR17399 |
C00404538
481246049688 |
Trim | Na dotaz | Zadat poptávku | |
| 249 1 WHR17399 |
C00330294
481246049559 |
Trim Condenser | Na dotaz | Zadat poptávku | |
| 249 2 WHR17399 |
C00394072
480132101043 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 249 3 WHR17399 |
C00330878
481246488062 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 251 0 WHR17399 |
C00328842
481238028035 |
Reflector | Na dotaz | Zadat poptávku | |
| 252 0 WHR17399 |
C00331532
481246688956 |
Insulator | Na dotaz | Zadat poptávku | |
| 252 1 WHR17399 |
C00330794
481246368032 |
Damper | Na dotaz | Zadat poptávku | |
| 252 6 WHR17399 |
C00330970
481246668935 |
Damper Thermostat | Na dotaz | Zadat poptávku | |
| 254 0 WHR17399 |
C00269955
481241279236 |
VYPÍNAČ OSVĚTLENÍ | Na dotaz | Zadat poptávku | |
| 254 1 WHR17399 |
C00323374
480132101044 |
Switch door refrigerator | Na dotaz | Zadat poptávku | |
| 255 0 WHR17399 |
C00394073
480132101045 |
Shelf refrigerator | Na dotaz | Zadat poptávku | |
| 255 1 WHR17399 |
C00394074
480132101046 |
Shelf variable | Na dotaz | Zadat poptávku | |
| 255 2 WHR17399 |
C00329890
481241820126 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 257 7 WHR17399 |
C00345704
481246818384 |
Fixation drawer | Na dotaz | Zadat poptávku | |
| 261 2 WHR17399 |
C00330668
481246238313 |
Rail drawer | Na dotaz | Zadat poptávku | |
| 263 0 WHR17399 |
C00330669
481246238315 |
Rail freezing | Na dotaz | Zadat poptávku | |
| 335 0 WHR17399 |
C00329531
481241458322 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 335 1 WHR17399 |
C00329532
481241458323 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 335 5 WHR17399 |
C00318914
481228210311 |
Timer Defrost | Na dotaz | Zadat poptávku | |
| 402 0 WHR17399 |
C00401409
481236039055 |
Compressor TWB 1390 YKS | Na dotaz | Zadat poptávku | |
| 402 1 WHR17399 |
C00327854
481241848968 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 402 2 WHR17399 |
C00330848
481246448247 |
Base Compressor | Na dotaz | Zadat poptávku | |
| 441 0 WHR17399 |
C00328835
481236158514 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 1 WHR17399 |
C00329027
481240438802 |
Support motor | Na dotaz | Zadat poptávku | |
| 441 2 WHR17399 |
C00330795
481246368033 |
Damper | Na dotaz | Zadat poptávku | |
| 442 0 WHR17399 |
C00327582
481228678015 |
Impeller | Na dotaz | Zadat poptávku | |
| 442 1 WHR17399 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
| 443 0 WHR17399 |
C00329157
481240449902 |
Absorber | Na dotaz | Zadat poptávku | |
| 456 1 WHR17399 |
C00326740
481211528014 |
Resistor | Na dotaz | Zadat poptávku | |
| 480 0 WHR17399 |
C00328517
481232128492 |
Cable harness | Na dotaz | Zadat poptávku | |
| 491 2 WHR17399 |
C00330819
481246418232 |
Cover timer | Na dotaz | Zadat poptávku | |
| 554 1 WHR17399 |
C00345723
481249468049 |
Spring knob thermostat | Na dotaz | Zadat poptávku | |
| 561 0 WHR17399 |
C00400367
481221470143 |
Overload prot. | Na dotaz | Zadat poptávku | |
| 562 0 WHR17399 |
C00327543
481228228345 |
Thermofuse | Na dotaz | Zadat poptávku | |
| 566 5 WHR17399 |
C00327556
481228238245 |
Thermostat | Na dotaz | Zadat poptávku | |
| 566 6 WHR17399 |
C00330820
481246418233 |
Casing | Na dotaz | Zadat poptávku | |
| 651 0 WHR17399 |
C00313716
481213418043 |
Lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR17399 |
C00327125
481225518278 |
Holder lamp E14 | Na dotaz | Zadat poptávku | |
| 656 0 WHR17399 |
C00330574
481246228886 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 740 0 WHR17399 |
C00332276
481251148488 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR17399 |
C00329055
481240448941 |
Spacer | Na dotaz | Zadat poptávku | |
| 740 2 WHR17399 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 743 4 WHR17399 |
C00394075
480132101047 |
Grid air | Na dotaz | Zadat poptávku | |
| 745 0 WHR17399 |
C00332216
481251138386 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 1 WHR17399 |
C00327167
481225928971 |
Heating element Evaporator | Na dotaz | Zadat poptávku | |
| 746 0 WHR17399 |
C00328376
481244079338 |
Air regulator | Na dotaz | Zadat poptávku | |
| 746 1 WHR17399 |
C00328377
481244079339 |
Cover | Na dotaz | Zadat poptávku | |
| 764 0 WHR17399 |
C00313426
481248028088 |
Filtr - patronka | 211 Kč
€ 8.30 |
||
| 931 0 WHR17399 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
| 962 0 WHR17399 |
C00330529
481246228669 |
Cap right side | Na dotaz | Zadat poptávku | |
| 962 1 WHR17399 |
C00330532
481246228675 |
Cap | Na dotaz | Zadat poptávku | |
| 965 0 WHR17399 |
C00330683
481246248446 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
| 965 1 WHR17399 |
C00330568
481246228861 |
Cap | Na dotaz | Zadat poptávku | |
| 965 2 WHR17399 |
C00330530
481246228671 |
Cap left side | Na dotaz | Zadat poptávku | |
| 965 3 WHR17399 |
C00280301
481246228888 |
ZÁTKA | Na dotaz | Zadat poptávku | |
| 965 4 WHR17399 |
C00327082
481222608028 |
Krytka/záslepka | 122 Kč
€ 4.80 |
||
