Komerční kód: | ARG 754 REFRIGERATORS WP |
Kód 12NC: | 853475471000 |
Značka: | WHIRLPOOL |
Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

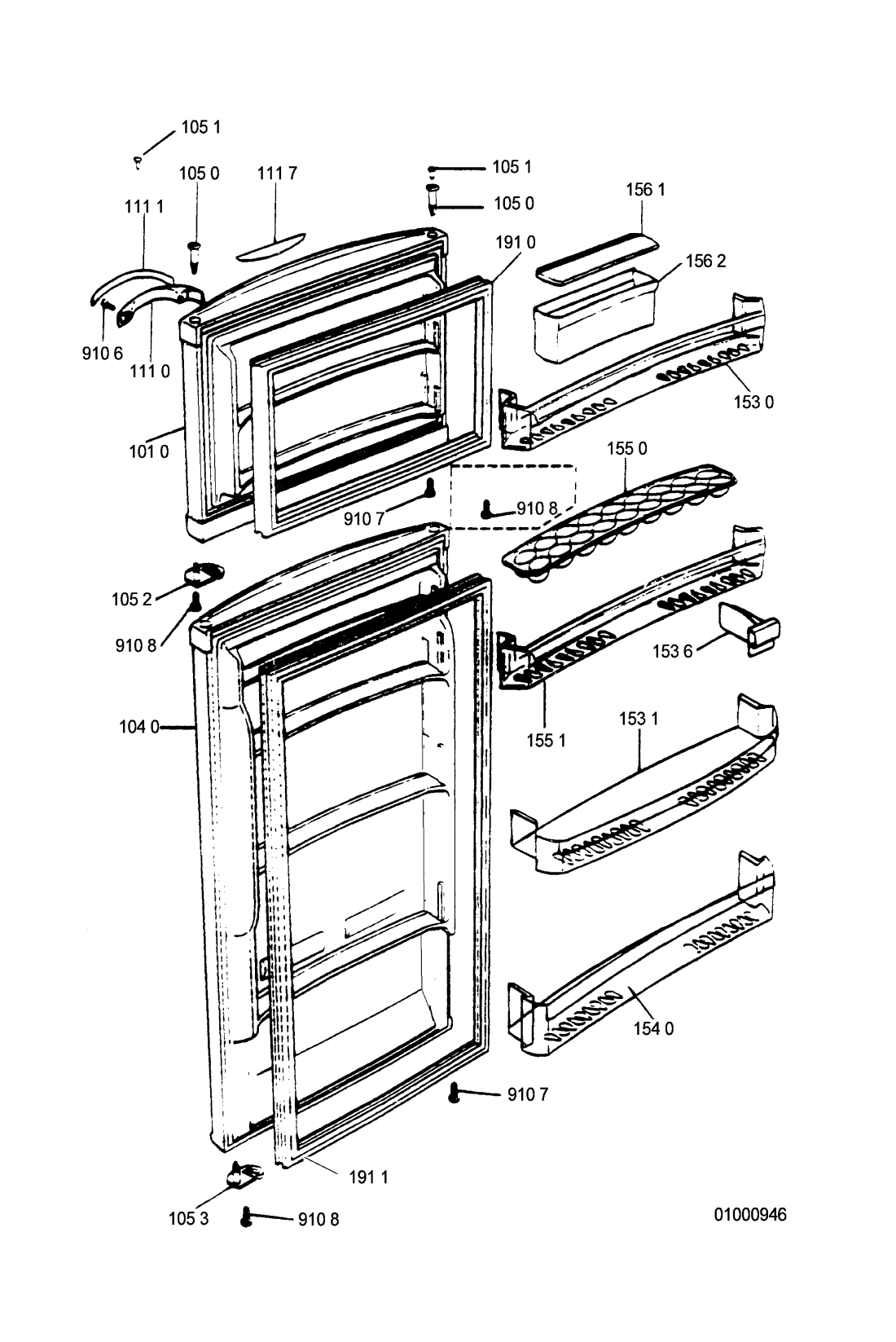

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
011 0 WHR63007 |
C00340800
481246238082 |
Foot | Na dotaz | Zadat poptávku | |
011 1 WHR63007 |
C00636648
481246248061 |
DAMPING PART. | Na dotaz | Zadat poptávku | |
011 2 WHR63007 |
C00336238
481246218185 |
Small plate | Na dotaz | Zadat poptávku | |
012 0 WHR63007 |
C00336795
481252878048 |
Roller | Na dotaz | Zadat poptávku | |
040 0 WHR63007 |
C00583842
481241778019 |
Hinge upper. | Na dotaz | Zadat poptávku | |
040 1 WHR63007 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
040 2 WHR63007 |
C00492120
481253538084 |
Shim | Na dotaz | Zadat poptávku | |
040 3 WHR63007 |
C00583837
481241718852 |
Hinge middle. | Na dotaz | Zadat poptávku | |
040 4 WHR63007 |
C00342472
481246228054 |
Cover hinge | Na dotaz | Zadat poptávku | |
040 5 WHR63007 |
C00488925
481241718853 |
Hinge left | Na dotaz | Zadat poptávku | |
040 6 WHR63007 |
C00336366
481241778022 |
Shim | Na dotaz | Zadat poptávku | |
040 7 WHR63007 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
047 3 WHR63007 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
070 0 WHR63007 |
C00583941
481246488012 |
PANEL. | Na dotaz | Zadat poptávku | |
101 0 WHR63007 |
C00583888
481244268967 |
Door ,freezer. | Na dotaz | Zadat poptávku | |
102 0 WHR63007 |
C00485180
481244228964 |
EVAPOR.DOOR | Na dotaz | Zadat poptávku | |
102 1 WHR63007 |
C00583874
481244228965 |
Cover. | Na dotaz | Zadat poptávku | |
104 0 WHR63007 |
C00583887
481244268966 |
Door ,ref.. | Na dotaz | Zadat poptávku | |
105 0 WHR63007 |
C00344080
481253288011 |
Bushing | Na dotaz | Zadat poptávku | |
105 1 WHR63007 |
C00336004
481253288012 |
zaslepka | 122 Kč
€ 4.80 |
||
105 2 WHR63007 |
C00344085
481253268079 |
Bushing | Na dotaz | Zadat poptávku | |
105 3 WHR63007 |
C00492108
481253268081 |
BUSHING | Na dotaz | Zadat poptávku | |
111 0 WHR63007 |
C00583961
481249818165 |
HANDLE. | Na dotaz | Zadat poptávku | |
111 1 WHR63007 |
C00583962
481249848005 |
Insert. | Na dotaz | Zadat poptávku | |
111 7 WHR63007 |
C00576352
481245918188 |
PLAQUE DE MARQUE.. | Na dotaz | Zadat poptávku | |
153 0 WHR63007 |
C00776614
481241879649 |
SCHROEF VOOR OVENZIJPANEEL | Na dotaz | Zadat poptávku | |
153 1 WHR63007 |
C00489004
481241828034 |
Door dairy | Na dotaz | Zadat poptávku | |
153 6 WHR63007 |
C00491895
481246078892 |
SPACER | Na dotaz | Zadat poptávku | |
154 0 WHR63007 |
C00491687
481241848491 |
Holder bottles | Na dotaz | Zadat poptávku | |
155 0 WHR63007 |
C00583924
481246088236 |
Holder eggs. | Na dotaz | Zadat poptávku | |
155 1 WHR63007 |
C00583855
481241879651 |
Door dairy. | Na dotaz | Zadat poptávku | |
156 0 WHR63007 |
C00335336
481241828031 |
Tray icecube | Na dotaz | Zadat poptávku | |
156 1 WHR63007 |
C00495595
481244228966 |
COVER | Na dotaz | Zadat poptávku | |
156 2 WHR63007 |
C00500821
481241828033 |
zasobnik na led | 564 Kč
€ 22.30 |
||
191 0 WHR63007 |
C00583951
481246818015 |
NAHRADENE 481246818275 | Na dotaz | Zadat poptávku | |
191 1 WHR63007 |
C00529774
481246818016 |
Magnetic seal ref. | Na dotaz | Zadat poptávku | |
201 3 WHR63007 |
C00583802
481232518006 |
INSULATION. | Na dotaz | Zadat poptávku | |
203 0 WHR63007 |
C00338714
481232518003 |
Insulation ,rear | Na dotaz | Zadat poptávku | |
203 0 WHR63007 |
C00342327
481244069029 |
Cover,front | Na dotaz | Zadat poptávku | |
242 0 WHR63007 |
C00342288
481241879647 |
zasuvka na zeleninu | 1 886 Kč
€ 74.50 |
||
242 1 WHR63007 |
C00583826
481240488009 |
Front Crisper. | Na dotaz | Zadat poptávku | |
242 2 WHR63007 |
C00557167
481246238083 |
SLIDE.. | Na dotaz | Zadat poptávku | |
242 3 WHR63007 |
C00336788
481240448673 |
Roller vegetables drawer | Na dotaz | Zadat poptávku | |
242 4 WHR63007 |
C00491545
481240478299 |
SPACER | Na dotaz | Zadat poptávku | |
242 5 WHR63007 |
C00583854
481241879648 |
GRID. | Na dotaz | Zadat poptávku | |
244 0 WHR63007 |
C00485820
481245838028 |
SHELF | Na dotaz | Zadat poptávku | |
244 1 WHR63007 |
C00583844
481241828032 |
DRAWER. | Na dotaz | Zadat poptávku | |
244 2 WHR63007 |
C00495311
481245838031 |
SHELF | Na dotaz | Zadat poptávku | |
244 3 WHR63007 |
C00485821
481245838032 |
Shelf | Na dotaz | Zadat poptávku | |
244 4 WHR63007 |
C00583911
481245838029 |
SHELF. | Na dotaz | Zadat poptávku | |
246 0 WHR63007 |
C00335356
481241828029 |
Tray ,freezer | Na dotaz | Zadat poptávku | |
246 1 WHR63007 |
C00583850
481241848489 |
Shelf ,freezer. | Na dotaz | Zadat poptávku | |
256 0 WHR63007 |
C00583948
481246698945 |
AIR REGULATOR. | Na dotaz | Zadat poptávku | |
261 0 WHR63007 |
C00336930
481246818014 |
Rail right | Na dotaz | Zadat poptávku | |
261 1 WHR63007 |
C00336932
481246218183 |
Rail left | Na dotaz | Zadat poptávku | |
263 0 WHR63007 |
C00336264
481246218184 |
Slide | Na dotaz | Zadat poptávku | |
263 1 WHR63007 |
C00335790
481240448671 |
drzak | 123 Kč
€ 4.90 |
||
301 0 WHR63007 |
C00583903
481245319587 |
Insert. | Na dotaz | Zadat poptávku | |
301 1 WHR63007 |
C00583920
481246078891 |
Front panel. | Na dotaz | Zadat poptávku | |
301 2 WHR63007 |
C00557164
481245228072 |
INTERFACE.. | Na dotaz | Zadat poptávku | |
301 3 WHR63007 |
C00483767
481245298181 |
CONTROL PANEL | Na dotaz | Zadat poptávku | |
304 0 WHR63007 |
C00342450
481225528004 |
Cover lamp | Na dotaz | Zadat poptávku | |
335 0 WHR63007 |
C00583789
481227158162 |
KNOB THERMOSTAT. | Na dotaz | Zadat poptávku | |
402 0 WHR63007 |
C00527334
481236038616 |
COMPRESSOR ,FFI 10 FFI 10 | Na dotaz | Zadat poptávku | |
402 1 WHR63007 |
C00335359
481241879646 |
Tray | Na dotaz | Zadat poptávku | |
402 3 WHR63007 |
C00496275
481246698944 |
Crossbar | Na dotaz | Zadat poptávku | |
402 4 WHR63007 |
C00574987
481253538085 |
Clip. | Na dotaz | Zadat poptávku | |
440 0 WHR63007 |
C00583809
481236138025 |
Motor fan. | Na dotaz | Zadat poptávku | |
440 1 WHR63007 |
C00315086
481246638021 |
Damper fan | Na dotaz | Zadat poptávku | |
443 0 WHR63007 |
C00315305
481236118282 |
Fan | Na dotaz | Zadat poptávku | |
443 1 WHR63007 |
C00335783
481246048881 |
Support Ventilator | Na dotaz | Zadat poptávku | |
451 0 WHR63007 |
C00553333
481225948109 |
ELEMENT DEFROST | Na dotaz | Zadat poptávku | |
480 0 WHR63007 |
C00583795
481232058042 |
CABLE HARNESS. | Na dotaz | Zadat poptávku | |
482 0 WHR63007 |
C00583779
481219808002 |
Cable mains. | Na dotaz | Zadat poptávku | |
491 0 WHR63007 |
C00498415
481246279703 |
Cover Relay. | Na dotaz | Zadat poptávku | |
500 0 WHR63007 |
C00482533
481227158163 |
CONTROL BOARD | Na dotaz | Zadat poptávku | |
500 1 WHR63007 |
C00342539
481244028945 |
Cover Control board | Na dotaz | Zadat poptávku | |
566 0 WHR63007 |
C00319312
481228238041 |
Thermostat | Na dotaz | Zadat poptávku | |
566 1 WHR63007 |
C00339546
481246048885 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
566 2 WHR63007 |
C00314686
481228238042 |
termostat | 1 877 Kč
€ 74.10 |
||
566 3 WHR63007 |
C00498670
481253548011 |
Bracket. | Na dotaz | Zadat poptávku | |
614 0 WHR63007 |
C00495590
481228028012 |
Relay + overload | Na dotaz | Zadat poptávku | |
651 0 WHR63007 |
C00341807
481213428061 |
Lamp220V | Na dotaz | Zadat poptávku | |
652 0 WHR63007 |
C00557158
481225528005 |
HOLDER,LAMP.. | Na dotaz | Zadat poptávku | |
652 2 WHR63007 |
C00342197
481246228056 |
Deflector | Na dotaz | Zadat poptávku | |
652 3 WHR63007 |
C00342514
481246098006 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
652 7 WHR63007 |
C00342198
481246228057 |
Deflector | Na dotaz | Zadat poptávku | |
691 0 WHR63007 |
C00336525
481228268021 |
Sensor kit | Na dotaz | Zadat poptávku | |
740 0 WHR63007 |
C00583969
481251148216 |
Condenser. | Na dotaz | Zadat poptávku | |
740 1 WHR63007 |
C00621451
481246698943 |
BRACKET. | Na dotaz | Zadat poptávku | |
740 2 WHR63007 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
743 0 WHR63007 |
C00498501
481248028035 |
difuzor | 214 Kč
€ 8.40 |
||
743 1 WHR63007 |
C00335877
481246048884 |
Support | Na dotaz | Zadat poptávku | |
743 4 WHR63007 |
C00485134
481244078918 |
Cover | Na dotaz | Zadat poptávku | |
745 0 WHR63007 |
C00583966
481251138125 |
EVAPORATOR. | Na dotaz | Zadat poptávku | |
745 1 WHR63007 |
C00339197
481244228963 |
Housing Evaporator | Na dotaz | Zadat poptávku | |
745 2 WHR63007 |
C00583803
481232588007 |
Insulation. | Na dotaz | Zadat poptávku | |
745 3 WHR63007 |
C00583801
481232518005 |
Cover rubber. | Na dotaz | Zadat poptávku | |
745 4 WHR63007 |
C00335834
481253598061 |
Support Evaporator | Na dotaz | Zadat poptávku | |
745 7 WHR63007 |
C00493355
481240448672 |
Shim Tray,evaporator | Na dotaz | Zadat poptávku | |
760 0 WHR63007 |
C00344625
481249038001 |
Air clean filt. | Na dotaz | Zadat poptávku | |
760 1 WHR63007 |
C00319191
481246048883 |
Support Air clean filt. | Na dotaz | Zadat poptávku | |
764 0 WHR63007 |
C00583958
481248028036 |
DRYER. | Na dotaz | Zadat poptávku | |
765 2 WHR63007 |
C00342370
481244069031 |
Cover rear | Na dotaz | Zadat poptávku | |
765 2 WHR63007 |
C00527316
481232518004 |
Insulation front | Na dotaz | Zadat poptávku | |
765 3 WHR63007 |
C00343377
481246048882 |
Clamp Cover | Na dotaz | Zadat poptávku | |
781 0 WHR63007 |
C00583976
481253028948 |
TUBE. | Na dotaz | Zadat poptávku | |
900 0 WHR63007 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
900 2 WHR63007 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
910 0 WHR63007 |
C00492137
481256018017 |
SCREW | Na dotaz | Zadat poptávku | |
910 1 WHR63007 |
C00492138
481256018018 |
SCREW | Na dotaz | Zadat poptávku | |
910 3 WHR63007 |
C00583987
481256018019 |
SCREW. | Na dotaz | Zadat poptávku | |
910 6 WHR63007 |
C00492139
481256018021 |
SCREW | Na dotaz | Zadat poptávku | |
910 7 WHR63007 |
C00336667
481256018022 |
Screw | Na dotaz | Zadat poptávku | |
910 8 WHR63007 |
C00336668
481256018023 |
Screw | Na dotaz | Zadat poptávku | |
965 0 WHR63007 |
C00583927
481246228055 |
STOPPER. | Na dotaz | Zadat poptávku | |
965 3 WHR63007 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
999 WHR63009 |
C00679062 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku |
