| Komerční kód: | WBM 482/1 REFRIGERATORS WP |
| Kód 12NC: | 853477442100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 853477465100 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

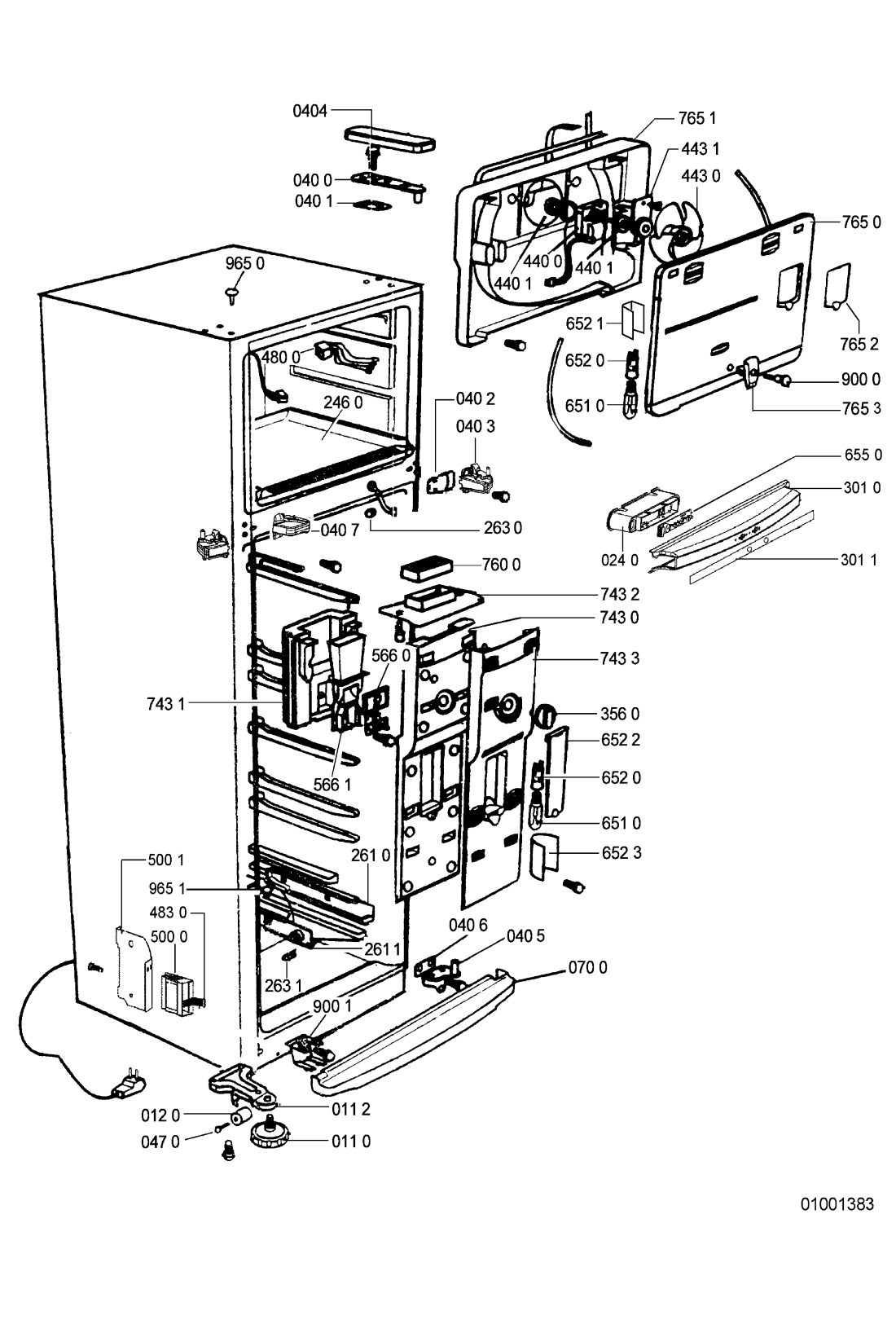

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR55958 |
C00330451
481246218246 |
Foot | Na dotaz | Zadat poptávku | |
| 011 2 WHR55958 |
C00336238
481246218185 |
Small plate | Na dotaz | Zadat poptávku | |
| 012 0 WHR55958 |
C00336795
481252878048 |
Roller | Na dotaz | Zadat poptávku | |
| 024 0 WHR55958 |
C00344521
481246418082 |
Base | Na dotaz | Zadat poptávku | |
| 024 1 WHR55958 |
C00584605
481244229186 |
Cover,rear. | Na dotaz | Zadat poptávku | |
| 024 2 WHR55958 |
C00584837
481252448012 |
Damping part. | Na dotaz | Zadat poptávku | |
| 040 0 WHR55958 |
C00339759
481241719138 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 1 WHR55958 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR55958 |
C00336361
481241778103 |
Shim Hinge | Na dotaz | Zadat poptávku | |
| 040 3 WHR55958 |
C00339789
481241719092 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 4 WHR55958 |
C00342472
481246228054 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 040 5 WHR55958 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 6 WHR55958 |
C00336366
481241778022 |
Shim | Na dotaz | Zadat poptávku | |
| 040 7 WHR55958 |
C00339846
481241719094 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR55958 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
| 070 0 WHR55958 |
C00337692
481244089045 |
Plinth | Na dotaz | Zadat poptávku | |
| 101 0 WHR55958 |
C00339084
481241618883 |
Door freezer | Na dotaz | Zadat poptávku | |
| 102 0 WHR55958 |
C00317498
481244229195 |
Flap evap. door | Na dotaz | Zadat poptávku | |
| 102 1 WHR55958 |
C00342548
481246218268 |
Cover cold room | Na dotaz | Zadat poptávku | |
| 104 0 WHR55958 |
C00484845
481241619167 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 105 0 WHR55958 |
C00344080
481253288011 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 1 WHR55958 |
C00336004
481253288012 |
zaslepka | 122 Kč
€ 4.80 |
||
| 105 2 WHR55958 |
C00344061
481246228181 |
Bushing white | Na dotaz | Zadat poptávku | |
| 105 3 WHR55958 |
C00498375
481246228179 |
Bushing right,white. | Na dotaz | Zadat poptávku | |
| 105 4 WHR55958 |
C00341393
481240018063 |
Door revers.Kit | Na dotaz | Zadat poptávku | |
| 111 0 WHR55958 |
C00487767
481249818234 |
Handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR55958 |
C00621464
481249818225 |
Insert handle/right. | Na dotaz | Zadat poptávku | |
| 111 2 WHR55958 |
C00490178
481249818226 |
Insert handle/left | Na dotaz | Zadat poptávku | |
| 111 3 WHR55958 |
C00342485
481246818304 |
Cover handle | Na dotaz | Zadat poptávku | |
| 111 4 WHR55958 |
C00341606
481245918238 |
Nameplate | Na dotaz | Zadat poptávku | |
| 153 0 WHR55958 |
C00341350
481246228535 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 153 1 WHR55958 |
C00339318
481246228534 |
police | 1 770 Kč
€ 69.90 |
||
| 153 2 WHR55958 |
C00336508
481246228532 |
drzak lahvi-posuvny | 107 Kč
€ 4.20 |
||
| 154 0 WHR55958 |
C00498385
481246228571 |
Door dairy bottles. | Na dotaz | Zadat poptávku | |
| 154 1 WHR55958 |
C00584739
481246228417 |
Shelf. | Na dotaz | Zadat poptávku | |
| 154 2 WHR55958 |
C00495600
481246428038 |
Shelf | Na dotaz | Zadat poptávku | |
| 155 0 WHR55958 |
C00339319
481246228529 |
Police na vajíčka | Na dotaz | Zadat poptávku | |
| 156 0 WHR55958 |
C00335336
481241828031 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 156 1 WHR55958 |
C00330418
481246088297 |
Rack egg | Na dotaz | Zadat poptávku | |
| 156 2 WHR55958 |
C00336505
481246228528 |
Separator Crisper | Na dotaz | Zadat poptávku | |
| 156 3 WHR55958 |
C00500821
481241828033 |
zasobnik na led | 564 Kč
€ 22.30 |
||
| 156 4 WHR55958 |
C00495592
481241728082 |
viko zasobniku na led | 203 Kč
€ 8.00 |
||
| 156 5 WHR55958 |
C00327910
481241889016 |
Holder can | Na dotaz | Zadat poptávku | |
| 191 1 WHR55958 |
C00320067
481246818273 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
| 191 2 WHR55958 |
C00317005
481246818272 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| 242 0 WHR55958 |
C00342288
481241879647 |
zasuvka na zeleninu | 1 886 Kč
€ 74.50 |
||
| 242 1 WHR55958 |
C00340674
481244229168 |
celo zasuvky na zel. | 1 900 Kč
€ 75.00 |
||
| 242 3 WHR55958 |
C00336788
481240448673 |
Roller vegetables drawer | Na dotaz | Zadat poptávku | |
| 244 1 WHR55958 |
C00336399
481246228434 |
Shelf | Na dotaz | Zadat poptávku | |
| 244 2 WHR55958 |
C00336384
481246228572 |
Shelf glass | Na dotaz | Zadat poptávku | |
| 244 3 WHR55958 |
C00498038
481244229197 |
Cover crisper. | Na dotaz | Zadat poptávku | |
| 246 0 WHR55958 |
C00335356
481241828029 |
Tray ,freezer | Na dotaz | Zadat poptávku | |
| 246 1 WHR55958 |
C00336387
481244229169 |
Shelf Freezing | Na dotaz | Zadat poptávku | |
| 261 0 WHR55958 |
C00484762
481240418166 |
Rail right | Na dotaz | Zadat poptávku | |
| 261 1 WHR55958 |
C00336932
481246218183 |
Rail left | Na dotaz | Zadat poptávku | |
| 263 0 WHR55958 |
C00335790
481240448671 |
drzak | 123 Kč
€ 4.90 |
||
| 263 1 WHR55958 |
C00336264
481246218184 |
Slide | Na dotaz | Zadat poptávku | |
| 301 0 WHR55958 |
C00343722
481246428028 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 1 WHR55958 |
C00342033
481245228457 |
Panel | Na dotaz | Zadat poptávku | |
| 356 0 WHR55958 |
C00338529
481241278947 |
Knob | Na dotaz | Zadat poptávku | |
| 402 0 WHR55958 |
C00482814
481236138096 |
Compressor TPH 1390YXC 220-240V/50Hz | Na dotaz | Zadat poptávku | |
| 402 1 WHR55958 |
C00489106
481241879798 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 402 2 WHR55958 |
C00497502
481236038844 |
Clip. | Na dotaz | Zadat poptávku | |
| 402 3 WHR55958 |
C00331559
481246699005 |
Base compressor | Na dotaz | Zadat poptávku | |
| 420 0 WHR55958 |
C00342800
481212108241 |
Capacitor | Na dotaz | Zadat poptávku | |
| 440 0 WHR55958 |
C00341646
481236118394 |
Motor,fan220V/240V AC 300R | Na dotaz | Zadat poptávku | |
| 440 1 WHR55958 |
C00315086
481246638021 |
Damper fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR55958 |
C00315305
481236118282 |
Fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR55958 |
C00335783
481246048881 |
Support Ventilator | Na dotaz | Zadat poptávku | |
| 451 0 WHR55958 |
C00341144
481251158014 |
Element defrost 220V - 225W | Na dotaz | Zadat poptávku | |
| 480 0 WHR55958 |
C00343501
481201978807 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 483 0 WHR55958 |
C00343502
481201978819 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 500 0 WHR55958 |
C00482502
481221838164 |
Control board | Na dotaz | Zadat poptávku | |
| 500 1 WHR55958 |
C00517543
481244029449 |
Protector module | Na dotaz | Zadat poptávku | |
| 566 0 WHR55958 |
C00497367
481228238122 |
Thermostat | Na dotaz | Zadat poptávku | |
| 566 1 WHR55958 |
C00339546
481246048885 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 566 2 WHR55958 |
C00314686
481228238042 |
termostat | 1 877 Kč
€ 74.10 |
||
| 614 0 WHR55958 |
C00584402
481228028036 |
Relay & overload TPH 1390YXC | Na dotaz | Zadat poptávku | |
| 651 0 WHR55958 |
C00341807
481213428061 |
Lamp220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR55958 |
C00339579
481225528011 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 652 1 WHR55958 |
C00342197
481246228056 |
Deflector | Na dotaz | Zadat poptávku | |
| 652 2 WHR55958 |
C00342514
481246098006 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 652 3 WHR55958 |
C00342198
481246228057 |
Deflector | Na dotaz | Zadat poptávku | |
| 655 0 WHR55958 |
C00313453
481227138456 |
panel ovladaci chl. | 3 086 Kč
€ 121.80 |
||
| 691 0 WHR55958 |
C00336525
481228268021 |
Sensor kit | Na dotaz | Zadat poptávku | |
| 702 0 WHR55958 |
C00493679
481252648181 |
Tube service | Na dotaz | Zadat poptávku | |
| 740 0 WHR55958 |
C00517554
481251148325 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR55958 |
C00330489
481246228394 |
Holder Condenser | Na dotaz | Zadat poptávku | |
| 740 2 WHR55958 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
| 743 0 WHR55958 |
C00498501
481248028035 |
difuzor | 214 Kč
€ 8.40 |
||
| 743 1 WHR55958 |
C00335877
481246048884 |
Support | Na dotaz | Zadat poptávku | |
| 743 2 WHR55958 |
C00319191
481246048883 |
Support Air clean filt. | Na dotaz | Zadat poptávku | |
| 743 3 WHR55958 |
C00342908
481240018066 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| 745 0 WHR55958 |
C00341099
481251138149 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 1 WHR55958 |
C00339197
481244228963 |
Housing Evaporator | Na dotaz | Zadat poptávku | |
| 745 4 WHR55958 |
C00335834
481253598061 |
Support Evaporator | Na dotaz | Zadat poptávku | |
| 760 0 WHR55958 |
C00344625
481249038001 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 764 0 WHR55958 |
C00345711
481248028051 |
Dryer | Na dotaz | Zadat poptávku | |
| 765 0 WHR55958 |
C00342488
481246228392 |
Cover front Evaporator | Na dotaz | Zadat poptávku | |
| 765 1 WHR55958 |
C00584581
481244069297 |
Cover rear evaporator. | Na dotaz | Zadat poptávku | |
| 765 2 WHR55958 |
C00342450
481225528004 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 765 3 WHR55958 |
C00343377
481246048882 |
Clamp Cover | Na dotaz | Zadat poptávku | |
| 900 0 WHR55958 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
| 900 1 WHR55958 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 965 0 WHR55958 |
C00342336
481244229065 |
Cover white | Na dotaz | Zadat poptávku | |
| 965 1 WHR55958 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR55958 |
C00667300 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
