| Komerční kód: | WBM 550/IX |
| Kód 12NC: | 850143463040 |
| I.C. kód: | 850143463041 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850143579040, 850143442140 |
Potřebujete servis? Jsme tady pro Vás

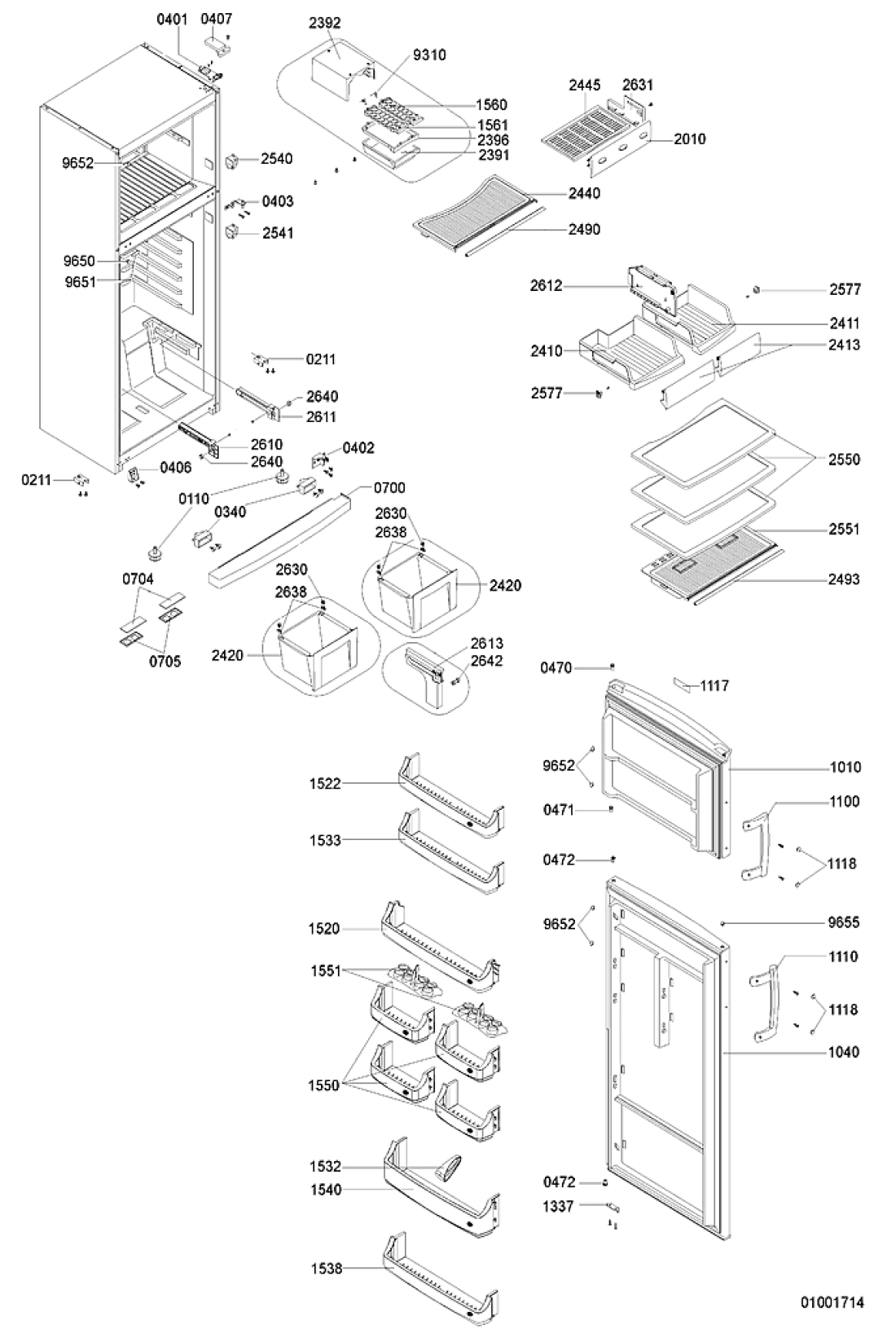

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR17451 |
C00270036
481246218305 |
FOOT - ADJUSTABLE | Na dotaz | Zadat poptávku | |
| 012 1 WHR17451 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 012 2 WHR17451 |
C00332729
481253578083 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 021 1 WHR17451 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
| 034 0 WHR17451 |
C00329017
481240438739 |
Holder plinth | Na dotaz | Zadat poptávku | |
| 040 1 WHR17451 |
C00377660
481241719458 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR17451 |
C00329762
481241719459 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR17451 |
C00377661
481241719461 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 6 WHR17451 |
C00330465
481246218306 |
Support foot | Na dotaz | Zadat poptávku | |
| 040 7 WHR17451 |
C00403233
481244029541 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR17451 |
C00403721
481244688164 |
Bushing | Na dotaz | Zadat poptávku | |
| 047 1 WHR17451 |
C00403722
481244688165 |
Bushing | Na dotaz | Zadat poptávku | |
| 047 2 WHR17451 |
C00377729
481244688166 |
Bushing | Na dotaz | Zadat poptávku | |
| 070 0 WHR17451 |
C00403578
481244089166 |
Plinth | Na dotaz | Zadat poptávku | |
| 070 4 WHR17451 |
C00405258
481248058396 |
Filter | Na dotaz | Zadat poptávku | |
| 070 5 WHR17451 |
C00405297
481248128188 |
Filter body | Na dotaz | Zadat poptávku | |
| 101 0 WHR17451 |
C00402549
481241610333 |
Door freezer mechanic | Na dotaz | Zadat poptávku | |
| 104 0 WHR17451 |
C00377640
481241610334 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 110 0 WHR17451 |
C00405344
481249818731 |
Door handle freezer | Na dotaz | Zadat poptávku | |
| 111 0 WHR17451 |
C00377838
481249818732 |
Dveře | 1 542 Kč
€ 60.90 |
||
| 111 7 WHR17451 |
C00330203
481245918277 |
Nameplate | Na dotaz | Zadat poptávku | |
| 111 8 WHR17451 |
C00405166
481246818383 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 133 7 WHR17451 |
C00329805
481241778139 |
Stop door | Na dotaz | Zadat poptávku | |
| 152 0 WHR17451 |
C00403006
481241829839 |
Door dairy | Na dotaz | Zadat poptávku | |
| 152 2 WHR17451 |
C00377685
481241829841 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 2 WHR17451 |
C00327730
481241829843 |
Separator | Na dotaz | Zadat poptávku | |
| 153 3 WHR17451 |
C00377687
481241829858 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 8 WHR17451 |
C00403013
481241829859 |
Door dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR17451 |
C00403014
481241829861 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 155 0 WHR17451 |
C00403007
481241829842 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 155 1 WHR17451 |
C00327731
481241829844 |
Egg trim | Na dotaz | Zadat poptávku | |
| 156 0 WHR17451 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
| 156 1 WHR17451 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
| 201 0 WHR17451 |
C00403008
481241829847 |
Flap f. freezing | Na dotaz | Zadat poptávku | |
| 239 1 WHR17451 |
C00327734
481241829848 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 239 2 WHR17451 |
C00327735
481241829849 |
Panel icemaker | Na dotaz | Zadat poptávku | |
| 239 6 WHR17451 |
C00328988
481240418578 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
| 241 0 WHR17451 |
C00327736
481241829851 |
Drawer left | Na dotaz | Zadat poptávku | |
| 241 1 WHR17451 |
C00403009
481241829852 |
Drawer right | Na dotaz | Zadat poptávku | |
| 241 3 WHR17451 |
C00327737
481241829853 |
Flap drawer | Na dotaz | Zadat poptávku | |
| 242 0 WHR17451 |
C00403010
481241829854 |
Crisper | Na dotaz | Zadat poptávku | |
| 244 0 WHR17451 |
C00377686
481241829855 |
Shelf | Na dotaz | Zadat poptávku | |
| 244 5 WHR17451 |
C00403011
481241829856 |
Shelf | Na dotaz | Zadat poptávku | |
| 249 0 WHR17451 |
C00377817
481246488052 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 249 2 WHR17451 |
C00405044
481246488053 |
Trim condenser | Na dotaz | Zadat poptávku | |
| 249 3 WHR17451 |
C00405045
481246488054 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 251 0 WHR17451 |
C00328842
481238028035 |
Reflector | Na dotaz | Zadat poptávku | |
| 252 0 WHR17451 |
C00331532
481246688956 |
Insulator | Na dotaz | Zadat poptávku | |
| 252 2 WHR17451 |
C00330794
481246368032 |
Damper | Na dotaz | Zadat poptávku | |
| 252 6 WHR17451 |
C00405080
481246668917 |
Damper thermostat | Na dotaz | Zadat poptávku | |
| 254 0 WHR17451 |
C00269955
481241279236 |
VYPÍNAČ OSVĚTLENÍ | Na dotaz | Zadat poptávku | |
| 254 1 WHR17451 |
C00400927
481227618524 |
Switch door | Na dotaz | Zadat poptávku | |
| 255 0 WHR17451 |
C00403857
481245088452 |
glass shelf | Na dotaz | Zadat poptávku | |
| 255 1 WHR17451 |
C00403012
481241829857 |
Cover plate crisper | Na dotaz | Zadat poptávku | |
| 257 7 WHR17451 |
C00345704
481246818384 |
Fixation drawer | Na dotaz | Zadat poptávku | |
| 261 0 WHR17451 |
C00269971
481246238311 |
Rail crisper | Na dotaz | Zadat poptávku | |
| 261 1 WHR17451 |
C00269970
481246238312 |
RUNNER DRAWER/CHILLER | Na dotaz | Zadat poptávku | |
| 261 2 WHR17451 |
C00330668
481246238313 |
Rail drawer | Na dotaz | Zadat poptávku | |
| 261 3 WHR17451 |
C00404878
481246238314 |
Rail crisper | Na dotaz | Zadat poptávku | |
| 263 0 WHR17451 |
C00269972
481252048012 |
KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 263 1 WHR17451 |
C00330669
481246238315 |
Rail freezing | Na dotaz | Zadat poptávku | |
| 263 8 WHR17451 |
C00269973
481240449772 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 264 0 WHR17451 |
C00269969
481252048013 |
KOLEČKO DRAWER CHILLER | Na dotaz | Zadat poptávku | |
| 264 2 WHR17451 |
C00269974
481252048014 |
KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 335 0 WHR17451 |
C00329531
481241458322 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 335 1 WHR17451 |
C00329532
481241458323 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 335 5 WHR17451 |
C00318914
481228210311 |
Timer Defrost | Na dotaz | Zadat poptávku | |
| 402 0 WHR17451 |
C00401409
481236039055 |
Compressor TWB 1390 YKS | Na dotaz | Zadat poptávku | |
| 402 1 WHR17451 |
C00327847
481241848927 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 441 0 WHR17451 |
C00328834
481236158483 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 2 WHR17451 |
C00329027
481240438802 |
Support motor | Na dotaz | Zadat poptávku | |
| 441 3 WHR17451 |
C00327581
481228678013 |
Impeller | Na dotaz | Zadat poptávku | |
| 441 5 WHR17451 |
C00402053
481240449773 |
Absorber | Na dotaz | Zadat poptávku | |
| 441 6 WHR17451 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
| 442 7 WHR17451 |
C00330795
481246368033 |
Damper | Na dotaz | Zadat poptávku | |
| 456 1 WHR17451 |
C00269914
481211528011 |
TERMOSTAT BIMETALOVÝ | Na dotaz | Zadat poptávku | |
| 491 2 WHR17451 |
C00330819
481246418232 |
Cover timer | Na dotaz | Zadat poptávku | |
| 554 1 WHR17451 |
C00345723
481249468049 |
Spring knob thermostat | Na dotaz | Zadat poptávku | |
| 561 0 WHR17451 |
C00400367
481221470143 |
Overload prot. | Na dotaz | Zadat poptávku | |
| 562 0 WHR17451 |
C00327543
481228228345 |
Thermofuse | Na dotaz | Zadat poptávku | |
| 566 5 WHR17451 |
C00327556
481228238245 |
Thermostat | Na dotaz | Zadat poptávku | |
| 566 6 WHR17451 |
C00330820
481246418233 |
Casing | Na dotaz | Zadat poptávku | |
| 651 0 WHR17451 |
C00313716
481213418043 |
Lamp | Na dotaz | Zadat poptávku | |
| 652 1 WHR17451 |
C00327125
481225518278 |
Holder lamp E14 | Na dotaz | Zadat poptávku | |
| 656 0 WHR17451 |
C00330574
481246228886 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 740 0 WHR17451 |
C00405514
481251148457 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 3 WHR17451 |
C00329055
481240448941 |
Spacer | Na dotaz | Zadat poptávku | |
| 743 4 WHR17451 |
C00403548
481244079272 |
Air guide | Na dotaz | Zadat poptávku | |
| 745 0 WHR17451 |
C00269885
481251138361 |
VÝPARNÍK MRAZNIČKY MTZ521NF/HA | Na dotaz | Zadat poptávku | |
| 745 4 WHR17451 |
C00402054
481240449774 |
Holder evaporator | Na dotaz | Zadat poptávku | |
| 746 1 WHR17451 |
C00403549
481244079273 |
Cover Air guide | Na dotaz | Zadat poptávku | |
| 746 2 WHR17451 |
C00403550
481244079274 |
Air regulator | Na dotaz | Zadat poptávku | |
| 764 0 WHR17451 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 900 1 WHR17451 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 900 2 WHR17451 |
C00405005
481246448228 |
Base compressor | Na dotaz | Zadat poptávku | |
| 903 3 WHR17451 |
C00328517
481232128492 |
Cable harness | Na dotaz | Zadat poptávku | |
| 931 0 WHR17451 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
| 965 0 WHR17451 |
C00404887
481246248442 |
Cap for hole door handle | Na dotaz | Zadat poptávku | |
| 965 1 WHR17451 |
C00404888
481246248443 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
| 965 2 WHR17451 |
C00281810
481246248444 |
ZÁTKA KRYTKA ŠROUBU | Na dotaz | Zadat poptávku | |
| 965 5 WHR17451 |
C00404889
481246248445 |
Cover bushing | Na dotaz | Zadat poptávku | |
