WHIRLPOOL WBM 650/IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WBM 650/IX |
| Kód 12NC: | 850143842040 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850144586040, 850143863041, 850143979040 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

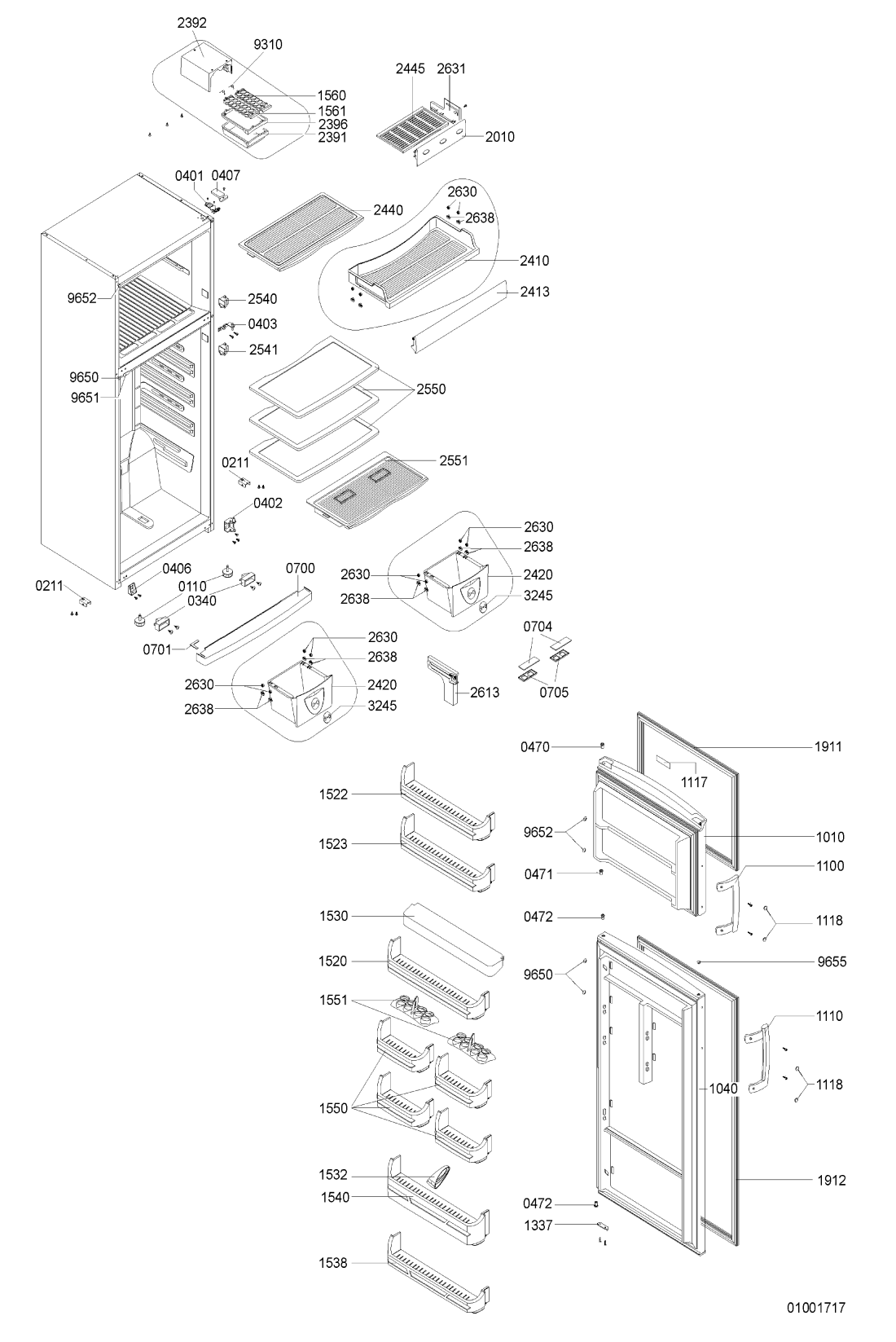

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR59929 |
C00270036
481246218305 |
FOOT - ADJUSTABLE | Na dotaz | Zadat poptávku | |
| 0121 WHR59929 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 0122 WHR59929 |
C00332729
481253578083 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 0211 WHR59929 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
| 0340 WHR59929 |
C00329017
481240438739 |
Holder plinth | Na dotaz | Zadat poptávku | |
| 0401 WHR59929 |
C00377660
481241719458 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 0402 WHR59929 |
C00329762
481241719459 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 0403 WHR59929 |
C00377661
481241719461 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 0406 WHR59929 |
C00330465
481246218306 |
Support foot | Na dotaz | Zadat poptávku | |
| 0407 WHR59929 |
C00403233
481244029541 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 0470 WHR59929 |
C00403723
481244688167 |
Bushing | Na dotaz | Zadat poptávku | |
| 0471 WHR59929 |
C00403722
481244688165 |
Bushing | Na dotaz | Zadat poptávku | |
| 0472 WHR59929 |
C00377729
481244688166 |
Bushing | Na dotaz | Zadat poptávku | |
| 0700 WHR59929 |
C00377703
481244029542 |
Plinth | Na dotaz | Zadat poptávku | |
| 0701 WHR59929 |
C00403579
481244089167 |
Cover bar plinth | Na dotaz | Zadat poptávku | |
| 0704 WHR59929 |
C00405258
481248058396 |
Filter | Na dotaz | Zadat poptávku | |
| 0705 WHR59929 |
C00405297
481248128188 |
Filter body | Na dotaz | Zadat poptávku | |
| 1010 WHR59929 |
C00402551
481241610337 |
Door freezer | Na dotaz | Zadat poptávku | |
| 1040 WHR59929 |
C00377641
481241610338 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 1100 WHR59929 |
C00405344
481249818731 |
Door handle freezer | Na dotaz | Zadat poptávku | |
| 1110 WHR59929 |
C00377838
481249818732 |
Dveře | 1 542 Kč
€ 60.90 |
||
| 1117 WHR59929 |
C00330203
481245918277 |
Nameplate | Na dotaz | Zadat poptávku | |
| 1118 WHR59929 |
C00405166
481246818383 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 1337 WHR59929 |
C00329805
481241778139 |
Stop door | Na dotaz | Zadat poptávku | |
| 1520 WHR59929 |
C00377688
481241829863 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1522 WHR59929 |
C00403015
481241829864 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1523 WHR59929 |
C00548539
481241829865 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1530 WHR59929 |
C00377689
481241829866 |
Flap f. door dairy | Na dotaz | Zadat poptávku | |
| 1532 WHR59929 |
C00403016
481241829867 |
Separator | Na dotaz | Zadat poptávku | |
| 1538 WHR59929 |
C00403017
481241829868 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1540 WHR59929 |
C00548540
481241829869 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 1550 WHR59929 |
C00403018
481241829871 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 1551 WHR59929 |
C00403051
481241848929 |
Egg trim | Na dotaz | Zadat poptávku | |
| 1560 WHR59929 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
| 1561 WHR59929 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
| 1911 WHR59929 |
C00405133
481246688962 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| 1912 WHR59929 |
C00405134
481246688963 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
| 2010 WHR59929 |
C00403553
481244079291 |
Cover freezing | Na dotaz | Zadat poptávku | |
| 2391 WHR59929 |
C00327734
481241829848 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 2392 WHR59929 |
C00327735
481241829849 |
Panel icemaker | Na dotaz | Zadat poptávku | |
| 2396 WHR59929 |
C00328988
481240418578 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
| 2410 WHR59929 |
C00403019
481241829872 |
Shelf | Na dotaz | Zadat poptávku | |
| 2413 WHR59929 |
C00403020
481241829873 |
Flap f. shelf | Na dotaz | Zadat poptávku | |
| 2420 WHR59929 |
C00280342
481241829874 |
SCHRÁNKA NA ZELENINU | Na dotaz | Zadat poptávku | |
| 2440 WHR59929 |
C00280314
481241829875 |
DVEŘNÍ PŘIHRÁDKA FREEZER | Na dotaz | Zadat poptávku | |
| 2445 WHR59929 |
C00280313
481241829876 |
DVEŘNÍ PŘIHRÁDKA SUPER FREEZER | Na dotaz | Zadat poptávku | |
| 2472 WHR59929 |
C00402155
481240478857 |
Cover | Na dotaz | Zadat poptávku | |
| 2492 WHR59929 |
C00405046
481246488055 |
Trim condenser | Na dotaz | Zadat poptávku | |
| 2510 WHR59929 |
C00401779
481238028036 |
Reflector | Na dotaz | Zadat poptávku | |
| 2511 WHR59929 |
C00280305
481244079278 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 2520 WHR59929 |
C00405131
481246688958 |
Insulation | Na dotaz | Zadat poptávku | |
| 2521 WHR59929 |
C00403551
481244079279 |
Conveyor | Na dotaz | Zadat poptávku | |
| 2522 WHR59929 |
C00405132
481246688959 |
Dumper | Na dotaz | Zadat poptávku | |
| 2526 WHR59929 |
C00405080
481246668917 |
Damper thermostat | Na dotaz | Zadat poptávku | |
| 2540 WHR59929 |
C00269955
481241279236 |
VYPÍNAČ OSVĚTLENÍ | Na dotaz | Zadat poptávku | |
| 2541 WHR59929 |
C00400927
481227618524 |
Switch door | Na dotaz | Zadat poptávku | |
| 2550 WHR59929 |
C00403858
481245088454 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 2551 WHR59929 |
C00403859
481245088455 |
Cover plate crisper | Na dotaz | Zadat poptávku | |
| 2613 WHR59929 |
C00280303
481246238316 |
ODDĚLOVAČ PROSTOR BÍLÝ | Na dotaz | Zadat poptávku | |
| 2630 WHR59929 |
C00280318
481252028189 |
KOLEČKO DRAWER CHILLER | Na dotaz | Zadat poptávku | |
| 2631 WHR59929 |
C00330669
481246238315 |
Rail freezing | Na dotaz | Zadat poptávku | |
| 2638 WHR59929 |
C00269973
481240449772 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 3245 WHR59929 |
C00402511
481241378791 |
Air regulator | Na dotaz | Zadat poptávku | |
| 3249 WHR59929 |
C00306365
481244079281 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 3250 WHR59929 |
C00306366
481244079282 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 3251 WHR59929 |
C00306361
481244079283 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 3252 WHR59929 |
C00280310
481244079284 |
MULTIFLOW PRAVY | Na dotaz | Zadat poptávku | |
| 3253 WHR59929 |
C00280311
481244079285 |
MULTIFLOW LEVY | Na dotaz | Zadat poptávku | |
| 3254 WHR59929 |
C00280312
481244079286 |
MULTIFLOW PŘÍČNÝCH | Na dotaz | Zadat poptávku | |
| 3350 WHR59929 |
C00402524
481241458324 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 3351 WHR59929 |
C00329532
481241458323 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 3355 WHR59929 |
C00318914
481228210311 |
Timer Defrost | Na dotaz | Zadat poptávku | |
| 4020 WHR59929 |
C00401409
481236039055 |
Compressor TWB 1390 YKS | Na dotaz | Zadat poptávku | |
| 4021 WHR59929 |
C00403050
481241848928 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 4410 WHR59929 |
C00280290
481236158485 |
VENTILÁTOR S MOTOREM | Na dotaz | Zadat poptávku | |
| 4412 WHR59929 |
C00329027
481240438802 |
Support motor | Na dotaz | Zadat poptávku | |
| 4413 WHR59929 |
C00280291
481228678014 |
VRTULE | Na dotaz | Zadat poptávku | |
| 4415 WHR59929 |
C00402053
481240449773 |
Absorber | Na dotaz | Zadat poptávku | |
| 4416 WHR59929 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
| 4427 WHR59929 |
C00330795
481246368033 |
Damper | Na dotaz | Zadat poptávku | |
| 4561 WHR59929 |
C00269914
481211528011 |
TERMOSTAT BIMETALOVÝ | Na dotaz | Zadat poptávku | |
| 4912 WHR59929 |
C00330819
481246418232 |
Cover timer | Na dotaz | Zadat poptávku | |
| 5541 WHR59929 |
C00345723
481249468049 |
Spring knob thermostat | Na dotaz | Zadat poptávku | |
| 5572 WHR59929 |
C00331533
481246688961 |
Gasket | Na dotaz | Zadat poptávku | |
| 5610 WHR59929 |
C00400367
481221470143 |
Overload prot. | Na dotaz | Zadat poptávku | |
| 5620 WHR59929 |
C00327543
481228228345 |
Thermofuse | Na dotaz | Zadat poptávku | |
| 5665 WHR59929 |
C00327556
481228238245 |
Thermostat | Na dotaz | Zadat poptávku | |
| 5666 WHR59929 |
C00330820
481246418233 |
Casing | Na dotaz | Zadat poptávku | |
| 6510 WHR59929 |
C00313716
481213418043 |
Lamp | Na dotaz | Zadat poptávku | |
| 6560 WHR59929 |
C00280309
481246228887 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 7400 WHR59929 |
C00280299
481251148458 |
KONDENZÁTOR | Na dotaz | Zadat poptávku | |
| 7403 WHR59929 |
C00329055
481240448941 |
Spacer | Na dotaz | Zadat poptávku | |
| 7434 WHR59929 |
C00280308
481244079287 |
Air guide | Na dotaz | Zadat poptávku | |
| 7450 WHR59929 |
C00306238
481251138362 |
FIN EVAPORATOR | Na dotaz | Zadat poptávku | |
| 7461 WHR59929 |
C00280304
481244079288 |
SPODEK MRAZÁKU | Na dotaz | Zadat poptávku | |
| 7462 WHR59929 |
C00403552
481244079289 |
Cabinet air guide | Na dotaz | Zadat poptávku | |
| 7640 WHR59929 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 9001 WHR59929 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 9002 WHR59929 |
C00280285
481246448229 |
TRAVERZA KOMPRESORU CELEK | Na dotaz | Zadat poptávku | |
| 9034 WHR59929 |
C00280301
481246228888 |
ZÁTKA | Na dotaz | Zadat poptávku | |
| 9310 WHR59929 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
| 9650 WHR59929 |
C00404887
481246248442 |
Cap for hole door handle | Na dotaz | Zadat poptávku | |
| 9651 WHR59929 |
C00404888
481246248443 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
| 9652 WHR59929 |
C00404800
481246228889 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 9655 WHR59929 |
C00281810
481246248444 |
ZÁTKA KRYTKA ŠROUBU | Na dotaz | Zadat poptávku | |
| 9657 WHR59929 |
C00330575
481246228891 |
Cap | Na dotaz | Zadat poptávku | |
| 999 WHR59929 |
C00674411 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
