WHIRLPOOL WBV33872 NFC IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WBV33872 NFC IX |
| Kód 12NC: | 850527511170 |
| I.C. kód: | 850527511172 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850527511170, 850527511171, 850527511174, 850527511175 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

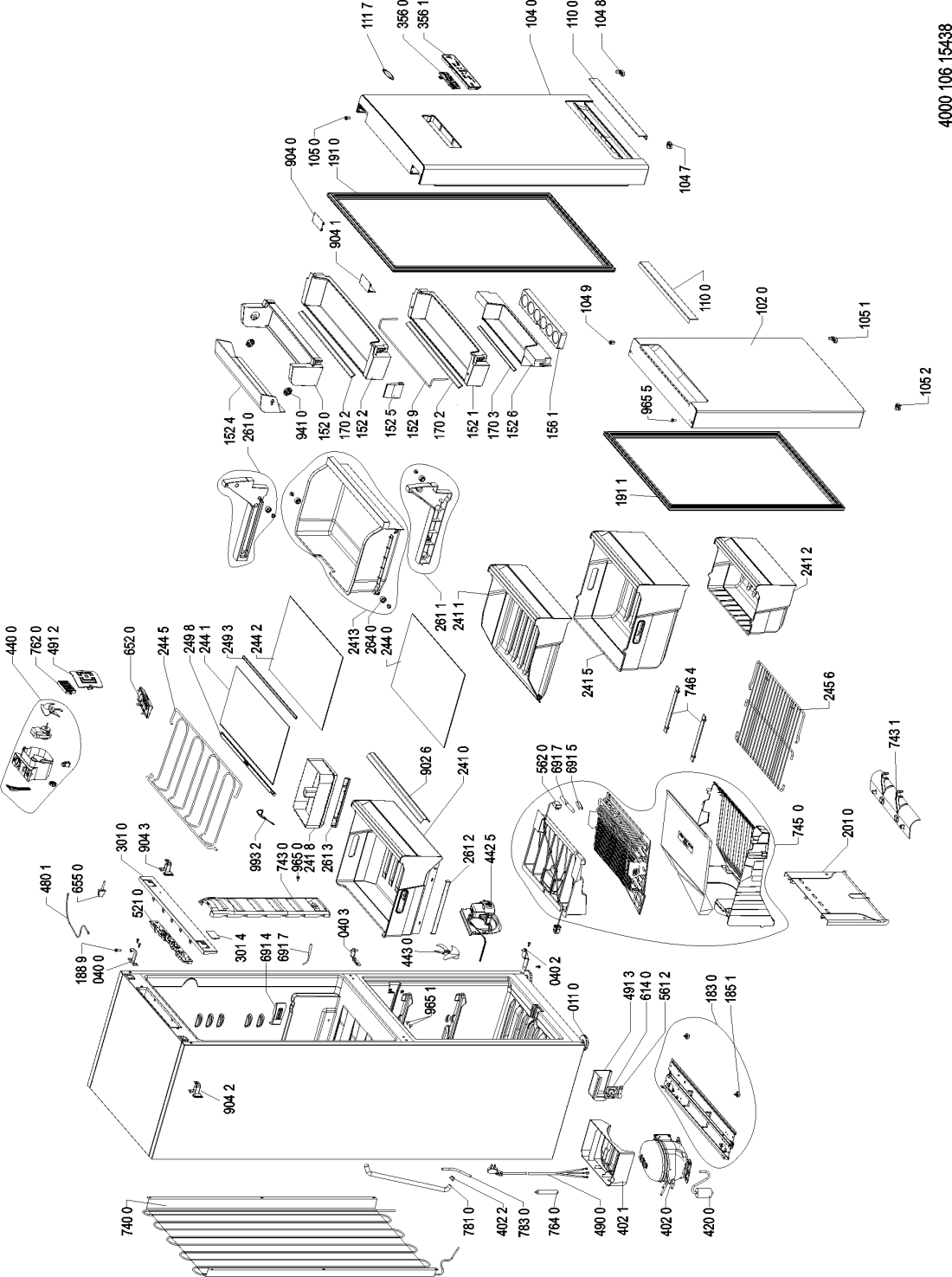

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR18340 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 5.40 |
||
| 0400 WHR18340 |
C00329779
481241719517 |
Závěs horní | 934 Kč
€ 36.90 |
||
| 0402 WHR18340 |
C00329780
481241719518 |
Závěs spodní | 976 Kč
€ 38.50 |
||
| 0403 WHR18340 |
C00319920
481241719519 |
Závěs dveří střední | 976 Kč
€ 38.50 |
||
| 1020 WHR18340 |
C00324834
481010583122 |
Dveře mrazničky | Na dotaz | Zadat poptávku | |
| 1040 WHR18340 |
C00315360
481010584895 |
DVEŘE CHLADNIČKY SIX/MG | Na dotaz | Zadat poptávku | |
| 1047 WHR18340 |
C00323232
480132100288 |
SLEEVE LEFT BLACK | Na dotaz | Zadat poptávku | |
| 1048 WHR18340 |
C00323233
480132100289 |
SLEEVE RIGHT BLACK | Na dotaz | Zadat poptávku | |
| 1049 WHR18340 |
C00332708
481253288101 |
HINGE BUSHING BLACK | Na dotaz | Zadat poptávku | |
| 1050 WHR18340 |
C00325328
481010568481 |
Bushing grey, MG | Na dotaz | Zadat poptávku | |
| 1051 WHR18340 |
C00325329
481010568491 |
Sleeve right grey MG | Na dotaz | Zadat poptávku | |
| 1052 WHR18340 |
C00325330
481010568493 |
Sleeve left grey, MG | Na dotaz | Zadat poptávku | |
| 1100 WHR18340 |
C00314521
481010497055 |
kryt rukojete | 528 Kč
€ 20.80 |
||
| 1117 WHR18340 |
C00312872
481010465600 |
Logo náhrada C00312872 | Na dotaz | Zadat poptávku | |
| 1520 WHR18340 |
C00316010
481010545533 |
Police horní | 822 Kč
€ 32.50 |
||
| 1521 WHR18340 |
C00325052
481010532566 |
Spodní dveřní police 481010532566 | 1 185 Kč
€ 46.80 |
||
| 1522 WHR18340 |
C00325062
481010534522 |
Police dveří (nízká) kombinované chladničky Whirlpool BLF 8121 OX, BSNF 8352 W, WME32122 W | 790 Kč
€ 31.20 |
||
| 1524 WHR18340 |
C00316977
481010547615 |
viko výklopné | 663 Kč
€ 26.20 |
||
| 1525 WHR18340 |
C00325165
481010551092 |
Separator bottle, highly transp. | Na dotaz | Zadat poptávku | |
| 1526 WHR18340 |
C00325134
481010545265 |
Police na vajíčka | 712 Kč
€ 28.10 |
||
| 1529 WHR18340 |
C00325235
481010560739 |
Drátěný držák lahví | 677 Kč
€ 26.70 |
||
| 1561 WHR18340 |
C00325140
481010546400 |
Držák na vajíčka | 193 Kč
€ 7.60 |
||
| 1702 WHR18340 |
C00325127
481010544264 |
Lišta na polici | 178 Kč
€ 7.00 |
||
| 1703 WHR18340 |
C00325128
481010544265 |
Insert short + hot foil | Na dotaz | Zadat poptávku | |
| 1830 WHR18340 |
C00324399
481010461412 |
Držák kompresoru | 415 Kč
€ 16.40 |
||
| 1851 WHR18340 |
C00522120
481010443535 |
Noha (zadní) chladničky Whirlpool | 158 Kč
€ 6.20 |
||
| 1889 WHR18340 |
C00324639
481010493638 |
Čep závěsu | 108 Kč
€ 4.30 |
||
| 1910 WHR18340 |
C00311563
481246668941 |
Magnetické těsnění dveří chladničky Whirlpool | 1 569 Kč
€ 61.90 |
||
| 1911 WHR18340 |
C00311915
481246668942 |
Magnetické těsnění dveří mrazáku chladničky Whirlpool | 1 697 Kč
€ 67.00 |
||
| 2010 WHR18340 |
C00323522
480132101591 |
kryt | 341 Kč
€ 13.50 |
||
| 2410 WHR18340 |
C00316113
481010555571 |
Zásuvka na zeleninu | 1 160 Kč
€ 45.80 |
||
| 2411 WHR18340 |
C00324442
481010467644 |
Koš mrazničky | 2 696 Kč
€ 106.40 |
||
| 2412 WHR18340 |
C00324441
481010467641 |
Drawer lower highly transp. | Na dotaz | Zadat poptávku | |
| 2413 WHR18340 |
C00442274
481010581776 |
Zásuvka | 1 645 Kč
€ 64.90 |
||
| 2415 WHR18340 |
C00325190
481010554159 |
Koš mrazničky/stredni | 1 534 Kč
€ 60.60 |
||
| 2418 WHR18340 |
C00325144
481010547465 |
nádoba | 4 856 Kč
€ 191.70 |
||
| 2440 WHR18340 |
C00325255
481010563219 |
Crisper cover +IX profile | Na dotaz | Zadat poptávku | |
| 2441 WHR18340 |
C00325254
481010563218 |
Rošt skleněný - komplet | 1 336 Kč
€ 52.70 |
||
| 2442 WHR18340 |
C00441682
481010563220 |
Glass shelf +GW & IX profiles | Na dotaz | Zadat poptávku | |
| 2445 WHR18340 |
C00324729
481010508083 |
Rošt lahví drátěný | 1 215 Kč
€ 48.00 |
||
| 2456 WHR18340 |
C00324813
481010520927 |
Shelf wire | Na dotaz | Zadat poptávku | |
| 2493 WHR18340 |
C00325133
481010545200 |
Trim Shelf INOX, front | Na dotaz | Zadat poptávku | |
| 2498 WHR18340 |
C00326513
481052822691 |
Krycí lišta skleněné police chladničky - zadní | 279 Kč
€ 11.00 |
||
| 2610 WHR18340 |
C00323534
480132101666 |
Slide blue trans.right FFC | Na dotaz | Zadat poptávku | |
| 2611 WHR18340 |
C00323535
480132101667 |
Slide blue trans.left FFC | Na dotaz | Zadat poptávku | |
| 2612 WHR18340 |
C00325335
481010568880 |
Rail left cpl. | Na dotaz | Zadat poptávku | |
| 2613 WHR18340 |
C00325336
481010568881 |
Rail right cpl. | Na dotaz | Zadat poptávku | |
| 2640 WHR18340 |
C00332376
481252878073 |
kolecko zasuvky | 155 Kč
€ 6.10 |
||
| 3010 WHR18340 |
C00325325
481010568241 |
Front panel grey MG, printed | Na dotaz | Zadat poptávku | |
| 3014 WHR18340 |
C00325229
481010559559 |
Cover contr.panel grey MG | Na dotaz | Zadat poptávku | |
| 3560 WHR18340 |
C00315283
481010426518 |
User board DOTYK touch control | Na dotaz | Zadat poptávku | |
| 3561 WHR18340 |
C00320903
481010479084 |
Panel control Dotyk A++,HY,WH | Na dotaz | Zadat poptávku | |
| 4020 WHR18340 |
C00318190
480132101215 |
Kompresor HXK 95 AA | 4 062 Kč
€ 160.40 |
||
| 4021 WHR18340 |
C00319502
481241870024 |
miska na kondenzat | 388 Kč
€ 15.30 |
||
| 4022 WHR18340 |
C00318606
480132101608 |
ventil | Na dotaz | Zadat poptávku | |
| 4200 WHR18340 |
C00278650
481212018029 |
Kondenzátor 4uF | Na dotaz | Zadat poptávku | |
| 4400 WHR18340 |
C00316811
480132101184 |
Fan box GW cpl. VELA with switch | Na dotaz | Zadat poptávku | |
| 4425 WHR18340 |
C00312874
480132101615 |
Motor ventilatoru chladničky | 2 984 Kč
€ 117.80 |
||
| 4430 WHR18340 |
C00312783
481951538001 |
vrtule ventilatoru | 480 Kč
€ 18.90 |
||
| 4801 WHR18340 |
C00320449
481010438899 |
Kabel dveří chladničky | 783 Kč
€ 30.90 |
||
| 4900 WHR18340 |
C00326484
481052309423 |
Cable mains 2450 mm 10-16A/250V black | Na dotaz | Zadat poptávku | |
| 4912 WHR18340 |
C00325185
481010553841 |
Cover GW fan AIR FILTER | Na dotaz | Zadat poptávku | |
| 4913 WHR18340 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 5210 WHR18340 |
C00314942
481010543907 |
Modul chladničky CENTAUR | 3 673 Kč
€ 145.00 |
||
| 5612 WHR18340 |
C00267004
481229088112 |
konektor | 175 Kč
€ 6.90 |
||
| 5620 WHR18340 |
C00314313
481010371493 |
Thermofuse+bimetal LCNF with plug 9 pins | Na dotaz | Zadat poptávku | |
| 6140 WHR18340 |
C00323421
480132101216 |
Monoblock ZXF5 | 721 Kč
€ 28.50 |
||
| 6520 WHR18340 |
C00315544
481010555027 |
led osvetleni | 1 354 Kč
€ 53.50 |
||
| 6550 WHR18340 |
C00316967
481010573169 |
SWITCH LIGHT GREY MG | Na dotaz | Zadat poptávku | |
| 6914 WHR18340 |
C00324835
481010583227 |
Cover sensor printed | Na dotaz | Zadat poptávku | |
| 6915 WHR18340 |
C00323525
480132101611 |
kryt senzoru | 199 Kč
€ 7.90 |
||
| 6917 WHR18340 |
C00314452
481231019153 |
senzor | 1 225 Kč
€ 48.40 |
||
| 7400 WHR18340 |
C00323624
480132102076 |
kondenzator | 927 Kč
€ 36.60 |
||
| 7430 WHR18340 |
C00325193
481010554210 |
plast | 896 Kč
€ 35.40 |
||
| 7431 WHR18340 |
C00317574
481052822111 |
Kryt do mrazničky | Na dotaz | Zadat poptávku | |
| 7450 WHR18340 |
C00325060
481010534111 |
Evaporator kit N-LCNF+fuse+heater | Na dotaz | Zadat poptávku | |
| 7464 WHR18340 |
C00319325
481246098055 |
Podpora koše mrazničky | 191 Kč
€ 7.50 |
||
| 7620 WHR18340 |
C00312451
481248048172 |
Antibakteriální filtr Microban pro chladničky ANTF-MIC náhrada C00629721 | Na dotaz | Zadat poptávku | |
| 7640 WHR18340 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 7810 WHR18340 |
C00323524
480132101595 |
CONDENSATE DRAIN TUBE | Na dotaz | Zadat poptávku | |
| 7830 WHR18340 |
C00313237
481281719208 |
VALVE, 1/4 BODY+TUBE 100MM | Na dotaz | Zadat poptávku | |
| 9026 WHR18340 |
C00325155
481010549216 |
Insert crisper + hot foil | Na dotaz | Zadat poptávku | |
| 9040 WHR18340 |
C00325297
481010566681 |
zaslepka | 57 Kč
€ 2.30 |
||
| 9041 WHR18340 |
C00325298
481010566682 |
zaslepka | 63 Kč
€ 2.50 |
||
| 9042 WHR18340 |
C00325306
481010567277 |
Kryt závěsu levý | 197 Kč
€ 7.80 |
||
| 9043 WHR18340 |
C00325305
481010567276 |
Kryt závěsu pravý | 187 Kč
€ 7.40 |
||
| 9410 WHR18340 |
C00314165
481010538497 |
mezikus polic | Na dotaz | Zadat poptávku | |
| 9650 WHR18340 |
C00324304
481010435822 |
Stopper square white | Na dotaz | Zadat poptávku | |
| 9651 WHR18340 |
C00324951
481010600779 |
Záslepky pro volně stojící chladničky | 112 Kč
€ 4.40 |
||
| 9655 WHR18340 |
C00324306
481010435835 |
STOPPER SQUARE BLACK | Na dotaz | Zadat poptávku | |
| 9932 WHR18340 |
C00326483
481052303195 |
čistič odtoku | 219 Kč
€ 8.60 |
||
| 999 WHR18340 |
C00346536
488000346536 |
NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR18340 |
C00347208 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
