| Komerční kód: | 095 WT/CR WASHING MACHINES WP |
| Kód 12NC: | 857009597000 |
| I.C. kód: | 857009597002 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 857009597000, 857009597001 |
Potřebujete servis? Jsme tady pro Vás

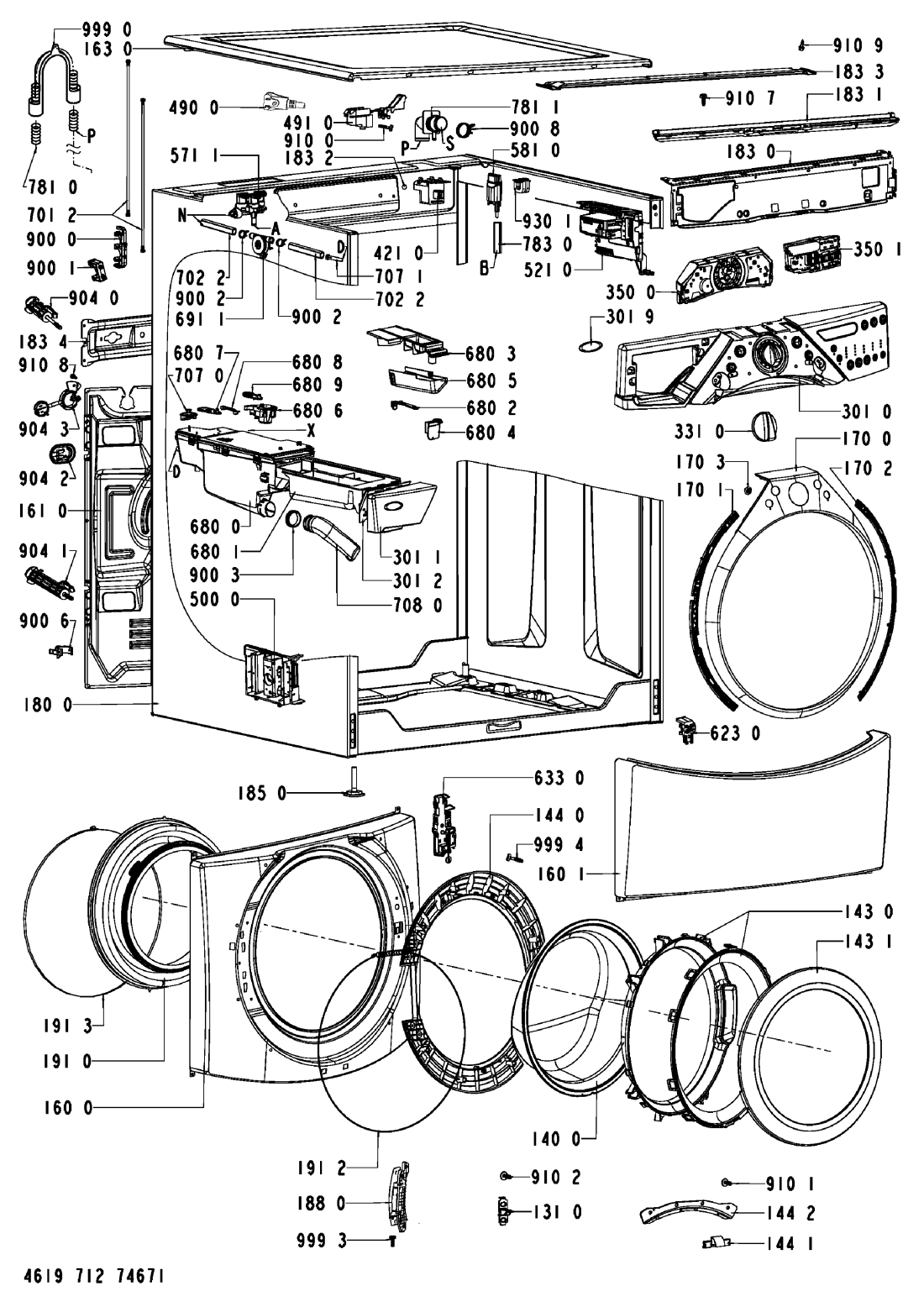

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1310 WHR28904 |
C00319986
481241728111 |
hak dveri | 177 Kč
€ 7.00 |
||
| 1400 WHR28904 |
C00331180
481245078019 |
SKLO DVERI | 2 364 Kč
€ 93.30 |
||
| 1430 WHR28904 |
C00320989
480111101147 |
Door ASM - Front | Na dotaz | Zadat poptávku | |
| 1431 WHR28904 |
C00321099
480111103166 |
Frame ASM - Door | Na dotaz | Zadat poptávku | |
| 1440 WHR28904 |
C00316529
481244011604 |
rám dveří | 635 Kč
€ 25.10 |
||
| 1441 WHR28904 |
C00497565
481240148585 |
Clamp | Na dotaz | Zadat poptávku | |
| 1442 WHR28904 |
C00321069
480111102466 |
Clamp glas large | Na dotaz | Zadat poptávku | |
| 1600 WHR28904 |
C00328052
481244011597 |
Front panel white | Na dotaz | Zadat poptávku | |
| 1601 WHR28904 |
C00337651
481245938061 |
Plinth white | Na dotaz | Zadat poptávku | |
| 1610 WHR28904 |
C00327980
481244011115 |
Panel rear | Na dotaz | Zadat poptávku | |
| 1630 WHR28904 |
C00327965
481244010798 |
Table top white | Na dotaz | Zadat poptávku | |
| 1700 WHR28904 |
C00426995
480111102791 |
Panel WH-HI, white | Na dotaz | Zadat poptávku | |
| 1701 WHR28904 |
C00331281
481245217624 |
Fixation left | Na dotaz | Zadat poptávku | |
| 1702 WHR28904 |
C00331282
481245217625 |
Fixation right | Na dotaz | Zadat poptávku | |
| 1703 WHR28904 |
C00331280
481245217623 |
Clip | Na dotaz | Zadat poptávku | |
| 1800 WHR28904 |
C00426977
480111102768 |
Cabinet Service Kit white | Na dotaz | Zadat poptávku | |
| 1810 WHR28904 |
C00464452
481246648116 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 1820 WHR28904 |
C00427308
480111103194 |
Counter weight rear | Na dotaz | Zadat poptávku | |
| 1821 WHR28904 |
C00427309
480111103195 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 1830 WHR28904 |
C00328053
481244011599 |
Bracket control board | Na dotaz | Zadat poptávku | |
| 1831 WHR28904 |
C00328051
481244011596 |
Water guide | Na dotaz | Zadat poptávku | |
| 1832 WHR28904 |
C00426981
480111102773 |
Crossbar rear | Na dotaz | Zadat poptávku | |
| 1833 WHR28904 |
C00330833
481246448175 |
Crossbar table top | Na dotaz | Zadat poptávku | |
| 1834 WHR28904 |
C00330834
481246448176 |
Crossbar transport | Na dotaz | Zadat poptávku | |
| 1840 WHR28904 |
C00327958
481244010786 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 1850 WHR28904 |
C00330464
481246218303 |
Adjust. foot | Na dotaz | Zadat poptávku | |
| 1880 WHR28904 |
C00316904
481241719447 |
Hinge cpl. | Na dotaz | Zadat poptávku | |
| 1910 WHR28904 |
C00311191
481246668784 |
Těsnění dveří pračky (TVO 8900) | Na dotaz | Zadat poptávku | |
| 1912 WHR28904 |
C00313447
481240118621 |
spona TVO | Na dotaz | Zadat poptávku | |
| 1913 WHR28904 |
C00312587
481240118657 |
spona TVO - nadrz - VYŘAZENO | Na dotaz | Zadat poptávku | |
| 2001 WHR28904 |
C00426235
480111101774 |
Tub, half front cpl. | Na dotaz | Zadat poptávku | |
| 2002 WHR28904 |
C00426778
480111102533 |
Tub, half rear cpl. | Na dotaz | Zadat poptávku | |
| 2003 WHR28904 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 2004 WHR28904 |
C00315669
481241868292 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 2005 WHR28904 |
C00317984
480111102774 |
Podložka gufera | 162 Kč
€ 6.40 |
||
| 2006 WHR28904 |
C00426781
480111102536 |
Shaft seal | Na dotaz | Zadat poptávku | |
| 2200 WHR28904 |
C00426710
480111102448 |
Drum cpl. 103 l, 1400 | Na dotaz | Zadat poptávku | |
| 2230 WHR28904 |
C00426720
480111102459 |
Drum lifter 1x | Na dotaz | Zadat poptávku | |
| 2231 WHR28904 |
C00426721
480111102461 |
Drum lifter Set 3x | Na dotaz | Zadat poptávku | |
| 2710 WHR28904 |
C00312863
481010388414 |
Řemen vicekl. 1309J7 | 753 Kč
€ 29.70 |
||
| 2720 WHR28904 |
C00314756
481252858037 |
Řemenice bubnu | 1 666 Kč
€ 65.80 |
||
| 2900 WHR28904 |
C00312613
481253268124 |
tesneni bocnice | 932 Kč
€ 36.80 |
||
| 3010 WHR28904 |
C00426994
480111102789 |
Control panel | Na dotaz | Zadat poptávku | |
| 3011 WHR28904 |
C00426996
480111102792 |
Handle drawer | Na dotaz | Zadat poptávku | |
| 3012 WHR28904 |
C00345885
481249818708 |
Fixation handle drawer | Na dotaz | Zadat poptávku | |
| 3019 WHR28904 |
C00330206
481245918286 |
Sticker WH-Logo, gold | Na dotaz | Zadat poptávku | |
| 3310 WHR28904 |
C00426997
480111102793 |
Knob SERVICE | Na dotaz | Zadat poptávku | |
| 3500 WHR28904 |
C00427000
480111102796 |
User board center | Na dotaz | Zadat poptávku | |
| 3501 WHR28904 |
C00435932
481010391441 |
User board modifier | Na dotaz | Zadat poptávku | |
| 4000 WHR28904 |
C00312017
481236158446 |
motor | 5 944 Kč
€ 234.70 |
||
| 4210 WHR28904 |
C00426975
480111102766 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 4300 WHR28904 |
C00457376
481236018562 |
Pump Service Kit (USA) | Na dotaz | Zadat poptávku | |
| 4301 WHR28904 |
C00425930
480111101148 |
Damper rubber rear | Na dotaz | Zadat poptávku | |
| 4302 WHR28904 |
C00342210
481246668902 |
Damper rubber front | Na dotaz | Zadat poptávku | |
| 4400 WHR28904 |
C00426723
480111102463 |
Fan | Na dotaz | Zadat poptávku | |
| 4401 WHR28904 |
C00426724
480111102464 |
Support Fan | Na dotaz | Zadat poptávku | |
| 4510 WHR28904 |
C00426229
480111101766 |
Heating element USA | Na dotaz | Zadat poptávku | |
| 4511 WHR28904 |
C00321038
480111101792 |
Fastener heating element | Na dotaz | Zadat poptávku | |
| 4800 WHR28904 |
C00425918
480111101134 |
Cable harness motor | Na dotaz | Zadat poptávku | |
| 4801 WHR28904 |
C00426717
480111102456 |
Cable harness main upper | Na dotaz | Zadat poptávku | |
| 4803 WHR28904 |
C00426715
480111102454 |
Cable harness main lower | Na dotaz | Zadat poptávku | |
| 4804 WHR28904 |
C00319479
481232178374 |
Cable harness UI | Na dotaz | Zadat poptávku | |
| 4900 WHR28904 |
C00493156
481232118202 |
Cable mains | Na dotaz | Zadat poptávku | |
| 4910 WHR28904 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 5000 WHR28904 |
C00426014
480111101264 |
Control unit Motor cpl. | Na dotaz | Zadat poptávku | |
| 5210 WHR28904 |
C00435917
481010390819 |
Control board programmed | Na dotaz | Zadat poptávku | |
| 5711 WHR28904 |
C00426241
480111101783 |
Valve magnet triple | Na dotaz | Zadat poptávku | |
| 5810 WHR28904 |
C00321036
480111101773 |
presostat | Na dotaz | Zadat poptávku | |
| 6230 WHR28904 |
C00491036
481227138455 |
Microswitch Grounding + Fixation | Na dotaz | Zadat poptávku | |
| 6330 WHR28904 |
C00456618
481228058051 |
Door lock | Na dotaz | Zadat poptávku | |
| 6800 WHR28904 |
C00458960
481241868432 |
Dispenser 4ch | Na dotaz | Zadat poptávku | |
| 6801 WHR28904 |
C00459007
481241889096 |
Drawer detergent cpl., 4ch | Na dotaz | Zadat poptávku | |
| 6802 WHR28904 |
C00317127
481241889013 |
Hook drawer | Na dotaz | Zadat poptávku | |
| 6803 WHR28904 |
C00464827
481252648267 |
Siphon 4ch | Na dotaz | Zadat poptávku | |
| 6804 WHR28904 |
C00459000
481241889075 |
Separator cpl. | Na dotaz | Zadat poptávku | |
| 6805 WHR28904 |
C00464703
481249878707 |
Cover pre-wash | Na dotaz | Zadat poptávku | |
| 6806 WHR28904 |
C00457346
481232318189 |
Actuator dispenser | Na dotaz | Zadat poptávku | |
| 6807 WHR28904 |
C00318070
480111100784 |
Lever connection | Na dotaz | Zadat poptávku | |
| 6808 WHR28904 |
C00328525
481232138043 |
Lever distribution | Na dotaz | Zadat poptávku | |
| 6809 WHR28904 |
C00332369
481252838071 |
Cam actuator | Na dotaz | Zadat poptávku | |
| 6910 WHR28904 |
C00311549
481225928863 |
senzor NTC | 1 140 Kč
€ 45.00 |
||
| 6911 WHR28904 |
C00311355
481227128522 |
prutokomer | 2 196 Kč
€ 86.70 |
||
| 7012 WHR28904 |
C00493691
481253018065 |
Hose inlet Set (hot+cold+U-Bend) | Na dotaz | Zadat poptávku | |
| 7022 WHR28904 |
C00318879
481253029442 |
Hose Flowmeter | Na dotaz | Zadat poptávku | |
| 7024 WHR28904 |
C00318817
481253029277 |
Hose flowmeter | Na dotaz | Zadat poptávku | |
| 7070 WHR28904 |
C00332340
481252648158 |
Nozzle distribution | Na dotaz | Zadat poptávku | |
| 7071 WHR28904 |
C00332349
481252648235 |
Nozzle inlet cold | Na dotaz | Zadat poptávku | |
| 7080 WHR28904 |
C00325519
481070201452 |
Bend | Na dotaz | Zadat poptávku | |
| 7540 WHR28904 |
C00332434
481253029278 |
Hadice nádrž - čerpadlo pračky Whirlpool, Bauknecht | 1 060 Kč
€ 41.80 |
||
| 7541 WHR28904 |
C00332473
481253029445 |
Lock eco ball | Na dotaz | Zadat poptávku | |
| 7630 WHR28904 |
C00345867
481248058384 |
Filter set pump | Na dotaz | Zadat poptávku | |
| 7631 WHR28904 |
C00314405
481246688707 |
Těsnění | 1 002 Kč
€ 39.60 |
||
| 7810 WHR28904 |
C00315517
481253029376 |
hadice vytokova 8900 | 712 Kč
€ 28.10 |
||
| 7811 WHR28904 |
C00332437
481253029282 |
Hose connection outlet | Na dotaz | Zadat poptávku | |
| 7830 WHR28904 |
C00321157
480111104418 |
Hose pressostat,with protector | Na dotaz | Zadat poptávku | |
| 7833 WHR28904 |
C00332471
481253029443 |
Steam hose | Na dotaz | Zadat poptávku | |
| 7834 WHR28904 |
C00318819
481253029284 |
Hadice čerpadlo - vypouštění pračky Whirlpool, Bauknecht | 564 Kč
€ 22.30 |
||
| 7872 WHR28904 |
C00332439
481253029285 |
Steam hose tub rear | Na dotaz | Zadat poptávku | |
| 7873 WHR28904 |
C00426725
480111102465 |
Steam hose rear panel | Na dotaz | Zadat poptávku | |
| 9000 WHR28904 |
C00327127
481225518288 |
Holder Hose outlet | Na dotaz | Zadat poptávku | |
| 9001 WHR28904 |
C00327128
481225518289 |
holder Hose outlet, single | Na dotaz | Zadat poptávku | |
| 9002 WHR28904 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 9003 WHR28904 |
C00317164
481253058164 |
Sealing | Na dotaz | Zadat poptávku | |
| 9004 WHR28904 |
C00328905
481240118627 |
Clamp 40 mm | Na dotaz | Zadat poptávku | |
| 9005 WHR28904 |
C00328901
481240118623 |
Clamp 98,5 mm | Na dotaz | Zadat poptávku | |
| 9006 WHR28904 |
C00327122
481225518249 |
Holder drainhose inner | Na dotaz | Zadat poptávku | |
| 9008 WHR28904 |
C00328904
481240118626 |
Clamp 32,7 mm | Na dotaz | Zadat poptávku | |
| 9040 WHR28904 |
C00321086
480111103058 |
kus distancni | 235 Kč
€ 9.30 |
||
| 9041 WHR28904 |
C00327222
481226818019 |
kus distancni | 401 Kč
€ 15.80 |
||
| 9042 WHR28904 |
C00330934
481246668812 |
Cover | Na dotaz | Zadat poptávku | |
| 9043 WHR28904 |
C00321076
480111102761 |
Cover | Na dotaz | Zadat poptávku | |
| 9100 WHR28904 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 9101 WHR28904 |
C00332096
481250218624 |
Screw 3.5x10-F A2F | Na dotaz | Zadat poptávku | |
| 9102 WHR28904 |
C00321142
480111104103 |
Screw 4x9.5 | Na dotaz | Zadat poptávku | |
| 9103 WHR28904 |
C00321070
480111102532 |
podlozka | 189 Kč
€ 7.50 |
||
| 9104 WHR28904 |
C00345895
481250218382 |
Screw M8 X 35 | Na dotaz | Zadat poptávku | |
| 9106 WHR28904 |
C00332154
481250238355 |
Screw 4,2x16 T20 | Na dotaz | Zadat poptávku | |
| 9107 WHR28904 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 9108 WHR28904 |
C00332103
481250218668 |
Screw 3x8 | Na dotaz | Zadat poptávku | |
| 9109 WHR28904 |
C00332147
481250218827 |
Screw 4.2x14.2 | Na dotaz | Zadat poptávku | |
| 9300 WHR28904 |
C00345084
481249238403 |
Pružina agregátu-sada 2ks | 1 530 Kč
€ 60.40 |
||
| 9301 WHR28904 |
C00345868
481249238388 |
Silent bloc | 95 Kč
€ 3.80 |
||
| 9410 WHR28904 |
C00426779
480111102534 |
Bearing,ball 6207 | Na dotaz | Zadat poptávku | |
| 9411 WHR28904 |
C00426780
480111102535 |
Bearing,ball 6305 | Na dotaz | Zadat poptávku | |
| 9500 WHR28904 |
C00313483
480111101551 |
tesneni | Na dotaz | Zadat poptávku | |
| 9501 WHR28904 |
C00312100
481246688708 |
tesneni NTC | 416 Kč
€ 16.40 |
||
| 9990 WHR28904 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 9991 WHR28904 |
C00331290
481245218994 |
Screw M8x20 A2F | Na dotaz | Zadat poptávku | |
| 9992 WHR28904 |
C00332171
481250518367 |
Nut push in M 8 | Na dotaz | Zadat poptávku | |
| 9993 WHR28904 |
C00317066
481250218719 |
Screw L-Schr.I6rdFurch M5x12 | Na dotaz | Zadat poptávku | |
| 9994 WHR28904 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 9995 WHR28904 |
C00321045
480111102073 |
sroub | 465 Kč
€ 18.40 |
||
| 9996 WHR28904 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 9997 WHR28904 |
C00328902
481240118624 |
spona | 147 Kč
€ 5.80 |
||
