INDESIT WG 1130 P (E)
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WG 1130 P (E) |
| Kód 12NC: | 869990185290 |
| I.C. kód: | 70185290000 |
| Značka: | INDESIT |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

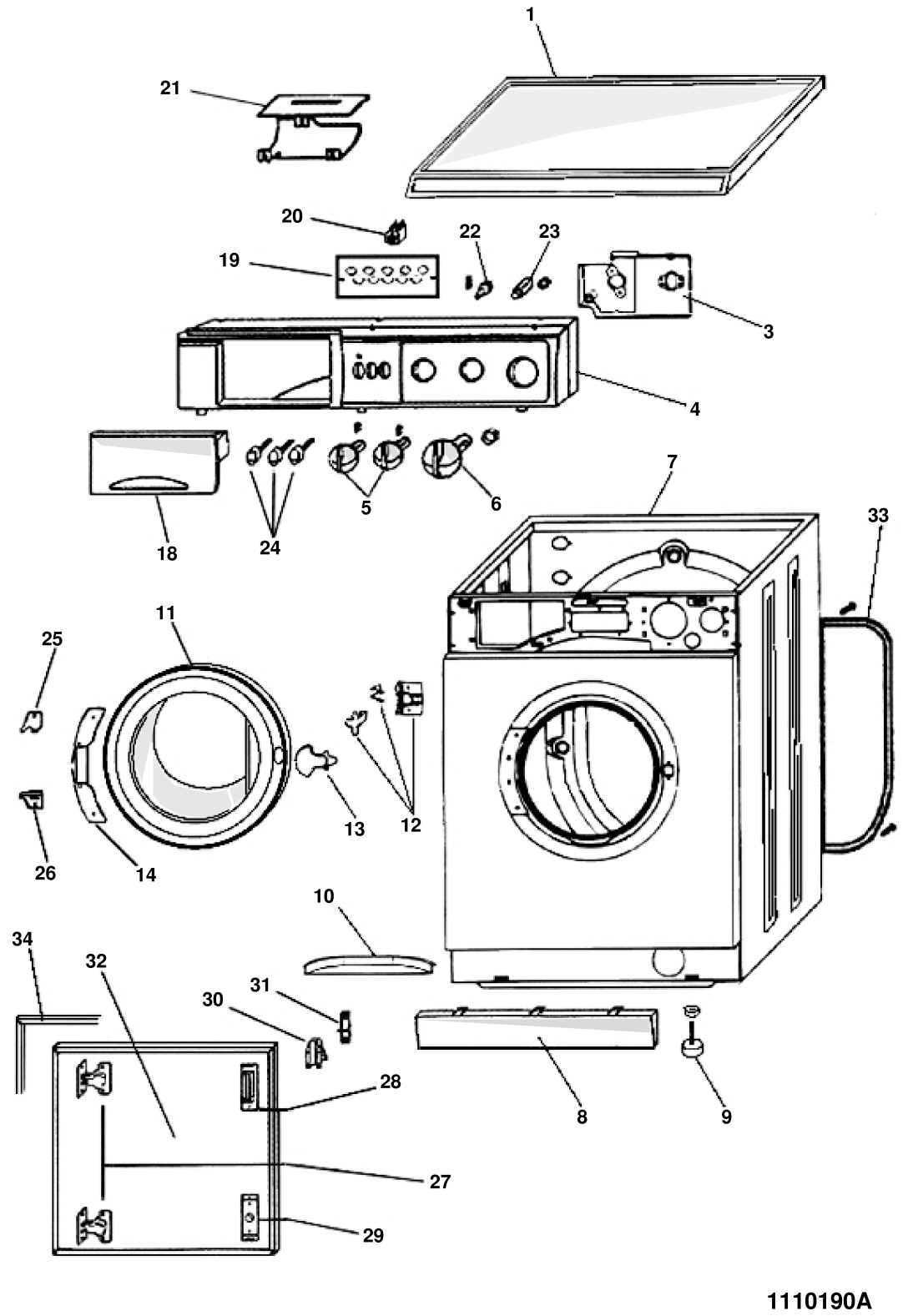

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 1110190a |
C00063420 | USER ISTRUCTIONS BOOKLET | Na dotaz | Zadat poptávku | |
| 001 1110190a |
C00063343 | WORKTOP | Na dotaz | Zadat poptávku | |
| 003 1110190a |
C00063382 | PROTECTION | Na dotaz | Zadat poptávku | |
| 004 1110190a |
C00063418 | CONTROL PANEL | Na dotaz | Zadat poptávku | |
| 005 1110190a |
C00063388
482000075243 |
KNOB COMPONENT | Na dotaz | Zadat poptávku | |
| 005 1110190a |
C00063393
482000071025 |
INDEX KNOB COMPONENTE | Na dotaz | Zadat poptávku | |
| 006 1110190a |
C00063394 | TIMER KNOB | Na dotaz | Zadat poptávku | |
| 006 1110190a |
C00063395 | INDEX TIMER KNOB | Na dotaz | Zadat poptávku | |
| 007 1110190a |
C00063341
481244008002 |
CABINET WHITE | Na dotaz | Zadat poptávku | |
| 008 1110190a |
C00063398 | PLINTH | Na dotaz | Zadat poptávku | |
| 009 1110190a |
C00053874
481946258273 |
noha pracky | 192 Kč
€ 7.60 |
||
| 011 1110190a |
C00063399
482000075244 |
DOOR FRAME AND GLASS ASSY | Na dotaz | Zadat poptávku | |
| 012 1110190a |
C00053948
482000074827 |
DOOR HANDLE ASSY | Na dotaz | Zadat poptávku | |
| 013 1110190a |
C00053950
481949869888 |
COVER LID HANDLE | Na dotaz | Zadat poptávku | |
| 014 1110190a |
C00053949 | HINGE PLATE OUTER CASE | Na dotaz | Zadat poptávku | |
| 018 1110190a |
C00063387 | HANDLE | Na dotaz | Zadat poptávku | |
| 020 1110190a |
C00063365
482000075240 |
ON-OFF SWITCH NA + NA | Na dotaz | Zadat poptávku | |
| 020 1110190a |
C00053930
481927618382 |
spinac tlacitkovy | Na dotaz | Zadat poptávku | |
| 020 1110190a |
C00063364 | VYPÍNAČ 1C DEV'IAR WG830P' | Na dotaz | Zadat poptávku | |
| 021 1110190a |
C00063379
481946258373 |
SWITCH-DEVIATOR PROTECTION | Na dotaz | Zadat poptávku | |
| 022 1110190a |
C00063401 | TERMOSTAT KNOB SPACER | Na dotaz | Zadat poptávku | |
| 022 1110190a |
C00063419 | DELAY TIMER KNOB SPACER | Na dotaz | Zadat poptávku | |
| 023 1110190a |
C00063400 | TIMER KNOB SPACER GIUGIARO | Na dotaz | Zadat poptávku | |
| 024 1110190a |
C00063396
482000090702 |
PUSH BUTTON KNOB | Na dotaz | Zadat poptávku | |
| 025 1110190a |
C00063403
482000075245 |
TOP HINGE BLOCK BLACK | Na dotaz | Zadat poptávku | |
| 026 1110190a |
C00063404
482000075246 |
BOTTOM HINGE BLOCK | Na dotaz | Zadat poptávku | |
| 027 1110190a |
C00063405
481941719546 |
HINGE | Na dotaz | Zadat poptávku | |
| 028 1110190a |
C00063407
481940479328 |
LOCK SUPPORT | Na dotaz | Zadat poptávku | |
| 029 1110190a |
C00063409 | DOOR DISTANCE PIECE | Na dotaz | Zadat poptávku | |
| 030 1110190a |
C00063406
481941758145 |
FURNITURE DOOR LOCK | Na dotaz | Zadat poptávku | |
| 031 1110190a |
C00063408 | FURNITURE DOOR HOOK | Na dotaz | Zadat poptávku | |
| 032 1110190a |
C00063410
481944019839 |
DOOR | Na dotaz | Zadat poptávku | |
| 032 1110190a |
C00074570 | DOOR LINER | Na dotaz | Zadat poptávku | |
| 033 1110190a |
C00063342 | REAR COVER - WHITE | Na dotaz | Zadat poptávku | |
| 034 1110190a |
C00064688 | WHITE DOOR FRAME | Na dotaz | Zadat poptávku | |
| 001 1110290 |
C00053887 | CLAMP - DOOR BELLOWS SEAL/TANK | Na dotaz | Zadat poptávku | |
| 002 1110290 |
C00063345
481946818277 |
BELLOWS SEAL | Na dotaz | Zadat poptávku | |
| 004 1110290 |
C00053879 | TANK BACKPLATE | Na dotaz | Zadat poptávku | |
| 005 1110290 |
C00053882
481946818225 |
SEAL - TANKBACK | Na dotaz | Zadat poptávku | |
| 006 1110290 |
C00053899
481946699139 |
SUSPENSION SPRING ANCHORAGE PAD | Na dotaz | Zadat poptávku | |
| 007 1110290 |
C00053883
481946689422 |
CLAMPING BAND - OUTER TANK BACK | Na dotaz | Zadat poptávku | |
| 008 1110290 |
C00063352
482000068634 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 010 1110290 |
C00063356
481953029016 |
AIR TRAP CAP | Na dotaz | Zadat poptávku | |
| 011 1110290 |
C00053912
481952918119 |
hadice k filtru k. | 1 648 Kč
€ 65.00 |
||
| 012 1110290 |
C00053909
481940118804 |
klapka | 208 Kč
€ 8.20 |
||
| 013 1110290 |
C00053891
488000053891 |
TĚSNICÍ KROUŽEK 'IAR' | Na dotaz | Zadat poptávku | |
| 014 1110290 |
C00053889
482000069468 |
BEARING 25X52X15 6205-2Z | Na dotaz | Zadat poptávku | |
| 017 1110290 |
C00053890
482000069292 |
BEARING 20X47X14 6204-2Z IAR | Na dotaz | Zadat poptávku | |
| 018 1110290 |
C00063416
488000063416 |
BELT J5 16,5 -270 | Na dotaz | Zadat poptávku | |
| 019 1110290 |
C00053897
481950218447 |
BOLT - DRUM PULLEY FIXING | Na dotaz | Zadat poptávku | |
| 020 1110290 |
C00063350 | DRUM PULLEY | Na dotaz | Zadat poptávku | |
| 021 1110290 |
C00063415 | BEARING SPIDER ASSEMBLY | Na dotaz | Zadat poptávku | |
| 022 1110290 |
C00063344
481241818234 |
TANK | Na dotaz | Zadat poptávku | |
| 023 1110290 |
C00053884
481941758144 |
SPOJOVACI KUS | 776 Kč
€ 30.60 |
||
| 024 1110290 |
C00063349
481241818235 |
DRUM 800/1000 RPM | Na dotaz | Zadat poptávku | |
| 025 1110290 |
C00053904 | BACK COUNTERWEIGHT | Na dotaz | Zadat poptávku | |
| 025 1110290 |
C00063353 | FRONT COUNTERWEIGHT | Na dotaz | Zadat poptávku | |
| 026 1110290 |
C00063355 | HOSE - DISPENSER TO TANK | Na dotaz | Zadat poptávku | |
| 027 1110290 |
C00053886
481940118723 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 028 1110290 |
C00063346 | DRUM TRIANGLE ROD | Na dotaz | Zadat poptávku | |
| 029 1110290 |
C00053893
481950218446 |
BOLT | Na dotaz | Zadat poptávku | |
| 030 1110290 |
C00063351 | TANK SPRING | Na dotaz | Zadat poptávku | |
| 031 1110290 |
C00053902 | BOLT | Na dotaz | Zadat poptávku | |
| 032 1110290 |
C00063347
481240478462 |
BRACKET | Na dotaz | Zadat poptávku | |
| 001 1110390 |
C00053905
482000070548 |
MAINS INLET HOSE L = 1500 MM | Na dotaz | Zadat poptávku | |
| 001 1110390 |
C00063371
481927129063 |
Termostat kapilární pračky Whirlpool 90 °C | 2 313 Kč
€ 91.20 |
||
| 002 1110390 |
C00063367 | ELECTROVALVE 1 WAY | Na dotaz | Zadat poptávku | |
| 003 1110390 |
C00063354
481953029015 |
HOSE - VALVE/DISPENSER | Na dotaz | Zadat poptávku | |
| 004 1110390 |
C00063361
481912118269 |
Filtr odrušovací | Na dotaz | Zadat poptávku | |
| 005 1110390 |
C00063362 | TIMER ELBI 5000 TIPO 0667/3/00 | Na dotaz | Zadat poptávku | |
| 006 1110390 |
C00063363
481952838448 |
vacka | 307 Kč
€ 12.10 |
||
| 007 1110390 |
C00053919
481946699086 |
posouvac | 373 Kč
€ 14.70 |
||
| 010 1110390 |
C00053917
481949238142 |
pruzina trysky | Na dotaz | Zadat poptávku | |
| 012 1110390 |
C00053911
481952918116 |
STEAM EXHAUST HOSE | Na dotaz | Zadat poptávku | |
| 013 1110390 |
C00063359
481953598625 |
tahlo nasypky | Na dotaz | Zadat poptávku | |
| 013 1110390 |
C00063360
481953598627 |
METAL OPERATING ROD RIGHT | Na dotaz | Zadat poptávku | |
| 014 1110390 |
C00063368
481927128012 |
presostat | 1 956 Kč
€ 77.10 |
||
| 015 1110390 |
C00053914
481941879792 |
DISPENSER TOP | Na dotaz | Zadat poptávku | |
| 016 1110390 |
C00053931
481969018139 |
MIKROSP.BLOKOVÁNÍ DVÍŘEK 'IAR' | Na dotaz | Zadat poptávku | |
| 017 1110390 |
C00053894
481946689368 |
PODPERA AWG322 | 974 Kč
€ 38.40 |
||
| 018 1110390 |
C00063372
481936158258 |
MOTOR D = 16,5 220 V 50 HZ | Na dotaz | Zadat poptávku | |
| 018 1110390 |
C00063373
482000075241 |
KARTÁČEK KOMPLETNÍ 'IAR WG830P' | Na dotaz | Zadat poptávku | |
| 018 1110390 |
C00063374
482000075242 |
KARTÁČEK MOT. 'IAR WG830P' | Na dotaz | Zadat poptávku | |
| 018 1110390 |
C00063375
481921478589 |
TACHO GENERATOR | Na dotaz | Zadat poptávku | |
| 018 1110390 |
C00063376
481921478591 |
TACHO GENERATOR | Na dotaz | Zadat poptávku | |
| 019 1110390 |
C00053921 | PANEL | Na dotaz | Zadat poptávku | |
| 020 1110390 |
C00053920
481946279935 |
ADDITIVE COVER | Na dotaz | Zadat poptávku | |
| 021 1110390 |
C00053922
481241879654 |
DETERGENT DRAWER KIT | Na dotaz | Zadat poptávku | |
| 023 1110390 |
C00063377
481921478676 |
DIGITAL MODULE | Na dotaz | Zadat poptávku | |
| 025 1110390 |
C00014917
482000025959 |
TĚSNĚNÍ TERMOSTATU'LS312 570' | Na dotaz | Zadat poptávku | |
| 026 1110390 |
C00063370
481928228678 |
termostat pračky AWG 324 | Na dotaz | Zadat poptávku | |
| 027 1110390 |
C00063369
481925928902 |
HEATING ELEMENT TERMAL CUT-AUT 1900W/230V | Na dotaz | Zadat poptávku | |
| 028 1110390 |
C00063358
482000075239 |
DRAIN PUMP | Na dotaz | Zadat poptávku | |
| 029 1110390 |
C00063357
481953028982 |
DRAIN HOSE - TO SINK | Na dotaz | Zadat poptávku | |
| 031 1110390 |
C00053924
481932118284 |
SUPPLY CABLE | Na dotaz | Zadat poptávku | |
| 032 1110390 |
C00053923
481929068395 |
TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 033 1110390 |
C00005572
482000025916 |
TĚSNĚNÍ PŘÍVODNÍ TRUBKY | Na dotaz | Zadat poptávku | |
| 034 1110390 |
C00063366 | WARNING LIGHT | Na dotaz | Zadat poptávku | |
| 034 1110390 |
C00063397 | PILOT LAMP LENS RED | Na dotaz | Zadat poptávku | |
| 035 1110390 |
C00063417
481927618383 |
prepinac otacek | 1 746 Kč
€ 68.90 |
||
| 099 1110390 |
C00063380
481953268858 |
MOTOR RUBBER BUSH | Na dotaz | Zadat poptávku | |
