WHIRLPOOL WHI49LB
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | WHI49LB |
Kód 12NC: | 859991595350 |
Značka: | WHIRLPOOL |
Typ produktu: | Klimatizace |
Další podobné modely: | 859991584260 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

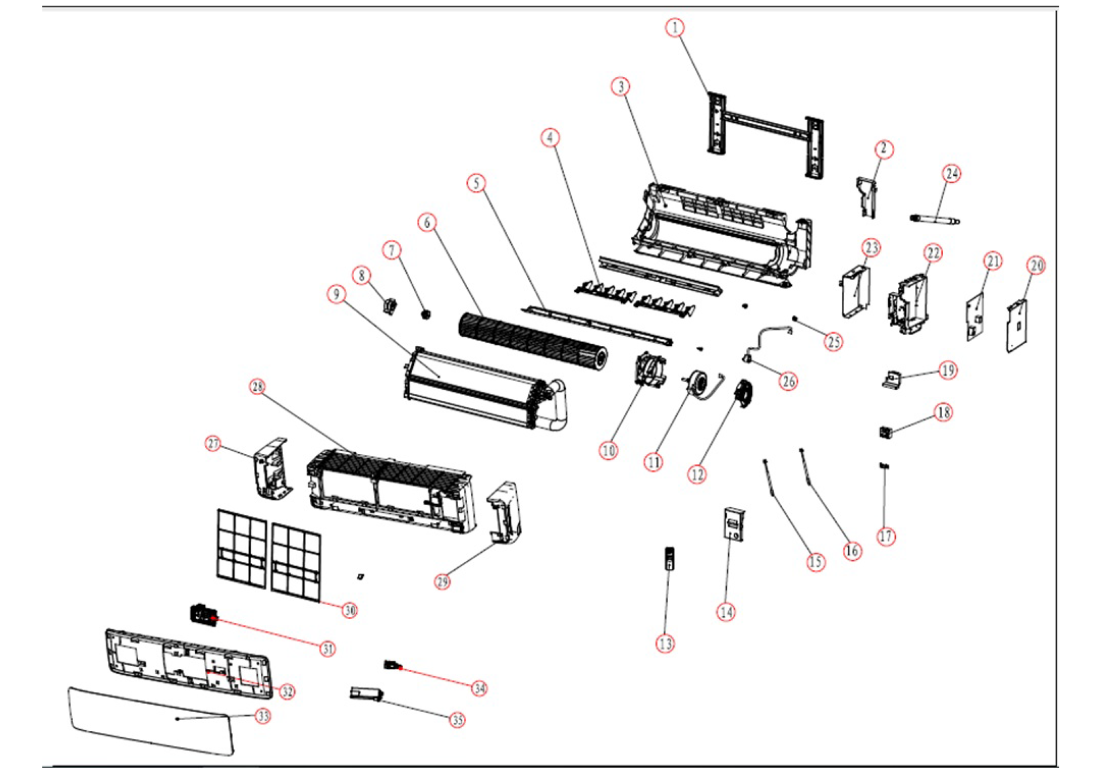

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
001 W49LBInd |
C00536088
482000010365 |
installation plate assy | Na dotaz | Zadat poptávku | |
002 W49LBInd |
C00533351
488000533351 |
baffle | Na dotaz | Zadat poptávku | |
003 W49LBInd |
C00385800
482000021162 |
Rear panel | Na dotaz | Zadat poptávku | |
004 W49LBInd |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
005 W49LBInd |
C00386332
482000021163 |
Air guide | Na dotaz | Zadat poptávku | |
006 W49LBInd |
C00385810
482000010356 |
Ventilátor klim.vnitřní jednotka | 2 031 Kč
€ 80.10 |
||
007 W49LBInd |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
008 W49LBInd |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
009 W49LBInd |
C00385813
482000017859 |
Evaporator | Na dotaz | Zadat poptávku | |
010 W49LBInd |
C00627209
488000627209 |
Kryt motoru | Na dotaz | Zadat poptávku | |
011 W49LBInd |
C00378271
482000010312 |
Motor fan | Na dotaz | Zadat poptávku | |
012 W49LBInd |
C00630579
488000630579 |
motor cover | Na dotaz | Zadat poptávku | |
013 W49LBInd |
C00506408
482000095040 |
Remote control | Na dotaz | Zadat poptávku | |
014 W49LBInd |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
015 W49LBInd |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
016 W49LBInd |
C00385824
482000010333 |
SONDA TEPELNÁ | Na dotaz | Zadat poptávku | |
017 W49LBInd |
C00385825
482000092111 |
Clamp | Na dotaz | Zadat poptávku | |
018 W49LBInd |
C00385835
482000018034 |
Connection cl. | Na dotaz | Zadat poptávku | |
019 W49LBInd |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
020 W49LBInd |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
021 W49LBInd |
C00630578
488000630578 |
Indoor Main Control Board Component | Na dotaz | Zadat poptávku | |
022 W49LBInd |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
023 W49LBInd |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
024 W49LBInd |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
025 W49LBInd |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
026 W49LBInd |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
027 W49LBInd |
C00520285
482000098628 |
P.U.shell | Na dotaz | Zadat poptávku | |
028 W49LBInd |
C00630577
488000630577 |
shell | Na dotaz | Zadat poptávku | |
029 W49LBInd |
C00520286
482000098629 |
P.U.shell | Na dotaz | Zadat poptávku | |
030 W49LBInd |
C00520287
482000098630 |
Filter net | Na dotaz | Zadat poptávku | |
031 W49LBInd |
C00521554
482000098841 |
Display board | Na dotaz | Zadat poptávku | |
032 W49LBInd |
C00520289
482000098632 |
Front panel seat | Na dotaz | Zadat poptávku | |
033 W49LBInd |
C00630580
488000630580 |
panel | Na dotaz | Zadat poptávku | |
034 W49LBInd |
C00506412
482000095044 |
Electronic box | Na dotaz | Zadat poptávku | |
001 W49LBOut |
C00533363
488000533363 |
panel parts | Na dotaz | Zadat poptávku | |
002 W49LBOut |
C00378154
482000000515 |
Vrtule ventilátoru | 963 Kč
€ 38.00 |
||
003 W49LBOut |
C00385866
482000017843 |
Motor fan outdoor | Na dotaz | Zadat poptávku | |
004 W49LBOut |
C00521422
488000521422 |
motor supporter | Na dotaz | Zadat poptávku | |
005 W49LBOut |
C00520295
482000098638 |
Plate mounting | Na dotaz | Zadat poptávku | |
006 W49LBOut |
C00520296
482000098639 |
User board upper | Na dotaz | Zadat poptávku | |
007 W49LBOut |
C00520297
482000098640 |
Guard back | Na dotaz | Zadat poptávku | |
008 W49LBOut |
C00630584
488000630584 |
Condenser assembly | Na dotaz | Zadat poptávku | |
009 W49LBOut |
C00630585
488000630585 |
base holder part | Na dotaz | Zadat poptávku | |
010 W49LBOut |
C00630582
488000630582 |
clapboard | Na dotaz | Zadat poptávku | |
011 W49LBOut |
C00385880
482000000386 |
Transformer | Na dotaz | Zadat poptávku | |
012 W49LBOut |
C00386343
482000010345 |
Valve 4 way cpl. | Na dotaz | Zadat poptávku | |
013 W49LBOut |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
014 W49LBOut |
C00385885
482000000397 |
Valve magnet | Na dotaz | Zadat poptávku | |
015 W49LBOut |
C00386344
482000017848 |
Compressor ASM89D18UFZ - R410A | Na dotaz | Zadat poptávku | |
016 W49LBOut |
C00385937
482000000391 |
Cable harness | Na dotaz | Zadat poptávku | |
017 W49LBOut |
C00520303
482000098646 |
Valve seat | Na dotaz | Zadat poptávku | |
018 W49LBOut |
C00386345
482000021179 |
Capillary tube | Na dotaz | Zadat poptávku | |
019 W49LBOut |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
020 W49LBOut |
C00385957
482000010346 |
Valve 3 way | Na dotaz | Zadat poptávku | |
021 W49LBOut |
C00520305
482000098648 |
User board right side | Na dotaz | Zadat poptávku | |
022 W49LBOut |
C00533356
488000533356 |
wiring distribution cover assy | Na dotaz | Zadat poptávku | |
023 W49LBOut |
C00630583
488000630583 |
electric box | Na dotaz | Zadat poptávku | |
024 W49LBOut |
C00630581
488000630581 |
connecting board | Na dotaz | Zadat poptávku | |
025 W49LBOut |
C00385982
482000021177 |
Terminal board | Na dotaz | Zadat poptávku | |
026 W49LBOut |
C00506484
482000095097 |
Control unit | Na dotaz | Zadat poptávku | |
027 W49LBOut |
C00506414
482000095046 |
Filter box | Na dotaz | Zadat poptávku | |
028 W49LBOut |
C00385985
480150100377 |
Sensor temper. Outdoor ambient | Na dotaz | Zadat poptávku | |
029 W49LBOut |
C00378141
482000000402 |
TEMPERATURE SENSOR | Na dotaz | Zadat poptávku | |
030 W49LBOut |
C00378140
482000000401 |
Sensor temper. | Na dotaz | Zadat poptávku |
