WHIRLPOOL WP 3700 LP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WP 3700 LP |
| Kód 12NC: | 851122838000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Myčky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

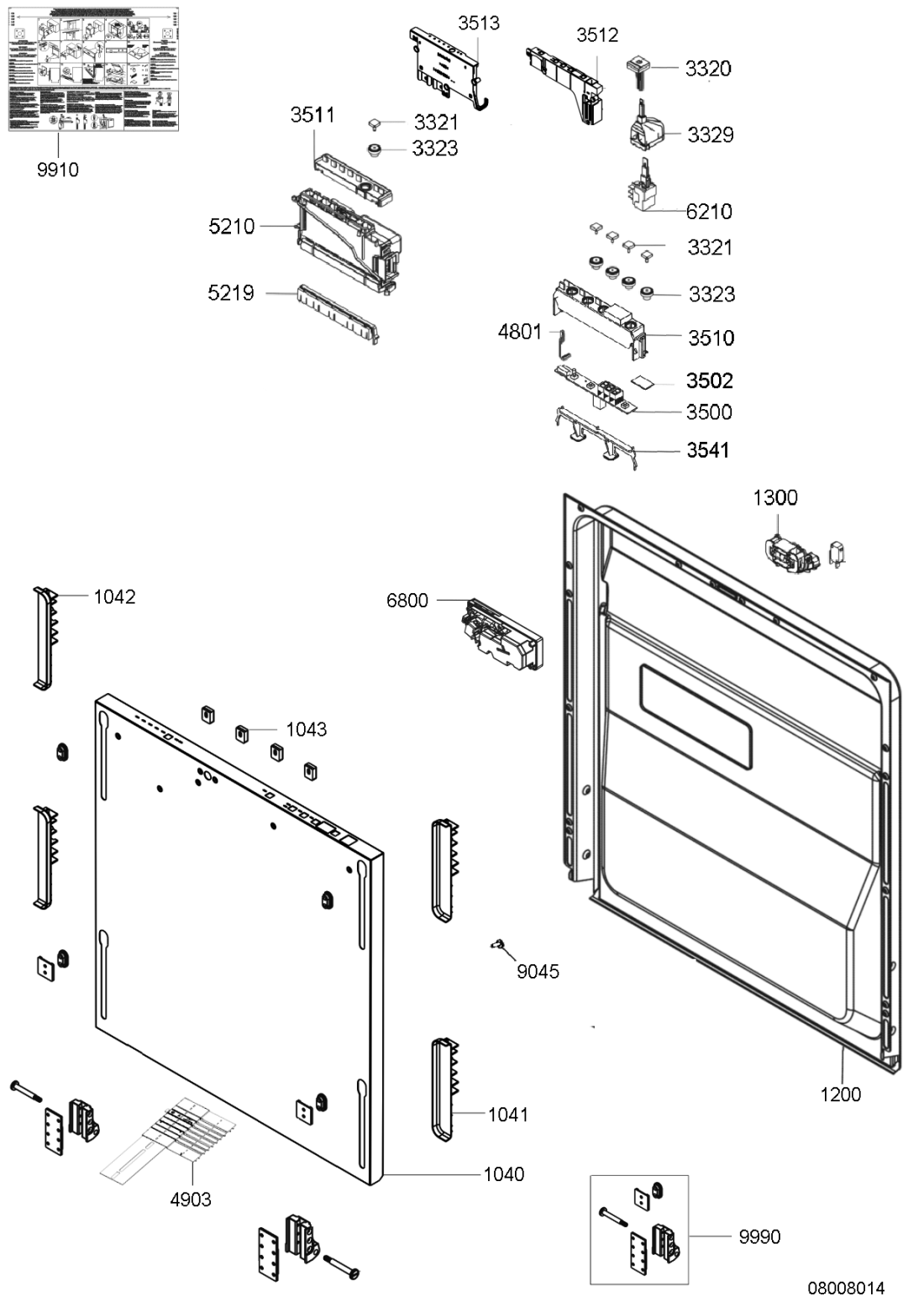

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1040 WHR10865 |
C00418656
482000023897 |
Control panel WP3700LP | Na dotaz | Zadat poptávku | |
| 1041 WHR10865 |
C00418629
482000023864 |
Guide Door fix. right long | Na dotaz | Zadat poptávku | |
| 1042 WHR10865 |
C00418630
482000023865 |
Guide Door fix. left longd | Na dotaz | Zadat poptávku | |
| 1043 WHR10865 |
C00288394
482000023820 |
DVEŘE SPACER | Na dotaz | Zadat poptávku | |
| 1200 WHR10865 |
C00418593
482000023827 |
Door inner Assy. | Na dotaz | Zadat poptávku | |
| 1300 WHR10865 |
C00411694
482000009568 |
Door lock ITW EST 1MIC | Na dotaz | Zadat poptávku | |
| 1310 WHR10865 |
C00339500
481290508646 |
Hook | Na dotaz | Zadat poptávku | |
| 1311 WHR10865 |
C00344343
481290508612 |
Block Hook | Na dotaz | Zadat poptávku | |
| 1312 WHR10865 |
C00418588
482000023813 |
Hinge run.mech. Opener door | Na dotaz | Zadat poptávku | |
| 1313 WHR10865 |
C00418586
482000023811 |
Rod pull Opener door Prgr.en | Na dotaz | Zadat poptávku | |
| 1314 WHR10865 |
C00418585
482000023810 |
Motor Opener door Prgr.en | Na dotaz | Zadat poptávku | |
| 1315 WHR10865 |
C00418582
482000023807 |
Block side Opener door left | Na dotaz | Zadat poptávku | |
| 1316 WHR10865 |
C00418581
482000023806 |
Block side Opener door right | Na dotaz | Zadat poptávku | |
| 1317 WHR10865 |
C00418584
482000023809 |
Push arm Opener door Prgr.en | Na dotaz | Zadat poptávku | |
| 1318 WHR10865 |
C00418583
482000023808 |
Crossbar Furniture upper | Na dotaz | Zadat poptávku | |
| 1319 WHR10865 |
C00418587
482000023812 |
Support Trav.Furniture upper | Na dotaz | Zadat poptávku | |
| 1620 WHR10865 |
C00418608
482000023843 |
Side panel right + left | Na dotaz | Zadat poptávku | |
| 1840 WHR10865 |
C00411751
482000009630 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 1850 WHR10865 |
C00411736
482000009614 |
Adjust. foot front | Na dotaz | Zadat poptávku | |
| 1851 WHR10865 |
C00411740
482000009618 |
Rod Adjust. foot | Na dotaz | Zadat poptávku | |
| 1852 WHR10865 |
C00411735
482000009613 |
Adjusting screw Foot back | Na dotaz | Zadat poptávku | |
| 1853 WHR10865 |
C00411733
482000009611 |
Adjust. foot back | Na dotaz | Zadat poptávku | |
| 1854 WHR10865 |
C00411734
482000009612 |
Ring,adjusting Foot back | Na dotaz | Zadat poptávku | |
| 1870 WHR10865 |
C00411756
482000009635 |
Frame Tub front | Na dotaz | Zadat poptávku | |
| 1872 WHR10865 |
C00411741
482000009619 |
Frame kickplate | Na dotaz | Zadat poptávku | |
| 1873 WHR10865 |
C00342260
481290508553 |
Crossbar | Na dotaz | Zadat poptávku | |
| 1875 WHR10865 |
C00418605
482000023840 |
Brace side cabinet | Na dotaz | Zadat poptávku | |
| 1880 WHR10865 |
C00418609
482000023844 |
Hinge Assy. right | Na dotaz | Zadat poptávku | |
| 1881 WHR10865 |
C00418610
482000023845 |
Hinge Assy. left | Na dotaz | Zadat poptávku | |
| 1883 WHR10865 |
C00411743
482000009622 |
Spring Hinge | Na dotaz | Zadat poptávku | |
| 1884 WHR10865 |
C00418607
482000023842 |
Band brake Hinge | Na dotaz | Zadat poptávku | |
| 1885 WHR10865 |
C00411757
482000009637 |
Brake right Hinge | Na dotaz | Zadat poptávku | |
| 1886 WHR10865 |
C00411758
482000009638 |
Brake left Hinge | Na dotaz | Zadat poptávku | |
| 1887 WHR10865 |
C00411742
482000009621 |
Clutch right Hinge | Na dotaz | Zadat poptávku | |
| 1888 WHR10865 |
C00378605
482000009620 |
Clutch left Hinge | Na dotaz | Zadat poptávku | |
| 1889 WHR10865 |
C00418606
482000023841 |
Pin hinge Spring | Na dotaz | Zadat poptávku | |
| 1910 WHR10865 |
C00418604
482000023839 |
Gasket border Tank | Na dotaz | Zadat poptávku | |
| 1912 WHR10865 |
C00411755
482000009634 |
Gasket border Tank lower | Na dotaz | Zadat poptávku | |
| 1921 WHR10865 |
C00320722
481290508619 |
tesneni | 140 Kč
€ 5.50 |
||
| 1922 WHR10865 |
C00320724
481290508621 |
tesneni | 146 Kč
€ 5.80 |
||
| 2030 WHR10865 |
C00418575
482000023798 |
Insulation | Na dotaz | Zadat poptávku | |
| 2336 WHR10865 |
C00418576
482000023800 |
Handle Basket lower | Na dotaz | Zadat poptávku | |
| 2410 WHR10865 |
C00418658
482000023899 |
Basket upper silver | Na dotaz | Zadat poptávku | |
| 2411 WHR10865 |
C00394765
480140102731 |
Basket insert | Na dotaz | Zadat poptávku | |
| 2412 WHR10865 |
C00411754
482000009633 |
Cup holder | Na dotaz | Zadat poptávku | |
| 2413 WHR10865 |
C00374226
480140102728 |
Wheel lower basket | Na dotaz | Zadat poptávku | |
| 2415 WHR10865 |
C00418659
482000023900 |
Basket lower | Na dotaz | Zadat poptávku | |
| 2416 WHR10865 |
C00411780
482000009662 |
Plate support 8 wires | Na dotaz | Zadat poptávku | |
| 2417 WHR10865 |
C00411779
482000009661 |
Plate support 12 wires | Na dotaz | Zadat poptávku | |
| 2418 WHR10865 |
C00411750
482000009629 |
Plate support 13 wires | Na dotaz | Zadat poptávku | |
| 2419 WHR10865 |
C00411749
482000009628 |
Plate support 7 wires | Na dotaz | Zadat poptávku | |
| 2435 WHR10865 |
C00418577
482000023802 |
Cutlery basket | Na dotaz | Zadat poptávku | |
| 2610 WHR10865 |
C00374235
480140100033 |
kolejnice | 537 Kč
€ 21.20 |
||
| 2611 WHR10865 |
C00336941
481290508684 |
Koncovka kolejnice přední | 196 Kč
€ 7.70 |
||
| 2615 WHR10865 |
C00314368
481290508686 |
Support Wheel & Wheel grey | Na dotaz | Zadat poptávku | |
| 2616 WHR10865 |
C00335611
481290508676 |
Zarážka zadní | 148 Kč
€ 5.80 |
||
| 2650 WHR10865 |
C00314479
481290508729 |
Držák nastavení koše levý+pravý | 1 713 Kč
€ 67.60 |
||
| 2651 WHR10865 |
C00315670
481290508731 |
Držák nastavení koše - levý | Na dotaz | Zadat poptávku | |
| 3320 WHR10865 |
C00418594
482000023828 |
Button on/off | Na dotaz | Zadat poptávku | |
| 3321 WHR10865 |
C00411930
482000010257 |
Button OPTIONES ST60 SIL. | Na dotaz | Zadat poptávku | |
| 3323 WHR10865 |
C00288353
482000009572 |
KLÁVESA RUBBER | Na dotaz | Zadat poptávku | |
| 3329 WHR10865 |
C00411697
482000009571 |
Cover Push Button on/off | Na dotaz | Zadat poptávku | |
| 3500 WHR10865 |
C00418599
482000023834 |
Unit control | Na dotaz | Zadat poptávku | |
| 3502 WHR10865 |
C00411770
482000009652 |
Window | Na dotaz | Zadat poptávku | |
| 3510 WHR10865 |
C00411769
482000009651 |
Operating unit Options | Na dotaz | Zadat poptávku | |
| 3511 WHR10865 |
C00411699
482000009574 |
Program indic. | Na dotaz | Zadat poptávku | |
| 3512 WHR10865 |
C00418596
482000023830 |
Support Operating unit Optio | Na dotaz | Zadat poptávku | |
| 3513 WHR10865 |
C00418595
482000023829 |
Support Programmanzeige | Na dotaz | Zadat poptávku | |
| 3541 WHR10865 |
C00288348
481290508722 |
Lockingmechn. function | Na dotaz | Zadat poptávku | |
| 4000 WHR10865 |
C00411730
482000009607 |
Spray pump permanent | Na dotaz | Zadat poptávku | |
| 4001 WHR10865 |
C00411717
482000009593 |
Rubber Support Motor | Na dotaz | Zadat poptávku | |
| 4210 WHR10865 |
C00411712
482000009587 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 4300 WHR10865 |
C00411718
482000009594 |
Pump draining 220/240 V | Na dotaz | Zadat poptávku | |
| 4500 WHR10865 |
C00312589
481290508659 |
Heating element 240 V | Na dotaz | Zadat poptávku | |
| 4501 WHR10865 |
C00411728
482000009604 |
Hose Heating/Pump | Na dotaz | Zadat poptávku | |
| 4801 WHR10865 |
C00342878
480140102692 |
kabel | 808 Kč
€ 31.90 |
||
| 4900 WHR10865 |
C00411709
482000009584 |
Cable mains Schuko | Na dotaz | Zadat poptávku | |
| 4901 WHR10865 |
C00414954
482000016145 |
Cable holder | Na dotaz | Zadat poptávku | |
| 4902 WHR10865 |
C00414893
482000015951 |
Cable holder | Na dotaz | Zadat poptávku | |
| 4903 WHR10865 |
C00415083
482000016470 |
Tube of cable | Na dotaz | Zadat poptávku | |
| 5210 WHR10865 |
C00418657
482000023898 |
Timer 089FW052MD439PAR024 | Na dotaz | Zadat poptávku | |
| 5219 WHR10865 |
C00411701
482000009576 |
Support Timer | Na dotaz | Zadat poptávku | |
| 5620 WHR10865 |
C00411713
482000009588 |
Fuse | Na dotaz | Zadat poptávku | |
| 5830 WHR10865 |
C00415119
482000017049 |
Pressostat 54/30 ELBI | Na dotaz | Zadat poptávku | |
| 6210 WHR10865 |
C00411702
482000009577 |
Switch pushbut. On/Off | Na dotaz | Zadat poptávku | |
| 6230 WHR10865 |
C00411723
482000009599 |
Microswitch Floater | Na dotaz | Zadat poptávku | |
| 6310 WHR10865 |
C00411720
482000009596 |
Floater | Na dotaz | Zadat poptávku | |
| 6800 WHR10865 |
C00411698
482000009573 |
Dispenser 230-50 | Na dotaz | Zadat poptávku | |
| 6910 WHR10865 |
C00411721
482000009597 |
Resistor NTC | Na dotaz | Zadat poptávku | |
| 6920 WHR10865 |
C00288340
481290508719 |
SESTAVA KIT ZAKALENÍ | Na dotaz | Zadat poptávku | |
| 7010 WHR10865 |
C00414953
482000016144 |
Hose inlet Aquastop 2012 | Na dotaz | Zadat poptávku | |
| 7011 WHR10865 |
C00411711
482000009586 |
Bracket Valve | Na dotaz | Zadat poptávku | |
| 7012 WHR10865 |
C00411710
482000009585 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 7100 WHR10865 |
C00414952
482000016143 |
Water softener LS60-12+REED+HST | Na dotaz | Zadat poptávku | |
| 7102 WHR10865 |
C00340513
481290508689 |
matice zasobniku | 310 Kč
€ 12.20 |
||
| 7103 WHR10865 |
C00340512
481990500002 |
tesneni | 185 Kč
€ 7.30 |
||
| 7105 WHR10865 |
C00345080
482000009605 |
zamek | 785 Kč
€ 31.00 |
||
| 7220 WHR10865 |
C00411689
482000009563 |
Spray arm lower | Na dotaz | Zadat poptávku | |
| 7221 WHR10865 |
C00313690
481290508681 |
Horní mycí rameno | 857 Kč
€ 33.80 |
||
| 7222 WHR10865 |
C00320760
481290508874 |
Nátrubek ramene | 1 070 Kč
€ 42.20 |
||
| 7223 WHR10865 |
C00340515
481290508604 |
Těsnění | 505 Kč
€ 19.90 |
||
| 7224 WHR10865 |
C00342728
481290508696 |
Držák ramena | 1 023 Kč
€ 40.40 |
||
| 7230 WHR10865 |
C00418591
482000023818 |
Douche ceiling | Na dotaz | Zadat poptávku | |
| 7231 WHR10865 |
C00418590
482000023817 |
Support Douche ceiling | Na dotaz | Zadat poptávku | |
| 7260 WHR10865 |
C00411690
482000009564 |
Tube | Na dotaz | Zadat poptávku | |
| 7261 WHR10865 |
C00418589
482000023816 |
Fitting Tube Spray arm upper | Na dotaz | Zadat poptávku | |
| 7262 WHR10865 |
C00411691
482000009565 |
Tube Douche ceiling | Na dotaz | Zadat poptávku | |
| 7269 WHR10865 |
C00411688
482000009562 |
Gasket Flange spray arm | Na dotaz | Zadat poptávku | |
| 7500 WHR10865 |
C00414895
482000015953 |
Reg.dosage LS2012+DEC | Na dotaz | Zadat poptávku | |
| 7501 WHR10865 |
C00340514
481290508133 |
tesneni | 231 Kč
€ 9.10 |
||
| 7502 WHR10865 |
C00342962
481290508715 |
zaslepka | 217 Kč
€ 8.60 |
||
| 7510 WHR10865 |
C00414890
482000015946 |
Water collector | Na dotaz | Zadat poptávku | |
| 7511 WHR10865 |
C00411684
482000009558 |
Gasket Water collector | Na dotaz | Zadat poptávku | |
| 7540 WHR10865 |
C00411729
482000009606 |
Cover top Water collector | Na dotaz | Zadat poptávku | |
| 7550 WHR10865 |
C00411775
482000009657 |
Bend | Na dotaz | Zadat poptávku | |
| 7552 WHR10865 |
C00411748
482000009627 |
Tray leak Crossbar | Na dotaz | Zadat poptávku | |
| 7630 WHR10865 |
C00411685
482000009559 |
Filter St.Steel | Na dotaz | Zadat poptávku | |
| 7631 WHR10865 |
C00411686
482000009560 |
Filtr myčky sestava | 1 465 Kč
€ 57.80 |
||
| 7633 WHR10865 |
C00411687
482000009561 |
Support Spray arm lower | Na dotaz | Zadat poptávku | |
| 7810 WHR10865 |
C00411719
482000009595 |
Hose draining | Na dotaz | Zadat poptávku | |
| 7813 WHR10865 |
C00411722
482000009598 |
Flap non-return | Na dotaz | Zadat poptávku | |
| 7834 WHR10865 |
C00411726
482000009602 |
Hose Sump/Softener | Na dotaz | Zadat poptávku | |
| 7835 WHR10865 |
C00411724
482000009600 |
Hose Pump | Na dotaz | Zadat poptávku | |
| 7837 WHR10865 |
C00414896
482000015954 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 9040 WHR10865 |
C00341453
481290508891 |
doraz centrovani dveri | 76 Kč
€ 3.00 |
||
| 9041 WHR10865 |
C00342826
481290508805 |
Cap door centration | Na dotaz | Zadat poptávku | |
| 9043 WHR10865 |
C00411739
482000009617 |
Cap Fuss verstellb. | Na dotaz | Zadat poptávku | |
| 9045 WHR10865 |
C00418592
482000023819 |
Stopper | Na dotaz | Zadat poptávku | |
| 9100 WHR10865 |
C00411727
482000009603 |
Bracket Hose Pump | Na dotaz | Zadat poptávku | |
| 9101 WHR10865 |
C00345211
480140100034 |
Screw Fastener rail | Na dotaz | Zadat poptávku | |
| 9103 WHR10865 |
C00411732
482000009610 |
Screw Hook Door centring | Na dotaz | Zadat poptávku | |
| 9910 WHR10865 |
C00418601
482000023836 |
Template Door fixation | Na dotaz | Zadat poptávku | |
| 9935 WHR10865 |
C00336773
481290508677 |
Salt Funnel | Na dotaz | Zadat poptávku | |
| 9990 WHR10865 |
C00418597
482000023831 |
Door fixation | Na dotaz | Zadat poptávku | |
| 999 WHR14307 |
C00541077 | Testprogram WHP | Na dotaz | Zadat poptávku | |
