WHIRLPOOL WTE 5213 A+ NFX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WTE 5213 A+ NFX |
| Kód 12NC: | 850566411000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

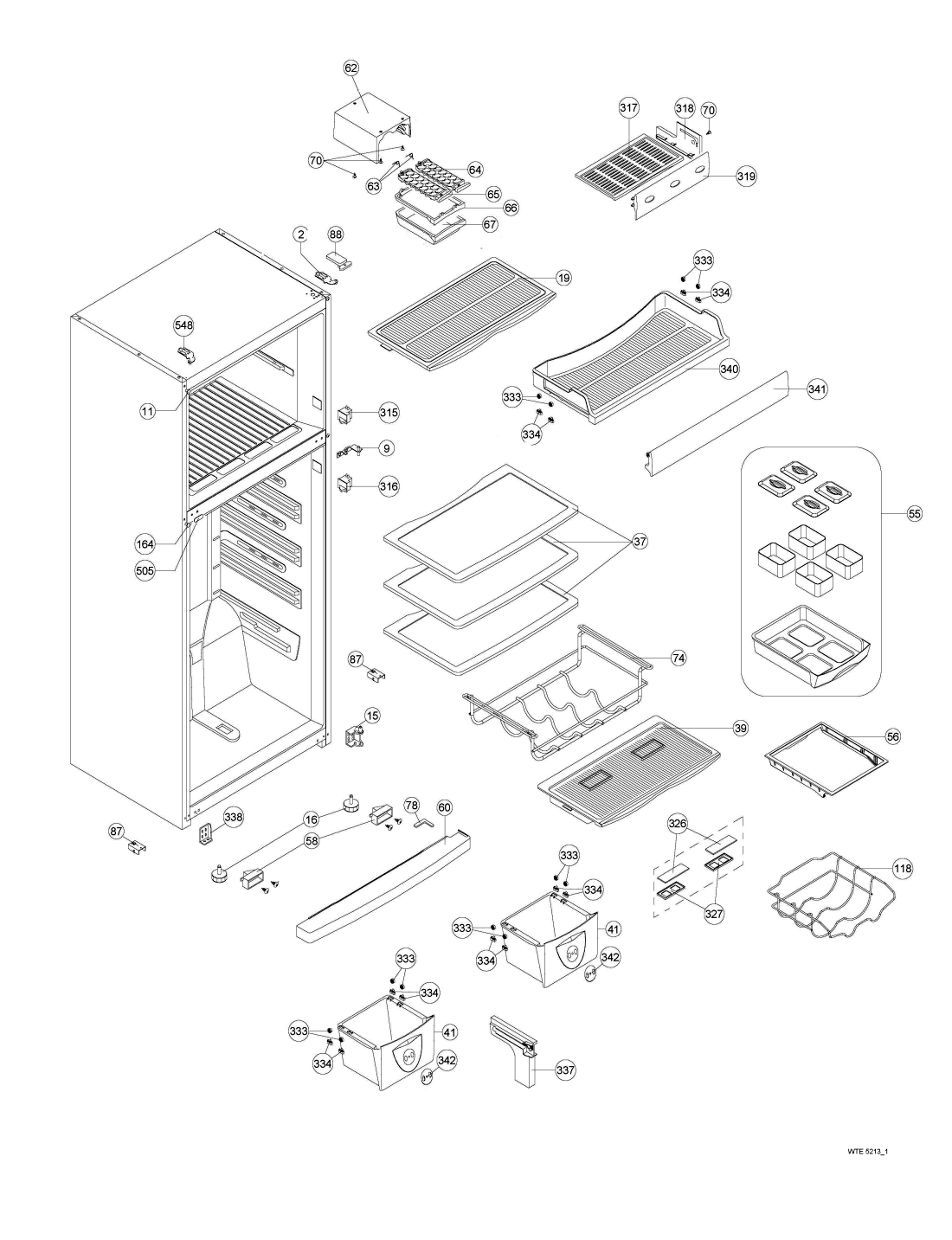

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 WHR11493 |
C00377660
481241719458 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 011 WHR11493 |
C00281810
481246248444 |
ZÁTKA KRYTKA ŠROUBU | Na dotaz | Zadat poptávku | |
| 012 WHR11493 |
C00408100
482000002928 |
Cap | Na dotaz | Zadat poptávku | |
| 015 WHR11493 |
C00306412
480132101036 |
SPODNI ZAWES | Na dotaz | Zadat poptávku | |
| 015 WHR11493 |
C00329762
481241719459 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 016 WHR11493 |
C00270036
481246218305 |
FOOT - ADJUSTABLE | Na dotaz | Zadat poptávku | |
| 019 WHR11493 |
C00280314
481241829875 |
DVEŘNÍ PŘIHRÁDKA FREEZER | Na dotaz | Zadat poptávku | |
| 022 WHR11493 |
C00335149
482213488089 |
Žárovka T22 E14 15W do trouby | Na dotaz | Zadat poptávku | |
| 030 WHR11493 |
C00345723
481249468049 |
Spring knob thermostat | Na dotaz | Zadat poptávku | |
| 037 WHR11493 |
C00394222
480132102176 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 039 WHR11493 |
C00394464
480132103414 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 055 WHR11493 |
C00403024
481241829892 |
Tray-Kit | Na dotaz | Zadat poptávku | |
| 056 WHR11493 |
C00394421
480132103335 |
Tray | Na dotaz | Zadat poptávku | |
| 058 WHR11493 |
C00285190
480132103336 |
PODLOŽKA DOLNÍ ZÁVĚS | Na dotaz | Zadat poptávku | |
| 060 WHR11493 |
C00377703
481244029542 |
Plinth | Na dotaz | Zadat poptávku | |
| 062 WHR11493 |
C00281770
480132102185 |
PODPĚRA DVÍŘEK VÝROBNÍKU LEDU | Na dotaz | Zadat poptávku | |
| 063 WHR11493 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
| 064 WHR11493 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
| 065 WHR11493 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
| 066 WHR11493 |
C00345003
480132102186 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
| 067 WHR11493 |
C00345069
480132102184 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 070 WHR11493 |
C00410597
482000007557 |
Screw Inox | Na dotaz | Zadat poptávku | |
| 074 WHR11493 |
C00394453
480132103402 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 078 WHR11493 |
C00403579
481244089167 |
Cover bar plinth | Na dotaz | Zadat poptávku | |
| 087 WHR11493 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
| 088 WHR11493 |
C00403233
481244029541 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 103 WHR11493 |
C00281792
480132102201 |
Gasket tapes | Na dotaz | Zadat poptávku | |
| 107 WHR11493 |
C00327556
481228238245 |
Thermostat | Na dotaz | Zadat poptávku | |
| 151 WHR11493 |
C00377729
481244688166 |
Bushing | Na dotaz | Zadat poptávku | |
| 152 WHR11493 |
C00404889
481246248445 |
Cover bushing | Na dotaz | Zadat poptávku | |
| 153 WHR11493 |
C00412734
482000011877 |
Kit doors (freezer+refr.) mechanic | Na dotaz | Zadat poptávku | |
| 154 WHR11493 |
C00480209
481245918218 |
logo Whirlpool | 429 Kč
€ 16.90 |
||
| 158 WHR11493 |
C00394451
480132103399 |
Door dairy small | Na dotaz | Zadat poptávku | |
| 159 WHR11493 |
C00403051
481241848929 |
Egg trim | Na dotaz | Zadat poptávku | |
| 164 WHR11493 |
C00287946
482000003317 |
DOOR HANDLE SCREW CAP | Na dotaz | Zadat poptávku | |
| 174 WHR11493 |
C00329805
481241778139 |
Stop door | Na dotaz | Zadat poptávku | |
| 175 WHR11493 |
C00394450
480132103398 |
Door dairy | Na dotaz | Zadat poptávku | |
| 176 WHR11493 |
C00407419
482000001626 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 177 WHR11493 |
C00394452
480132103401 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 180 WHR11493 |
C00403722
481244688165 |
Bushing | Na dotaz | Zadat poptávku | |
| 188 WHR11493 |
C00407189
482000000850 |
Door dairy | Na dotaz | Zadat poptávku | |
| 193 WHR11493 |
C00394448
480132103396 |
Door dairy | Na dotaz | Zadat poptávku | |
| 193 WHR11493 |
C00394449
480132103397 |
Door dairy | Na dotaz | Zadat poptávku | |
| 201 WHR11493 |
C00280299
481251148458 |
KONDENZÁTOR | Na dotaz | Zadat poptávku | |
| 202 WHR11493 |
C00405046
481246488055 |
Trim condenser | Na dotaz | Zadat poptávku | |
| 203 WHR11493 |
C00281791
480131100426 |
Spacer | Na dotaz | Zadat poptávku | |
| 207 WHR11493 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 210 WHR11493 |
C00410602
482000007564 |
Cable mains 2.1 m | Na dotaz | Zadat poptávku | |
| 211 WHR11493 |
C00202847
480132103355 |
Protect motor | Na dotaz | Zadat poptávku | |
| 212 WHR11493 |
C00394356
480132102476 |
Kondenzátor | 574 Kč
€ 22.70 |
||
| 214 WHR11493 |
C00344934
480132102178 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 214 WHR11493 |
C00410615
482000007585 |
Cup thaw water | Na dotaz | Zadat poptávku | |
| 215 WHR11493 |
C00269997
480132103356 |
Dryer | Na dotaz | Zadat poptávku | |
| 216 WHR11493 |
C00513218
482000007565 |
Holder | Na dotaz | Zadat poptávku | |
| 217 WHR11493 |
C00269996
480132103357 |
Kompresor NLX13KK2 | Na dotaz | Zadat poptávku | |
| 218 WHR11493 |
C00280285
481246448229 |
TRAVERZA KOMPRESORU CELEK | Na dotaz | Zadat poptávku | |
| 225 WHR11493 |
C00287942
480132103191 |
Tube LOKRING (105*6*0,7)TYPE B | Na dotaz | Zadat poptávku | |
| 226 WHR11493 |
C00306237
480132103192 |
Tube | Na dotaz | Zadat poptávku | |
| 227 WHR11493 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 228 WHR11493 |
C00280300
480132101057 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 237 WHR11493 |
C00318914
481228210311 |
Timer Defrost | Na dotaz | Zadat poptávku | |
| 238 WHR11493 |
C00345077
482000001728 |
Cover plate | Na dotaz | Zadat poptávku | |
| 314 WHR11493 |
C00285193
480132102179 |
ZÁTKA | Na dotaz | Zadat poptávku | |
| 315 WHR11493 |
C00345050
480132102174 |
Switch door freezer | Na dotaz | Zadat poptávku | |
| 316 WHR11493 |
C00345094
480132102175 |
Switch door refrigerator | Na dotaz | Zadat poptávku | |
| 317 WHR11493 |
C00280313
481241829876 |
DVEŘNÍ PŘIHRÁDKA SUPER FREEZER | Na dotaz | Zadat poptávku | |
| 318 WHR11493 |
C00281774
480132102191 |
PODPĚRA OKÉNKA SUPER MRAZNIČKY | Na dotaz | Zadat poptávku | |
| 319 WHR11493 |
C00403553
481244079291 |
Cover freezing | Na dotaz | Zadat poptávku | |
| 333 WHR11493 |
C00281750
480132102192 |
KOLEČKO DRAWER CHILLER | Na dotaz | Zadat poptávku | |
| 334 WHR11493 |
C00281752
480132102193 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 337 WHR11493 |
C00281780
480132102189 |
ODDĚLOVAČ PROSTOR BÍLÝ | Na dotaz | Zadat poptávku | |
| 338 WHR11493 |
C00330465
481246218306 |
Support foot | Na dotaz | Zadat poptávku | |
| 339 WHR11493 |
C00280317
480132101061 |
Shelf | Na dotaz | Zadat poptávku | |
| 341 WHR11493 |
C00407421
482000001628 |
Flap front | Na dotaz | Zadat poptávku | |
| 39A WHR11493 |
C00394460
480132103409 |
Trim Crisper cover | Na dotaz | Zadat poptávku | |
| 39B WHR11493 |
C00394461
480132103411 |
Trim Crisper cover | Na dotaz | Zadat poptávku | |
| 401 WHR11493 |
C00306238
481251138362 |
FIN EVAPORATOR | Na dotaz | Zadat poptávku | |
| 402 WHR11493 |
C00344996
481211528015 |
Resistor | Na dotaz | Zadat poptávku | |
| 408 WHR11493 |
C00281735
480132102205 |
ODVADĚČ VZDUCHU ÚPLNÝ | Na dotaz | Zadat poptávku | |
| 409 WHR11493 |
C00280291
481228678014 |
VRTULE | Na dotaz | Zadat poptávku | |
| 410 WHR11493 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
| 411 WHR11493 |
C00402053
481240449773 |
Absorber | Na dotaz | Zadat poptávku | |
| 412 WHR11493 |
C00329027
481240438802 |
Support motor | Na dotaz | Zadat poptávku | |
| 413 WHR11493 |
C00280290
481236158485 |
VENTILÁTOR S MOTOREM | Na dotaz | Zadat poptávku | |
| 414 WHR11493 |
C00330795
481246368033 |
Damper | Na dotaz | Zadat poptávku | |
| 415 WHR11493 |
C00281772
480132102206 |
SPODEK MRAZÁKU | Na dotaz | Zadat poptávku | |
| 419 WHR11493 |
C00280305
481244079278 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 41A WHR11493 |
C00394463
480132103413 |
Front panel Crisper | Na dotaz | Zadat poptávku | |
| 41B WHR11493 |
C00394462
480132103412 |
Crisper | Na dotaz | Zadat poptávku | |
| 421 WHR11493 |
C00281747
480132102203 |
KRABICE TERMOSTAT | Na dotaz | Zadat poptávku | |
| 422 WHR11493 |
C00394227
480132102198 |
Knob Thermostat | Na dotaz | Zadat poptávku | |
| 424 WHR11493 |
C00281773
480132102204 |
Air guide | Na dotaz | Zadat poptávku | |
| 425 WHR11493 |
C00394226
480132102188 |
Dumper | Na dotaz | Zadat poptávku | |
| 426 WHR11493 |
C00330970
481246668935 |
Damper Thermostat | Na dotaz | Zadat poptávku | |
| 431 WHR11493 |
C00281788
480132102197 |
OVLADAČ TERMOSTATU POLARW | Na dotaz | Zadat poptávku | |
| 432 WHR11493 |
C00280309
481246228887 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 443 WHR11493 |
C00405131
481246688958 |
Insulation | Na dotaz | Zadat poptávku | |
| 444 WHR11493 |
C00402155
481240478857 |
Cover | Na dotaz | Zadat poptávku | |
| 445 WHR11493 |
C00306365
481244079281 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 446 WHR11493 |
C00306366
481244079282 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 447 WHR11493 |
C00306361
481244079283 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 448 WHR11493 |
C00281782
480132102187 |
MULTIFLOW CENTRALNI | Na dotaz | Zadat poptávku | |
| 449 WHR11493 |
C00345179
480131100432 |
Cap | Na dotaz | Zadat poptávku | |
| 453 WHR11493 |
C00403723
481244688167 |
Bushing | Na dotaz | Zadat poptávku | |
| 459 WHR11493 |
C00394220
480132102172 |
Magnetic seal Door | Na dotaz | Zadat poptávku | |
| 460 WHR11493 |
C00394221
480132102173 |
KIT gaskets fridge and freezer | Na dotaz | Zadat poptávku | |
| 461 WHR11493 |
C00376930
480132101053 |
Door handle freezer IX | Na dotaz | Zadat poptávku | |
| 464 WHR11493 |
C00394080
480132101054 |
Door handle refrigerator IX | Na dotaz | Zadat poptávku | |
| 466 WHR11493 |
C00281783
480132102195 |
MULTIFLOW PRAVY | Na dotaz | Zadat poptávku | |
| 467 WHR11493 |
C00281784
480132102194 |
MULTIFLOW LEVY | Na dotaz | Zadat poptávku | |
| 468 WHR11493 |
C00281785
480132102196 |
MULTIFLOW PŘÍČNÝCH | Na dotaz | Zadat poptávku | |
| 499 WHR11493 |
C00345029
482000001630 |
Thermal fuse | Na dotaz | Zadat poptávku | |
| 505 WHR11493 |
C00404888
481246248443 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
| 533 WHR11493 |
C00318912
481225928966 |
Heating element | Na dotaz | Zadat poptávku | |
| 695 WHR11493 |
C00394436
480132103361 |
Batten | Na dotaz | Zadat poptávku | |
| 999 WHR11493 |
C00541791 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
