| Komerční kód: | WTH4910 NFW (GCC) |
| Kód 12NC: | 859991535090 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

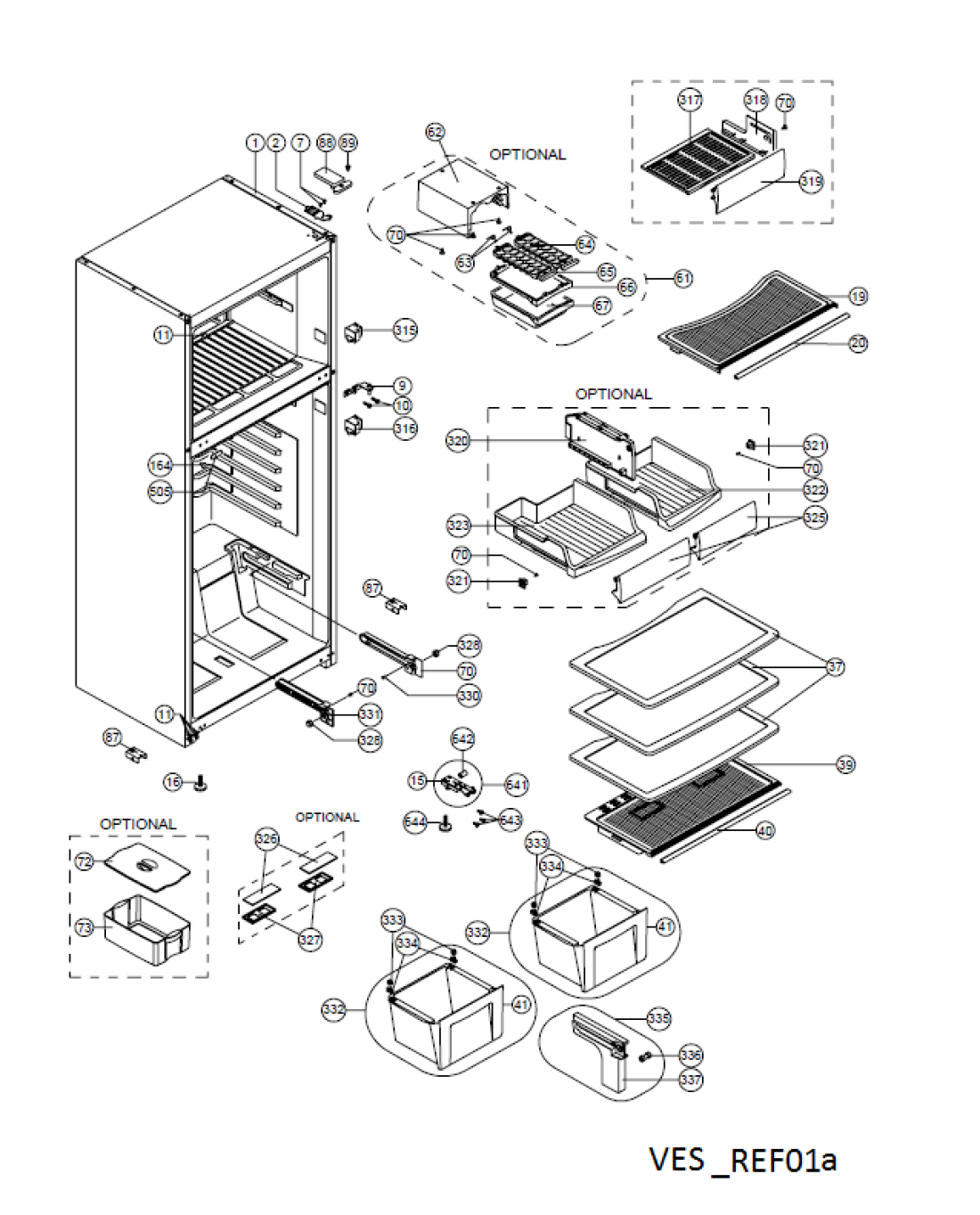

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0002 WHR38719 |
C00519050
482000098230 |
Hinge Top GR/HC RV1 | Na dotaz | Zadat poptávku | |
| 0009 WHR38719 |
C00344983
482000007555 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 0011 WHR38719 |
C00504889
482000094634 |
Cap | Na dotaz | Zadat poptávku | |
| 0012 WHR38719 |
C00504888
482000094633 |
Cap | Na dotaz | Zadat poptávku | |
| 0015 WHR38719 |
C00416628
482000019375 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 0016 WHR38719 |
C00504904
482000094649 |
Foot | Na dotaz | Zadat poptávku | |
| 0019 WHR38719 |
C00377686
481241829855 |
Shelf | Na dotaz | Zadat poptávku | |
| 0020,0325 WHR38719 |
C00377817
481246488052 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 0022 WHR38719 |
C00313716
481213418043 |
Lamp | Na dotaz | Zadat poptávku | |
| 0023 WHR38719 |
C00327125
481225518278 |
Holder lamp E14 | Na dotaz | Zadat poptávku | |
| 0030 WHR38719 |
C00345723
481249468049 |
Spring knob thermostat | Na dotaz | Zadat poptávku | |
| 0040 WHR38719 |
C00405045
481246488054 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 0041,0061,0062,0087,0227,0321,0334,0413,0449,1026,16B WHR38719 |
C00281752
480132102193 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 0064 WHR38719 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
| 0065 WHR38719 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
| 0066 WHR38719 |
C00345003
480132102186 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
| 0067 WHR38719 |
C00281766
482000003263 |
VANIČKA LED | Na dotaz | Zadat poptávku | |
| 0151 WHR38719 |
C00382481
482000019488 |
Bushing | Na dotaz | Zadat poptávku | |
| 0152 WHR38719 |
C00504886
482000094631 |
Bushing | Na dotaz | Zadat poptávku | |
| 0153 WHR38719 |
C00519093
482000098239 |
Door F 540M GKEDGE SWWH | Na dotaz | Zadat poptávku | |
| 0155 WHR38719 |
C00519094
482000098240 |
Door R 540GK EDGE SWWH | Na dotaz | Zadat poptávku | |
| 0158 WHR38719 |
C00327737
481241829853 |
Flap drawer | Na dotaz | Zadat poptávku | |
| 0159 WHR38719 |
C00519045
482000098237 |
Držák vajec | 256 Kč
€ 10.10 |
||
| 0171 WHR38719 |
C00413984
482000014124 |
Catcher right | Na dotaz | Zadat poptávku | |
| 0174 WHR38719 |
C00408106
482000002937 |
Stop door | Na dotaz | Zadat poptávku | |
| 0175 WHR38719 |
C00519043
482000098234 |
Shelf 455 TRANS NAT NEWRV1 | Na dotaz | Zadat poptávku | |
| 0175 WHR38719 |
C00519044
482000098236 |
Shelf 540 TRANS NAT RV1 | Na dotaz | Zadat poptávku | |
| 0187 WHR38719 |
C00393955
480132100248 |
Bushing | Na dotaz | Zadat poptávku | |
| 0189 WHR38719 |
C00411874
482000010077 |
Bushing | Na dotaz | Zadat poptávku | |
| 0201 WHR38719 |
C00413980
482000014119 |
Condenser | Na dotaz | Zadat poptávku | |
| 0207 WHR38719 |
C00508314
482000095848 |
Rubber antivibration | Na dotaz | Zadat poptávku | |
| 0209 WHR38719 |
C00519034
482000098223 |
Unit,supply KAP BES 110CLS 2,1M | Na dotaz | Zadat poptávku | |
| 0210 WHR38719 |
C00519035
482000098224 |
Power unit cord | Na dotaz | Zadat poptávku | |
| 0211 WHR38719 |
C00519036
482000098225 |
Bag OVER LGR EGYS110CLC | Na dotaz | Zadat poptávku | |
| 0212 WHR38719 |
C00345078
482000020248 |
Capacitor 5uF | Na dotaz | Zadat poptávku | |
| 0214 WHR38719 |
C00344934
480132102178 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 0215 WHR38719 |
C00513807
482000019380 |
Dryer | Na dotaz | Zadat poptávku | |
| 0216 WHR38719 |
C00504845
482000094600 |
Bracket | Na dotaz | Zadat poptávku | |
| 0217 WHR38719 |
C00417174
482000020595 |
Compressor | Na dotaz | Zadat poptávku | |
| 0218 WHR38719 |
C00405005
481246448228 |
Base compressor | Na dotaz | Zadat poptávku | |
| 0219 WHR38719 |
C00504865
482000094609 |
Washer | Na dotaz | Zadat poptávku | |
| 0225 WHR38719 |
C00504871
482000094615 |
Tube SERVICE TYPE B | Na dotaz | Zadat poptávku | |
| 0226 WHR38719 |
C00504869
482000094613 |
Dryer TUBE | Na dotaz | Zadat poptávku | |
| 0227 WHR38719 |
C00519051
482000098235 |
Wheel FRONT/BACK PP40KA | Na dotaz | Zadat poptávku | |
| 0228 WHR38719 |
C00280300
480132101057 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 0315 WHR38719 |
C00345050
480132102174 |
Switch door freezer | Na dotaz | Zadat poptávku | |
| 0316 WHR38719 |
C00345094
480132102175 |
Switch door refrigerator | Na dotaz | Zadat poptávku | |
| 0317 WHR38719 |
C00403011
481241829856 |
Shelf | Na dotaz | Zadat poptávku | |
| 0323 WHR38719 |
C00327736
481241829851 |
Drawer left | Na dotaz | Zadat poptávku | |
| 0326 WHR38719 |
C00405258
481248058396 |
Filter | Na dotaz | Zadat poptávku | |
| 0327 WHR38719 |
C00281775
480132102183 |
FILTR HOLDER | Na dotaz | Zadat poptávku | |
| 0332 WHR38719 |
C00519041
482000098232 |
Crisper GR540TRANS nat WHSRG | Na dotaz | Zadat poptávku | |
| 0333 WHR38719 |
C00408263
482000003268 |
Roller | Na dotaz | Zadat poptávku | |
| 0335 WHR38719 |
C00417176
482000020599 |
Partition Crisper | Na dotaz | Zadat poptávku | |
| 0336 WHR38719 |
C00408264
482000003269 |
Roller | Na dotaz | Zadat poptávku | |
| 0337 WHR38719 |
C00408272
482000003277 |
Rail for basket | Na dotaz | Zadat poptávku | |
| 0401 WHR38719 |
C00519040
482000098231 |
Evaporator fin 540 W/OUT SHRINK | Na dotaz | Zadat poptávku | |
| 0402 WHR38719 |
C00419298
482000090430 |
Resistor 465-540-565/550mm | Na dotaz | Zadat poptávku | |
| 0407 WHR38719 |
C00417179
482000020602 |
Air guide freezer Multiflow | Na dotaz | Zadat poptávku | |
| 0408 WHR38719 |
C00408268
482000003273 |
Air guide | Na dotaz | Zadat poptávku | |
| 0409 WHR38719 |
C00327581
481228678013 |
Impeller | Na dotaz | Zadat poptávku | |
| 0410 WHR38719 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
| 0411 WHR38719 |
C00402053
481240449773 |
Absorber | Na dotaz | Zadat poptávku | |
| 0412 WHR38719 |
C00519031
482000098220 |
Absorber motor 7W | Na dotaz | Zadat poptávku | |
| 0413 WHR38719 |
C00328834
481236158483 |
Motor fan | Na dotaz | Zadat poptávku | |
| 0415 WHR38719 |
C00408269
482000003274 |
Cover plate | Na dotaz | Zadat poptávku | |
| 0420 WHR38719 |
C00418226
482000022352 |
Elect.parts box cpl. GR/465(REGAL)/WH/EM | Na dotaz | Zadat poptávku | |
| 0421 WHR38719 |
C00281747
480132102203 |
KRABICE TERMOSTAT | Na dotaz | Zadat poptávku | |
| 0424 WHR38719 |
C00408261
482000003266 |
Air grid | Na dotaz | Zadat poptávku | |
| 0425 WHR38719 |
C00345085
480132102451 |
Housing Damper | Na dotaz | Zadat poptávku | |
| 0426 WHR38719 |
C00330970
481246668935 |
Damper Thermostat | Na dotaz | Zadat poptávku | |
| 0427 WHR38719 |
C00331532
481246688956 |
Insulator | Na dotaz | Zadat poptávku | |
| 0429 WHR38719 |
C00328842
481238028035 |
Reflector | Na dotaz | Zadat poptávku | |
| 0430 WHR38719 |
C00328517
481232128492 |
Cable harness | Na dotaz | Zadat poptávku | |
| 0431 WHR38719 |
C00419307
482000090444 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 0432 WHR38719 |
C00330574
481246228886 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 0434 WHR38719 |
C00377477
481221848159 |
Sensor freezer | Na dotaz | Zadat poptávku | |
| 0448 WHR38719 |
C00417180
482000020605 |
Air guide refrig. Multiflow | Na dotaz | Zadat poptávku | |
| 0459 WHR38719 |
C00413983
482000014122 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| 0460 WHR38719 |
C00413982
482000014121 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
| 0499 WHR38719 |
C00519037
482000098226 |
Thermal fuse SINGLE NOVA 300 | Na dotaz | Zadat poptávku | |
| 0505 WHR38719 |
C00345169
480132102463 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
| 0533 WHR38719 |
C00400803
481225928965 |
Heating element | Na dotaz | Zadat poptávku | |
| 0623 WHR38719 |
C00418225
482000022351 |
Timer Defrost MB/BDA01-6/12H/R100/VC06-2 | Na dotaz | Zadat poptávku | |
| 0641 WHR38719 |
C00519049
482000098228 |
Hinge lower HC GR(WHEEL-FOOT) | Na dotaz | Zadat poptávku | |
| 164B WHR38719 |
C00416960
482000020138 |
Cap | Na dotaz | Zadat poptávku | |
| 433B WHR38719 |
C00306415
482000019139 |
Sensor ambient/electromechanic | Na dotaz | Zadat poptávku | |
| 999 WHR38719 |
C00610315 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
