WHIRLPOOL WTH5244 NFPW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WTH5244 NFPW |
| Kód 12NC: | 850144611120 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850144611121, 850144611122 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

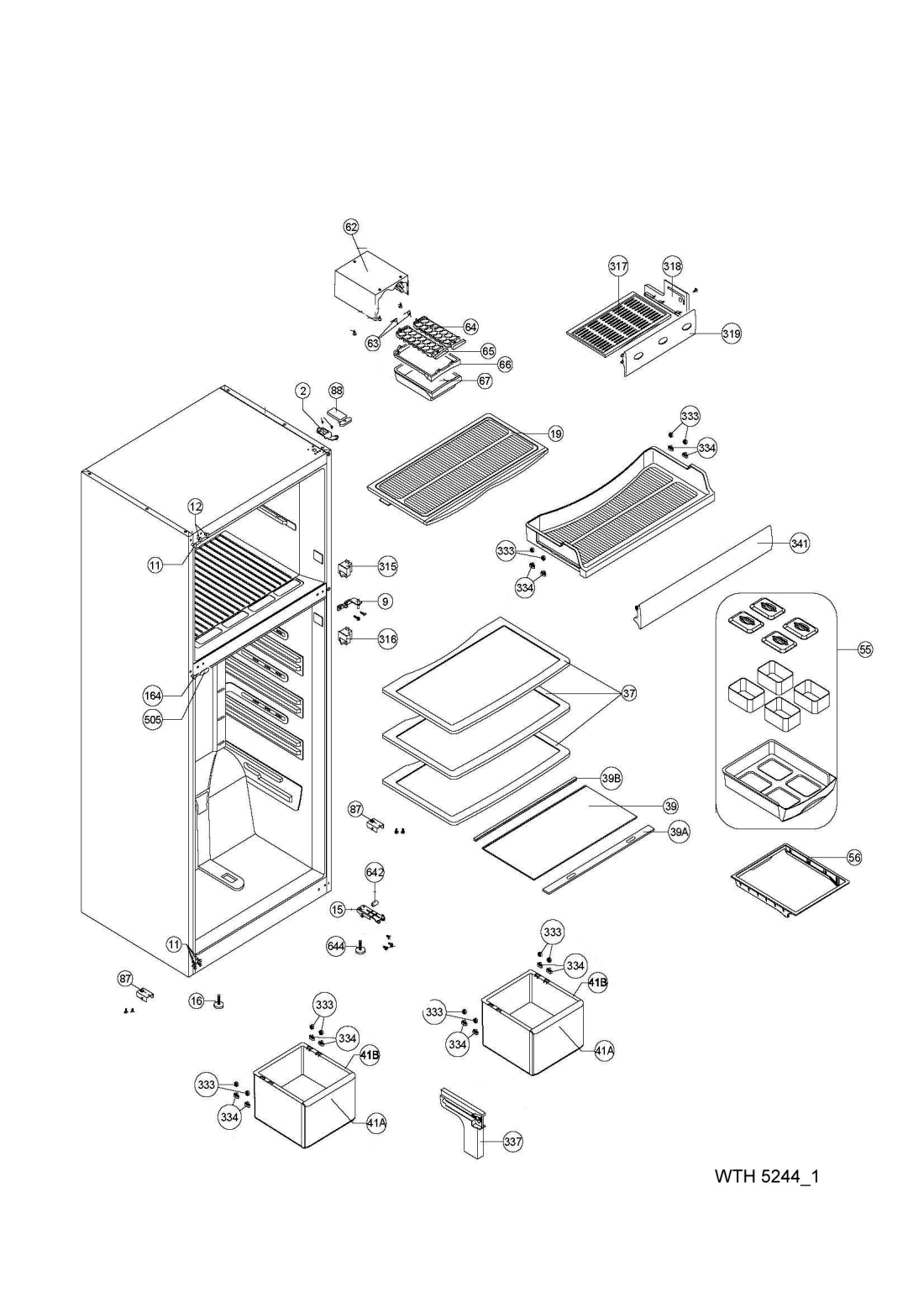

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 WHR10411 |
C00410595
482000007554 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 002 WHR10411 |
C00412861
482000012197 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 009 WHR10411 |
C00344983
482000007555 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 011 WHR10411 |
C00394348
480132102462 |
Cap | Na dotaz | Zadat poptávku | |
| 012 WHR10411 |
C00393745
480131100429 |
Cap | Na dotaz | Zadat poptávku | |
| 015 WHR10411 |
C00411841
482000010023 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 016 WHR10411 |
C00410596
482000007556 |
Foot fix | Na dotaz | Zadat poptávku | |
| 019 WHR10411 |
C00280314
481241829875 |
DVEŘNÍ PŘIHRÁDKA FREEZER | Na dotaz | Zadat poptávku | |
| 022 WHR10411 |
C00335149
482213488089 |
Žárovka T22 E14 15W do trouby | Na dotaz | Zadat poptávku | |
| 037 WHR10411 |
C00394222
480132102176 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 039 WHR10411 |
C00394464
480132103414 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 039A WHR10411 |
C00394460
480132103409 |
Trim Crisper cover | Na dotaz | Zadat poptávku | |
| 039B WHR10411 |
C00394461
480132103411 |
Trim Crisper cover | Na dotaz | Zadat poptávku | |
| 041A WHR10411 |
C00394463
480132103413 |
Front panel Crisper | Na dotaz | Zadat poptávku | |
| 041B WHR10411 |
C00394462
480132103412 |
Crisper | Na dotaz | Zadat poptávku | |
| 055 WHR10411 |
C00403024
481241829892 |
Tray-Kit | Na dotaz | Zadat poptávku | |
| 056 WHR10411 |
C00394421
480132103335 |
Tray | Na dotaz | Zadat poptávku | |
| 062 WHR10411 |
C00344990
482000010024 |
Cover | Na dotaz | Zadat poptávku | |
| 063 WHR10411 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
| 064 WHR10411 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
| 065 WHR10411 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
| 066 WHR10411 |
C00345003
480132102186 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
| 067 WHR10411 |
C00345069
480132102184 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 074 WHR10411 |
C00394453
480132103402 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 087 WHR10411 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
| 088 WHR10411 |
C00411871
482000010074 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 103 WHR10411 |
C00281792
480132102201 |
Gasket tapes | Na dotaz | Zadat poptávku | |
| 151 WHR10411 |
C00312732
481244688154 |
Bushing | Na dotaz | Zadat poptávku | |
| 152 WHR10411 |
C00394457
480132103406 |
Cap Bushing | Na dotaz | Zadat poptávku | |
| 153 WHR10411 |
C00411872
482000010075 |
Door freezer assy | Na dotaz | Zadat poptávku | |
| 154 WHR10411 |
C00411878
482000010081 |
Nameplate Whirlpool | Na dotaz | Zadat poptávku | |
| 155 WHR10411 |
C00411873
482000010076 |
Door refriger. assy | Na dotaz | Zadat poptávku | |
| 158 WHR10411 |
C00394451
480132103399 |
Door dairy small | Na dotaz | Zadat poptávku | |
| 159 WHR10411 |
C00403051
481241848929 |
Egg trim | Na dotaz | Zadat poptávku | |
| 164 WHR10411 |
C00345186
482000007773 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 164B WHR10411 |
C00411855
482000010038 |
Cap door handle edge silver grey | Na dotaz | Zadat poptávku | |
| 171 WHR10411 |
C00393958
480132100252 |
Catcher right | Na dotaz | Zadat poptávku | |
| 173 WHR10411 |
C00393959
480132100253 |
Catcher left | Na dotaz | Zadat poptávku | |
| 174 WHR10411 |
C00408106
482000002937 |
Stop door | Na dotaz | Zadat poptávku | |
| 175 WHR10411 |
C00394450
480132103398 |
Door dairy | Na dotaz | Zadat poptávku | |
| 176 WHR10411 |
C00407419
482000001626 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 177 WHR10411 |
C00394452
480132103401 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 188 WHR10411 |
C00407189
482000000850 |
Door dairy | Na dotaz | Zadat poptávku | |
| 189 WHR10411 |
C00411874
482000010077 |
Bushing | Na dotaz | Zadat poptávku | |
| 193 WHR10411 |
C00394448
480132103396 |
Door dairy | Na dotaz | Zadat poptávku | |
| 193 WHR10411 |
C00394449
480132103397 |
Door dairy | Na dotaz | Zadat poptávku | |
| 199 WHR10411 |
C00404808
481246228919 |
Cover bushing | Na dotaz | Zadat poptávku | |
| 201 WHR10411 |
C00280299
481251148458 |
KONDENZÁTOR | Na dotaz | Zadat poptávku | |
| 202 WHR10411 |
C00405046
481246488055 |
Trim condenser | Na dotaz | Zadat poptávku | |
| 203 WHR10411 |
C00281791
480131100426 |
Spacer | Na dotaz | Zadat poptávku | |
| 207 WHR10411 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 210 WHR10411 |
C00410602
482000007564 |
Cable mains 2.1 m | Na dotaz | Zadat poptávku | |
| 211 WHR10411 |
C00202847
480132103355 |
Protect motor | Na dotaz | Zadat poptávku | |
| 212 WHR10411 |
C00394356
480132102476 |
Kondenzátor | 574 Kč
€ 22.60 |
||
| 214 WHR10411 |
C00410615
482000007585 |
Cup thaw water | Na dotaz | Zadat poptávku | |
| 215 WHR10411 |
C00269997
480132103356 |
Dryer | Na dotaz | Zadat poptávku | |
| 216 WHR10411 |
C00513218
482000007565 |
Holder | Na dotaz | Zadat poptávku | |
| 217 WHR10411 |
C00269996
480132103357 |
Kompresor NLX13KK2 | Na dotaz | Zadat poptávku | |
| 218 WHR10411 |
C00280285
481246448229 |
TRAVERZA KOMPRESORU CELEK | Na dotaz | Zadat poptávku | |
| 225 WHR10411 |
C00287942
480132103191 |
Tube LOKRING (105*6*0,7)TYPE B | Na dotaz | Zadat poptávku | |
| 226 WHR10411 |
C00306237
480132103192 |
Tube | Na dotaz | Zadat poptávku | |
| 227 WHR10411 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 228 WHR10411 |
C00280300
480132101057 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 242 WHR10411 |
C00376956
480132103358 |
Timer | Na dotaz | Zadat poptávku | |
| 244 WHR10411 |
C00407420
482000001627 |
Cover plate | Na dotaz | Zadat poptávku | |
| 314 WHR10411 |
C00285193
480132102179 |
ZÁTKA | Na dotaz | Zadat poptávku | |
| 315 WHR10411 |
C00345050
480132102174 |
Switch door freezer | Na dotaz | Zadat poptávku | |
| 316 WHR10411 |
C00345094
480132102175 |
Switch door refrigerator | Na dotaz | Zadat poptávku | |
| 317 WHR10411 |
C00280313
481241829876 |
DVEŘNÍ PŘIHRÁDKA SUPER FREEZER | Na dotaz | Zadat poptávku | |
| 318 WHR10411 |
C00345088
482000007566 |
Partition | Na dotaz | Zadat poptávku | |
| 319 WHR10411 |
C00411846
482000010029 |
Cover | Na dotaz | Zadat poptávku | |
| 333 WHR10411 |
C00281750
480132102192 |
KOLEČKO DRAWER CHILLER | Na dotaz | Zadat poptávku | |
| 334 WHR10411 |
C00281752
480132102193 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 337 WHR10411 |
C00281780
480132102189 |
ODDĚLOVAČ PROSTOR BÍLÝ | Na dotaz | Zadat poptávku | |
| 341 WHR10411 |
C00407421
482000001628 |
Flap front | Na dotaz | Zadat poptávku | |
| 401 WHR10411 |
C00306238
481251138362 |
FIN EVAPORATOR | Na dotaz | Zadat poptávku | |
| 408 WHR10411 |
C00281735
480132102205 |
ODVADĚČ VZDUCHU ÚPLNÝ | Na dotaz | Zadat poptávku | |
| 409 WHR10411 |
C00280291
481228678014 |
VRTULE | Na dotaz | Zadat poptávku | |
| 410 WHR10411 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
| 411 WHR10411 |
C00402053
481240449773 |
Absorber | Na dotaz | Zadat poptávku | |
| 412 WHR10411 |
C00329027
481240438802 |
Support motor | Na dotaz | Zadat poptávku | |
| 413 WHR10411 |
C00280290
481236158485 |
VENTILÁTOR S MOTOREM | Na dotaz | Zadat poptávku | |
| 414 WHR10411 |
C00330795
481246368033 |
Damper | Na dotaz | Zadat poptávku | |
| 415 WHR10411 |
C00281772
480132102206 |
SPODEK MRAZÁKU | Na dotaz | Zadat poptávku | |
| 419 WHR10411 |
C00280305
481244079278 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 421 WHR10411 |
C00281747
480132102203 |
KRABICE TERMOSTAT | Na dotaz | Zadat poptávku | |
| 424 WHR10411 |
C00281773
480132102204 |
Air guide | Na dotaz | Zadat poptávku | |
| 432 WHR10411 |
C00280309
481246228887 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 433 WHR10411 |
C00376914
480132100183 |
Sensor Defrost | Na dotaz | Zadat poptávku | |
| 434 WHR10411 |
C00377477
481221848159 |
Sensor freezer | Na dotaz | Zadat poptávku | |
| 435 WHR10411 |
C00394423
480132103341 |
Cover Casing | Na dotaz | Zadat poptávku | |
| 439 WHR10411 |
C00377809
481246378024 |
DAMPER THERMOSTAT | Na dotaz | Zadat poptávku | |
| 442 WHR10411 |
C00306233
480132100182 |
Sensor refriger. | Na dotaz | Zadat poptávku | |
| 443 WHR10411 |
C00405137
481246688968 |
Insulation | Na dotaz | Zadat poptávku | |
| 444 WHR10411 |
C00402160
481240478877 |
Cover | Na dotaz | Zadat poptávku | |
| 445 WHR10411 |
C00306365
481244079281 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 446 WHR10411 |
C00306366
481244079282 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 447 WHR10411 |
C00306361
481244079283 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 448 WHR10411 |
C00394424
480132103342 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 449 WHR10411 |
C00345179
480131100432 |
Cap | Na dotaz | Zadat poptávku | |
| 454 WHR10411 |
C00411848
482000010031 |
Housing assy, Display | Na dotaz | Zadat poptávku | |
| 456 WHR10411 |
C00411849
482000010032 |
Control board PCB | Na dotaz | Zadat poptávku | |
| 459 WHR10411 |
C00394220
480132102172 |
Magnetic seal Door | Na dotaz | Zadat poptávku | |
| 460 WHR10411 |
C00394221
480132102173 |
KIT gaskets fridge and freezer | Na dotaz | Zadat poptávku | |
| 461 WHR10411 |
C00411850
482000010033 |
Door handle | Na dotaz | Zadat poptávku | |
| 464 WHR10411 |
C00411851
482000010034 |
Door handle | Na dotaz | Zadat poptávku | |
| 466 WHR10411 |
C00281783
480132102195 |
MULTIFLOW PRAVY | Na dotaz | Zadat poptávku | |
| 467 WHR10411 |
C00281784
480132102194 |
MULTIFLOW LEVY | Na dotaz | Zadat poptávku | |
| 468 WHR10411 |
C00281785
480132102196 |
MULTIFLOW PŘÍČNÝCH | Na dotaz | Zadat poptávku | |
| 499 WHR10411 |
C00345029
482000001630 |
Thermal fuse | Na dotaz | Zadat poptávku | |
| 505 WHR10411 |
C00345169
480132102463 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
| 533 WHR10411 |
C00318912
481225928966 |
Heating element | Na dotaz | Zadat poptávku | |
| 641 WHR10411 |
C00408110
482000002941 |
Hinge lower (with wheel) | Na dotaz | Zadat poptávku | |
| 642 WHR10411 |
C00411852
482000010035 |
Wheel | Na dotaz | Zadat poptávku | |
| 644 WHR10411 |
C00411875
482000010078 |
Foot fix | Na dotaz | Zadat poptávku | |
| 695 WHR10411 |
C00394436
480132103361 |
Batten | Na dotaz | Zadat poptávku | |
| 695 WHR10411 |
C00411876
482000010079 |
Cover left | Na dotaz | Zadat poptávku | |
| 696 WHR10411 |
C00411877
482000010080 |
Cover right | Na dotaz | Zadat poptávku | |
| 999 WHR10412 |
C00540563 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
