WHIRLPOOL WTH5244 NFX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | WTH5244 NFX |
Kód 12NC: | 850144611110 |
Značka: | WHIRLPOOL |
Typ produktu: | Volně stojící lednice s mrazákem |
Další podobné modely: | 850144611112, 850144611111 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

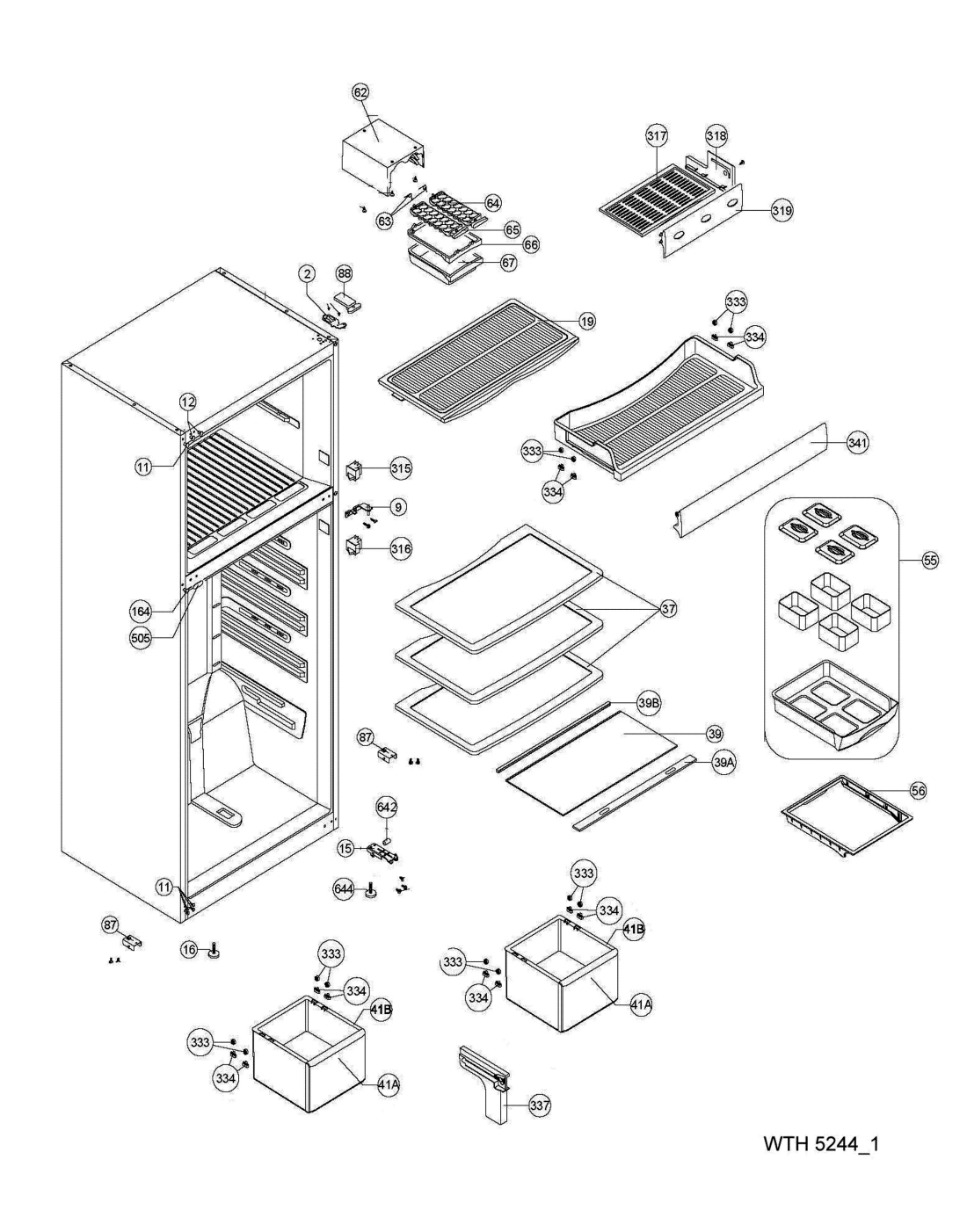

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
002 WHR10506 |
C00410595
482000007554 |
Hinge upper right | Na dotaz | Zadat poptávku | |
002 WHR10506 |
C00412861
482000012197 |
Hinge upper left | Na dotaz | Zadat poptávku | |
009 WHR10506 |
C00344983
482000007555 |
Hinge middle | Na dotaz | Zadat poptávku | |
012 WHR10506 |
C00411857
482000010053 |
Cap | Na dotaz | Zadat poptávku | |
015 WHR10506 |
C00411841
482000010023 |
Hinge lower | Na dotaz | Zadat poptávku | |
016 WHR10506 |
C00408107
482000002938 |
Foot | Na dotaz | Zadat poptávku | |
019 WHR10506 |
C00280314
481241829875 |
DVEŘNÍ PŘIHRÁDKA FREEZER | Na dotaz | Zadat poptávku | |
022 WHR10506 |
C00335149
482213488089 |
Žárovka T22 E14 15W do trouby | Na dotaz | Zadat poptávku | |
037 WHR10506 |
C00394222
480132102176 |
Glass shelf | Na dotaz | Zadat poptávku | |
039 WHR10506 |
C00394464
480132103414 |
Crisper cover | Na dotaz | Zadat poptávku | |
039A WHR10506 |
C00394460
480132103409 |
Trim Crisper cover | Na dotaz | Zadat poptávku | |
039B WHR10506 |
C00394461
480132103411 |
Trim Crisper cover | Na dotaz | Zadat poptávku | |
041A WHR10506 |
C00394463
480132103413 |
Front panel Crisper | Na dotaz | Zadat poptávku | |
041B WHR10506 |
C00394462
480132103412 |
Crisper | Na dotaz | Zadat poptávku | |
055 WHR10506 |
C00403024
481241829892 |
Tray-Kit | Na dotaz | Zadat poptávku | |
056 WHR10506 |
C00394421
480132103335 |
Tray | Na dotaz | Zadat poptávku | |
062 WHR10506 |
C00344990
482000010024 |
Cover | Na dotaz | Zadat poptávku | |
063 WHR10506 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
064 WHR10506 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
065 WHR10506 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
066 WHR10506 |
C00345003
480132102186 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
067 WHR10506 |
C00345069
480132102184 |
Icecube tray | Na dotaz | Zadat poptávku | |
074 WHR10506 |
C00394453
480132103402 |
Holder bottles | Na dotaz | Zadat poptávku | |
087 WHR10506 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
088 WHR10506 |
C00411858
482000010054 |
Cover hinge | Na dotaz | Zadat poptávku | |
103 WHR10506 |
C00281792
480132102201 |
Gasket tapes | Na dotaz | Zadat poptávku | |
151 WHR10506 |
C00281739
482000010055 |
Bushing | Na dotaz | Zadat poptávku | |
152 WHR10506 |
C00281741
482000010056 |
Bushing | Na dotaz | Zadat poptávku | |
153 WHR10506 |
C00411859
482000010057 |
Door freezer assy | Na dotaz | Zadat poptávku | |
154 WHR10506 |
C00411878
482000010081 |
Nameplate Whirlpool | Na dotaz | Zadat poptávku | |
155 WHR10506 |
C00411860
482000010058 |
Door refriger. assy | Na dotaz | Zadat poptávku | |
158 WHR10506 |
C00394451
480132103399 |
Door dairy small | Na dotaz | Zadat poptávku | |
159 WHR10506 |
C00403051
481241848929 |
Egg trim | Na dotaz | Zadat poptávku | |
164 WHR10506 |
C00411861
482000010059 |
Cap for hole dark grey | Na dotaz | Zadat poptávku | |
164B WHR10506 |
C00411865
482000010066 |
Cap door handle edge dark grey | Na dotaz | Zadat poptávku | |
171 WHR10506 |
C00281736
482000010060 |
POUZDÉRKO UZÁVĚR DVEŘÍ PRAVÝ /CE-W | Na dotaz | Zadat poptávku | |
173 WHR10506 |
C00281755
482000010061 |
POUZDÉRKO UZÁVĚR DVEŘÍ LEVÝ/CE-W | Na dotaz | Zadat poptávku | |
174 WHR10506 |
C00408106
482000002937 |
Stop door | Na dotaz | Zadat poptávku | |
175 WHR10506 |
C00394450
480132103398 |
Door dairy | Na dotaz | Zadat poptávku | |
176 WHR10506 |
C00407419
482000001626 |
Holder bottles | Na dotaz | Zadat poptávku | |
177 WHR10506 |
C00394452
480132103401 |
Bottle shelf | Na dotaz | Zadat poptávku | |
188 WHR10506 |
C00407189
482000000850 |
Door dairy | Na dotaz | Zadat poptávku | |
189 WHR10506 |
C00281737
482000010062 |
Bushing | Na dotaz | Zadat poptávku | |
193 WHR10506 |
C00394448
480132103396 |
Door dairy | Na dotaz | Zadat poptávku | |
193 WHR10506 |
C00394449
480132103397 |
Door dairy | Na dotaz | Zadat poptávku | |
199 WHR10506 |
C00411845
482000010028 |
Bushing | Na dotaz | Zadat poptávku | |
201 WHR10506 |
C00280299
481251148458 |
KONDENZÁTOR | Na dotaz | Zadat poptávku | |
202 WHR10506 |
C00405046
481246488055 |
Trim condenser | Na dotaz | Zadat poptávku | |
203 WHR10506 |
C00281791
480131100426 |
Spacer | Na dotaz | Zadat poptávku | |
204 WHR10506 |
C00329057
481240448969 |
Clamp fixation | Na dotaz | Zadat poptávku | |
207 WHR10506 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
210 WHR10506 |
C00410602
482000007564 |
Cable mains 2.1 m | Na dotaz | Zadat poptávku | |
211 WHR10506 |
C00202847
480132103355 |
Protect motor | Na dotaz | Zadat poptávku | |
212 WHR10506 |
C00394356
480132102476 |
Kondenzátor | 574 Kč
€ 22.70 |
||
214 WHR10506 |
C00410615
482000007585 |
Cup thaw water | Na dotaz | Zadat poptávku | |
215 WHR10506 |
C00269997
480132103356 |
Dryer | Na dotaz | Zadat poptávku | |
216 WHR10506 |
C00513218
482000007565 |
Holder | Na dotaz | Zadat poptávku | |
217 WHR10506 |
C00269996
480132103357 |
Kompresor NLX13KK2 | Na dotaz | Zadat poptávku | |
218 WHR10506 |
C00280285
481246448229 |
TRAVERZA KOMPRESORU CELEK | Na dotaz | Zadat poptávku | |
225 WHR10506 |
C00287942
480132103191 |
Tube LOKRING (105*6*0,7)TYPE B | Na dotaz | Zadat poptávku | |
226 WHR10506 |
C00306237
480132103192 |
Tube | Na dotaz | Zadat poptávku | |
227 WHR10506 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
228 WHR10506 |
C00280300
480132101057 |
Axle Roller | Na dotaz | Zadat poptávku | |
242 WHR10506 |
C00376956
480132103358 |
Timer | Na dotaz | Zadat poptávku | |
244 WHR10506 |
C00394435
480132103359 |
Cover Timer | Na dotaz | Zadat poptávku | |
314 WHR10506 |
C00285193
480132102179 |
ZÁTKA | Na dotaz | Zadat poptávku | |
315 WHR10506 |
C00345050
480132102174 |
Switch door freezer | Na dotaz | Zadat poptávku | |
316 WHR10506 |
C00345094
480132102175 |
Switch door refrigerator | Na dotaz | Zadat poptávku | |
317 WHR10506 |
C00280313
481241829876 |
DVEŘNÍ PŘIHRÁDKA SUPER FREEZER | Na dotaz | Zadat poptávku | |
318 WHR10506 |
C00345088
482000007566 |
Partition | Na dotaz | Zadat poptávku | |
319 WHR10506 |
C00411846
482000010029 |
Cover | Na dotaz | Zadat poptávku | |
333 WHR10506 |
C00281750
480132102192 |
KOLEČKO DRAWER CHILLER | Na dotaz | Zadat poptávku | |
334 WHR10506 |
C00281752
480132102193 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
337 WHR10506 |
C00281780
480132102189 |
ODDĚLOVAČ PROSTOR BÍLÝ | Na dotaz | Zadat poptávku | |
341 WHR10506 |
C00407421
482000001628 |
Flap front | Na dotaz | Zadat poptávku | |
401 WHR10506 |
C00306238
481251138362 |
FIN EVAPORATOR | Na dotaz | Zadat poptávku | |
408 WHR10506 |
C00281735
480132102205 |
ODVADĚČ VZDUCHU ÚPLNÝ | Na dotaz | Zadat poptávku | |
409 WHR10506 |
C00280291
481228678014 |
VRTULE | Na dotaz | Zadat poptávku | |
410 WHR10506 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
411 WHR10506 |
C00402053
481240449773 |
Absorber | Na dotaz | Zadat poptávku | |
412 WHR10506 |
C00329027
481240438802 |
Support motor | Na dotaz | Zadat poptávku | |
413 WHR10506 |
C00280290
481236158485 |
VENTILÁTOR S MOTOREM | Na dotaz | Zadat poptávku | |
414 WHR10506 |
C00330795
481246368033 |
Damper | Na dotaz | Zadat poptávku | |
415 WHR10506 |
C00281772
480132102206 |
SPODEK MRAZÁKU | Na dotaz | Zadat poptávku | |
419 WHR10506 |
C00280305
481244079278 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
421 WHR10506 |
C00281747
480132102203 |
KRABICE TERMOSTAT | Na dotaz | Zadat poptávku | |
424 WHR10506 |
C00281773
480132102204 |
Air guide | Na dotaz | Zadat poptávku | |
432 WHR10506 |
C00280309
481246228887 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
433 WHR10506 |
C00376914
480132100183 |
Sensor Defrost | Na dotaz | Zadat poptávku | |
434 WHR10506 |
C00377477
481221848159 |
Sensor freezer | Na dotaz | Zadat poptávku | |
435 WHR10506 |
C00394423
480132103341 |
Cover Casing | Na dotaz | Zadat poptávku | |
439 WHR10506 |
C00377809
481246378024 |
DAMPER THERMOSTAT | Na dotaz | Zadat poptávku | |
442 WHR10506 |
C00306233
480132100182 |
Sensor refriger. | Na dotaz | Zadat poptávku | |
443 WHR10506 |
C00405137
481246688968 |
Insulation | Na dotaz | Zadat poptávku | |
444 WHR10506 |
C00402160
481240478877 |
Cover | Na dotaz | Zadat poptávku | |
445 WHR10506 |
C00306365
481244079281 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
446 WHR10506 |
C00306366
481244079282 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
447 WHR10506 |
C00306361
481244079283 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
448 WHR10506 |
C00394424
480132103342 |
Chamber,air | Na dotaz | Zadat poptávku | |
449 WHR10506 |
C00345179
480131100432 |
Cap | Na dotaz | Zadat poptávku | |
454 WHR10506 |
C00411848
482000010031 |
Housing assy, Display | Na dotaz | Zadat poptávku | |
456 WHR10506 |
C00411849
482000010032 |
Control board PCB | Na dotaz | Zadat poptávku | |
459 WHR10506 |
C00394220
480132102172 |
Magnetic seal Door | Na dotaz | Zadat poptávku | |
460 WHR10506 |
C00394221
480132102173 |
KIT gaskets fridge and freezer | Na dotaz | Zadat poptávku | |
461 WHR10506 |
C00413330
482000013072 |
Handle Door freezer | Na dotaz | Zadat poptávku | |
464 WHR10506 |
C00413331
482000013073 |
Handle Door refriger. | Na dotaz | Zadat poptávku | |
466 WHR10506 |
C00281783
480132102195 |
MULTIFLOW PRAVY | Na dotaz | Zadat poptávku | |
467 WHR10506 |
C00281784
480132102194 |
MULTIFLOW LEVY | Na dotaz | Zadat poptávku | |
468 WHR10506 |
C00281785
480132102196 |
MULTIFLOW PŘÍČNÝCH | Na dotaz | Zadat poptávku | |
499 WHR10506 |
C00345029
482000001630 |
Thermal fuse | Na dotaz | Zadat poptávku | |
505 WHR10506 |
C00411862
482000010063 |
Cap | Na dotaz | Zadat poptávku | |
533 WHR10506 |
C00318912
481225928966 |
Heating element | Na dotaz | Zadat poptávku | |
642 WHR10506 |
C00411852
482000010035 |
Wheel | Na dotaz | Zadat poptávku | |
644 WHR10506 |
C00408108
482000002939 |
Foot | Na dotaz | Zadat poptávku | |
695 WHR10506 |
C00394436
480132103361 |
Batten | Na dotaz | Zadat poptávku | |
695 WHR10506 |
C00411863
482000010064 |
Cover Socket left | Na dotaz | Zadat poptávku | |
696 WHR10506 |
C00411864
482000010065 |
Cover Socket right | Na dotaz | Zadat poptávku | |
999 WHR10506 |
C00540672 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku |
