BAUKNECHT WTI 910
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WTI 910 |
| Kód 12NC: | 855470015000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás

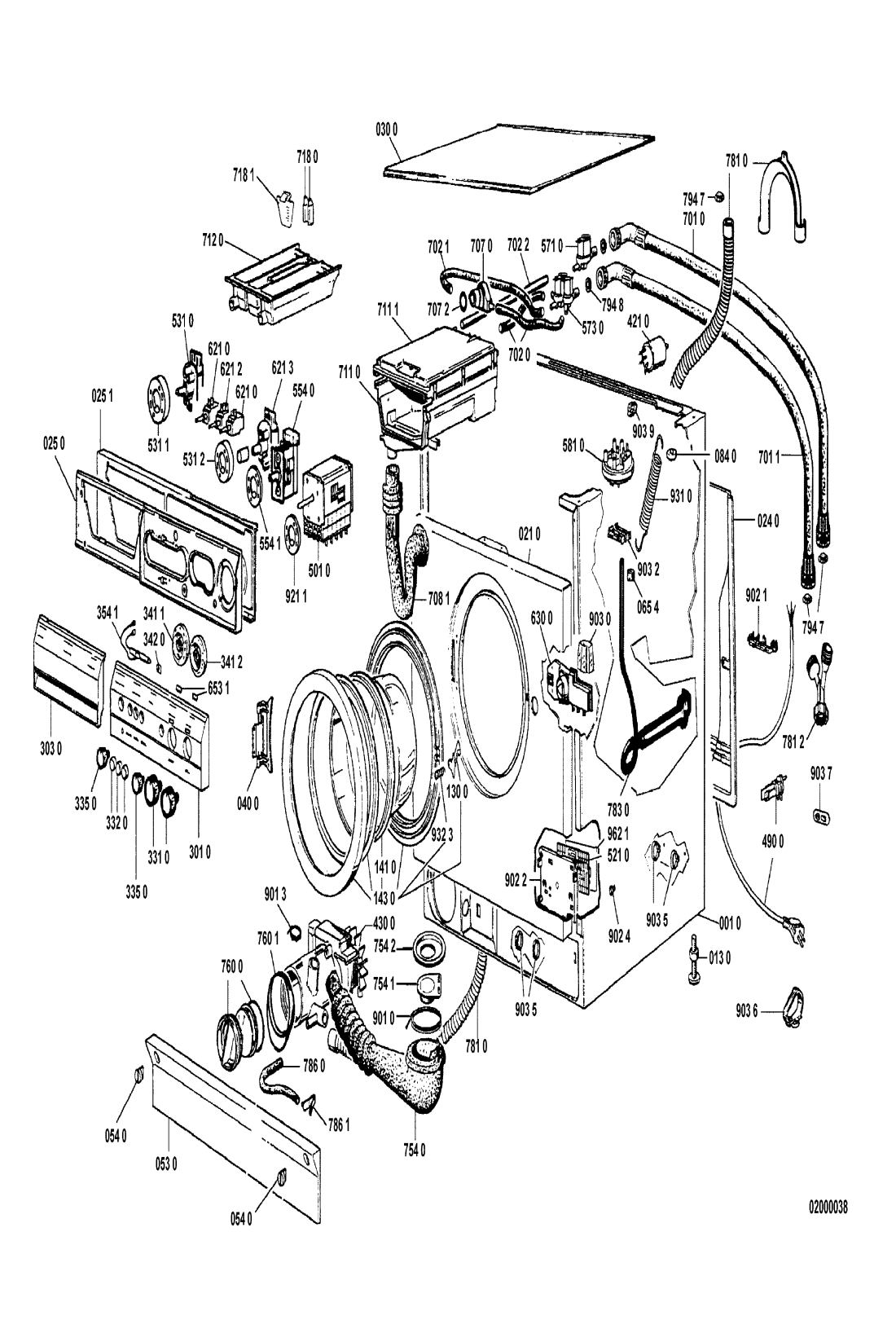

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR98817 |
C00754283
481990500436 |
Cabinet | Na dotaz | Zadat poptávku | |
| 013 0 WHR98817 |
C00340774
481950013031 |
FOOT, FIX | Na dotaz | Zadat poptávku | |
| 021 0 WHR98817 |
C00754284
481990500416 |
Front | Na dotaz | Zadat poptávku | |
| 024 0 WHR98817 |
C00754285
481990500431 |
Panel rear | Na dotaz | Zadat poptávku | |
| 025 0 WHR98817 |
C00335827
481990500339 |
Support front panel | Na dotaz | Zadat poptávku | |
| 025 1 WHR98817 |
C00754286
481990500334 |
Bearer | Na dotaz | Zadat poptávku | |
| 030 0 WHR98817 |
C00335647
481990500417 |
TABLE TOP | Na dotaz | Zadat poptávku | |
| 040 0 WHR98817 |
C00339861
481990500336 |
HINGE | Na dotaz | Zadat poptávku | |
| 041 0 WHR98817 |
C00332867
481931039207 |
Hinge kit | Na dotaz | Zadat poptávku | |
| 041 1 WHR98817 |
C00332947
481940479091 |
BASE | Na dotaz | Zadat poptávku | |
| 041 2 WHR98817 |
C00319888
481940479092 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 041 3 WHR98817 |
C00320070
481946248454 |
PLUG | Na dotaz | Zadat poptávku | |
| 041 4 WHR98817 |
C00317320
481941719469 |
HINGE | Na dotaz | Zadat poptávku | |
| 053 0 WHR98817 |
C00337709
481990500396 |
PLINTH | Na dotaz | Zadat poptávku | |
| 054 0 WHR98817 |
C00333406
481990500347 |
SCREW | Na dotaz | Zadat poptávku | |
| 061 1 WHR98817 |
C00754287
481990500313 |
Counter weight | Na dotaz | Zadat poptávku | |
| 061 2 WHR98817 |
C00754288
481990500415 |
Counter weight | Na dotaz | Zadat poptávku | |
| 065 0 WHR98817 |
C00754289
481990500386 |
Insulation | Na dotaz | Zadat poptávku | |
| 065 2 WHR98817 |
C00754290
481990500387 |
Insulation | Na dotaz | Zadat poptávku | |
| 065 4 WHR98817 |
C00333401
481990500327 |
INSULATION | Na dotaz | Zadat poptávku | |
| 080 0 WHR98817 |
C00336355
481990500315 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 083 1 WHR98817 |
C00311966
481990500311 |
Bracket drum | Na dotaz | Zadat poptávku | |
| 084 0 WHR98817 |
C00333404
481990500333 |
BUSHING | Na dotaz | Zadat poptávku | |
| 130 0 WHR98817 |
C00201667
481990500337 |
DOOR CATCH | Na dotaz | Zadat poptávku | |
| 130 1 WHR98817 |
C00312826
481941753024 |
Hák | 660 Kč
€ 26.10 |
||
| 134 0 WHR98817 |
C00316153
481940479093 |
Magnet | Na dotaz | Zadat poptávku | |
| 141 0 WHR98817 |
C00339061
481945063062 |
DOOR GLASS | Na dotaz | Zadat poptávku | |
| 143 0 WHR98817 |
C00754291
481990500372 |
Glassdoor frame | Na dotaz | Zadat poptávku | |
| 190 0 WHR98817 |
C00342113
481990500317 |
DOOR BELLOW | Na dotaz | Zadat poptávku | |
| 190 1 WHR98817 |
C00333396
481990500304 |
STRAP | Na dotaz | Zadat poptávku | |
| 190 2 WHR98817 |
C00335976
481990500305 |
STRAP | Na dotaz | Zadat poptávku | |
| 200 0 WHR98817 |
C00754292
481990500378 |
Tub | Na dotaz | Zadat poptávku | |
| 200 1 WHR98817 |
C00338385
481990500324 |
LID | Na dotaz | Zadat poptávku | |
| 210 0 WHR98817 |
C00342246
481990500393 |
Crosspiece | Na dotaz | Zadat poptávku | |
| 210 1 WHR98817 |
C00337104
481990500391 |
PROTECTOR | Na dotaz | Zadat poptávku | |
| 220 0 WHR98817 |
C00341192
481990500377 |
DRUM | Na dotaz | Zadat poptávku | |
| 220 2 WHR98817 |
C00499658
481990500384 |
PART OF DRUM | Na dotaz | Zadat poptávku | |
| 223 0 WHR98817 |
C00312701
481990500312 |
DRUM LIFTER | Na dotaz | Zadat poptávku | |
| 228 0 WHR98817 |
C00499656
481990500376 |
DRYER BASKET HOLDER | Na dotaz | Zadat poptávku | |
| 252 0 WHR98817 |
C00335895
481990500408 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 252 1 WHR98817 |
C00499664
481990500407 |
GASKET | Na dotaz | Zadat poptávku | |
| 271 0 WHR98817 |
C00754293
481990500319 |
Belt,driving | Na dotaz | Zadat poptávku | |
| 272 0 WHR98817 |
C00333400
481990500321 |
PULLEY | Na dotaz | Zadat poptávku | |
| 272 3 WHR98817 |
C00754294
481990500413 |
Bracket | Na dotaz | Zadat poptávku | |
| 292 0 WHR98817 |
C00754295
481990500316 |
Gasket Drum | Na dotaz | Zadat poptávku | |
| 293 0 WHR98817 |
C00333413
481990500364 |
SEAL | Na dotaz | Zadat poptávku | |
| 301 0 WHR98817 |
C00754296
481990500444 |
Control panel | Na dotaz | Zadat poptávku | |
| 303 0 WHR98817 |
C00754297
481990500445 |
Plate handle | Na dotaz | Zadat poptávku | |
| 305 1 WHR98817 |
C00333132
481946689296 |
Insert | Na dotaz | Zadat poptávku | |
| 305 3 WHR98817 |
C00333091
481946273681 |
CAP | Na dotaz | Zadat poptávku | |
| 331 0 WHR98817 |
C00338547
481990500341 |
KNOB | Na dotaz | Zadat poptávku | |
| 332 0 WHR98817 |
C00318330
481990500343 |
PUSH BUTTON | Na dotaz | Zadat poptávku | |
| 335 0 WHR98817 |
C00754298
481990500365 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 341 1 WHR98817 |
C00499665
481990500423 |
INDICATION DISC | Na dotaz | Zadat poptávku | |
| 341 2 WHR98817 |
C00754299
481990500438 |
Index,programm | Na dotaz | Zadat poptávku | |
| 342 0 WHR98817 |
C00336772
481990500356 |
SCALE | Na dotaz | Zadat poptávku | |
| 354 1 WHR98817 |
C00754300
481990500342 |
Lamp | Na dotaz | Zadat poptávku | |
| 401 0 WHR98817 |
C00754301
481990500424 |
Motor | Na dotaz | Zadat poptávku | |
| 401 2 WHR98817 |
C00754302
481990500389 |
Motor holder | Na dotaz | Zadat poptávku | |
| 401 3 WHR98817 |
C00754303
481990500432 |
Holder motor | Na dotaz | Zadat poptávku | |
| 401 4 WHR98817 |
C00499659
481990500397 |
Motor dryer | Na dotaz | Zadat poptávku | |
| 421 0 WHR98817 |
C00754304
481921833041 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 430 0 WHR98817 |
C00316845
481990500374 |
PUMP,DRAINING | Na dotaz | Zadat poptávku | |
| 440 0 WHR98817 |
C00499662
481990500404 |
Fan dryer | Na dotaz | Zadat poptávku | |
| 451 0 WHR98817 |
C00754305
481990500301 |
Heating element | Na dotaz | Zadat poptávku | |
| 451 2 WHR98817 |
C00754306
481990500385 |
Heating element bracket | Na dotaz | Zadat poptávku | |
| 451 3 WHR98817 |
C00754307
481990500399 |
Heating element dryer | Na dotaz | Zadat poptávku | |
| 490 0 WHR98817 |
C00754308
481990500446 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 501 0 WHR98817 |
C00754309
481990500418 |
Timer | Na dotaz | Zadat poptávku | |
| 521 0 WHR98817 |
C00754310
481990500427 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 531 0 WHR98817 |
C00754311
481990500421 |
Potentiometer | Na dotaz | Zadat poptávku | |
| 531 1 WHR98817 |
C00336203
481990500368 |
SPACER | Na dotaz | Zadat poptávku | |
| 531 2 WHR98817 |
C00754312
481990500422 |
Spacer | Na dotaz | Zadat poptávku | |
| 551 6 WHR98817 |
C00754313
481990500366 |
Feeler | Na dotaz | Zadat poptávku | |
| 552 0 WHR98817 |
C00754314
481990500411 |
Thermostat | Na dotaz | Zadat poptávku | |
| 554 0 WHR98817 |
C00754315
481990500437 |
Thermostat | Na dotaz | Zadat poptávku | |
| 554 1 WHR98817 |
C00754316
481990500358 |
Spacer | Na dotaz | Zadat poptávku | |
| 564 0 WHR98817 |
C00754317
481990500409 |
Thermostat | Na dotaz | Zadat poptávku | |
| 571 0 WHR98817 |
C00316048
481990500442 |
Valve hot water | Na dotaz | Zadat poptávku | |
| 573 0 WHR98817 |
C00754318
481990500394 |
Valve | Na dotaz | Zadat poptávku | |
| 581 0 WHR98817 |
C00754319
481990500367 |
Pressostat | Na dotaz | Zadat poptávku | |
| 621 0 WHR98817 |
C00335764
481990500361 |
Switch | Na dotaz | Zadat poptávku | |
| 621 2 WHR98817 |
C00335763
481990500335 |
SWITCH | Na dotaz | Zadat poptávku | |
| 621 3 WHR98817 |
C00754320
481990500419 |
Time switch | Na dotaz | Zadat poptávku | |
| 630 0 WHR98817 |
C00314048
481990500375 |
DOOR LOCK | Na dotaz | Zadat poptávku | |
| 653 1 WHR98817 |
C00499654
481990500328 |
COVER F. LAMP | Na dotaz | Zadat poptávku | |
| 701 0 WHR98817 |
C00499666
481990500443 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 701 1 WHR98817 |
C00499655
481990500346 |
INLET HOSE, COLD | Na dotaz | Zadat poptávku | |
| 702 0 WHR98817 |
C00754321
481990500412 |
Valve hose | Na dotaz | Zadat poptávku | |
| 702 1 WHR98817 |
C00754322
481990500434 |
Condenser | Na dotaz | Zadat poptávku | |
| 702 2 WHR98817 |
C00754323
481990500441 |
Gasket | Na dotaz | Zadat poptávku | |
| 703 0 WHR98817 |
C00754324
481990500382 |
Hose | Na dotaz | Zadat poptávku | |
| 707 0 WHR98817 |
C00754325
481990500379 |
Nozzle | Na dotaz | Zadat poptávku | |
| 707 2 WHR98817 |
C00754326
481990500425 |
Gasket | Na dotaz | Zadat poptávku | |
| 708 1 WHR98817 |
C00339347
481990500338 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 711 0 WHR98817 |
C00754327
481990500435 |
Dispenser | Na dotaz | Zadat poptávku | |
| 711 1 WHR98817 |
C00754328
481990500439 |
Cover | Na dotaz | Zadat poptávku | |
| 712 0 WHR98817 |
C00317430
481990500348 |
SOAP DISPENSER | Na dotaz | Zadat poptávku | |
| 718 0 WHR98817 |
C00317619
481990500345 |
SIPHON | Na dotaz | Zadat poptávku | |
| 718 1 WHR98817 |
C00333405
481990500344 |
ACCESSORY | Na dotaz | Zadat poptávku | |
| 743 0 WHR98817 |
C00343133
481990500381 |
CONVEYOR | Na dotaz | Zadat poptávku | |
| 743 3 WHR98817 |
C00341063
481990500405 |
FAN BOX | Na dotaz | Zadat poptávku | |
| 743 4 WHR98817 |
C00499660
481990500398 |
COVER | Na dotaz | Zadat poptávku | |
| 754 0 WHR98817 |
C00754329
481990500414 |
Drainhose | Na dotaz | Zadat poptávku | |
| 754 1 WHR98817 |
C00333411
481990500362 |
VALVE | Na dotaz | Zadat poptávku | |
| 754 2 WHR98817 |
C00333412
481990500363 |
Valve holder | Na dotaz | Zadat poptávku | |
| 760 0 WHR98817 |
C00754330
481990500429 |
Filter set | Na dotaz | Zadat poptávku | |
| 760 1 WHR98817 |
C00338744
481990500357 |
INSERT PIECE | Na dotaz | Zadat poptávku | |
| 781 0 WHR98817 |
C00499653
481990500322 |
Hose draining | Na dotaz | Zadat poptávku | |
| 781 2 WHR98817 |
C00333282
481953023139 |
CONNECTION | Na dotaz | Zadat poptávku | |
| 783 0 WHR98817 |
C00313644
481990500325 |
HOSE | Na dotaz | Zadat poptávku | |
| 786 0 WHR98817 |
C00201628
481990500352 |
EMERGENCY DRAIN HOSE | Na dotaz | Zadat poptávku | |
| 786 1 WHR98817 |
C00317428
481990500323 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 787 0 WHR98817 |
C00333407
481990500351 |
STEAM HOSE | Na dotaz | Zadat poptávku | |
| 792 1 WHR98817 |
C00499661
481990500403 |
GASKET | Na dotaz | Zadat poptávku | |
| 792 2 WHR98817 |
C00499663
481990500406 |
GASKET | Na dotaz | Zadat poptávku | |
| 792 3 WHR98817 |
C00340446
481990500402 |
Gasket heatingelement | Na dotaz | Zadat poptávku | |
| 794 7 WHR98817 |
C00333164
481948053059 |
Filter | Na dotaz | Zadat poptávku | |
| 794 8 WHR98817 |
C00499420
481946663372 |
Gasket border valve | Na dotaz | Zadat poptávku | |
| 901 0 WHR98817 |
C00333395
481990500303 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 901 3 WHR98817 |
C00201632
481940113366 |
CLAMP | Na dotaz | Zadat poptávku | |
| 902 1 WHR98817 |
C00333410
481990500355 |
BRACKET | Na dotaz | Zadat poptávku | |
| 902 2 WHR98817 |
C00754331
481990500426 |
Support | Na dotaz | Zadat poptávku | |
| 902 4 WHR98817 |
C00333402
481990500329 |
RUBBER | Na dotaz | Zadat poptávku | |
| 903 0 WHR98817 |
C00339592
481990500433 |
Holder hose | Na dotaz | Zadat poptávku | |
| 903 2 WHR98817 |
C00754332
481990500331 |
Holder hose | Na dotaz | Zadat poptávku | |
| 903 4 WHR98817 |
C00754333
481990500326 |
Holder | Na dotaz | Zadat poptávku | |
| 903 5 WHR98817 |
C00333408
481990500353 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 903 6 WHR98817 |
C00333409
481990500354 |
Bracket | Na dotaz | Zadat poptávku | |
| 903 7 WHR98817 |
C00499526
481950213319 |
FASTENER F. CABLE f. cable | Na dotaz | Zadat poptávku | |
| 903 9 WHR98817 |
C00333403
481990500332 |
Holder | Na dotaz | Zadat poptávku | |
| 912 0 WHR98817 |
C00754334
481990500308 |
Screw | Na dotaz | Zadat poptávku | |
| 912 1 WHR98817 |
C00314028
481952628009 |
Magnet | Na dotaz | Zadat poptávku | |
| 912 2 WHR98817 |
C00754335
481990500309 |
Screw | Na dotaz | Zadat poptávku | |
| 921 1 WHR98817 |
C00336208
481990500359 |
SPACER | Na dotaz | Zadat poptávku | |
| 921 8 WHR98817 |
C00333397
481990500306 |
RING,RUBBER | Na dotaz | Zadat poptávku | |
| 923 0 WHR98817 |
C00333310
481953213446 |
WASHER | Na dotaz | Zadat poptávku | |
| 923 6 WHR98817 |
C00754336
481990500307 |
Washer | Na dotaz | Zadat poptávku | |
| 931 0 WHR98817 |
C00333414
481990500373 |
SPRING | Na dotaz | Zadat poptávku | |
| 931 1 WHR98817 |
C00333398
481990500314 |
SPRING | Na dotaz | Zadat poptávku | |
| 932 3 WHR98817 |
C00336116
481990500349 |
SPRING | Na dotaz | Zadat poptávku | |
| 941 0 WHR98817 |
C00344370
481990500369 |
BEARING,BALL | Na dotaz | Zadat poptávku | |
| 941 1 WHR98817 |
C00754337
481990500371 |
Bearing,ball | Na dotaz | Zadat poptávku | |
| 952 0 WHR98817 |
C00333394
481990500302 |
SEAL | Na dotaz | Zadat poptávku | |
| 952 3 WHR98817 |
C00499657
481990500383 |
NOZZLE | Na dotaz | Zadat poptávku | |
| 953 0 WHR98817 |
C00336849
481990500392 |
RING | Na dotaz | Zadat poptávku | |
| 953 1 WHR98817 |
C00340557
481990500388 |
GASKET | Na dotaz | Zadat poptávku | |
| 962 0 WHR98817 |
C00754338
481990500395 |
Protector | Na dotaz | Zadat poptávku | |
| 962 1 WHR98817 |
C00754339
481990500428 |
Plate protect. | Na dotaz | Zadat poptávku | |
| 965 0 WHR98817 |
C00333399
481990500318 |
CAP | Na dotaz | Zadat poptávku | |
