WHIRLPOOL WTM 452 RS SS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WTM 452 RS SS |
| Kód 12NC: | 850193580220 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

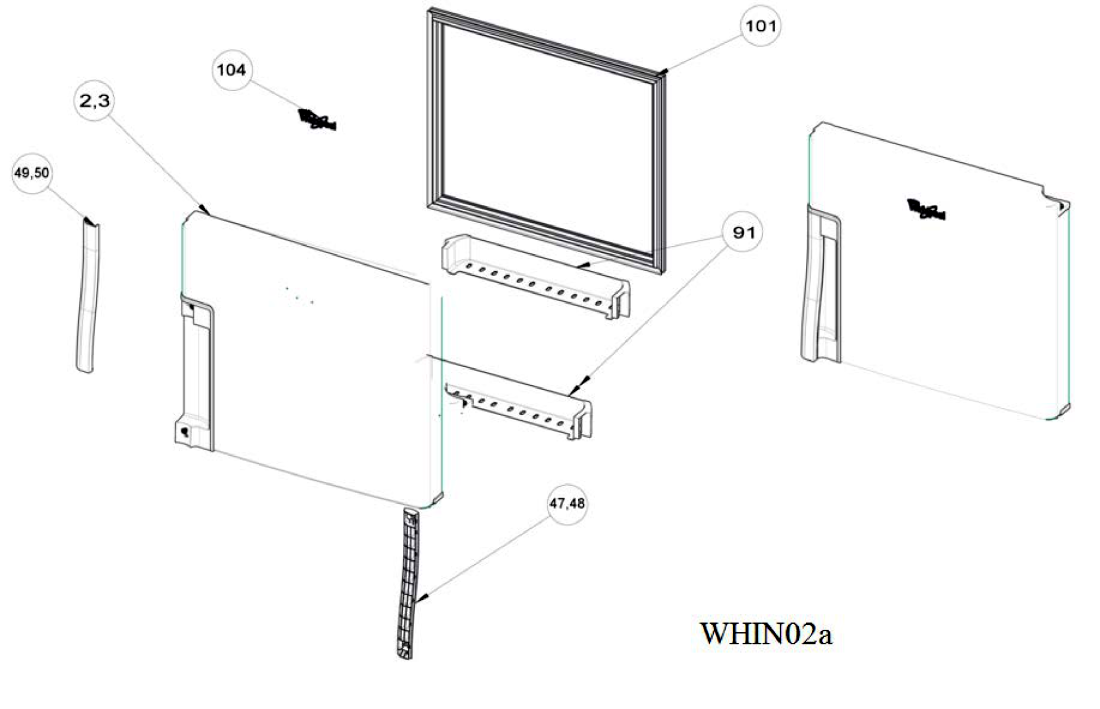

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A002 WHR44116 |
C00505164
482000094738 |
Door freezer | Na dotaz | Zadat poptávku | |
| A003 WHR44116 |
C00505139
482000094713 |
Door freezer STEEL | Na dotaz | Zadat poptávku | |
| A047 WHR44116 |
C00541372
488000541372 |
Hand le FC back White breat he - Export | Na dotaz | Zadat poptávku | |
| A048 WHR44116 |
C00505029
482000094697 |
Handle FC BACK TITANIUM | Na dotaz | Zadat poptávku | |
| A049 WHR44116 |
C00504271
482000094207 |
Handle FC FRONT WHITE | Na dotaz | Zadat poptávku | |
| A050 WHR44116 |
C00505027
482000094695 |
Handle FC FRONT TITANIUM | Na dotaz | Zadat poptávku | |
| A091 WHR44116 |
C00505152
482000094726 |
Shelf | Na dotaz | Zadat poptávku | |
| A101 WHR44116 |
C00504507
482000094349 |
Těsnění dveří | 1 455 Kč
€ 57.40 |
||
| A104 WHR44116 |
C00504318
482000094212 |
Brand label 85MM | Na dotaz | Zadat poptávku | |
| B018 WHR44116 |
C00504280
482000094218 |
Impeller fan 90MM | Na dotaz | Zadat poptávku | |
| B019 WHR44116 |
C00504284
482000094222 |
Damping part | Na dotaz | Zadat poptávku | |
| B022 WHR44116 |
C00504281
482000094219 |
Motor fan BRACKET COVER | Na dotaz | Zadat poptávku | |
| B037 WHR44116 |
C00504549
482000094271 |
Motor FIXING | Na dotaz | Zadat poptávku | |
| B041 WHR44116 |
C00504282
482000094220 |
Cover | Na dotaz | Zadat poptávku | |
| B045 WHR44116 |
C00504493
482000094335 |
Damper | Na dotaz | Zadat poptávku | |
| B056 WHR44116 |
C00504494
482000094336 |
Knob freezer | Na dotaz | Zadat poptávku | |
| B063 WHR44116 |
C00504283
482000094221 |
Housing FAN MOTOR 4.2W | Na dotaz | Zadat poptávku | |
| B070 WHR44116 |
C00505022
482000094690 |
Evaporator | Na dotaz | Zadat poptávku | |
| B073 WHR44116 |
C00505026
482000094694 |
Cover rear | Na dotaz | Zadat poptávku | |
| B090 WHR44116 |
C00505151
482000094725 |
Cover | Na dotaz | Zadat poptávku | |
| C001 WHR44116 |
C00504291
482000094232 |
Compressor NS1114DY | Na dotaz | Zadat poptávku | |
| C002 WHR44116 |
C00541374
488000541374 |
Relay | Na dotaz | Zadat poptávku | |
| C003 WHR44116 |
C00541375
488000541375 |
OLP-B52-120 | Na dotaz | Zadat poptávku | |
| C004 WHR44116 |
C00541376
488000541376 |
Capacitor NB1116Y 4MFD | Na dotaz | Zadat poptávku | |
| C006 WHR44116 |
C00505013
482000094680 |
Tube | Na dotaz | Zadat poptávku | |
| C017 WHR44116 |
C00505094
482000094683 |
Screw | Na dotaz | Zadat poptávku | |
| C021 WHR44116 |
C00504556
482000094359 |
Plate mounting | Na dotaz | Zadat poptávku | |
| C044 WHR44116 |
C00505142
482000094716 |
Coil | Na dotaz | Zadat poptávku | |
| C055 WHR44116 |
C00504292
482000094233 |
Tray leak | Na dotaz | Zadat poptávku | |
| C075 WHR44116 |
C00501846
482000093579 |
Suction Compliment GenX/L60 R600 | Na dotaz | Zadat poptávku | |
| C085 WHR44116 |
C00504462
482000094280 |
Sleeve | Na dotaz | Zadat poptávku | |
| C086 WHR44116 |
C00504461
482000094279 |
Grommet | Na dotaz | Zadat poptávku | |
| D020 WHR44116 |
C00504497
482000094339 |
Crisper cover | Na dotaz | Zadat poptávku | |
| D025 WHR44116 |
C00504488
482000094330 |
Hinge middle | Na dotaz | Zadat poptávku | |
| D026 WHR44116 |
C00504265
482000094199 |
Hinge upper | Na dotaz | Zadat poptávku | |
| D027 WHR44116 |
C00505141
482000094715 |
Tray | Na dotaz | Zadat poptávku | |
| D036 WHR44116 |
C00504496
482000094338 |
Glass shelf | Na dotaz | Zadat poptávku | |
| D039 WHR44116 |
C00504267
482000094201 |
Hinge upper WHITE | Na dotaz | Zadat poptávku | |
| D040 WHR44116 |
C00505021
482000094689 |
Hinge upper | Na dotaz | Zadat poptávku | |
| D042 WHR44116 |
C00504263
482000094197 |
Bracket | Na dotaz | Zadat poptávku | |
| D043 WHR44116 |
C00470034
482000091331 |
OXYGEN SCAVENGER WITH HANGING L60 | Na dotaz | Zadat poptávku | |
| D061 WHR44116 |
C00505019
482000094687 |
Hinge lower | Na dotaz | Zadat poptávku | |
| D067 WHR44116 |
C00501819
482000093551 |
Album cover glass shelf, hot foil-L60 | Na dotaz | Zadat poptávku | |
| D071 WHR44116 |
C00505144
482000094718 |
Chamber air | Na dotaz | Zadat poptávku | |
| D080 WHR44116 |
C00505146
482000094720 |
Cover | Na dotaz | Zadat poptávku | |
| D081 WHR44116 |
C00505147
482000094721 |
Crisper | Na dotaz | Zadat poptávku | |
| D082 WHR44116 |
C00505148
482000094722 |
Crisper FRAME | Na dotaz | Zadat poptávku | |
| D083 WHR44116 |
C00505149
482000094723 |
Shelf | Na dotaz | Zadat poptávku | |
| D084 WHR44116 |
C00501826
482000093558 |
CRISPER SEPERATOR L60 | Na dotaz | Zadat poptávku | |
| D087 WHR44116 |
C00504450
482000094265 |
Cover | Na dotaz | Zadat poptávku | |
| D088 WHR44116 |
C00505150
482000094724 |
Tray | Na dotaz | Zadat poptávku | |
| D089 WHR44116 |
C00504259
482000094193 |
Collector | Na dotaz | Zadat poptávku | |
| D095 WHR44116 |
C00505155
482000094729 |
Crisper | Na dotaz | Zadat poptávku | |
| D097 WHR44116 |
C00505156
482000094730 |
Chamber air | Na dotaz | Zadat poptávku | |
| E004 WHR44116 |
C00505165
482000094739 |
Door refriger. | Na dotaz | Zadat poptávku | |
| E005 WHR44116 |
C00505140
482000094714 |
Gasket ref.door STEEL | Na dotaz | Zadat poptávku | |
| E029 WHR44116 |
C00504269
482000094205 |
Egg rack | Na dotaz | Zadat poptávku | |
| E035 WHR44116 |
C00504552
482000094355 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| E051 WHR44116 |
C00504273
482000094209 |
Handle RC BACK WHITE | Na dotaz | Zadat poptávku | |
| E052 WHR44116 |
C00505030
482000094698 |
Handle RC BACK TITANIUM | Na dotaz | Zadat poptávku | |
| E053 WHR44116 |
C00504270
482000094206 |
Handle RC FRONT WHITE | Na dotaz | Zadat poptávku | |
| E054 WHR44116 |
C00505028
482000094696 |
Handle RC FRONT TITANIUM | Na dotaz | Zadat poptávku | |
| E058 WHR44116 |
C00505143
482000094717 |
Cover | Na dotaz | Zadat poptávku | |
| E092 WHR44116 |
C00505153
482000094727 |
Shelf | Na dotaz | Zadat poptávku | |
| E093 WHR44116 |
C00505154
482000094728 |
Shelf | Na dotaz | Zadat poptávku | |
| E094 WHR44116 |
C00501833
482000093565 |
BOTTLE TRIVET (JUMBO RACK),L 60 | Na dotaz | Zadat poptávku | |
| E106 WHR44116 |
C00505157
482000094731 |
Gasket | Na dotaz | Zadat poptávku | |
| 999 WHR44118 |
C00584865 | WORK DATA WHP | Na dotaz | Zadat poptávku | |
| 999 WHR44118 |
C00584866 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
