WHIRLPOOL WTV4536 NFC IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WTV4536 NFC IX |
| Kód 12NC: | 850509011070 |
| I.C. kód: | 850509011071 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850509011070, 850509011072 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

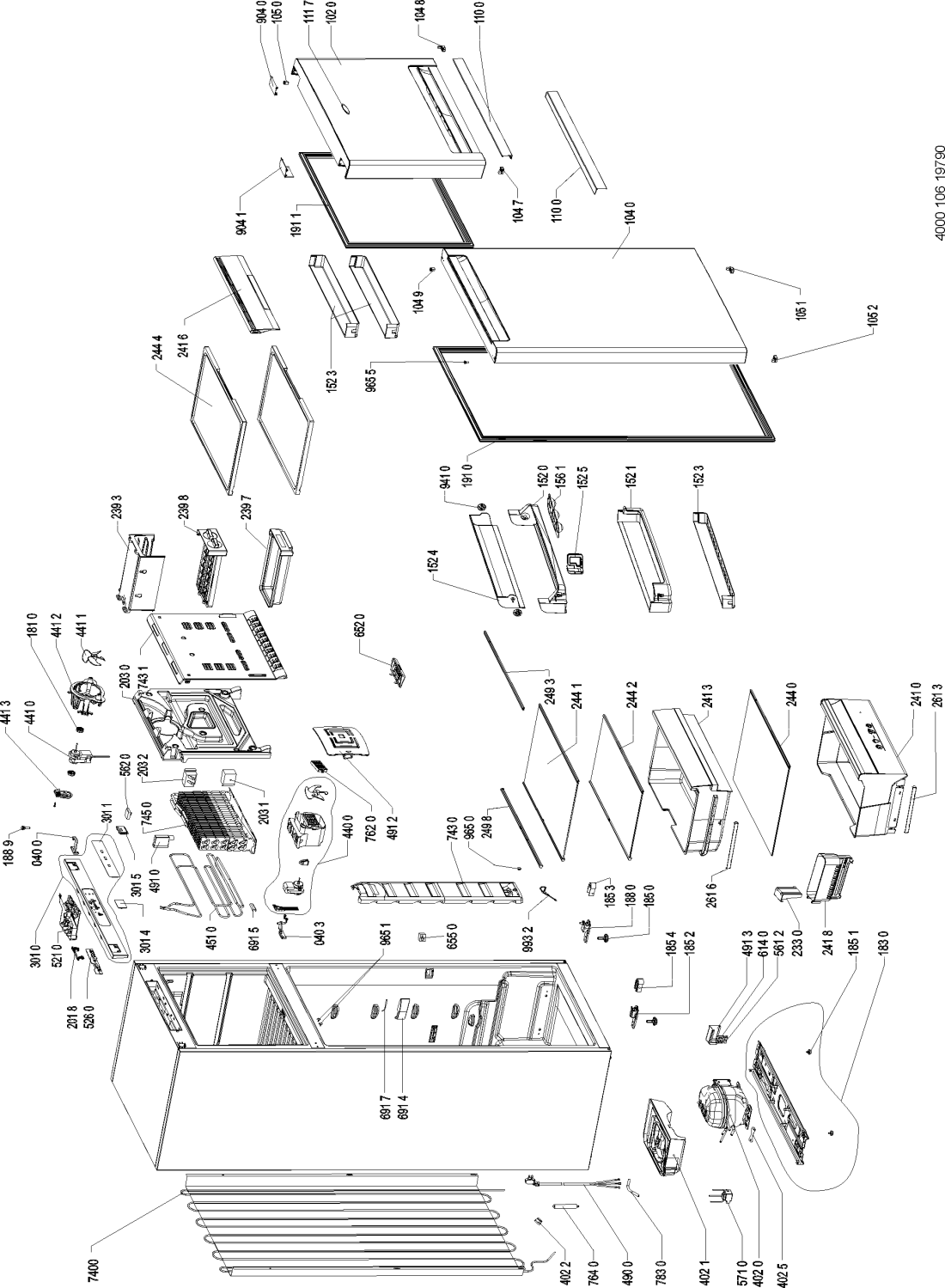

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0400 WHR17821 |
C00329779
481241719517 |
Závěs horní | 934 Kč
€ 36.90 |
||
| 0403 WHR17821 |
C00319920
481241719519 |
Závěs dveří střední | 976 Kč
€ 38.50 |
||
| 1020 WHR17821 |
C00442552
481010587692 |
Door freezer SIX/MG 604x700 mm | Na dotaz | Zadat poptávku | |
| 1040 WHR17821 |
C00324853
481010587030 |
Door refriger. SIX/MG 1231,5x700 mm | Na dotaz | Zadat poptávku | |
| 1047 WHR17821 |
C00323232
480132100288 |
SLEEVE LEFT BLACK | Na dotaz | Zadat poptávku | |
| 1048 WHR17821 |
C00323233
480132100289 |
SLEEVE RIGHT BLACK | Na dotaz | Zadat poptávku | |
| 1049 WHR17821 |
C00332708
481253288101 |
HINGE BUSHING BLACK | Na dotaz | Zadat poptávku | |
| 1050 WHR17821 |
C00325328
481010568481 |
Bushing grey, MG | Na dotaz | Zadat poptávku | |
| 1051 WHR17821 |
C00325329
481010568491 |
Sleeve right grey MG | Na dotaz | Zadat poptávku | |
| 1052 WHR17821 |
C00325330
481010568493 |
Sleeve left grey, MG | Na dotaz | Zadat poptávku | |
| 1100 WHR17821 |
C00316730
481010497054 |
Dekorační lišta madla chladničky Whirlpool (575 mm) | 320 Kč
€ 12.60 |
||
| 1117 WHR17821 |
C00312872
481010465600 |
Logo náhrada C00312872 | Na dotaz | Zadat poptávku | |
| 1520 WHR17821 |
C00325162
481010550797 |
DOOR DAIRY HIGHLY TRANSPARENT | Na dotaz | Zadat poptávku | |
| 1521 WHR17821 |
C00325178
481010552441 |
Police lahví uz nebude !!!!! | Na dotaz | Zadat poptávku | |
| 1523 WHR17821 |
C00325176
481010552428 |
Police dveří chladničky Whirlpool | 1 131 Kč
€ 44.70 |
||
| 1524 WHR17821 |
C00325244
481010561896 |
Flap MAXI BOX highly transparent | Na dotaz | Zadat poptávku | |
| 1525 WHR17821 |
C00325407
481010575859 |
Přepážka do police na lahve | 31 Kč
€ 1.20 |
||
| 1561 WHR17821 |
C00325403
481010575475 |
Držák vajec zkosený | 115 Kč
€ 4.50 |
||
| 1810 WHR17821 |
C00323704
480132102737 |
Shock absorber rubber f.motor fan | Na dotaz | Zadat poptávku | |
| 1830 WHR17821 |
C00324653
481010496698 |
CROSSBAR COMPRESSOR + REAR FEET | Na dotaz | Zadat poptávku | |
| 1850 WHR17821 |
C00320286
481010451034 |
noha lednice | 67 Kč
€ 2.60 |
||
| 1851 WHR17821 |
C00522120
481010443535 |
Noha (zadní) chladničky Whirlpool | 158 Kč
€ 6.20 |
||
| 1852 WHR17821 |
C00316341
481010372681 |
závěs dolní levý | Na dotaz | Zadat poptávku | |
| 1853 WHR17821 |
C00325302
481010567252 |
Cover lower hinge grey MG | Na dotaz | Zadat poptávku | |
| 1854 WHR17821 |
C00320873
481010567254 |
Cover foot bracket,grey MG | Na dotaz | Zadat poptávku | |
| 1880 WHR17821 |
C00320887
481010372678 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 1889 WHR17821 |
C00324639
481010493638 |
Čep závěsu | 108 Kč
€ 4.30 |
||
| 1910 WHR17821 |
C00324220
481010411545 |
Magnetic seal refrigerator,grey | Na dotaz | Zadat poptávku | |
| 1911 WHR17821 |
C00324219
481010411543 |
Magnetic seal freezer,grey | Na dotaz | Zadat poptávku | |
| 2018 WHR17821 |
C00394132
480132101676 |
Cable harness PB-UI,hybrid Kirchoff | Na dotaz | Zadat poptávku | |
| 2030 WHR17821 |
C00323998
481010369534 |
Kryt zadní | 226 Kč
€ 8.90 |
||
| 2031 WHR17821 |
C00323996
481010369519 |
Insert EPS right | Na dotaz | Zadat poptávku | |
| 2032 WHR17821 |
C00323995
481010369518 |
Insert EPS left | Na dotaz | Zadat poptávku | |
| 2330 WHR17821 |
C00387073
481010556115 |
Support separator | Na dotaz | Zadat poptávku | |
| 2393 WHR17821 |
C00324402
481010461987 |
Support twist ice maker | Na dotaz | Zadat poptávku | |
| 2397 WHR17821 |
C00324405
481010462069 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 2398 WHR17821 |
C00324403
481010461992 |
Ice maker twist assy | Na dotaz | Zadat poptávku | |
| 2410 WHR17821 |
C00324211
481010410815 |
Crisper highly transp. | Na dotaz | Zadat poptávku | |
| 2413 WHR17821 |
C00325231
481010560003 |
Šuplík na maso do chladničky | 1 421 Kč
€ 56.10 |
||
| 2416 WHR17821 |
C00325402
481010575338 |
Flap SUPER FAST FREEZING | Na dotaz | Zadat poptávku | |
| 2418 WHR17821 |
C00387074
481010556109 |
Separator crisper | Na dotaz | Zadat poptávku | |
| 2440 WHR17821 |
C00324034
481010378912 |
Crisper cover +profiles | Na dotaz | Zadat poptávku | |
| 2441 WHR17821 |
C00313599
481010386627 |
Glass shelf +profiles | Na dotaz | Zadat poptávku | |
| 2442 WHR17821 |
C00318667
481010415316 |
Glass shelf FFC+profiles | 985 Kč
€ 38.90 |
||
| 2444 WHR17821 |
C00325391
481010574151 |
Shelf freezer,highly trans | Na dotaz | Zadat poptávku | |
| 2493 WHR17821 |
C00324285
481010426208 |
Trim Shelf front,grey metalic | Na dotaz | Zadat poptávku | |
| 2498 WHR17821 |
C00323978
481010365483 |
Krycí lišta skleněné police - zadní | 543 Kč
€ 21.40 |
||
| 2613 WHR17821 |
C00324172
481010402394 |
Rail f.crisper | Na dotaz | Zadat poptávku | |
| 2616 WHR17821 |
C00325080
481010538993 |
Slide for FFC drawer | Na dotaz | Zadat poptávku | |
| 3010 WHR17821 |
C00442626
481010589135 |
CONTROL PANEL GREY MG | Na dotaz | Zadat poptávku | |
| 3011 WHR17821 |
C00380393
481010457851 |
Insert panel KIRCHOFF L70 WH A+ | Na dotaz | Zadat poptávku | |
| 3014 WHR17821 |
C00325229
481010559559 |
Cover contr.panel grey MG | Na dotaz | Zadat poptávku | |
| 3015 WHR17821 |
C00325218
481010557304 |
Cover contr.panel grey MG,hinge side | Na dotaz | Zadat poptávku | |
| 4020 WHR17821 |
C00377254
481010534035 |
COMPRESSOR HMK12AA TL CP (AL) | Na dotaz | Zadat poptávku | |
| 4021 WHR17821 |
C00319502
481241870024 |
miska na kondenzat | 388 Kč
€ 15.30 |
||
| 4022 WHR17821 |
C00318606
480132101608 |
ventil | Na dotaz | Zadat poptávku | |
| 4025 WHR17821 |
C00324251
481010421342 |
FIXATION COMPRESSOR | Na dotaz | Zadat poptávku | |
| 4400 WHR17821 |
C00316811
480132101184 |
Fan box GW cpl. VELA with switch | Na dotaz | Zadat poptávku | |
| 4410 WHR17821 |
C00323700
480132102727 |
motor ventilátoru 230V, 50/60Hz, 4W | 2 006 Kč
€ 79.20 |
||
| 4411 WHR17821 |
C00323701
480132102729 |
Fan wheel diameter 90 mm | Na dotaz | Zadat poptávku | |
| 4412 WHR17821 |
C00323699
480132102726 |
Support fan motor 1 | Na dotaz | Zadat poptávku | |
| 4413 WHR17821 |
C00323698
480132102725 |
Support fan motor 2 (THICK MOTOR) | Na dotaz | Zadat poptávku | |
| 4510 WHR17821 |
C00316955
480132102718 |
Heating element defrost 190 W | Na dotaz | Zadat poptávku | |
| 4900 WHR17821 |
C00398390
481052308333 |
Cable mains, 1650mm 10-16A/250V black | Na dotaz | Zadat poptávku | |
| 4910 WHR17821 |
C00323692
480132102717 |
TERMINAL COVER EVAPORATOR INARCA | Na dotaz | Zadat poptávku | |
| 4912 WHR17821 |
C00325185
481010553841 |
Cover GW fan AIR FILTER | Na dotaz | Zadat poptávku | |
| 4913 WHR17821 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 5210 WHR17821 |
C00380402
481010581647 |
Control board ASSEMBLY 1CV L70 | Na dotaz | Zadat poptávku | |
| 5260 WHR17821 |
C00376915
480132100283 |
jednotka tlacitek | 3 973 Kč
€ 156.90 |
||
| 5612 WHR17821 |
C00267004
481229088112 |
konektor | 175 Kč
€ 6.90 |
||
| 5620 WHR17821 |
C00320867
480132102879 |
Pojistka tepelná | 433 Kč
€ 17.10 |
||
| 5710 WHR17821 |
C00324378
481010455651 |
ventil | 2 536 Kč
€ 100.10 |
||
| 6140 WHR17821 |
C00327471
481228038097 |
Monoblock | 1 594 Kč
€ 62.90 |
||
| 6520 WHR17821 |
C00315544
481010555027 |
led osvetleni | 1 354 Kč
€ 53.50 |
||
| 6550 WHR17821 |
C00311221
481010398859 |
Spínač světla - chladnička | 592 Kč
€ 23.40 |
||
| 6914 WHR17821 |
C00324835
481010583227 |
Cover sensor printed | Na dotaz | Zadat poptávku | |
| 6915 WHR17821 |
C00323525
480132101611 |
kryt senzoru | 199 Kč
€ 7.90 |
||
| 6917 WHR17821 |
C00314452
481231019153 |
senzor | 1 225 Kč
€ 48.40 |
||
| 7400 WHR17821 |
C00324085
481010390505 |
CONDENSER L70 | Na dotaz | Zadat poptávku | |
| 7430 WHR17821 |
C00325194
481010554211 |
Cover MF printed | Na dotaz | Zadat poptávku | |
| 7431 WHR17821 |
C00323997
481010369529 |
Kryt přední | 1 111 Kč
€ 43.90 |
||
| 7450 WHR17821 |
C00323695
480132102722 |
Evaporator | Na dotaz | Zadat poptávku | |
| 7620 WHR17821 |
C00312451
481248048172 |
Antibakteriální filtr Microban pro chladničky ANTF-MIC náhrada C00629721 | Na dotaz | Zadat poptávku | |
| 7640 WHR17821 |
C00326487
481052346842 |
FILTRDEHYDRÁTOR | Na dotaz | Zadat poptávku | |
| 7830 WHR17821 |
C00313237
481281719208 |
VALVE, 1/4 BODY+TUBE 100MM | Na dotaz | Zadat poptávku | |
| 9040 WHR17821 |
C00325297
481010566681 |
zaslepka | 57 Kč
€ 2.30 |
||
| 9041 WHR17821 |
C00325298
481010566682 |
zaslepka | 63 Kč
€ 2.50 |
||
| 9410 WHR17821 |
C00314165
481010538497 |
mezikus polic | Na dotaz | Zadat poptávku | |
| 9650 WHR17821 |
C00324304
481010435822 |
Stopper square white | Na dotaz | Zadat poptávku | |
| 9651 WHR17821 |
C00324951
481010600779 |
Záslepky pro volně stojící chladničky | 112 Kč
€ 4.40 |
||
| 9655 WHR17821 |
C00324306
481010435835 |
STOPPER SQUARE BLACK | Na dotaz | Zadat poptávku | |
| 9932 WHR17821 |
C00326483
481052303195 |
čistič odtoku | 219 Kč
€ 8.60 |
||
| 999 WHR17821 |
C00346536
488000346536 |
NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
