WHIRLPOOL WVG26 UPRIGHT FREEZERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WVG26 UPRIGHT FREEZERS WP |
| Kód 12NC: | 850461682000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící mrazáky |
| Další podobné modely: | 850461671000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

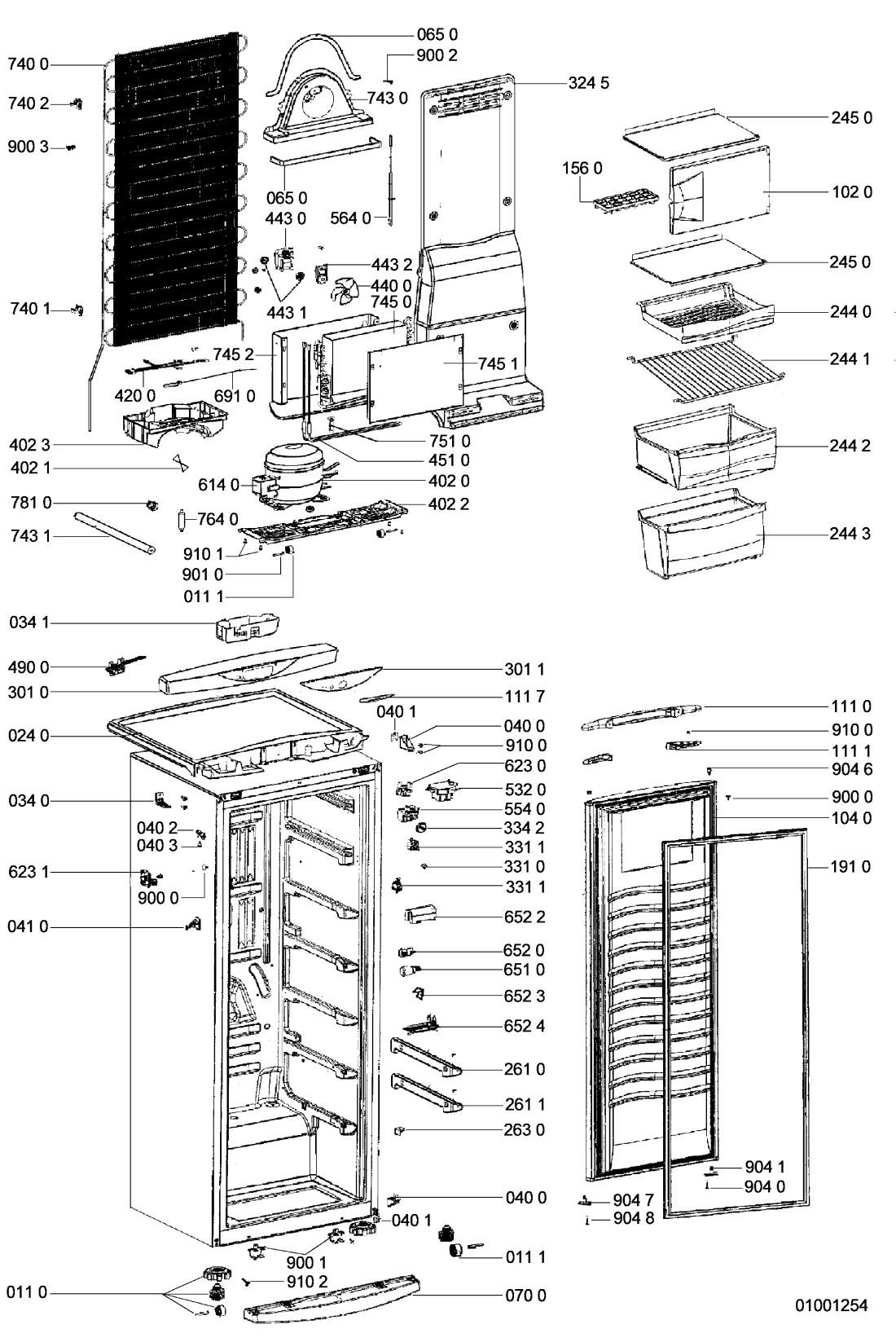

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR71714 |
C00576391
481246248394 |
Adjusting screw.. | Na dotaz | Zadat poptávku | |
| 0111 WHR71714 |
C00491928
481246238133 |
Roller | Na dotaz | Zadat poptávku | |
| 0240 WHR71714 |
C00576380
481246098037 |
Panel.. | Na dotaz | Zadat poptávku | |
| 0340 WHR71714 |
C00482883
481240478518 |
Support | Na dotaz | Zadat poptávku | |
| 0341 WHR71714 |
C00482517
481221848019 |
Cabinet | Na dotaz | Zadat poptávku | |
| 0400 WHR71714 |
C00501909
481241719076 |
Hinge,upper + lower | Na dotaz | Zadat poptávku | |
| 0401 WHR71714 |
C00491670
481241778082 |
Shim | Na dotaz | Zadat poptávku | |
| 0402 WHR71714 |
C00627159
481241719077 |
Hinge upp DOOR FAST FREEZING. | Na dotaz | Zadat poptávku | |
| 0403 WHR71714 |
C00492045
481250218584 |
Screw | Na dotaz | Zadat poptávku | |
| 0410 WHR71714 |
C00488961
481241719078 |
Hinge lower DOOR FAST FREEZING | Na dotaz | Zadat poptávku | |
| 0650 WHR71714 |
C00576402
481246638065 |
Insulation.. | Na dotaz | Zadat poptávku | |
| 0700 WHR71714 |
C00576381
481246098038 |
Panel.. | Na dotaz | Zadat poptávku | |
| 1020 WHR71714 |
C00576183
481241618511 |
Evapor.door | Na dotaz | Zadat poptávku | |
| 1040 WHR71714 |
C00576181
481241618508 |
Door refriger... | Na dotaz | Zadat poptávku | |
| 1110 WHR71714 |
C00487793
481249848011 |
Handle | Na dotaz | Zadat poptávku | |
| 1111 WHR71714 |
C00488579
481231018797 |
Insert | Na dotaz | Zadat poptávku | |
| 1117 WHR71714 |
C00576352
481245918188 |
PLAQUE DE MARQUE.. | Na dotaz | Zadat poptávku | |
| 1560 WHR71714 |
C00576209
481241848562 |
Icecube tray.. | Na dotaz | Zadat poptávku | |
| 1910 WHR71714 |
C00576408
481246818127 |
Magnetic seal.. | Na dotaz | Zadat poptávku | |
| 2440 WHR71714 |
C00576341
481245818723 |
Drawer.. | Na dotaz | Zadat poptávku | |
| 2441 WHR71714 |
C00487580
481241878081 |
Grid | Na dotaz | Zadat poptávku | |
| 2442 WHR71714 |
C00485023
481241879757 |
Drawer | Na dotaz | Zadat poptávku | |
| 2443 WHR71714 |
C00576219
481241879755 |
Drawer.. | Na dotaz | Zadat poptávku | |
| 2450 WHR71714 |
C00576223
481241879756 |
Glass shelf.. | Na dotaz | Zadat poptávku | |
| 2610 WHR71714 |
C00576149
481240418304 |
Rail ,right.. | Na dotaz | Zadat poptávku | |
| 2611 WHR71714 |
C00576150
481240418305 |
Rail ,left.. | Na dotaz | Zadat poptávku | |
| 2630 WHR71714 |
C00482836
481240418307 |
Slide | Na dotaz | Zadat poptávku | |
| 3010 WHR71714 |
C00490034
481246038123 |
Upper front white | Na dotaz | Zadat poptávku | |
| 3011 WHR71714 |
C00576055
481221818015 |
Display. | Na dotaz | Zadat poptávku | |
| 3245 WHR71714 |
C00484029
481246228346 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 3311 WHR71714 |
C00493519
481241368015 |
Switch | Na dotaz | Zadat poptávku | |
| 3342 WHR71714 |
C00576166
481241278821 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 4020 WHR71714 |
C00482709
481236038785 |
Compressor FFI 7,5 HAK-127V | Na dotaz | Zadat poptávku | |
| 4021 WHR71714 |
C00500771
481236038783 |
Strap ,compressor | Na dotaz | Zadat poptávku | |
| 4022 WHR71714 |
C00576151
481240418308 |
Base compressor.. | Na dotaz | Zadat poptávku | |
| 4200 WHR71714 |
C00484071
481251148284 |
Capacitor Kit | Na dotaz | Zadat poptávku | |
| 4400 WHR71714 |
C00488649
481236118341 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 4430 WHR71714 |
C00488666
481236138049 |
Motor ,fan/127V/60Hz | Na dotaz | Zadat poptávku | |
| 4431 WHR71714 |
C00485983
481246228345 |
Damper | Na dotaz | Zadat poptávku | |
| 4510 WHR71714 |
C00488520
481225948147 |
Heating element | Na dotaz | Zadat poptávku | |
| 4900 WHR71714 |
C00576117
481221848024 |
Cable harness.. | Na dotaz | Zadat poptávku | |
| 5540 WHR71714 |
C00491042
481227148002 |
Thermostat | Na dotaz | Zadat poptávku | |
| 5640 WHR71714 |
C00486081
481246418077 |
Fuse | Na dotaz | Zadat poptávku | |
| 6140 WHR71714 |
C00490995
481227118022 |
Relay +PROT. TERM. FFI 7,5 H | Na dotaz | Zadat poptávku | |
| 6230 WHR71714 |
C00576056
481221838146 |
Plug female 127V | Na dotaz | Zadat poptávku | |
| 6231 WHR71714 |
C00488711
481240418306 |
Lock | Na dotaz | Zadat poptávku | |
| 6520 WHR71714 |
C00576052
481213488035 |
Holder,lamp. | Na dotaz | Zadat poptávku | |
| 6522 WHR71714 |
C00576053
481213488036 |
Lamp shield. | Na dotaz | Zadat poptávku | |
| 6523 WHR71714 |
C00484600
481213488037 |
Protector ,Lamp | Na dotaz | Zadat poptávku | |
| 6910 WHR71714 |
C00312619
481213428075 |
senzor teploty | 1 456 Kč
€ 57.50 |
||
| 7400 WHR71714 |
C00576438
481251148286 |
Condenser.. | Na dotaz | Zadat poptávku | |
| 7401 WHR71714 |
C00576152
481240418309 |
Fastener.. | Na dotaz | Zadat poptávku | |
| 7402 WHR71714 |
C00621380
481240418311 |
Fastener. | Na dotaz | Zadat poptávku | |
| 7430 WHR71714 |
C00576210
481241848563 |
Cabinet.. | Na dotaz | Zadat poptávku | |
| 7431 WHR71714 |
C00576446
481253528008 |
Gasket.. | Na dotaz | Zadat poptávku | |
| 7450 WHR71714 |
C00576437
481251148285 |
Evaporator.. | Na dotaz | Zadat poptávku | |
| 7452 WHR71714 |
C00576384
481246218214 |
Gasket.. | Na dotaz | Zadat poptávku | |
| 7510 WHR71714 |
C00576400
481246628133 |
Drainhose.. | Na dotaz | Zadat poptávku | |
| 7640 WHR71714 |
C00345711
481248028051 |
Dryer | Na dotaz | Zadat poptávku | |
| 7810 WHR71714 |
C00493822
481253538102 |
Valve | Na dotaz | Zadat poptávku | |
| 9000 WHR71714 |
C00342336
481244229065 |
Cover white | Na dotaz | Zadat poptávku | |
| 9002 WHR71714 |
C00491981
481249148013 |
Clip fix | Na dotaz | Zadat poptávku | |
| 9003 WHR71714 |
C00576153
481240418312 |
Clamp.. | Na dotaz | Zadat poptávku | |
| 9010 WHR71714 |
C00491491
481240418313 |
Shaft | Na dotaz | Zadat poptávku | |
| 9041 WHR71714 |
C00529680
481246228344 |
Bushing right | Na dotaz | Zadat poptávku | |
| 9046 WHR71714 |
C00342340
481246228342 |
Cover WH | Na dotaz | Zadat poptávku | |
| 9047 WHR71714 |
C00529681
481246228347 |
Bushing left | Na dotaz | Zadat poptávku | |
| 9048 WHR71714 |
C00576419
481250238349 |
Screw.. | Na dotaz | Zadat poptávku | |
| 9100 WHR71714 |
C00574583
481250238166 |
Screw. | Na dotaz | Zadat poptávku | |
| 9101 WHR71714 |
C00548216
481250518395 |
Screw. | Na dotaz | Zadat poptávku | |
| 9102 WHR71714 |
C00529860
481250518394 |
Screw 8mm X 12.7mm | Na dotaz | Zadat poptávku | |
| 999 WHR71714 |
C00693919 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
